Summary of Contents for Void IMPULSE t SERIES

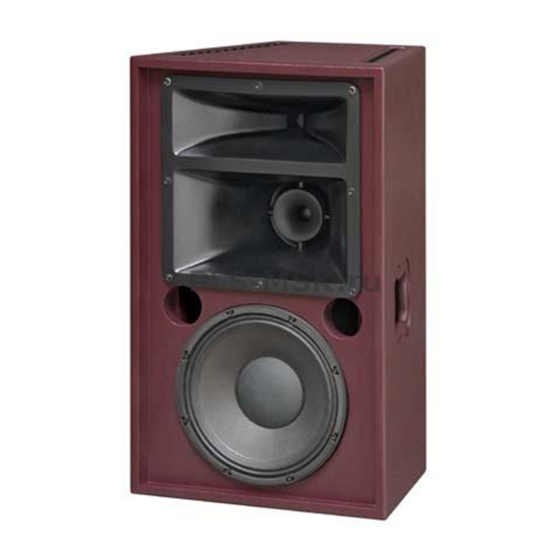

- Page 1 OWNER'S MANUAL IMPULSE t SERIES...
- Page 2 OWNER'S MANUAL IMPULSE t SERIES Impulse t...
-
Page 3: System Connections
All Impulse t series speakon connectors are wired in parallel, so either speakon can be used as the input. The other speakon can be used as a link output. A positive signal to the + pin gives a forward cone movement on all Impulse t enclosures. -
Page 4: Technical Specifications
Impulse t TECHNICAL SPECIFICATIONS Impulse 3t Impulse 4t Frequency Response : 60 Hz - 21 KHz -3dB 65 Hz - 20 KHz -3dB Sensitivity : : 98 dB 1w/1m 101 dB 1w/1m MHF : 106 dB 1w/1m Impedance : LF/MHF 8 ohms LF/HF 8 ohms Power Handling : : 500 watts rms... - Page 5 Impulse t TECHNICAL SPECIFICATIONS Impulse 5t Impulse 8t Frequency Response : 55 Hz - 165 Hz -3dB 45 Hz - 145 Hz -3dB Sensitivity : 105 dB 1w/1m 106 dB 1w/1m Impedance : 4 ohms 4 ohms Power Handling : 1200 watts rms 1600 watts rms Maximum Output :...
-
Page 6: Worldwide Service
Failure to do so could delay the repair of your product. Warranty Registration Please take time to fill out the warranty registration form at the back of this manual and return it to Void Acoustics. Environmental WEEE Mark If you want to dispose of this product, do not mix with general household waste. -
Page 7: Limited Warranty
Authorised Void Dealer) that it is free of defects in materials and workmanship and that each product will meet or exceed all factory published specifications for each respective model. Void agrees to repair or replace (at its discretion) all defective parts at no charge for labour or materials; subject to following provisions:... - Page 9 Void Acoustics Unit 10B Dawkins Road Ind Est Poole Dorset BH15 4JD...
