Summary of Contents for Void Airten V3

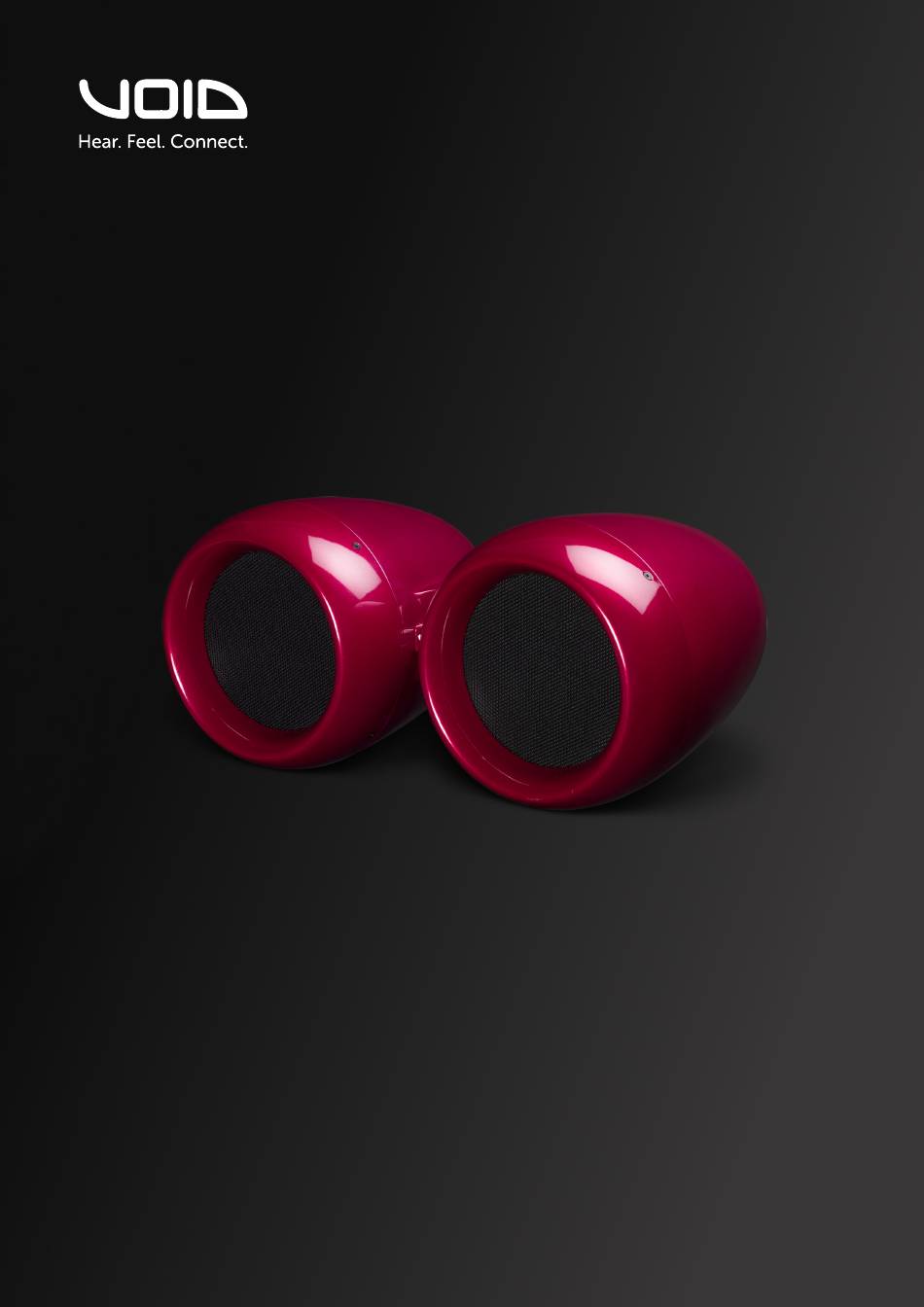

- Page 1 Airten V3 Big impact, small footprint U S E R G U I D E V 2 . 0...
- Page 2 For the latest online version, visit: www.voidacoustics.com Void Acoustics and the Void logo are registered trademarks of Void Acoustics Research Ltd. in the United Kingdom, USA and other countries; all other Void trademarks are the property of Void Acoustics Research Ltd.
-
Page 3: Table Of Contents
Bias Q3/Q5 speakON wiring Mounting Installation safety Airten pole mounting Attaching the stud bracket Airten wall mounting Airten ceiling mounting Pole mounting on U bracket Service Return authorisation Shipping and packing considerations Appendix UG10517-2.0 - Airten V3 User Guide V2.0 Page 3... -
Page 4: Safety And Regulations
Void Acoustics Research Ltd for such as when the power-supply cord or plug is damaged, liquid reprocessing. -
Page 5: Unpacking And Checking
If your shipment is incomplete or any of its contents are found to be damaged; inform the shipping company and inform your dealer. Airten V3 loudspeakers are heavy (20 kg/44.1 lbs) and require a minimum two people to lift. •... -
Page 6: About
In buying this product, you are now part of the Void family and we hope using it brings you years of satisfaction. This guide will help you both use this product safely and ensure it performs to its full capability. -
Page 7: Airten V3 Specifications
Enclosure Fibreglass composite Mounting Integral mounting plate Finish Smooth cellulose Colour Custom colours available upon request AES2 - 1984 compliant Calculated Figure 3.1: Horizontal directivity isobars Figure 3.2: Vertical directivity isobars UG10517-2.0 - Airten V3 User Guide V2.0 Page 7... -
Page 8: Airten Dimension
3 About 3.5 Airten V3 dimensions (4 POS) Figure 3.3: Dimensions UG10517-2.0 - Airten V3 User Guide V2.0 Page 8... -
Page 9: Cabling And Wiring
4 Cable and Wiring 4.1 Electrical safety To avoid electrical hazards please note the following: • Do not access the inside of any electrical equipment. Refer servicing to Void- approved service agents 4.2 Cable considerations for fixed installations We recommend specifying installation-grade Low Smoke Zero Halogen (LSZH) cables for permanent installations. -
Page 10: Bias D1/Q1/Q2 Phoenix Wiring
Figure 4.4: Bias Q3 Figure 4.5: Bias Q5 Bias Q3/Q5 Output 1 Output LF (2 x 10”) and HF (1.4”) 2 (2 Ω load to amplifier) Max quantity per channel UG10517-2.0 - Airten V3 User Guide V2.0 Page 10... -
Page 11: Mounting
• Use only Void-approved mounting equipment and accessories • Secondary safeties should be provided in all instances where cabinets are flying or fixing overhead and should conform to local regulations UG10517-2.0 - Airten V3 User Guide V2.0 Page 11... -
Page 12: Airten Pole Mounting
M8 bolts. Figure 5.2: M8 socket cap removal Step 2: Place the T75 Pole Bracket into position and insert the M8 bolts. Figure 5.3: T75 pole bracket positioning UG10517-2.0 - Airten V3 User Guide V2.0 Page 12... - Page 13 Figure 5.5: T75 pole mount positioning Step 5: Finally ensure that the Airten loudspeaker is safely in place by tightening the wingnut. Maximum vertical rotation: 0° Maximum horizontal rotation: 360° Figure 5.6: T75 pole mount UG10517-2.0 - Airten V3 User Guide V2.0 Page 13...
-
Page 14: Attaching The Stud Bracket
M8 bolts. Figure 5.8: M8 socket cap removal Step 2: Place the T75 - Stud Bracket into position and insert the M8 bolts. Figure 5.9: T75 - Stud Bracket positioning UG10517-2.0 - Airten V3 User Guide V2.0 Page 14... - Page 15 Insert the M12 x 70 mm bolt through the non- threaded side and tighten. Then tighten the M12 nut. Figure 5.11: T75 - Stud Bracket U bracket fixing UG10517-2.0 - Airten V3 User Guide V2.0 Page 15...
-
Page 16: Airten Wall Mounting
3. Figure 5.13: Airten loudspeaker positioning Step 2: With the Airten in position attach the M10 bolt above but do not tighten. Figure 5.14: Airten loudspeaker fixing UG10517-2.0 - Airten V3 User Guide V2.0 Page 16... - Page 17 Attach the secondary bond (safety wire) to the central box section. The safety wire must be rated to 20 kg with a safety factor conforming to local regulations. Figure 5.16: Safety wire attachment UG10517-2.0 - Airten V3 User Guide V2.0 Page 17...
-
Page 18: Airten Ceiling Mounting
The bracket is threaded for the bolt on one side only. Insert the M12 x 70 mm bolt through the non-threaded side and tighten. Then tighten the M12 nut. Figure 5.19: Airten positioning UG10517-2.0 - Airten V3 User Guide V2.0 Page 18... - Page 19 The safety wire must be rated to 20 kg with a safety factor conforming to local regulations. Max horizontal rotation: 360° Max vertical rotation: 90° Figure 5.20: Safety wire attachment Figure 5.21: Safety wire attachment detail UG10517-2.0 - Airten V3 User Guide V2.0 Page 19...
-
Page 20: Pole Mounting On U Bracket
Remove the M12 bolt from the pole mount sleeve. Figure 5.22: Pole mount bracket removal Step 2: Remove the U bracket from the T75 stud bracket. Figure 5.23: Remove U bracket UG10517-2.0 - Airten V3 User Guide V2.0 Page 20... - Page 21 Then tighten the M12 nut. Figure 5.25: Remove U bracket Step 5: Attach the T75 bracket to the loudspeaker with all four M8 bolts and washers. Figure 5.26: Attaching the bracket UG10517-2.0 - Airten V3 User Guide V2.0 Page 21...
- Page 22 Adjust the loudspeaker into the desired position and then tighten the wing nut on the pole mount bracket. Max horizontal rotation: 360° Max vertical rotation: 90° Figure 5.28: Adjusting the loudspeaker position UG10517-2.0 - Airten V3 User Guide V2.0 Page 22...
-
Page 23: Service
6.2 Shipping and packing considerations • When sending a Void Airten loudspeaker to an authorised service centre, please write a detailed description of the fault and list any other equipment used in conjunction with the faulty product. -
Page 24: Appendix
The external dimensions shall be (H) 303 mm x (W) 681 mm x (D) 366 mm (11.9” x 26.8” x 14.4”). Weight shall be 20 kg (44.1 lbs). The loudspeaker shall be the Void Acoustics Airten V3. UG10517-2.0 - Airten V3 User Guide V2.0... - Page 25 7 Appendix Accessories IT3340 - Airten V3 Flightcase (holds two) UG10517-2.0 - Airten V3 User Guide V2.0 Page 25...
- Page 26 H E A D O F F I C E Void Acoustics Research Ltd, Unit 15, Dawkins Road Industrial Estate, Poole, Dorset, BH15 4JY United Kingdom Call: +44(0) 1202 666006 Email: info@voidacoustics.com voidacoustics.com Void Acoustics Research Limited is a company registered in England and Wales registration number 07533536...
