Features
868Mhz
•
Ready to Use Remote Control
•
8 Channel Systems
•
Up to 8 per transmitter
•
Range: Up to 2000 metres LOS
•
Highly secure transmission
•
protocol for reliable operation
Relay Outputs: Momentary,
•
Latching, Timed
Receiver IP65
•
Description

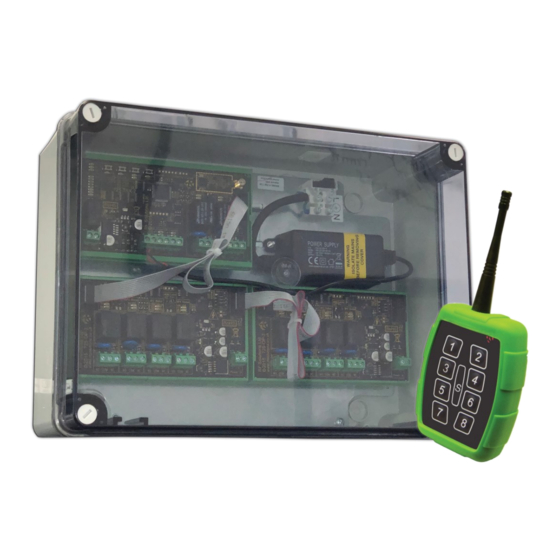

Available as 4 - 16 channels the Professional range are ready to operate general purpose
remote control systems using a highly secure transmission protocol for reliable operation.
The receiver unit is rated IP65 with integral power supply containing industrial standard
'DIN Rail' 'receiver' and 'relay output' modules (interchangeable). Other modules with higher
switching capability are available.
The relay outputs may be user set to operate as latching or momentary. Outputs may be
set to timed from 0-60 minutes.
Additional transmitters can be added using the easy learn procedure. Any transmitter
switch can be mapped to any individual or combination of receiver output(s).
Professional Radio Control
Applications
Lighting Control
•
General Purpose Remote Switching
•
Door Control
•
Quarry Remote Switching
•
Access Control
•
Machinery Control
•
DS-PROTRAP-4
PRO TRAP Series
PRO-TRAP
