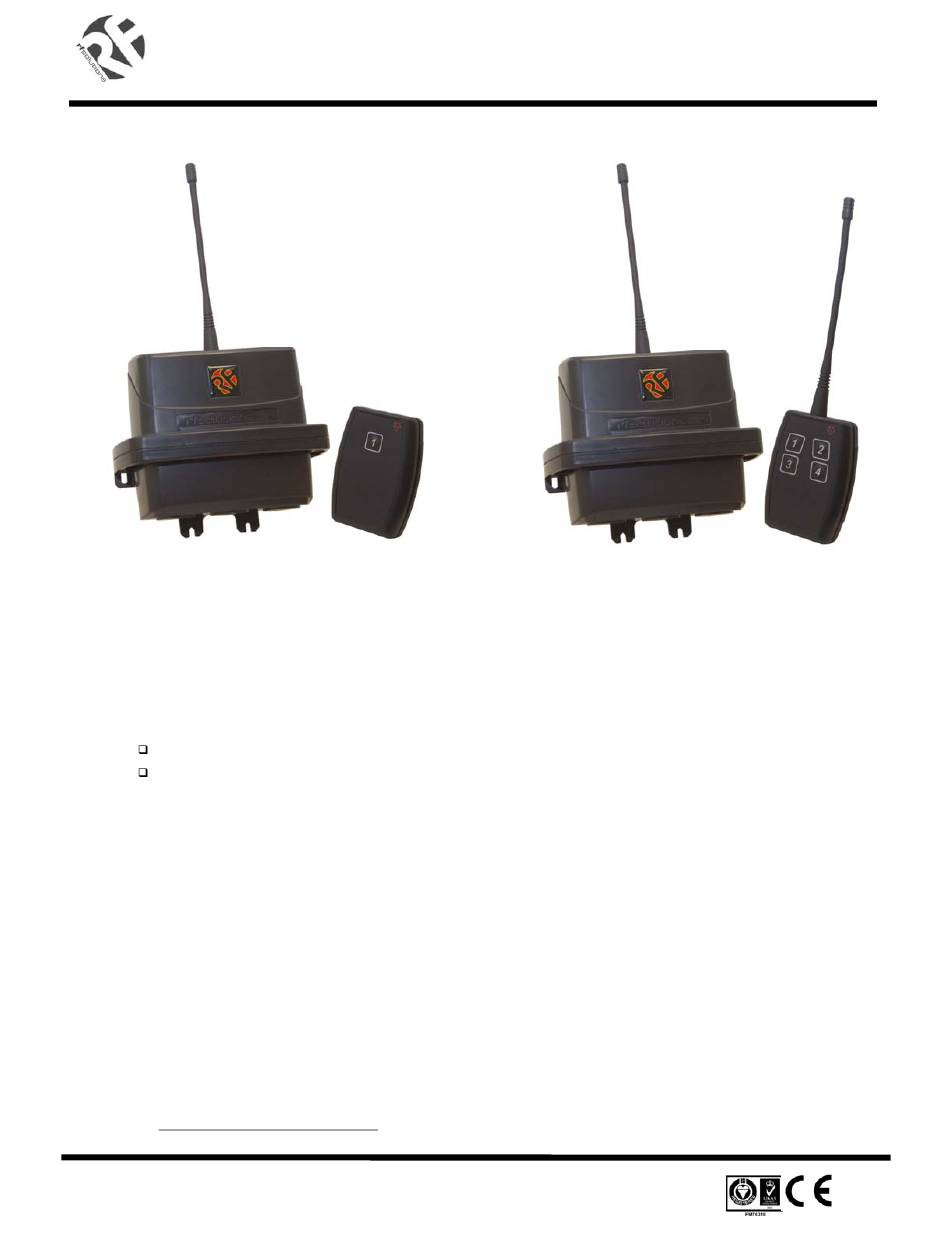

Features
•
1,2,4 or 8 Channel Systems
•
12 / 24Vdc or 230Vac Supply
•
CE and FCC Approved Tx
•
Range
FireFly up to 100 metres
FireBlade up to 500 metres
•
Reliable FM Technology
•
High Security RF Protocol
•
'Easy Learn' Tx Encoder Feature
•
Easy Installation Via Screw Terminals.
•
4 Relays 6A @ 230Vac
•
Momentary / Latch / Timed Outputs
•
Timed Output Adjustable 0 To 5 mins
•
Receiver Rated IP68
•
Versatile operation modes: Many to Many,
One to Many, Many to One.
1
See FCC conditions Page 6
DSFIREFLY-3a
August 08
R
R
C
ADIO
EMOTE
1
©2008 REG No 277 4001, ENGLAND.
S
ONTROL
YSTEMS
Applications
•
Lighting Control
•
General Purpose Remote Switching
•
Industrial remote Switching
•
Access Control
Description
A Range of general purpose remote control systems
Installation simply requires connections to power
supply and the output relay screw terminals. The
output relays are activated by the button press on the
transmitter encoder.

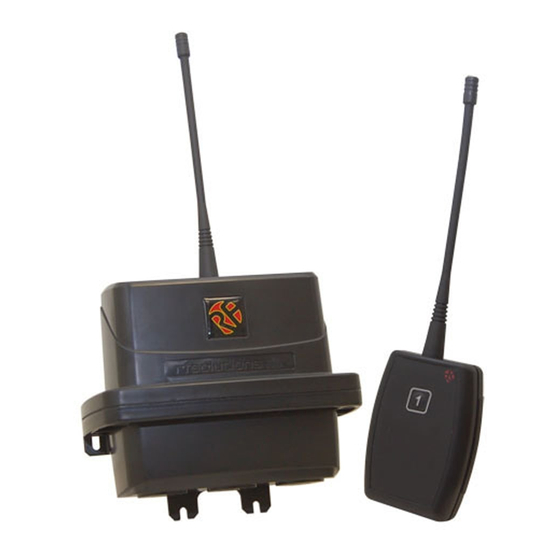

Housed in a rugged IP68 weatherproof enclosure,
the receiver has the capacity to learn up to 15
transmitter button pairings. These are memorised
even if the power is removed.
Each individual switch on each of the transmitters
may be paired with any or all of the receiver relay
outputs.
The decoder is supplied in an IP68 rated enclosure
with Cable Gland and wall mounting lugs.
F
F
IRE
LY
F
B
IRE
LADE
Page 1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RF SOLUTIONS FIREFLY Series
Summary of Contents for RF SOLUTIONS FIREFLY Series
- Page 1 ADIO EMOTE ONTROL YSTEMS LADE Applications Features • • Lighting Control 1,2,4 or 8 Channel Systems • • General Purpose Remote Switching 12 / 24Vdc or 230Vac Supply • • Industrial remote Switching CE and FCC Approved Tx • • Access Control Range FireFly up to 100 metres...
-
Page 2: Custom Options
ADIO EMOTE ONTROL YSTEMS LADE FireFly Systems LOS Range 100m Freq Range** Part Number Description (MHz) (Metres) FM RC System 1 ch 433.92 FIREFLY-S1 FM RC System 2 ch 433.92 FIREFLY-S2 FM RC System 4 ch 433.92 FIREFLY-S4 Additional FireFly Transmitters Freq Range** Part Number... -
Page 3: Power Supply
ADIO EMOTE ONTROL YSTEMS LADE Power Supply This unit is designed to be a fixed installation, operated from either 12/24Vdc or 230Vac. Under no circumstances should the receiver be connected to more than one supply. Before removing the cover ensure that the mains input supply is isolated. Maintenance to the product that involves removal of the cover should only be carried out by a competent person or qualified electrician. -
Page 4: Receiver Outputs
ADIO EMOTE ONTROL YSTEMS LADE To learn a new transmitter switch follow this procedure Any transmitter button can be learnt to one or many of the receiver output relays. Each button must be learnt to each relay individually by following this procedure: To select the receiver output relay to learn to: Briefly press the receiver Learn switch (SW1) once The Learn LED will flash once to indicate output relay 1 is selected... -
Page 5: Technical Specifications
ADIO EMOTE ONTROL YSTEMS LADE Technical Specifications Transmitters : FireFly, FireBlade Enclosure Rating: Standard IP40 (TBC) With IPKit IP65 (TBC) Battery Type: CR2032 (supplied) Dimensions: 90 x 54 x 27 mm (Note: FireBlade is supplied with external Antenna) Electrical Characteristics Typical Units Supply Voltage... - Page 6 ADIO EMOTE ONTROL YSTEMS LADE ©2008 REG No 277 4001, ENGLAND. Page 6 DSFIREFLY-3a August 08...
- Page 7 ADIO EMOTE ONTROL YSTEMS LADE Receiver Mechanical Dimensions R F Solutions Ltd., Unit 21, Cliffe Industrial Estate, Lewes, E. Sussex. BN8 6JL. England. Email : sales@rfsolutions.co.uk http://www.rfsolutions.co.uk Tel: +44 (0)1273 898 000 Fax: +44 (0)1273 480 661 Information contained in this document is believed to be accurate, however no representation or warranty is given and no liability is assumed by R.F. Solutions Ltd. with respect to the accuracy of such information.
