Applications
Garden Lighting
•
Pond pumps
•
Remote outdoor Switching
•
Access control
•
Industrial control
•
Features
4 switched channels rated at 2KW
•
4KW maximum load
•
Systems with 150m range
•
Long range transmitters
•
also available up to 1000m
230Vac supply
•
Completely waterproof ABS
•
enclosure (IP68)
All outputs momentary, latching
•
or timed
Easy "AUTO" pair function
•
Any switch maps to any relay or
•
multiple relays
868MHz Reliable FM
•
Technology
EMC Compliant for Europe
•
10 Cable entry points for easy
•
installation.

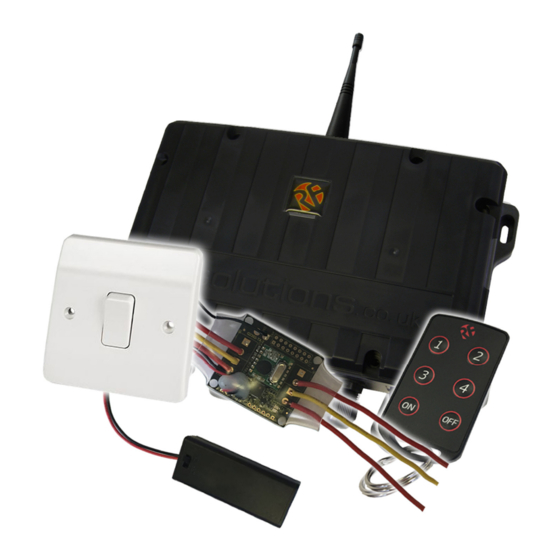

Professional Remote Control Kit
Description
Whatever your switching application the ELITE Remote control Kit
consists of a 4 channel key fob transmitter (FOBBER
switch module (SQUIDBOARD
SQUIDBOARD
SQUIDBOARD- - - - 868
SQUIDBOARD
- - - - RX)
RX) with 4 individual 230V outputs and a completely
RX)
RX)
waterproof IP68 enclosure.
The ELITE remote control system has been designed with the
requirements of electricians in mind. Therefore it can be used to switch all
lighting types as well as other applications such as, Water
Features, Electric gates and Garage Doors.
Using our one touch 'easy-learn' process each relay can be controlled from
any switch on any compatible transmitter.
Thanks to the latest technology each of the 4 outputs on the ELITE
receiver can be set to operate in a timed, momentary or latching mode for
complete flexibility.
DS-ELITE-KIT-3
ELITE-KIT
FOBBER- - - - 8T6
FOBBER
FOBBER
8T6), 2 channel light
8T6
8T6
868) and a 4 channel mains receiver (ELITE
868
868
ELITE
ELITE
ELITE
Advertisement
Table of Contents
Related Manuals for RF SOLUTIONS ELITE-KIT
Summary of Contents for RF SOLUTIONS ELITE-KIT
- Page 1 ELITE-KIT Professional Remote Control Kit Applications Garden Lighting • Pond pumps • Remote outdoor Switching • Access control • Industrial control • Features 4 switched channels rated at 2KW • 4KW maximum load • Systems with 150m range • Long range transmitters •...
-
Page 2: What's In The Box
ELITE-KIT Remote Control System What's in the box? SQUIDBOARD-868 2 channel transmitter Wall gang switch... - Page 3 ELITE-KIT Remote Control System...
- Page 4 ELITE-KIT Remote Control System Quick Installation Guide (systems only) The ELITE system provides 4 switches each capable of switching up to 1KW (4A @ 230V). Each channel is inde- pendent and separately fused. The ELITE Remote control system provides 230V mains switched outputs via each terminal.
-
Page 5: Connect The Battery
ELITE-KIT Remote Control System The SQUIDBOARD is very simple to connect and use. Wire a switch to either one or both of the inputs and close the contact to send a signal. As default the SQUIDBOARD is designed for use with 2 way switches—to change the state of a receiver like a light switch. -
Page 6: Advanced Operation
ELITE-KIT Remote Control System Advanced operation The ELITE system comes with one transmitter, this is already PAIRED and will operate the system out of the box. To AUTO-PAIR a new transmitter To PAIR a new ELITE handheld transmitter to the receiver box - simply press the SYNC button on the ELITE receiver board. - Page 7 ELITE-KIT Remote Control System Advanced operation continued… TEST MODE The ELITE comes with an in-built test mode which allows a user to check the signal strength of any compatible handheld: Press the TEST button on the PCB (see page 3 for button locations) Press any button/activate the transmitter which you want to test LEDs 1-8 will show a bar graph of the signal strength - the more LEDs flashing, the better the signal.
-
Page 8: Additional Transmitters
ELITE-KIT Remote Control System Additional Kit ELITE-RX Series Receiver: Receiver 4 output 230Vac Additional Transmitters ELITE-Xn Series 1000m Range Transmitters : With Wall Mounting Cradle and Lanyard 1 button, 2 button, 4 button, 6 button (with 4 channels and all on all off buttons),16 channel with 9 buttons available. -
Page 9: Technical Specifications
*The relay contacts in this unit are for functional use only and must not be used for isolation purposes Approvals Information: All RF Solutions products are manufactured in accordance with our ISO:9001 Quality System • ELITE Systems are manufactured to CE standards •... - Page 10 Buyers and other users should determine for themselves the suitability of any such information or products for their own particular requirements or specification(s). RF Solutions Ltd shall not be liable for any loss or damage caused as a result of user’s own determination of how to deploy or use R F Solutions Ltd’s products. Use of RF Solutions Ltd products or components in life support and/or safety applications is not authorised except with express written approval.
