Features:
Up to 200m Range
•
868MHz FM Technology
•
1 – 4 Channels each 1000W
•
Waterproof Receiver (IP68)
•
High Security RF Protocol
•
2 / 4 Changeover Relays Contacts
•
Rated 5A @ 230Vac
12-30Vac/dc, 110V or 230Vac
•
versions Available
Outputs Momentary or Latching
•
Any Switch Map to Any Relay
•
Systems supplied 'ready to Go'
•
Applications
General Purpose Remote Switching
•
Electric Gates
•
Roller Shutter Doors
•
Garden Lighting, Sports Grounds
•
Description

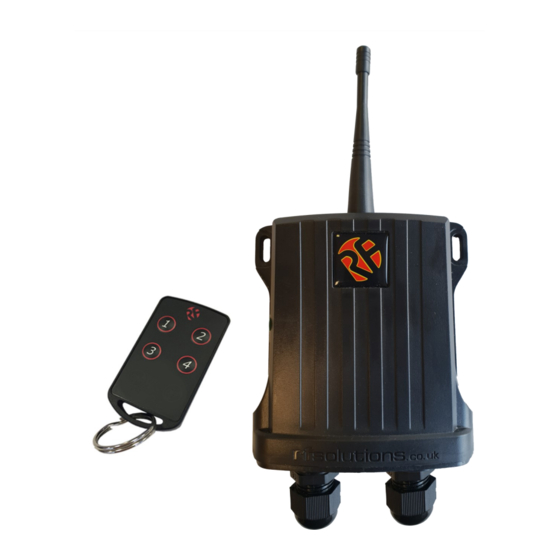

A versatile general purpose Remote Control System for many different applications.
Housed in a rugged IP68 weatherproof enclosure, The new HORNETPRO system is ide-
ally suited to any remote switch requirement. With upto 4 changeover Relay switch
outputs each output can be controlled from any switch on any transmitter. Additional
transmitters may be added to the system using the same 'easy-learn' process with-
out opening the enclosure.
Installation is by screw terminals to the power supply and the output relay contacts.
The output relays are activated by the button press on the transmitter encoder.
Remote Control System
DS-HORNETPRO-4
HORNET PRO
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RF SOLUTIONS HORNET PRO
Summary of Contents for RF SOLUTIONS HORNET PRO
- Page 1 HORNET PRO Remote Control System Features: Up to 200m Range • 868MHz FM Technology • 1 – 4 Channels each 1000W • Waterproof Receiver (IP68) • High Security RF Protocol • 2 / 4 Changeover Relays Contacts • Rated 5A @ 230Vac 12-30Vac/dc, 110V or 230Vac •...
- Page 2 HORNET PRO Systems Part Numbers Part Number Description Power Supply HORNETPRO-8S1 1 channel System HORNETPRO-8S2 2 channel System 12-30Vac/dc HORNETPRO-8S3 3 channel System HORNETPRO-8S4 4 channel System Part Number Description Power Supply HORNETPRO-8S1M 1 channel System 230Vac HORNETPRO-8S2M 2 channel System...
- Page 3 HORNET PRO Relay Outputs The receiver provides 4 changeover relay switches each capable of switching up to 1.2KW (5A @ 230V). Each relay is independent and separately controlled, and can therefore be used to switch most voltages either ac or dc.
- Page 4 HORNET PRO Advanced Operation Configuring receivers The link pins LK1 and LK2 set the action of the relays sec Mom = Relay will operate for = Relay will operate for as long as transmitter switch operated Latch = Relay will toggle ON/OFF on each transmitter button press FlipFlop = Relays 1 &...
- Page 5 HORNET PRO Advanced operation - Pairing a transmitter button with a magnet With this system, you can pair together any individual transmitter switch with any receiver relay switch. Without opening either enclosure: Briefly (less than 1 second) place a magnet next to the receiver in the posi- tion shown and then remove it.
- Page 6 HORNET PRO Technical specifications Transmitters: FOBBER Transmitter Enclosure Rating: Standard IP68 Battery Type: CR2032 (supplied) Battery Life: 2 years @ approx. 50 1/2second presses p/day Dimensions: 90 x 54 x 27 mm Changing the Battery: Remove the 2 enclosure screws. replace battery, taking care of contacts and the...
- Page 7 HORNET PRO Mechanical Dimensions 50.00 All Dimensions in mm 3 x slots 4.5 x 13mm 82.00 Measurements in mm drawing not to scale DS-HORNETPRO-4...
- Page 8 (including liability resulting from negligence or where RF Solutions Ltd was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict RF Solutions Ltd’s liability for death or personal injury...
