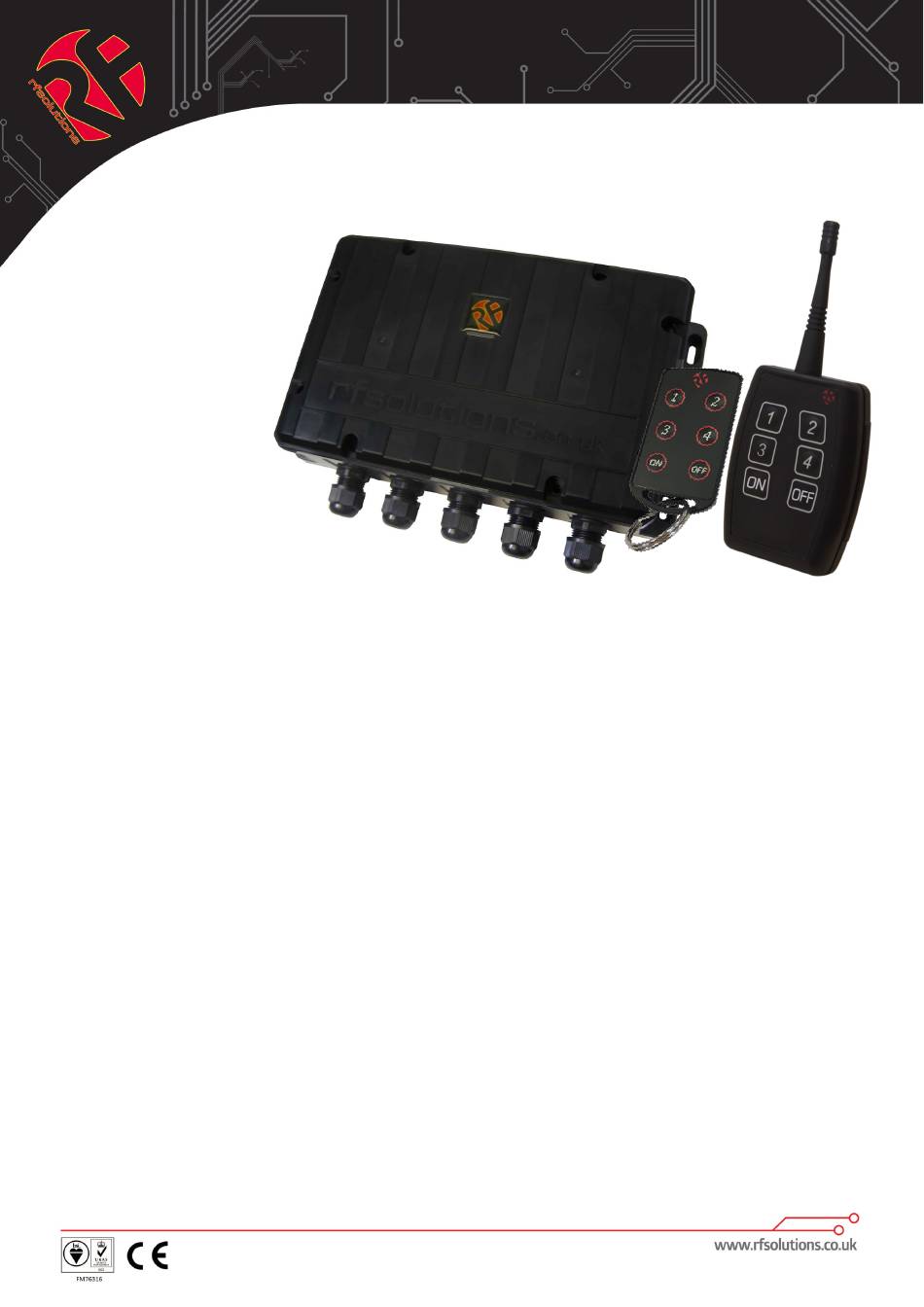

Professional Remote Control Systems
Features
4 switched channels
•
1000W rated
150m/2000m range
•
230Vac supply
•
Completely waterproof ABS
•
enclosure (IP68)
All outputs momentary,
•
latching or timed
Any switch maps to any
•
relay or multiple relays
868MHz Reliable FM
•
Technology
EMC Compliant for Europe
•
10 Cable entry points for
•
easy installation.
Description

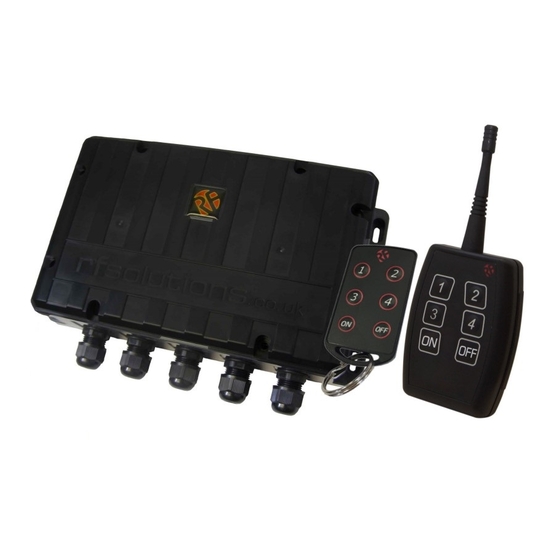

Whatever your switching application the ELITE Remote control system with 4 individual 230V
outputs and a completely waterproof IP68 enclosure will be a great choice.
The ELITE remote control system has been designed with the requirements of electricians in
mind and therefore it can be used to switch all lighting types as well as other applications
such as Water Features, Electric gates and Garage Doors.
Each receiver has 4 230Vac outputs. Using our one touch 'easy-learn' process each relay
can be controlled from any switch on any compatible transmitter.
Thanks to the latest technology each of the 4 outputs on the ELITE remote control system
can be set to operate in a timed, momentary or latching mode for complete flexibility.
Applications
Garden Lighting
•
Pond pumps
•
Remote outdoor
•
Switching
Access control
•
Industrial control
•
DS-ELITE-5
ELITE Series
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RF SOLUTIONS ELITE Series
Summary of Contents for RF SOLUTIONS ELITE Series
- Page 1 ELITE Series Professional Remote Control Systems Features 4 switched channels • 1000W rated 150m/2000m range • 230Vac supply • Completely waterproof ABS • enclosure (IP68) Applications All outputs momentary, • latching or timed Garden Lighting • Pond pumps Any switch maps to any •...
-
Page 2: Additional Transmitters
ELITE Remote Control System System Part Numbering Range** Receiver Part Number Description (Metres) Power Supply System 4 outputs ELITE-S4 230Vac With FOBBER-8T6 System 4 outputs ELITE-XS4 230Vac 2000m With TRAP-T6 ELITE-RX Receiver 4 output 230Vac **Range stated is optimum - Line of Sight. Range can be hugely reduced by obstacles or other interference. - Page 3 ELITE Remote Control System Part Number Description FOBBER-8T1 Transmitter Key fob 1 switch FOBBER-8TL1 Transmitter Key fob 1 channel on/off FOBBER-8T2 Transmitter Key fob 2 switch FOBBER-8TL2 Transmitter Key fob 2 channel on/off FOBBER-8T3 Transmitter Key fob 3 switch FOBBER-8T4 Transmitter Key fob 4 switch FOBBER-8T6 Transmitter Key fob 4 channel with All On/Off...
- Page 4 ELITE Remote Control System Status LEDs– Flash when signals are sent/received Sync/Pair Button – Press once to auto pair. See Advanced operation for other pairing options. Erase Button – Press and hold to erase all pairings, see advanced operation for individual erase Mag sync –...
- Page 5 ELITE Remote Control System Quick Installation Guide (systems only) The ELITE system provides 4 switches each capable of switching up to 1KW (4A @ 230V). Each channel is independent and separately fused. The ELITE Remote control system provides 230V mains switched outputs via each terminal.
-
Page 6: Advanced Operation
ELITE Remote Control System Advanced operation The ELITE system comes with one transmitter, this is already SYNC’ed and will oper- ate the system out of the box. To AUTO-SYNC a new transmitter To SYNC a new ELITE handheld transmitter to the receiver box - simply press the SYNC button on the ELITE receiver board. -
Page 7: Test Mode
ELITE Remote Control System Advanced operation continued… TEST MODE The ELITE comes with an in-built test mode which allows a user to check the signal strength of any compatible handheld: Press the TEST button on the PCB (see page 3 for button locations) Press any button/activate the transmitter which you want to test LEDs 1-8 will show a bar graph of the signal strength - the more LEDs flashing, the better the signal. -
Page 8: Technical Specifications
*The relay contacts in this unit are for functional use only and must not be used for isolation purposes Approvals Information: • All RF Solutions products are manufactured in accordance with our ISO:9001 Quality System • ELITE Systems are manufactured to CE standards •... - Page 9 ELITE Remote Control System All Dimensions in mm 125.50 251.00...
- Page 10 Disclaimer: Whilst the information in this document is believed to be correct at the time of issue, RF Solutions Ltd does not accept any liability whatsoever for its accuracy, ade- quacy or completeness. No express or implied warranty or representation is given relating to the information contained in this document. RF Solutions Ltd reserves the right to make changes and improvements to the product(s) described herein without notice.
