Features
Up to 100metres Range
•
4 Changeover Relays
•
12-30Vdc or 230Vac versions
•
Reliable FM Technology
•
Each output Rated 1000W
•
Waterproof Enclosure to IP68
•
Momentary or Latching Relays
•
Any Switch Map to Any Relay Output
•
CE / FCC Compliant
•
Applications
General Purpose Remote Switching
•
Electric Gates
•
Roller Shutter Doors
•
Garden Lighting
•
Description

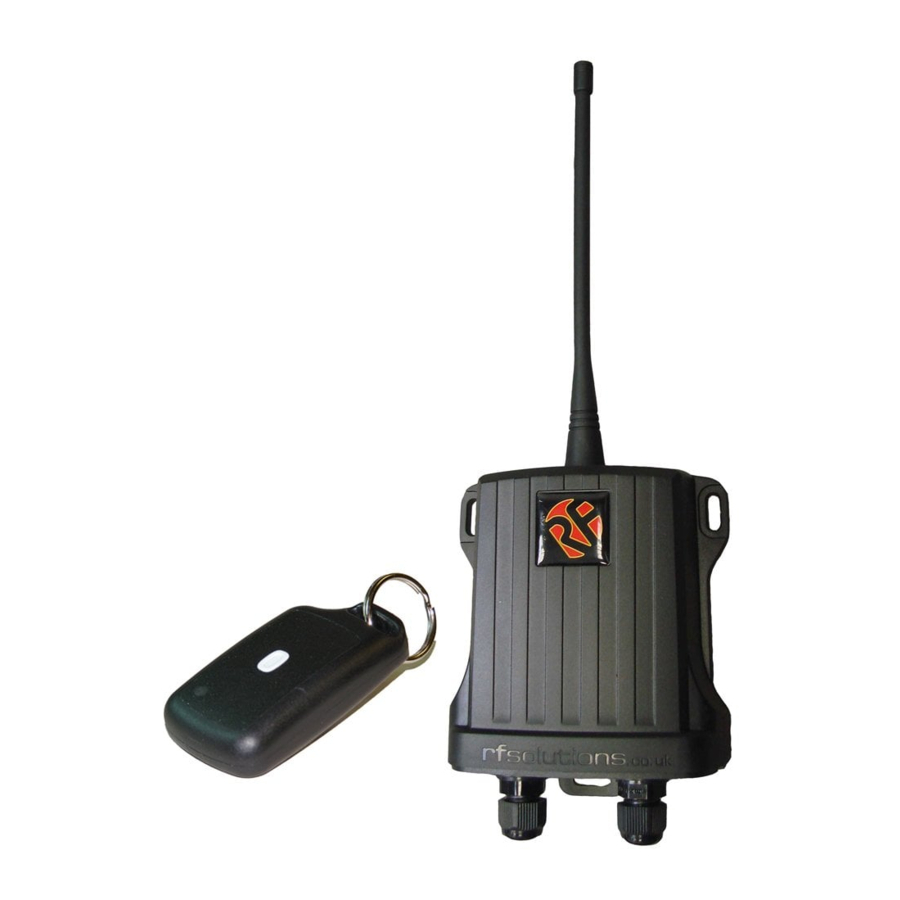

Supplied complete ready to operate without any user configuration required. The HOR-
NET is a rugged IP68 weatherproof remote control receiver. Built in mounting points
and easy wiring using High Quality screw Terminals.
With a range of up to100m the HORNET is ideal for a wide variety of switching appli-
cations.
Transmitters may be added using the 'learn' process, any button on the transmitter
can be used to control one or many outputs of the receiver.

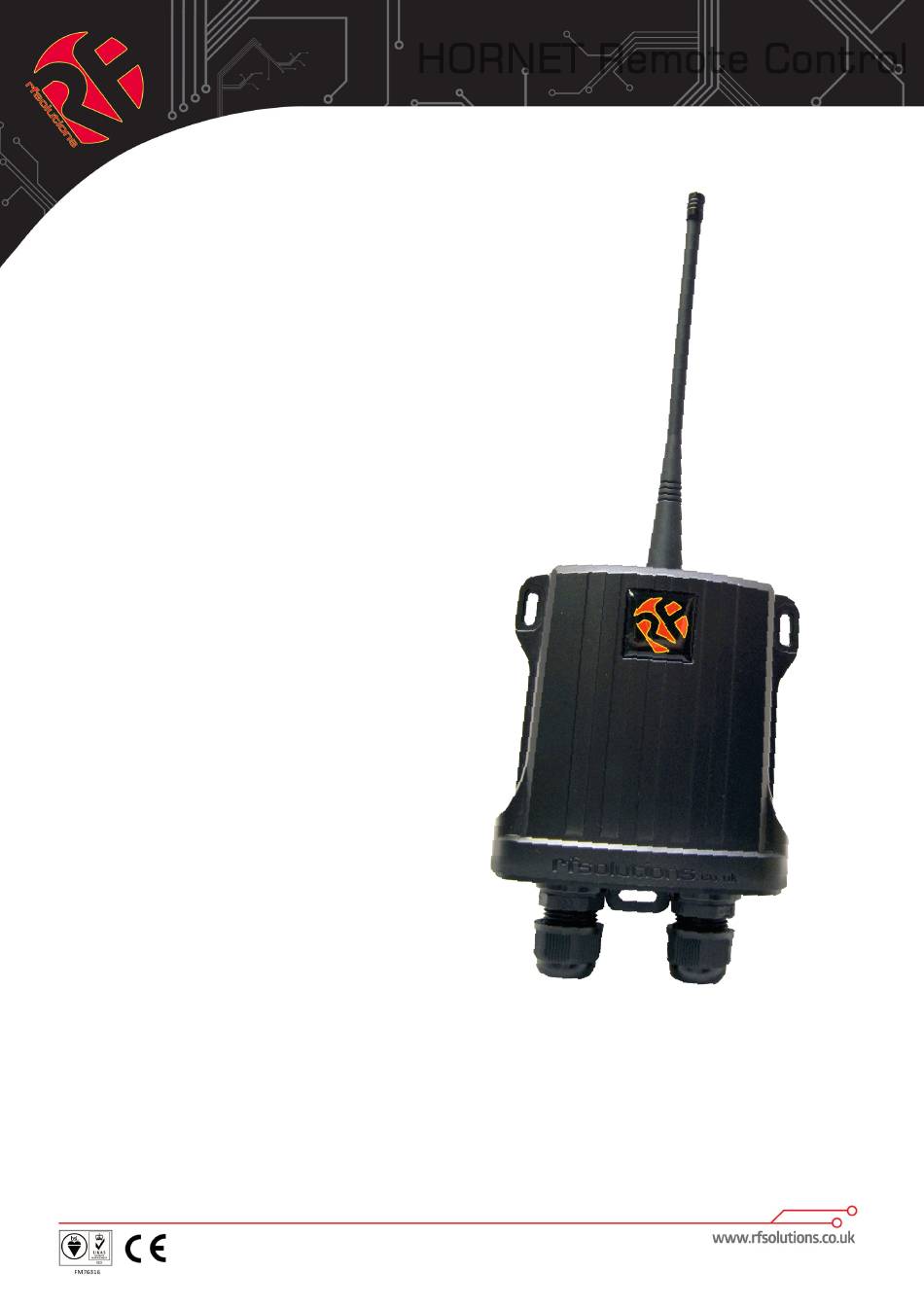

HORNET Remote Control
433MHz Receiver
DS HORNET-13
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for RF SOLUTIONS HORNET-S1
Summary of Contents for RF SOLUTIONS HORNET-S1
- Page 1 HORNET Remote Control 433MHz Receiver Features Up to 100metres Range • 4 Changeover Relays • 12-30Vdc or 230Vac versions • Reliable FM Technology • Each output Rated 1000W • Waterproof Enclosure to IP68 • Momentary or Latching Relays • Any Switch Map to Any Relay Output •...
-
Page 2: System Part Numbers
HORNET 433MHz System Part Numbers Operating from 12-30Vdc Frequency Range** Part Number Description (MHz) (Metres) HORNET-S1 System 1 channel 433.92 HORNET-S2 System 2 channel 433.92 HORNET-S3 System 3 channel 433.92 HORNET-RX Receiver 4 channel 433.92 Range stated is optimum, direct line of sight. In worst conditions this can be reduced by over 50%... - Page 3 HORNET 433MHz HORNET-RX (12-32Vdc Version) The HORNET system is supplied ready to use straight out of the box. When supplied as a system the Transmitter will be paired to the receiver as follows: Transmitter button 1 will switch relay output 1, Transmitter button 2 to relay 2 and so on).
- Page 4 HORNET 433MHz Pairing Transmitters to the HORNET-RX (12-32Vdc Version) Please note that the HORNET Systems are provided ready to operate and Pairing a transmitter to a receiver is only required when replacing or adding a new transmitter. To pair a new transmitter switch follow this procedure Note!: Any transmitter button can be configured to operate any of the receiver relays.
-
Page 5: Fuse Rating
HORNET 433MHz HORNET-RXM (230Vac Powered Receivers) The HORNET-RXM system is supplied ready to use straight out of the box. When supplied as a system the Transmitter will be paired to the receiver as follows: Transmitter button 1 will switch relay output 1, Transmitter button 2 to relay 2 Each button press will change the state of the relay (i.e. - Page 6 HORNET 433MHz Pairing Transmitters to the HORNET-RXM (230Vac version) Please Note: During Learn and Erase the relays operate at high speed. They should be isolated from sensitive equipment during this process. To Pair additional Transmitter buttons to receiver Relay #1 Apply power the receiver and wait 10secs for the unit to enter ‘normal operation’...
-
Page 7: Technical Specifications
HORNET 433MHz Technical Specifications Enclosure Rating IP68 Dimensions 130 x 112 x 42 mm (not including antenna) Storage Temperature: -10 to +70 Celsius. Operating Temperature: -10 to +50 Celsius. ELECTRICAL CHARACTERISTICS Typical Units Supply Voltage for 12-30V versions 10.5 Supply Voltage for Mains versions Relay Rating* (230Vac) RLY1-4 5(rms) 12(peak) - Page 8 (including liability resulting from negligence or where RF Solutions Ltd was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict RF Solutions Ltd’s liability for death or...
