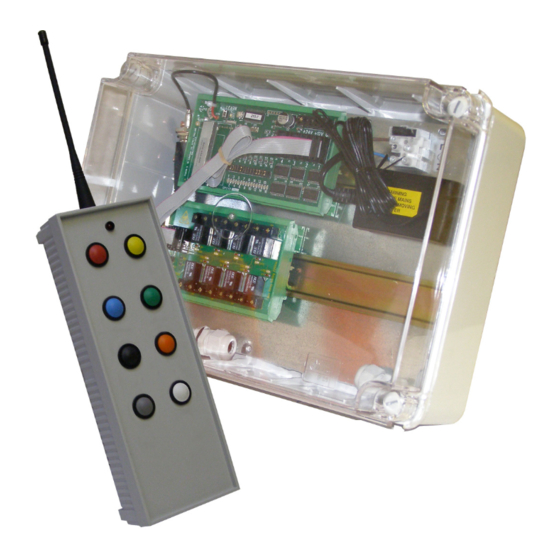

Ready to Use Remote Control
•
4, 8/16 Channel Systems
•
Range:
Up to 200 metres at 433MHz
Up to 1,000 metres at 433MHz NB
•
Relay Outputs: Momentary, Latching, Timed
•
Receiver IP65

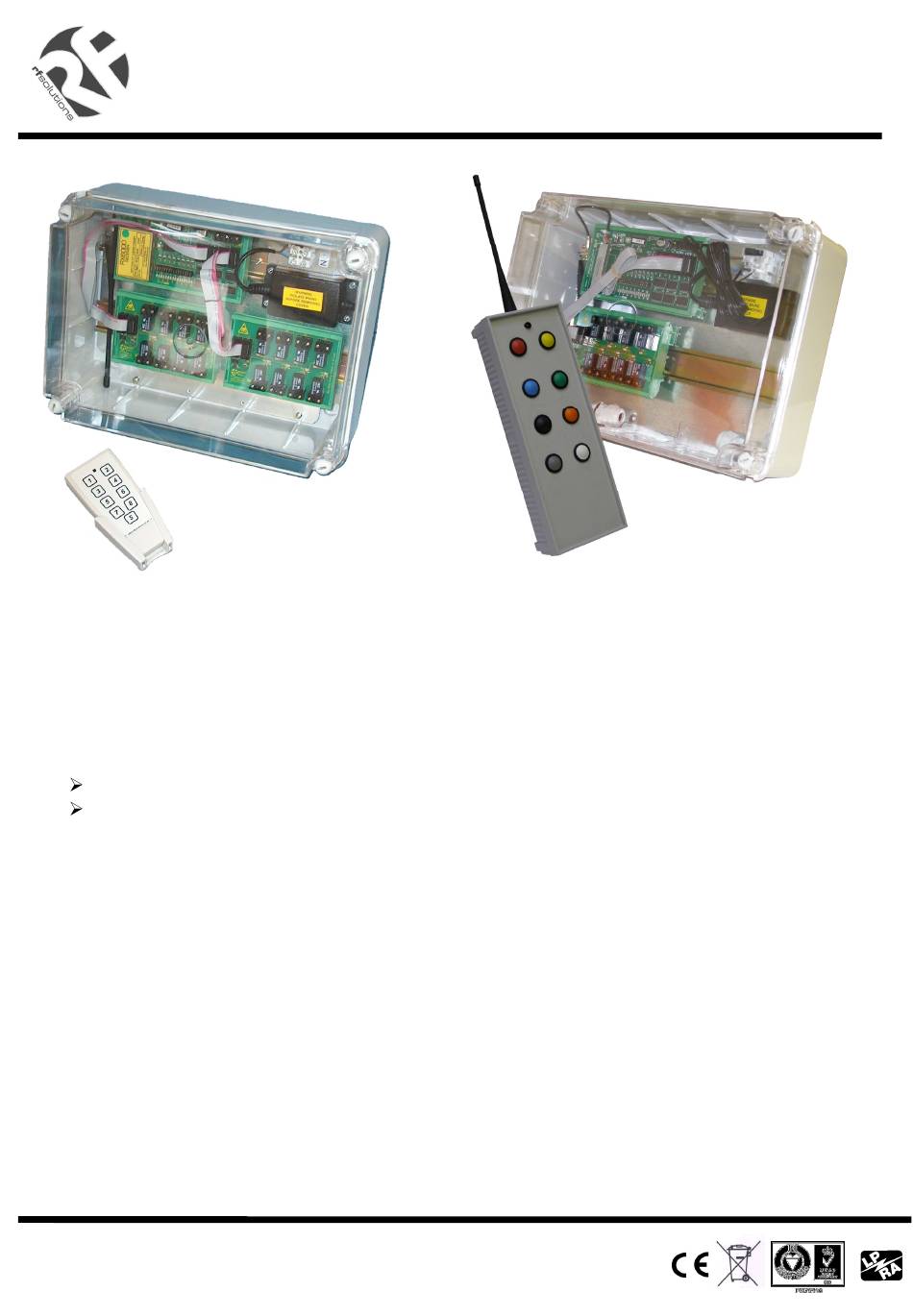

Available as 4 - 16 channels the Professional range are ready to operate general purpose remote
control systems using a highly secure transmission protocol for reliable operation.
The receiver unit is rated IP65 with integral power supply containing industrial standard 'DIN Rail'
'receiver' and 'relay output' modules (interchangeable). Other modules with higher switching
capability are available.
The relay outputs may be user set to operate as latching or momentary. Output 1 may be set to
timed from 1-15 minutes.
Additional transmitters can be added using the easy learn procedure. Any transmitter switch can
be mapped to any individual or combination of receiver output(s).
DS200PRO-3 June '07
Professional Radio Control
©2007 RF Solutions Ltd, www.rfsolutions.co.uk
205
Applications
•
Lighting Control
•
General Purpose Remote Switching
•
Door Control
•
Industrial remote Switching
•
Access Control
Page 1
