Features
Two way remote control Via SMS Text
Easy to install and configure using only SMS
text messages
Modular Expandable System
2 –18 digital inputs (volt free)
2 - 18 Relay Changeover contacts rated
240Vac 5A
Text on Power Fail
Integral Antenna supplied (External Option)
Optional Temperature Sensor
User can set inputs and outputs names
Worldwide quad-band GSM.
O2 Simcard Included
Applications
Plant Maintenance,
warnings / Alarms/ Reset.
Irrigation Systems.
Security Systems
Heating Control
World-wide Telemetry Signals
Description

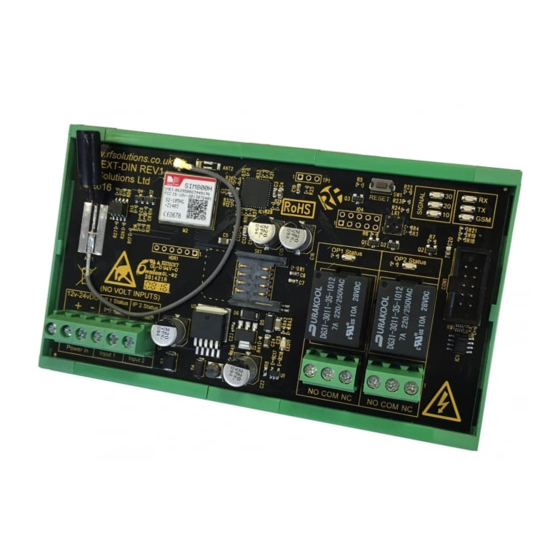

A GSM Remote Control System operated by SMS text message. Available as DIN Rail
Modules or a ready made System within an IP56 enclosure Mains power supply and
bundled Simcard ready to go.
The user can switch the relay changeover contacts by sending a simple or custom
text of their choice.
EZTEXT will send an SMS text to upto five numbers on activation of one of its inputs
or temperature set points.
The user can give custom names to Inputs/outputs and create Custom messages.
Setup is easy with a few simple SMS Text Commands.
Ordering
PART No
EZTEXT-DIN
PRO-EZTEXT26
GSM Remote Control Systems
2 IP 6 OP channel Remote Control System
DS-EZTEXT-DIN-3
PRO-EZTEXT-26
Description
DIN Rail SMS control system
EZTEXT-DIN
EZTEXT-DIN

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EZTEXT-DIN and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for RF SOLUTIONS EZTEXT-DIN

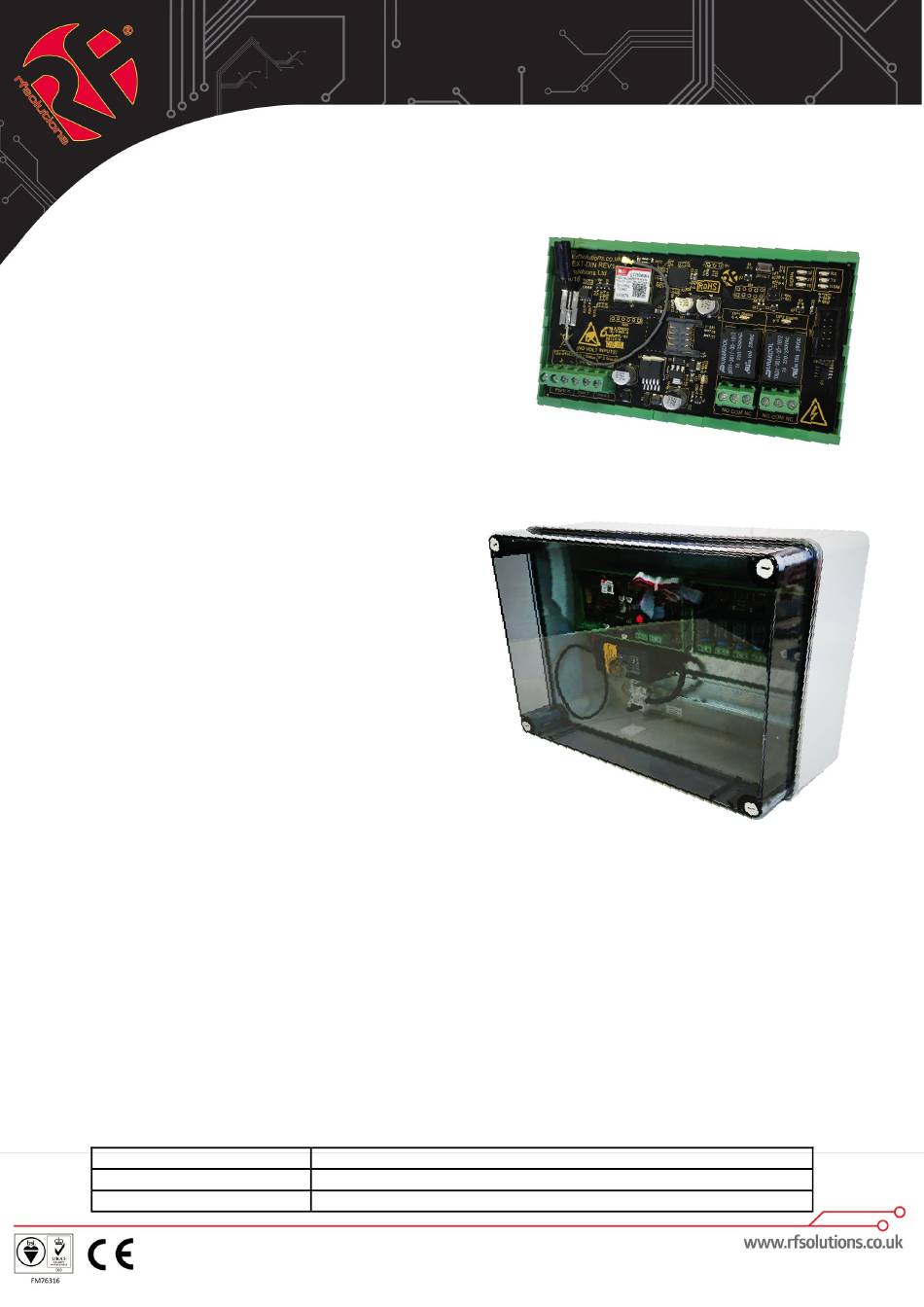

  • Page 1 EZTEXT-DIN GSM Remote Control Systems Features Two way remote control Via SMS Text • Easy to install and configure using only SMS • text messages Modular Expandable System • 2 –18 digital inputs (volt free) • 2 - 18 Relay Changeover contacts rated •...
  • Page 2 Supplied as a self contained two way Remote Control System which provides two ‘no volt’ switch detect inputs and 6 changeover relay contacts as outputs . The system comes supplied in an IP56 Enclosure with integral 12V power supply. Containing industrial standard ‘DIN Rail’ modules. DS-EZTEXT-DIN-3...
  • Page 3 EZTEXT-DIN Additional Input and Output Modules The Add-on Modules simply plug into the EZTEXT-DIN Ribbon Connector socket. Once connected the EZTEXT automatically recognizes them and the additional in- puts and outputs become available to use. 4 x Inputs Module 4 x Additional No-Volt Inputs •...
  • Page 4: Optional External Antenna

    EZTEXT-DIN Optional External Antenna Using an external antenna can provide a better signal reception than the on-board antenna. Using Cable adaptor CBA-UFLSMA provides a panel mounted SMA con- nector for external antenna connection. To connect, carefully unplug the existing antenna UFL and push on the CBA- UFLSMA UFL connector.
  • Page 5 EZTEXT-DIN Using EZTEMPR2 Thermocouple Attach the Thermocouple cable to the Connector marked “SENSE” This is now ready to use Notes: 1. Temperatures are measured to 1 Decimal point 2. Temperature Triggers can be set to whole number values only 3. A hysteresis of –2...
  • Page 6 EZTEXT-DIN 725-OP Additional 4 Outputs Module ADDRESS LINKS • Each 725-OP module must have a dif- Place Shorting Cap over ferent address Link setting to other Links to set address (Fig shows Address position 725-OP modules (For the application shown address Link...
  • Page 7: Insert Sim Card

    • messages being sent back to the user. This can be achieved with the service provider. The SIM card should be inserted into EZTEXT-DIN before applying power • RF Solutions recommends O2 and Vodaphone SIM card and has carried out extensive testing using the SIM cards we have for these two networks.
  • Page 8 EZTEXT-DIN LED Indication At Start Up Logging onto Network (traffic light sequence) Error! (All Flash ON / OFF together) Error - No GSM Service 1. Check SimCard 2. Check Antenna Connection LED Indication After Start Up (Normal Operation) Signal Strength Activity LED’s...
  • Page 9 EZTEXT-DIN Error Messages & Factory Reset There are three error messages; NO AUTHORISATION Means that EZTEXT did not accept the password UNRECOGNIZED COMMAND Password correct but the command is in- correct UNRECOGNIZED VARIABLE Password and command OK but the varia-...
  • Page 10 Requests the name given to all inputs Requests the current name of input1 Please note that only the 2 inputs on the main EZTEXT-DIN module can be given a name. Sets the destination phone number(s) (max 5 per 1234#IPNUM1,00441 input) when an EZTEXT input is activated.
  • Page 11: Output Commands

    EZTEXT-DIN Output Commands Title Description Command Example Turns an output ON or OFF Activate an 1234#OUT1,ON UNITPW#OUTn,x output Turns Output1 ON n=Relay number = 1 to 18 x=Relay Status = ON, OFF This designates a name to an EZTEXT output...
  • Page 12: Temperature Commands

    EZTEXT-DIN Temperature Commands Command Description Description Example Request TEMP? UNITPW#TEMP? current tem- 1234# TEMP? requests the current temperature. perature 1234#TEMPNUM#004 41234567891 Sets the number UNITPW#TEMPNUM#<numbertotext> 01234 567891 Sets the cell phone nos (max of 5) linked with the TEMPNUM temperature monitoring.
  • Page 13: Technical Specifications

    EZTEXT-DIN Technical Specifications Storage Temperature: -10 to +70˚C. Operating Temperature: 0 to +55˚C. EZTEXT Dimensions: 136 x 78 x 42 mm Electrical Characteristics* Typical Dimension Notes Supply Voltage Supply Current for EZTEXT: Idle Operating Closed Contact Input Time mSecs Temperature Cable...
  • Page 14 Disclaimer: Whilst the information in this document is believed to be correct at the time of issue, RF Solutions Ltd does not accept any liability whatsoever for its accuracy, adequacy or completeness. No express or implied warranty or representation is given relating to the information contained in this document. RF Solutions Ltd reserves the right to make changes and improvements to the product(s) described herein without notice.
