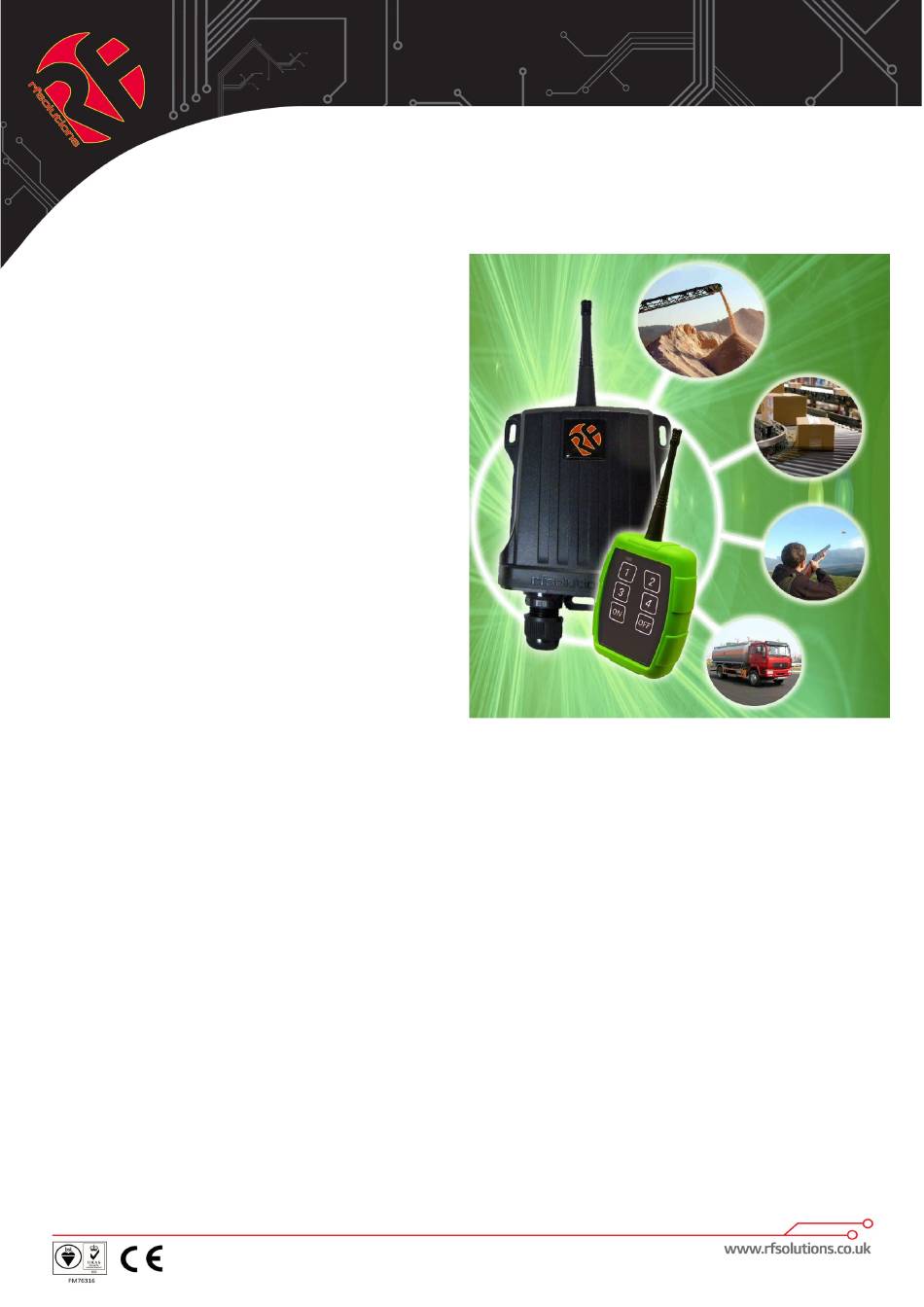

RF SOLUTIONS TRAP Series Manual

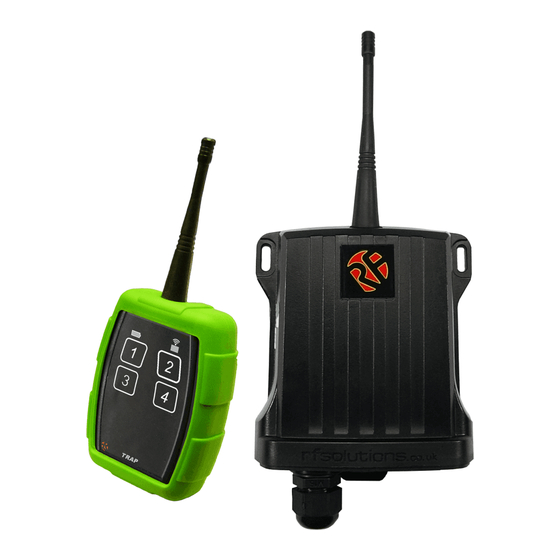

2km range rugged remote control
Hide thumbs Also See for TRAP Series:
Table of Contents

Advertisement

Quick Links

Features
868 / 915MHz FM Technology
•
1 - 4 Channels Each Rated1KW
•
Map any Tx Switch to Any RX O/P
•
Relay Changeover Contacts Rated
•
5A @ 230Vac (1KW)
Transmitter
IP65 Rated
•
Powered from 3 x AAA Batteries
•
Provides Acknowledgment from Rx
•
Receiver
6-32Vac/dc Supply
•
Waterproof Receiver (IP68)
•
Outputs Momentary or Latching
•
Optional Rx Acknowledge back to
•
Transmitter
Optional External Antenna mount
•
Systems supplied 'ready to Go'
•
Description
A versatile general purpose Remote Control System for many different applications.
Housed in a rugged IP68 weatherproof enclosure, The TRAP system is ideally suited to any
outside Remote switching. Receivers have 4 relay outputs, using the 'easy-learn' process
each output can be controlled from one or many switches form one or many transmitters.
2KM Range Rugged Remote Control
Applications
General Purpose Remote Switching
•
Industrial switching, conveyors,
•
machinery, pumps
Clay Pigeon Release
•
Most known Lighting types (LED,
•
fluorescent, halogen, tungsten, xenon).
DS TRAP-9
TRAP Series

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the TRAP Series and is the answer not in the manual?

Questions and answers

Related Manuals for RF SOLUTIONS TRAP Series

Summary of Contents for RF SOLUTIONS TRAP Series

  • Page 1 TRAP Series 2KM Range Rugged Remote Control Features 868 / 915MHz FM Technology • 1 - 4 Channels Each Rated1KW • Map any Tx Switch to Any RX O/P • Relay Changeover Contacts Rated • 5A @ 230Vac (1KW) Transmitter IP65 Rated •...
  • Page 2 TRAP Remote Controls Ordering Information Receiver 868MHz 915MHz Description Version Version Power Supply System 1 channel TRAP-S1 TRAP-9S1 12-30Vac or dc System 4 channel TRAP-S4 TRAP-9S4 System 1 channel TRAP-8S1M 230Vac System 2 channel TRAP-8S2M Additional Transmitters Transmitters ship with Lanyard Transmitter 868MHz Version 915MHz Version...

  • Page 3: Transmitter Operation

    TRAP Remote Controls Transmitter Operation Press any of the switches to operate. The Transmitter will auto sleep between operations to save power The LED’s indicate the following: RF Transmit (Green LED) RF Transmit GREEN LED operates when transmitting an RF Battery RF Acknowledge signal...

  • Page 4: Receiver Operation

    TRAP Remote Controls Receiver Operation Relay Outputs The TRAP system provides changeover relay switches each capable of switching up to 1.2KW (5A @ 230V). Each relay is independent and separately controlled. Each output relay provides an isolated switch. Connec- tions are Common (COM), Normally Open (NO) and Normally Closed (NC). Relay Connections when Relay Connections when Transmitter NOT Operating...

  • Page 5: Receiver Configuration

    TRAP Remote Controls Receiver Configuration Configuring receivers The link pins LK1 and LK2 set the action of the relays sec Mom = Relay will operate for = Relay will operate for as long as transmitter switch operated Latch = Relay will toggle ON/OFF on each transmitter button press 12-30V Version Link Pins LED s...
  • Page 6 TRAP Remote Controls Advanced operation - Pairing a Transmitter Button With this system, you can pair together any individual trans- mitter switch with any receiver relay switch. Without opening either enclosure: Remove the green transmitter rubber over-boot Briefly (~1 second) place the transmitter next to the re- ceiver in the position shown and then remove it.

  • Page 7: Connecting An External Antenna

    TRAP Remote Controls Connecting an External Antenna External Antenna Connector An External Antenna maybe connected into connector ANT2. A direct plug in coax Cable is available to convert this to Standard SMA type connector CBA-UFLSMA Push fits onto the External antenna Connector and provides a panel mount SMA connector which ena- ble many types of antenna to be connected.

  • Page 8: Technical Specifications

    TRAP Remote Controls Technical specifications Transmitters: TRAP-Transmitter Enclosure Rating: Standard IP65 (upgradeable to IP68) Battery Type: 3 x AAA (supplied) Battery Life: 2 years @ approx. 50 1/2second presses p/day Dimensions: 90 x 54 x 27 mm Changing the Battery: Remove the six enclosure screws. Remove 2 battery compartment screws and re- place batteries, taking care of cables and battery polarity Electrical Characteristics Typical...
  • Page 9 TRAP Remote Controls Technical specifications Receiver Decoder: TRAP-Receiver Enclosure Rating: IP68 Dimensions: 130 x 112 x 42 mm (not including antenna) Operating Temperature: -10 to +50 Celsius. Electrical Characteristics TYPICAL DIMENSION Supply Voltage Vdc or ac Supply Voltage for 230Vac Relay Rating* (230Vac) Supply Current at Vsupply 12V Quiescent...

  • Page 10: Range Test

    (including liability resulting from negligence or where RF Solutions Ltd was aware of the possibility of such loss or damage arising) is excluded. This will not operate to limit or restrict RF Solutions Ltd’s liability for death or personal injury resulting from its negligence.
