Assembly Instructions

Carefully follow all the assembly steps as explained on this manual. Please refer to the
illustrations in order to assemble all parts correctly.
Step 1:
Step 2:
Step 3:

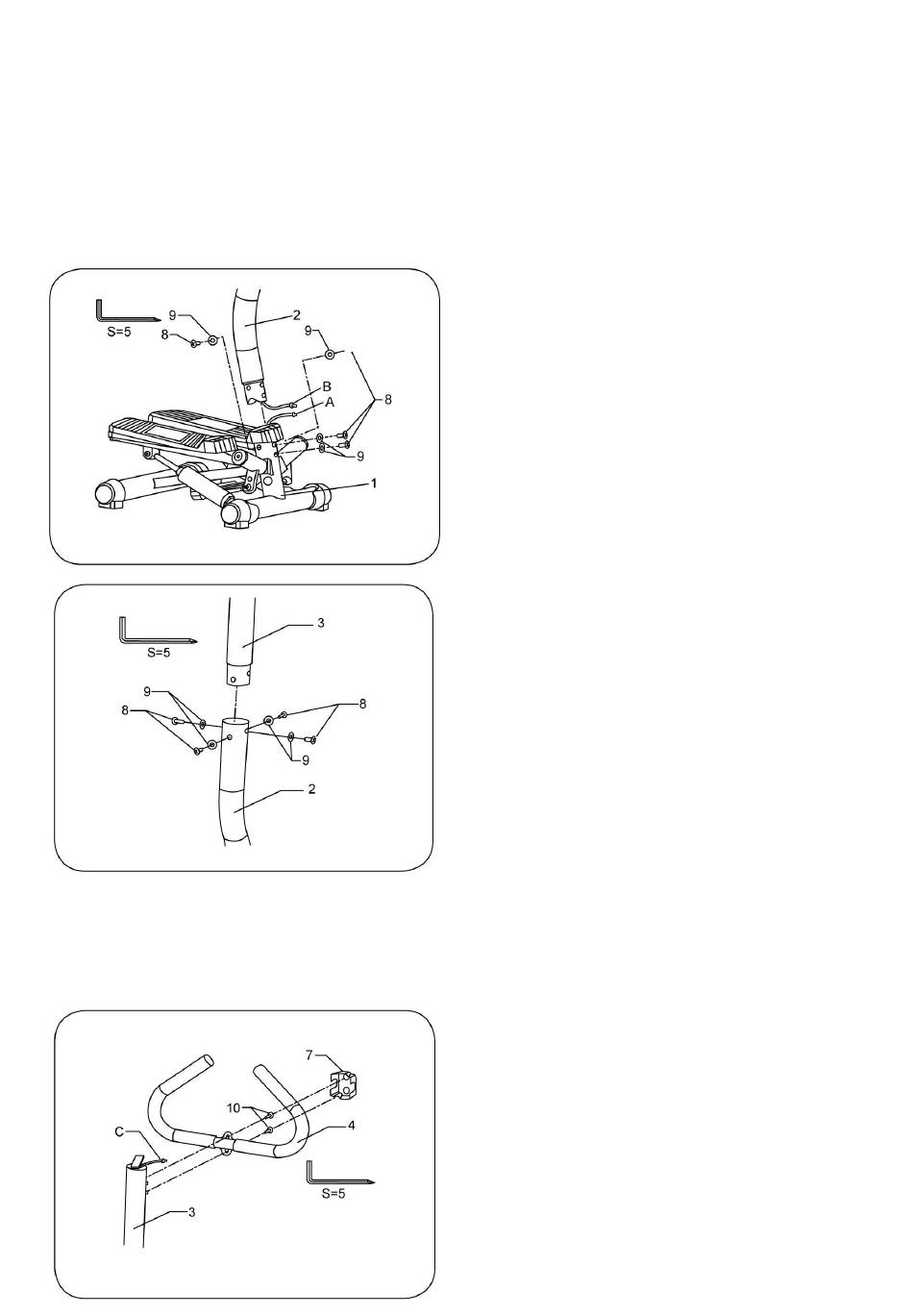

Place the base machine on a fl at surface.
Insert Cable B into the lower tube, and
connect Cable A and B together,
and then insert the lower tube into the
base machine and fasten with a bolt, as
shown on the left.
Pull Cable B through the upper tube,which is
then fastened to the lower tube with a bolt, as
shown on the left.
Pull Connector C through the meter holder of the
upper tube. Fix and fasten the handle to the upper
tube with a bolt and then put on the cover, as
shown on the left.
