Assembly Instructions - HOMCOM A91-232V01 User Manual

1. Connect the rear
leg (5) to the lower
main structure (2)
using two screws
(21), two nuts (34)
and two washers
(38).
5. Insert the bow-rail (4) into the main
structure using one screw (24 M8x15) and
one washer (40).
9. Attach the main
structure to the
pedal system using
one screw (20), two
washers (37) and
one nut (33).
** Numbers of screws and nuts are listed in the blister with screws.

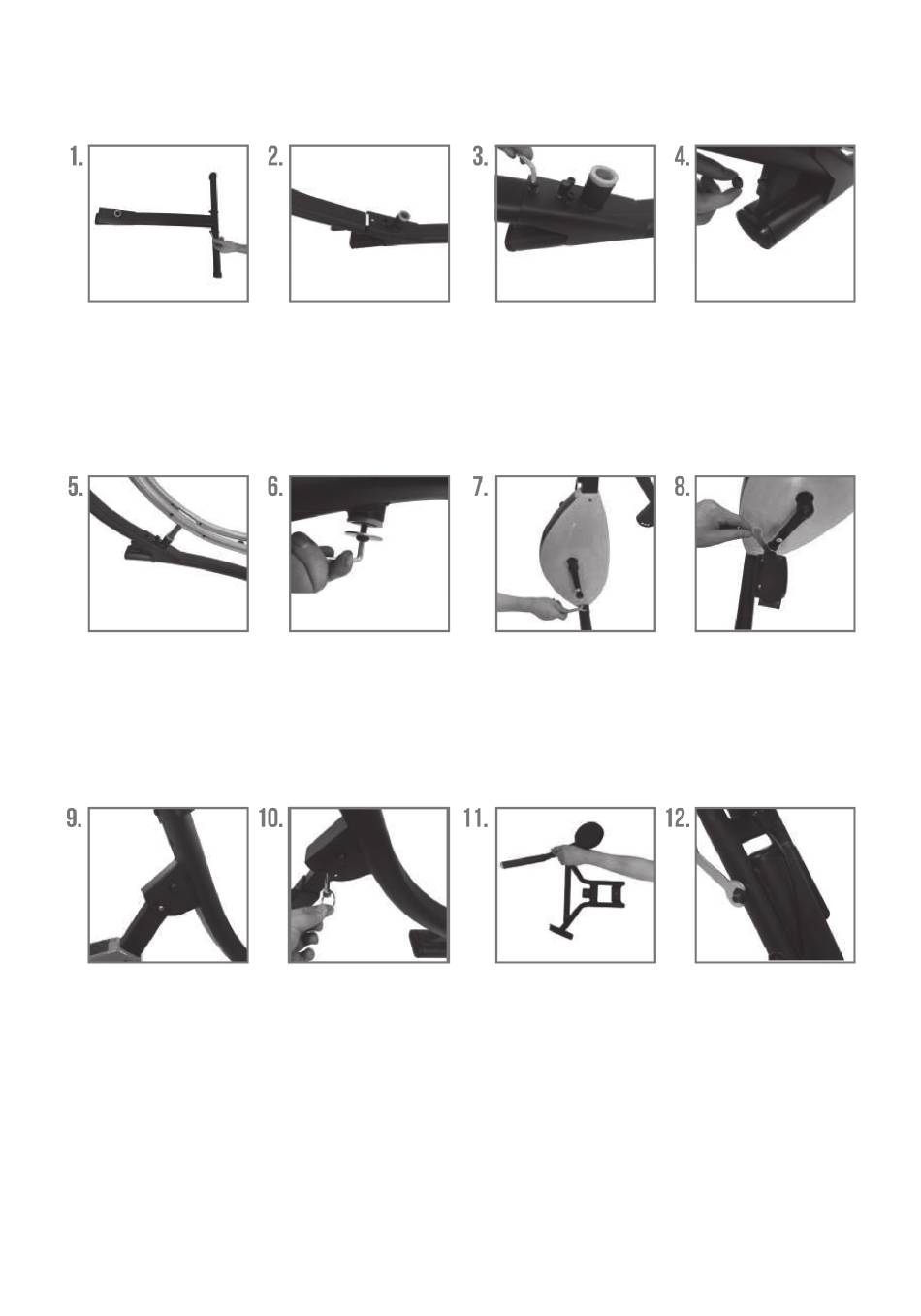

ASSEMBLY INSTRUCTIONS

2. Assemble the
main structure (1 &
2) (upper part with
lower part).
10. lnsert the large
safety bolt (A) to set
the desired SLOPE.
3. Attach the three
screws (24 M8X20)
and three washers
(37) to the structure
(upper and lower
part).
7. Put the base leg
with wheels (5) into
the pedal system
(3) using two legs
(21), two nuts (34)
and two washers
(38).
11. Assemble the
handle by placing
the structure (6) on
the bars (7) with
two washers (38)
and two nuts (34)
-10-
4. Attach the lower
main structure (2)
using one screw
(20), two washers
(37) and one nut
(33).
8. Place the pedals
(11) onto each side.
12. lntroduce the
handle structure (6)
in the main
strucfure (1) with
two screws (19),
two washers (38)
and two nuts (33)
