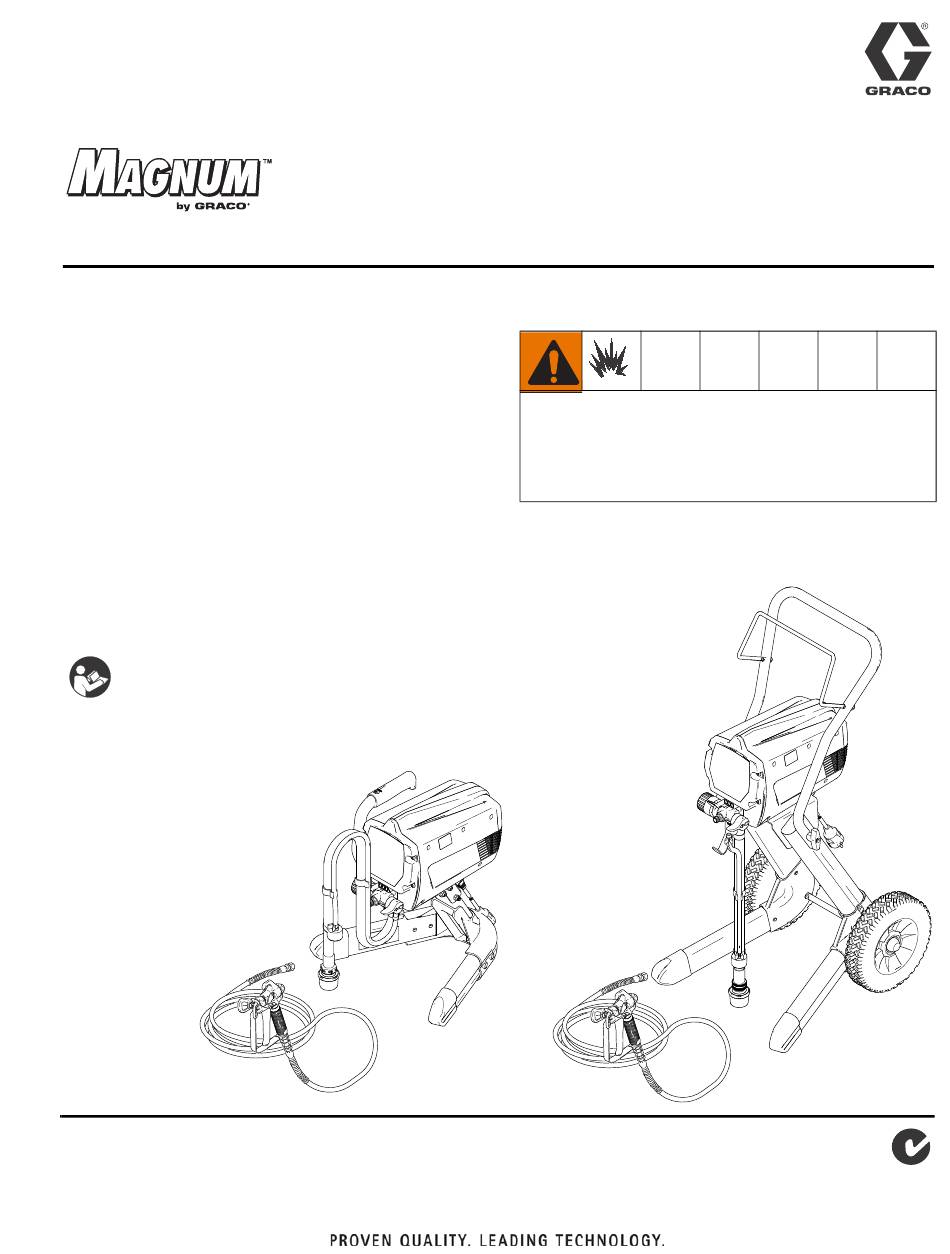

Operation
Magnum X5 and X7 Airless Sprayers
- For Portable Spray Applications of Architectural Paints and Coatings -
Models:
Magnum X5 (16J750) - Series A
Maximum Working Pressure: 207 bar, 21 MPa (3000 PSI)
Includes:
•
0.91 lpm (0.24 gpm) stand-mount sprayer
•
SG2 gun - Manual 312830
•
0.635 cm (1/4 in) x 7.5 m (25 ft) hose
Magnum X7 (16J751) - Series A
Maximum Working Pressure: 207 bar, 21 MPa (3000 PSI)
Includes:
•
1.17 lpm (0.31 gpm) cart-mount sprayer
•
SG3 gun - Manual 312830
•
0.635 cm (1/4 in.) x 15 m (50 ft) hose
Important Safety Instructions
Read all warnings and instructions in this
manual. Save these instructions.
Magnum X5
(16J750)
- Not for use in explosive atmospheres -
Use water-based or mineral spirit-type
•
materials only. Do not use flammable
materials. For more information about your
material, request MSDS from distributor or
retailer.
Magnum X7
(16J751)
3A1775C
EN

Advertisement

Table of Contents
loading

Related Manuals for Graco MAGNUM X5

Summary of Contents for Graco MAGNUM X5

  • Page 1 Operation 3A1775C Magnum X5 and X7 Airless Sprayers - For Portable Spray Applications of Architectural Paints and Coatings - - Not for use in explosive atmospheres - Models: Magnum X5 (16J750) - Series A Maximum Working Pressure: 207 bar, 21 MPa (3000 PSI) Use water-based or mineral spirit-type •...

  • Page 2: Table Of Contents

    Unclogging Spray Tip ....14 Graco Standard Warranty ....26 Triggering Gun .

  • Page 3: Warnings

    Warnings Warnings The following warnings are for the setup, use, grounding, maintenance and repair of this equipment. The exclamation point symbol alerts you to a general warning and the hazard symbol refers to procedure-spe- cific risks. Refer back to these warnings. Additional, product-specific warnings may be found throughout the body of this manual where applicable.
  • Page 4 Use Graco conductive or grounded high-pressure airless paint sprayer hoses. Verify that all containers and collection systems are grounded to prevent static discharge. Do •...
  • Page 5 Warnings WARNING SKIN INJECTION HAZARD High-pressure fluid from gun, hose leaks, or ruptured components will pierce skin. This may look like just a cut, but it is a serious injury that can result in amputation. Get immediate surgical treatment. Do not spray without tip guard and trigger guard installed. •...
  • Page 6 Warnings WARNING PRESSURIZED ALUMINUM PARTS HAZARD Use of fluids that are incompatible with aluminum in pressurized equipment can cause serious chemical reaction and equipment rupture. Failure to follow this warning can result in death, serious injury, or property damage. Do not use 1,1,1-trichloroethane, methylene chloride, other halogenated hydrocarbon •...

  • Page 7: Grounding Instructions

    Grounding Instructions Grounding Instructions 3. Do not use an extension cord with damaged ground plug. Recommended extension cords: 15 m (49.2 ft) 1.0 mm • Sprayer must be grounded. Grounding reduces the risk of static and electric shock by providing an 30 m (98.4 ft) 1.5 mm •...

  • Page 8: Component Identification (Magnum X5)

    Component Identification (Magnum X5) Component Identification (Magnum X5) ti15963b A Electric motor (inside enclosure) Inlet screen B Power switch M Paint hose C Pressure control knob P SG2 airless spray gun D Pump fluid outlet fitting Q Tip guard G Suction Tube...

  • Page 9: Component Identification (Magnum X7)

    Component Identification (Magnum X7) Component Identification (Magnum X7) ti15964b A Electric motor (inside enclosure) M Paint hose B Power switch P SG3 airless spray gun C Pressure control knob Q Tip guard D Pump fluid outlet fitting R Reversible spray tip G Suction Tube S Trigger safety lever H Prime tube (with diffuser)

  • Page 10: Operation

    Operation Operation Pressure Relief Procedure Pressure Adjustment Follow this Pressure Relief Procedure whenever 1. Align arrow on sprayer with spray symbol on you stop spraying and before cleaning, checking, pressure control knob. servicing, or transporting equipment. 1. Turn OFF power switch. ti2031a 2.

  • Page 11: Setup

    Setup Setup 3. Connect other end of hose to sprayer fluid out- let fitting. Use wrench to tighten. 1. Turn OFF power switch. ti15965a ti2018a 4. Turn pressure control knob left (minimum pres- 2. Connect one end of grounded fluid hose to sure).

  • Page 12: Priming

    Priming Priming 5. Push pump priming button two times. For flushing storage fluid and loading pump and hose with paint. ti15972a Before priming sprayer, follow Cleaning procedure, 6. Turn ON power switch. Align arrow on sprayer Steps 1-6, page 17. and bucket symbol on pressure control knob.

  • Page 13: Install Tip And Guard On Gun

    Priming Install Tip and Guard on Gun Spraying Techniques Motor runs only when gun is triggered. Sprayer is 1. Engage trigger lock. designed to stop pumping when gun trigger is released. Getting Started ti8908a Hold gun 30 cm (12 in.) from surface and aim straight at surface.

  • Page 14: Unclogging Spray Tip

    Priming Unclogging Spray Tip 5. When obstruction is cleared, engage trigger lock and rotate arrow-shaped handle back to SPRAY position. To avoid fluid splash back: Never pull gun trigger when arrow-shaped • handle is between SPRAY and UNCLOG positions. ti9049a Tip must be pushed all the way into guard.

  • Page 15: Selecting The Right Tip

    Selecting the Right Tip Selecting the Right Tip Tip Hole Size Spray should be atomized (evenly distrib- Use small tip hole size when spraying thin- • • uted, no gaps or edges). Start at a low ner coatings. pressure setting, increase pressure a little Tips wear and enlarge when you spray.

  • Page 16: Tip Number

    Selecting the Right Tip Tip Number The last three digits of tip number (example 286413) contain information about hole size and fan width when gun is held 30.5 cm (12 in.) from surface being sprayed. Reversible Tip Selection Table Fan Width Tip Part Number Hole Size 305 mm (12 in.) from surface...

  • Page 17: Cleanup

    Cleanup Cleanup 5. While pump continues to stroke, remove trigger lock. Trigger gun into paint pail. Turn Prime/Spray valve to SPRAY. Continue to trig- ger gun until flushing fluid comes out of gun. Release trigger. 1. Engage gun trigger lock. ti2051a ti2048a NOTE: To minimize splashing, aim gun at...

  • Page 18: Cleaning Gun Filter

    Cleanup Cleaning Gun Filter 3. Remove filter and clean it in compatible sol- vent. Perform Pressure Relief Procedure, page 10. 1. Engage gun trigger lock. ti2055a NOTE: Do not soak entire gun in solvent. Pro- longed exposure to solvent can ruin packings. 4.

  • Page 19: Filling Sprayer With Storage Fluid

    Cleanup Filling Sprayer with Storage Fluid 4. Turn ON power switch. Always pump storage fluid through pump system after cleaning. Water left in sprayer will corrode ti2028a1 sprayer and damage pump. 5. Align arrow on sprayer with roller symbol on pressure control knob.

  • Page 20: Maintenance

    Pump When pump wears, paint will begin to leak down outside of pump. Replace pump at first sign of leak- ing or additional damage could occur. Pump repair kits are available from Graco/M AGNUM authorized service centers. 3A1775C...

  • Page 21: Troubleshooting

    Check for broken insulation or wires. Replace damaged electrical cord. Motor or control damaged. Return sprayer to authorized Graco service center. Paint frozen or hardened in pump. Unplug sprayer from electrical outlet. If paint if frozen in sprayer: Do NOT try to start frozen sprayer. Thaw completely or you may damage motor, control board and/or drivetrain.
  • Page 22 Refill paint pail and reprime sprayer. Suction tube has vacuum air leak. Tighten suction tube connection. Inspect for cracks or vacuum leaks. If cracked or damaged, replace. Pump check valves are dirty or Return sprayer to Graco/M authorized service AGNUM damaged.
  • Page 23 Check for broken insulation or wires. Replace damaged soon as sprayer is plugged into electrical cord. outlet and sprayer is turned on. Damaged motor or control. Return sprayer to Graco/M authorized service AGNUM center. Fan pattern varies dramatically Pressure control switch is worn...

  • Page 24: Technical Data

    Technical Data Technical Data Maximum fluid working pressure - sprayer 207 bar, 21 MPa (3000 psi) Sprayer inlet size 3/4 in. internal thread (standard garden hose USA) Sprayer outlet size 1/4 npsm external thread Electric motor (open frame universal motor) 1/2 hp 4.5 Amp 5/8 hp 4.5 Amp Sprayer weight only...

  • Page 25: Notes

    Notes Notes 3A1775C...

  • Page 26: Graco Standard Warranty

    Graco distributor to the original purchaser for use. With the exception of any special, extended, or limited warranty published by Graco, Graco will, for a period of twelve months from the date of sale, repair or replace any part of the equipment determined by Graco to be defective.
