Panduit ATLONA AT-UHD-CLSO-601 Application Programming Interface

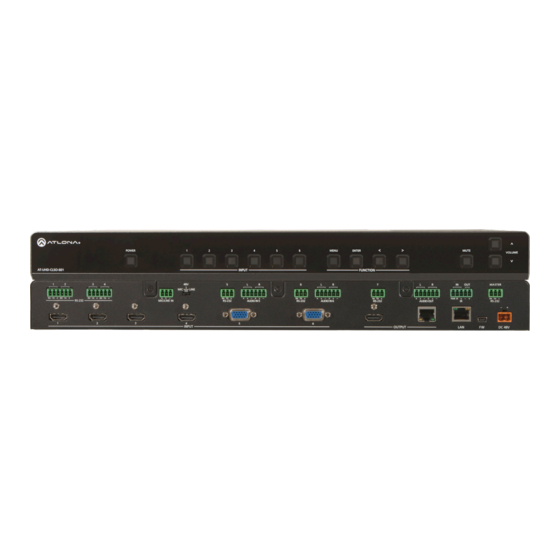

4k/uhd 6 input multi-format switcher w/mirrored hdmi and hdbaset outputs
Hide thumbs Also See for ATLONA AT-UHD-CLSO-601:
Table of Contents

Advertisement

Quick Links

Download this manual
4K/UHD 6 Input
Multi-Format Switcher
w/Mirrored HDMI and HDBaseT Outputs
Application Programming Interface
AT-UHD-CLSO-601
Atlona Manuals
Switchers

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the ATLONA AT-UHD-CLSO-601 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Panduit ATLONA AT-UHD-CLSO-601

Summary of Contents for Panduit ATLONA AT-UHD-CLSO-601

  • Page 1 4K/UHD 6 Input Multi-Format Switcher w/Mirrored HDMI and HDBaseT Outputs Application Programming Interface Atlona Manuals AT-UHD-CLSO-601 Switchers...
  • Page 2 Version Information Version Release Date Notes Aug 2022 Initial release AT-UHD-CLSO-601...

  • Page 3: Apwrofftime

    Commands The following tables provide an alphabetical list of commands available on the AT-UHD-CLSO-601. All commands are case-sensitive and must be entered as documented. If the command fails or is entered incorrectly, then the feedback is “Command FAILED”. IMPORTANT: Each command is terminated with a carriage-return (0x0d) and the feedback is terminated with a carriage-return and line-feed (0x0a).
  • Page 4 Commands Command Description LVOL Adjusts the line volume Menu Provides remote operation of the On-Screen Display (OSD) Adjusts the microphone ducking settings Configures Mosquito Noise reduction Mreset Resets the AT-UHD-CLSO-601 to factory-default settings MVOL Adjusts the microphone volume Sets the OSD status OutAMute Sets the output audio mute status of HDMI and HDBT PollAddIn...

  • Page 5: Table Of Contents

    Commands APwrOffTime Set the time interval, in seconds, before the command to power-off the display is sent, once an A/V signal is no longer detected. Use the sta argument to display the current setting. Syntax APwrOffTime X Parameter Description Range Time interval 5 ...

  • Page 6: Syntax

    Commands ASwPrePort Sets the default fallback port for auto-switching. Syntax ASwPrePort X Parameter Description Range Video Port HDMI1, HDMI2, HDMI3, HDMI4, VGA1, VGA2, PREVIOUS Example Feedback ASwPrePort HDMI1 ASwPrePort HDMI1 Embeds the selected audio input on to the desired HDMI or VGA input. To pass-through audio, normally, specify AiP as the second argument.
  • Page 7 Commands AutoDispOn Sends a power-on command to the display when a source signal is received. Specify the sta argument to display the current setting. Syntax AutoDispOn X Parameter Description Range State on, off, sta Example Feedback AutoDispOn on AutoDispOn on AutoPwrMode Sets the auto-power mode.

  • Page 8: Parameter Description Setting

    Commands Blink Enables or disables blinking of the POWER button on the front panel. When set to on, the POWER button will flash, alternating between red and blue, and can be used to physically identify the unit on a network. The POWER button will flash until the Blink off command is executed.
  • Page 9 Commands CliIPAddr Sets the IP address of the controlled device. The IP address must be specified in dot-decimal notation. Use the sta argument to display the IP address of the device. DHCP must be disabled before using this command. Refer to the IPDHCP command for more information.
  • Page 10 Commands CliPort Sets the listening port for the controlled device. Use the sta argument to display the current listening port. The default port is 23. Use the sta argument to display the current setting. Syntax CliPort X Parameter Description Range Port 0 ...
  • Page 11 Commands CtlType Sets the control protocol used to communicate with the display device. Use the sta argument to display the current setting. Syntax CtlType X Parameter Description Range Value rs-232, ip, cec, sta Example Feedback CtlType ip CtlType ip DispCEC Turns the display on or off using the CEC protocol.
  • Page 12 Commands DispRS Turns the display on or off using the RS-232 (serial) protocol. Unlike the TrigRS command, this command will wait until the warm-up and cool-down timers have expired. Refer to the ProjWarmUpT ProjSWMode commands for setting these timers. on = power on the display, off = power-off the display. Use the sta argument to display the current setting.
  • Page 13 Commands Adjusts the treble equalizer to the specified level. Levels can also be increased or decreased by increments of 1. When incrementally increasing or decreasing the current treble level, do not specify the parentheses as part of the command. Refer to the examples below. Syntax EQT(X) Parameter...
  • Page 14 Commands help Displays the list of available commands. To obtain help on a specific command, enter the help command followed by the name of the command. Syntax help [X] Parameter Description Range Command name (optional) Command Example Feedback help help SHostName RHostName PWON...
  • Page 15 Commands InputBroadcast Enabling this feature will invoke the InputStatus command, when a new source is connected, and will return the state of all inputs. This also applies when auto-switching occurs. on = enable; off = disable; sta = displays the current setting.
  • Page 16 Commands IPCFG Displays the current network settings for the AT-HDVS-SC-RX. Syntax IPCFG This command does not require any parameters Example Feedback IPCFG IP Addr 192.168.11.176 Netmask 255.255.255.0 Gateway 192.168.11.1 IP Port 23 IPDelUser Deletes the specified user. Deleted users will no longer be able to access the web GUI or initiate Telnet sessions. This command performs the same function as removing a user within the web GUI.
  • Page 17 Commands IPLogin Enables or disables the use of login credentials when initiating a Telnet session on the AT-HDVS-SC-RX. If this feature is set to on, then the AT-UHD-CLSO-601 will prompt for both the username and password. Use the same credentials as the web GUI. on = login credentials required; off = no login required. Use the sta argument to display the current setting.
  • Page 18 Commands IPStatic Sets the static IP address, subnet mask, and gateway (router) address of the AT-HDVS-SC-RX. Before using this command, DHCP must be disabled on the AT-HDVS-SC-RX. Refer to the IPDHCP command for more information. Each argument must be entered in dot-decimal notation and separated by a space. The default static IP address of the AT-HDVS-SC-RX is 192.168.1.254.
  • Page 19 Commands LVOL Adjusts the line volume level to the specified level. Volume levels can also be increased or decreased by increments of 1. When incrementally increasing or decreasing the current line level, do not specify the parentheses as part of the command.
  • Page 20 Commands Configures video mosquito noise reduction. Use the sta argument to return the current setting. Syntax MNR X Parameter Description Range Setting off, low, medium, high, sta Example Feedback MNR low MNR low Mreset Resets the AT-UHD-CLSO-601 to factory-default settings. Syntax MReset This command does not require any parameters...
  • Page 21 Commands Displays or hides the On-Screen Display (OSD) menu system. on = show, off = hide, func = function menu, info = info menu. Syntax OSD X Y Parameter Description Range Menu func, info State on, off Example Feedback OSD info on OSD info on OutAMute Sets the audio mute state for HDMI and HDBT outputs.
  • Page 22 Commands PollDelIn Deletes source for analog polling. The example shown below will delete VGA, CV, and COMP analog polling. Syntax PollDelInX Y Parameter Description Range VGA port 1 (VGA input 5), 2 (VGA input 6) Secondary port VGA, COMP, CV, SV Example Feedback PollDelIn2 VGA,CV,COMP...
  • Page 23 Commands ProjSWMode Sets the projector lamp cool-down timer, in seconds. This value specifies the time interval that must elapse, after the display control “off” command is sent, before the display “power on” command can be sent. This command is used to prevent the projector from missing a “power on”...
  • Page 24 Commands PWON Issue this command to power-on the AT-HDVS-210H/U-TX, from a “power-off” (standby) state. When the unit is “on”, the PWR LED indicator will glow solid blue. Syntax PWON This command does not require any parameters Example Feedback PWON PWON PWSTA Returns the power state of the AT-HDVS-210H/U-TX.
  • Page 25 Commands RepeatCmd Enables or disables the RepCmdTime feature. Specify the sta argument to display the current setting. Syntax RepeatCmd X Parameter Description Range Status on, off, sta Example Feedback RepeatCmd on RepeatCmd on RHostName Displays the hostname of the unit. Execute the SHostName command to set the hostname.
  • Page 26 Commands RS232para Sets the baud rate, data bits, parity bit, and stop bits for the RS-232 port on the AT-UHD-CLSO-601. Each argument must be separated by a comma; no spaces are permitted. Brackets must be included when typing this command. Syntax RS232paraV[W,X,Y,Z] Parameter...
  • Page 27 Commands SetCmd Defines the command used by the AT-UHD-CLSO-601 to perfom the specified function on the display (sink) device. For example, to define the “power off” command, locate the equivalent “power off” command for the display by consulting the display’s User Manual. Once the desired command is located, assign it to the equivalent command used by the AT-UHD-CLSO-601.
  • Page 28 Commands SnVOL Adjusts the sub volume to the specified level. Sub volume levels can also be increased or decreased by increments of 1. When incrementally increasing or decreasing the current sub volume level, do not specify the parentheses as part of the command. Refer to the examples below. Syntax SnVOL(X) Parameter...
  • Page 29 Commands TrigCEC Sends the specified command to the display using CEC. The output must always be specified and set to the value of 1. Do not add a space between the command and the first argument. Syntax TrigCECX Y Parameter Description Range Zone...
  • Page 30 Commands Type Displays the SKU of the AT-UHD-CLSO-601. Syntax Type This command does not require any parameters Example Feedback Type AT-UHD-CLSO-601 Unlock Unlocks the buttons on the front panel. Also refer to the Lock command. Syntax Unlock This command does not require any parameters Example Feedback Unlock...
  • Page 31 Commands VFmtRes Sets the video output resolution. Refer to the Output Resolution List, below. Syntax VidOutRes X Parameter Description Range Value 0 ... 42, 254 Output Resolution List 16 = 640 x 480 @ 75 Hz 33 = 2048 x 1080p @ 50 Hz 0 = Pass-through 17 = 800 x 600 @ 60 Hz 34 = 2048 x 1080p @ 60 Hz...
  • Page 32 Commands Adjusts the master volume to the specified level. The master volume level can also be increased or decreased by increments of 1. When incrementally increasing or decreasing the current master volume, do not specify the parentheses as part of the command. Refer to the examples below. Syntax VOL(X) Parameter...
  • Page 33 International atlona.com 408.962.0515 41.43.508.4321 • • 40232-R1...
