- Page 1 4K / UHD Five-Input HDMI Switcher with Mirrored HDMI / HDBaseT Outputs ™ Atlona Manuals AT-UHD-SW-52ED Switchers...
- Page 2 Version Information Version Release Date Notes Apr 2020 New manual format AT-UHD-SW-52ED...
- Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
- Page 4 Atlona, Inc. (“Atlona”) Limited Product Warranty Coverage Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service. Under its Limited Product Warranty, Atlona, at its sole discretion, will either: •...
- Page 5 Atlona, Inc. (“Atlona”) Limited Product Warranty • Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
- Page 6 Important Safety Information 9. Do not defeat the safety purpose of a polarized CAUTION or grounding-type plug. A polarized plug has two RISK OF ELECTRIC SHOCK blades with one wider than the other. A grounding DO NOT OPEN type plug has two blades and a third grounding CAUTION: TO REDUCT THE RISK OF prong.
-
Page 7: Table Of Contents
Table of Contents Introduction Features Package Contents Panel Description Front Panel Rear Panel Installation Power Audio Connection Instructions Connection Diagram IP Configuration Setting the IP Address using the Web Server Auto IP (APIPA) Mode Device Operation LED Indicators System Configuration Getting the MAC Address Changing the Network IP Mode Setting Static IP Mode using the Front Panel... - Page 8 Table of Contents Appendix Updating the Firmware Using the Web Server Using the USB Interface Mounting Instructions Single Unit Rack Installation Dual Unit Rack Installation Flat Surface Specifications AT-UHD-SW-52ED...
-
Page 9: Introduction
Introduction The Atlona AT-UHD-SW-52ED is a 5x1 HDMI switcher with mirrored HDMI and HDBaseT™ outputs, balanced audio outputs, auto-switching, and advanced control capability. The switcher supports 4K/UHD @ 60 Hz, 4:2:0; offers 3D pass-through, and 10.2 Gbps bandwidth. With front-panel buttons and IR control, it can be a standalone switcher. -
Page 10: Panel Description

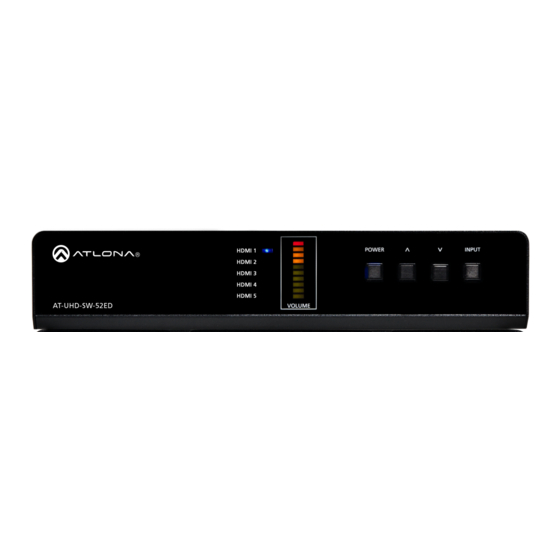

Panel Description Front Panel HDMI 1 POWER INPUT HDMI 2 HDMI 3 HDMI 4 HDMI 5 AT-UHD-SW-52ED VOLUME HDMI 1 - HDMI 5: Input LED Indicators Cursor Buttons AUDIO OUT S/PDIF OUT RS-232 These LED indicators display which input is routed Press and release these buttons to increase or to the HDMI OUT port. -
Page 11: Rear Panel
HDMI 1 POWER INPUT HDMI 2 HDMI 3 HDMI 4 Panel Description HDMI 5 AT-UHD-SW-52ED VOLUME Rear Panel AUDIO OUT S/PDIF OUT RS-232 RX TX HDMI IN HDMI OUT HDBaseT OUT DC 48V HDMI IN Connect an HDMI cable from each of these ports to a Connect an Ethernet cable from this port to the Local UHD/HD source. -
Page 12: Installation
HDMI 1 POWER INPUT HDMI 2 Installation HDMI 3 HDMI 4 HDMI 5 Power VOLUME Connect the included 2-pin captive screw connector to the DC 48V power receptacle on the rear of the unit. Insert the positive and negative leads, from the power supply, into the terminals of the 2-pin captive screw connector block, as shown. -
Page 13: Connection Instructions
Installation Connection Instructions 1. Connect up to five UHD/HD sources, using HDMI cables, to ports HDMI IN 1 through HDMI IN 5. 2. Connect an HDMI cable from the HDMI OUT port to a UHD/HD display. 3. Connect a category cable (CAT-5e or better) from the HDBaseT OUT port to a compatible receiver. Refer to the tables below for recommended cabling when using Altona products with HDBaseT technology. -
Page 14: Connection Diagram
Installation Connection Diagram Bookshelf Speakers G en R SYS G en R SYS AT-PA100-G2 23 2 BRID LINE AT-VTP-800 Local Display AT-UHD-SW-52ED IN PU W ER P BOX Set-Top Box -5 2E -S W -U HD I OU -250 P OU AT-UHD-EX-100CE-RX AT-VGW-HW Media Player... -
Page 15: Ip Configuration
Installation IP Configuration The AT-UHD-SW-52ED is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. If the AT-UHD-SW-52ED is unable to detect a DHCP server within 15 seconds, then the unit will use a self-assigned IP address within the range of 169.254.xxx.xxx. -
Page 16: Device Operation
Device Operation LED Indicators The LED indicators on both the front and rear of the unit provide basic information on the current status of the AT- UHD-SW-52ED. Description HDMI 1 - Solid green The input is the currently selected (active) input. HDMI 5 The input is not the active input. -
Page 17: System Configuration
Device Operation System Configuration The AT-UHD-SW-52ED provides easy access to system configuration through the built-in web server, and is the recommended method to adjust network settings. NOTE: When a setting within the Network Settings page is being modified, the background color will switch from white to gray. -
Page 18: Changing The Network Ip Mode
Device Operation Changing the Network IP Mode By default, the AT-UHD-SW-52ED is set to DHCP mode. Once connected to a network, and if a DHCP server is found (or available), the AT-UHD-SW-52ED will be assigned an IP address on the network, and no further network configuration is required. -
Page 19: Setting Static Ip Mode Using The Front Panel
Device Operation Setting Static IP Mode using the Front Panel By default, the AT-UHD-SW-52ED is set to DHCP mode. Once connected to a network, and if a DHCP server is found (or available), the AT-UHD-SW-52ED will be assigned an IP address on the network, and no further network configuration is required. -
Page 20: Changing The Telnet Port
Device Operation Changing the Telnet Port Typically, the Telnet service is assigned to TCP port 23. This is the default setting for the AT-UHD-SW-52ED. However, depending upon the network environment, the default Telnet port can be changed. 1. Login to the web server. Refer to Introduction to the Web Server (page 37). -
Page 21: Telnet Login Mode
Device Operation Telnet Login Mode When a Telnet session is requested, the AT-UHD-SW-52ED provides the option to prompt for user credentials or bypass authentication before the Telnet session begins. Prompting for credentials can be enabled or disabled. When prompting for user credentials, use the same login information required by the built-in web server. 1. -
Page 22: Setting The Host Name
Device Operation Setting the Host Name By default, the AT-UHD-SW-52ED is assgned a hostname, which is constructed as follows: SW52ED-[last six digits of MAC address] For example, a default hostname might look like this: SW52ED-006154. This value can be changed to easily identify the AT-UHD-SW-52ED within the Atlona Management System (AMS) or a network. -
Page 23: Video Switching
Device Operation Video Switching Enabling / Disabling Auto-Switching The AT-UHD-SW-52ED provides auto-switching capability, which is enabled by default. This feature will automatically switch the input to the most recently-connected source. If a source is disconnected, then the input will automatically be switched to the previously-connected source. By default, auto-switching is enabled on the AT-UHD-SW-52ED, allowing the unit to automatically switch between inputs when sources are connected or disconnected. -
Page 24: Selecting The Input
Device Operation Selecting the Input The active input can be selected from the front panel, the built-in web server, or an API call. Refer to the AT-UHD- SW-52ED Application Programming Interface for more information. 1. Login to the web server. Refer to Introduction to the Web Server (page 37). -
Page 25: Resetting To Factory-Defaults
Device Operation Resetting to Factory-Defaults The following procedure will reset the AT-UHD-SW-52ED to factory-default settings. The network IP mode will be set to DHCP mode. Using the Web Server 1. Login to the web server. Refer to Introduction to the Web Server (page 37). -
Page 26: Using The Front Panel
Device Operation Using the Front Panel 1. Verify that the AT-UHD-SW-52ED is powered. 2. Select any input from 2 through 5, by pressing and releasing the INPUT button. 3. Simultaneously press and hold the INPUT and POWER buttons for 15 seconds. HDMI 1 POWER INPUT... -
Page 27: Audio Management
Device Operation Audio Management The AT-UHD-SW-52ED provides volume control and independent audio muting. Audio muting can be controlled on HDMI OUT, HDBaseT OUT, and ANALOG OUT ports. To de-embed the source audio on the ANALOG OUT port, connect the included 5-pin captive screw connector to the ANALOG OUT port. De-embedding audio is restricted to multichannel Linear PCM formats. -
Page 28: Audio Output Muting
Device Operation Audio Output Muting 1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below: Username: root Password: Atlona 2. Click Settings in the menu bar. 3. Locate the Audio Settings section. 4. -
Page 29: User Management
Device Operation User Management The AT-UHD-SW-52ED allows the administrator password to be changed. The password applies to both the web server and Telnet sessions. Note that the Username field cannot be changed. All users have the same level of access to control the AT-UHD-SW-52ED. However, only the root user is allowed to manage other users. Up to three additional users can be created. -
Page 30: Adding Users
Device Operation Adding Users 1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below: Username: root Password: Atlona 2. Click Config in the menu bar. 3. Enter the desired username and password for the desired user field: User 1, User 2, and User 3. 4. -
Page 31: Editing / Deleting Users
Device Operation Editing / Deleting Users The username and password of a user can be changed using this method. 1. Login to the web server. Refer to Introduction to the Web Server (page 37). The default username and password are listed below: Username: root Password: Atlona 2. -
Page 32: Edid Management
Device Operation EDID Management Before a source can send picture and sound to a display device, the source reads the reads the EDID (Extended Display Identification Data) structure, which is stored in the display. The EDID contains information about what type of video and audio formats are supported by the display. - Page 33 Device Operation 4. Click the drop-down list, next to the port that is connected to the display device, and select the desired EDID preset. For example, if the HDMI IN 1 port is connected to a display, click the Input 1 drop-down list and select the EDID.
-
Page 34: Storing Edid Data
Device Operation Storing EDID Data The AT-UHD-SW-52ED provides eight memory locations which can be used to store EDID data. Any downstream EDID can be captured and stored in these locations. Each memory location is non-volatile and captured EDID data is stored after power is disconnected from the unit. 1. - Page 35 Device Operation 5. Click the drop-down list, next to the output which will be used to fetch the EDID. In this example, since the display is connected to the HDMI OUT port, a memory location next to the Output 1 option is selected. Here, the EDID will be stored in MEM_1.
-
Page 36: Hdcp Content
Device Operation HDCP Content Normally, if a source is transmitting HDCP content to a display that is not HDCP-compatible, then the resulting image on the display can be “snow”, image flickering, or no picture. For example, in the illustration below, a laptop source is connected to the AT-UHD-SW-52ED. -
Page 37: Configuration And Management Interfaces
Configuration and Management Interfaces Introduction to the Web Server The AT-UHD-SW-52ED includes a built-in web server. Atlona recommends that the web server be used to set up the AT-UHD-SW-52ED, as it provides intuitive management of all features. Follow the instructions below to access the webGUI. -
Page 38: Home Page
Configuration and Management Interfaces Home Page After logging in, the Home page will be displayed. The Info page provides various information about the AT-UHD- SW-52ED, including software version and video information. Model The model SKU of this product. Video Format The input resolution of the source device. -
Page 39: Network Setup Page
Configuration and Management Interfaces Network Setup Page The Network Setup page provides information about the current network settings of the AT-UHD-SW-52ED. In addition, the network mode, Telnet port, and hostname can be assigned from this page. DHCP Hostname Click the desired setting to switch the AT-UHD-SW-52ED Displays the hostname of the AT-UHD-SW-52ED, as it to ON or OFF mode. -
Page 40: Settings Page
Configuration and Management Interfaces Settings Page The Settings page is divided into three sections: Video, Audio, and HDCP. The Video section provides controls for switching modes and input selection. The Audio section provides options to control the output audio volume and de-embedding. -
Page 41: Config Page
Configuration and Management Interfaces Config Page The Config page provides management of the administrator password. The administrator username (“root”) cannot be changed. Refer to User Management (page 29) for more information. Up to three additional users can be managed within this page. This page also provides settings for both local and HDBaseT RS-232 control. Username (old) This field cannot be changed. - Page 42 Configuration and Management Interfaces System Sets the RS-232 port settings and used for local control by a third-party control system. Output2 If the AT-UHD-SW-52ED is connected to a device such as the AT-UHD-EX-100CE-RX-PSE, the drop-down list boxes will be disabled and the HDBaseT baud rate will be locked at 115200. If the AT-UHD-SW-52ED is connected to another HDBaseT device, such as the AT-UHD-CLSO-824, each of these drop-down list boxes can be set to the baud rate of the HDBaseT RS-232 settings on the corresponding device.
-
Page 43: Edid Page
Configuration and Management Interfaces EDID Page This page provides controls for selecting and storing EDID data. Refer to EDID Management (page 32) for more information. EDID Settings Click these drop-down lists to select the desired EDID to be used for each input. The following EDID presets are available. - Page 44 Configuration and Management Interfaces HDCP Settings Each input provides control of how HDCP content is handled. Some source devices will send HDCP content if an HDCP-compliant display (sink) is detected. However, there may be applications where sending HDCP content is not desired.
-
Page 45: Control Page
Configuration and Management Interfaces Control Page This page provides controls for CEC, device timers, and configuration for controlling external devices. NOTE: To display all settings on the screen, as shown below, the Display Auto Power drop-down list must be set to Enabled. Power Click this drop-down list to select the control protocol for the POWER button on the front panel. - Page 46 Configuration and Management Interfaces Power Button Lock Click this drop-down list to et this toggle to ENABLED to allow the AT-UHD-SW-52ED to send the power-on command to the display when an A/V signal is detected. When the AV signal is no longer present, the AT-UHD- SW-52ED will send the power-off command to the display.
- Page 47 Configuration and Management Interfaces Port Enter the port in this field. Username This field is only required if IP Mode is set to Login. Enter the username in this field. Password This field is only required if IP Mode is set to Login. Enter the required password in this field. ASCII / Hex Click these radio buttons to set the desired data transmission method.
-
Page 48: Update Page
Configuration and Management Interfaces Update Page This page provides management for updating the AT-UHD-SW-52ED firmware. Choose File Click this button to select the firmware file to be uploaded to the AT-UHD-SW-52ED. Note that this button is available for both the “master” firmware and Valens chip update. Upload Click this button to begin the firmware update process. -
Page 49: Appendix
Appendix Updating the Firmware Updating the firmware can be completed using either the USB interface or the built-in web server. Atlona recommends using the web server for updating the firmware. However, if a network connection is not available, the AT-HDVS-210H-TX-WP firmware can be updated using a USB-A to USB mini-B cable. Using the Web Server Requirements: •... -
Page 50: Using The Usb Interface
Appendix Using the USB Interface Requirements: • AT-UHD-SW-52ED • Firmware file HDMI 1 POWER INPUT • Computer with a USB port HDMI 2 • USB-A to USB mini-B cable HDMI 3 HDMI 4 1. Download the firmware file from atlona.com and extract the contents of the .zip file to a folder on the computer HDMI 5 AT-UHD-SW-52ED VOLUME... - Page 51 Appendix 7. Delete all files from the USB UPDATE drive, if any are present. 8. Drag-and-drop the firmware file to the drive. 9. After the file has been copied, disconnect the USB cable from both the computer and the AT-UHD-SW-52ED. 10.
-
Page 52: Mounting Instructions
Appendix Mounting Instructions The AT-UHD-SW-52ED includes two mounting brackets, which can be used to attach the unit to any flat surface. Use the two enclosure screws, on the sides of the unit to attach the mounting brackets. Single Unit Rack Installation 1. -
Page 53: Dual Unit Rack Installation
Appendix Dual Unit Rack Installation 1. Turn both units upside-down on a flat surface, next to each other, as shown. 2. Position the included mounting plate over the pre-drilled holes on the bottom of the enclosure. When attaching the mounting plate, the countersink bevels on the mounting plate should face upward. Countersink bevel F I E P L I... -
Page 54: Flat Surface
Appendix Flat Surface 1. Turn the unit upside down, on a flat surface. 2. Position the included mounting plates over the pre-drilled holes on the bottom of the enclosure. When attaching mounting plates, the countersink bevels on the mounting plates should face upward. F I E P L I D I O... -
Page 55: Specifications
Appendix Specifications Video HDMI Specification HDMI 2.0, HDCP 1.4 UHD/HD 4096×2160 @ 24/25/30/50 /60 Hz 1280x720p @ 50/59.94/60 Hz 3840×2160 @ 24/25/30/50 /60 Hz 720x576p 2048x1080p 720x576i 1920x1080p @ 23.98/24/25/29.97/30/50/59.94/60 Hz 640x480p 1920x1080i @ 50/59.94/60 Hz 640x480i VESA 2560×2048 @ 60 Hz 1366×768 @ 60 Hz 2560×1600 @ 60 Hz 1360×768 @ 60 Hz... - Page 56 Appendix Controls and Indicators POWER, UP, DOWN, INPUT 4 – momentary, tact-type HDMI 1 - HDMI 5 (inputs) 5 – LED, blue VOLUME (level) 9 – LED, green, amber, red Power Consumption 22 W Idle Consumption 9.06 W External Power Supply (optional) Input: 100 - 240 V AC, 50/60 Hz Output: 48 V DC, 0.83 A Safety...
- Page 57 Toll free US International atlona.com 877.536.3976 41.43.508.4321 • • © 2020 Atlona Inc. All rights reserved. “Atlona” and the Atlona logo are registered trademarks of Atlona Inc. All other brand names and trademarks or registered trademarks are the property of their respective owners. Pricing, specifications and availability subject to change without notice.
