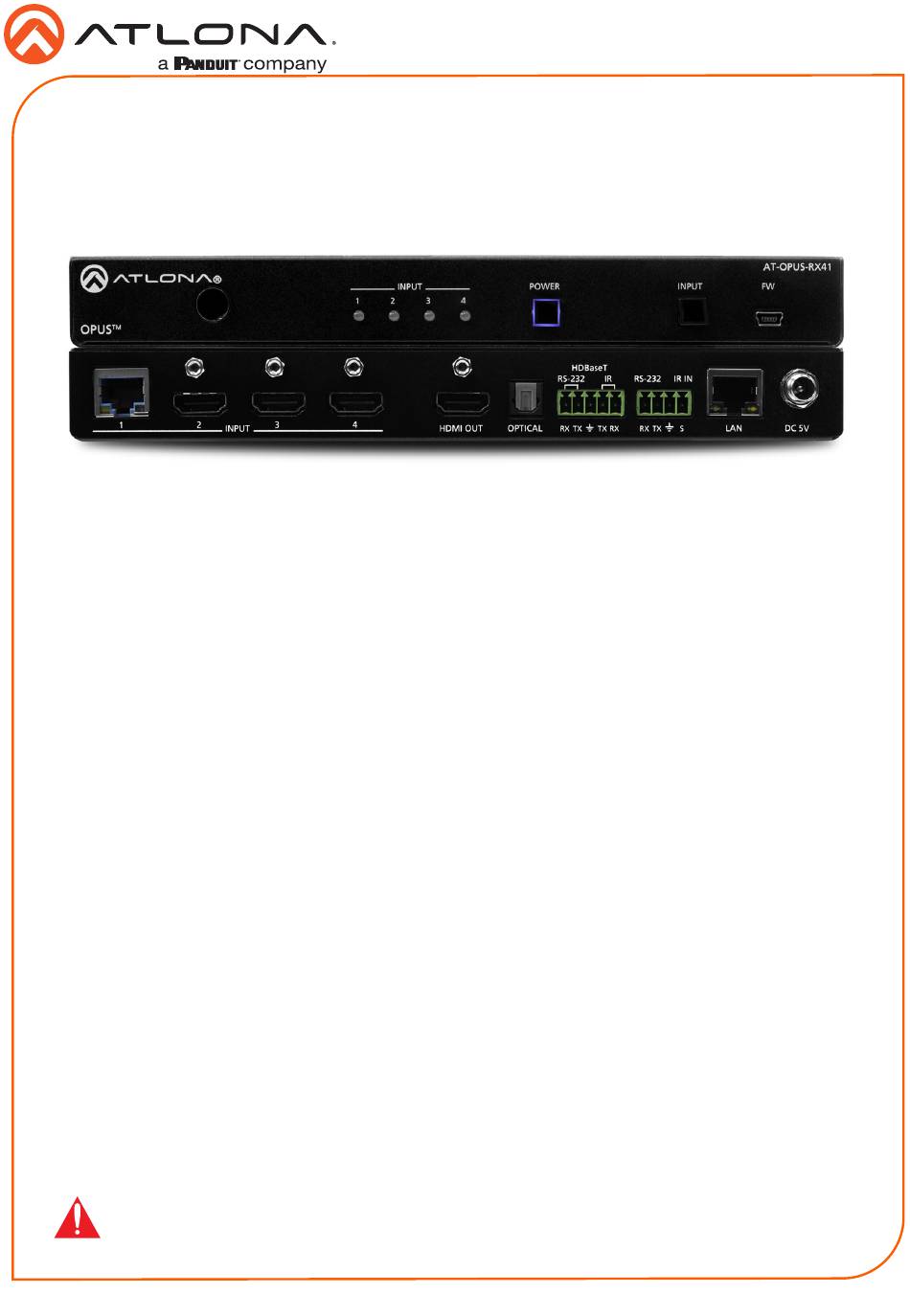

Opus 4K/UHD Three-Input HDMI Switcher
with HDBaseT input Auto-Switching
AT-OPUS-RX41
The Atlona AT-OPUS-RX41 is a 4×1 switcher and receiver for 4K high dynamic range (HDR) for-
mats. It features three HDMI inputs, plus an HDBaseT input for receiving video, embedded audio,
control signals, power, and Ethernet over distances of up to 330 feet (100 meters). Supporting
4K/UHD @ 60 Hz with 4:4:4 chroma sampling, as well as HDMI data rates up to 18 Gbps, the
OPUS-RX41 is the perfect complement to an Atlona Opus™ Series matrix switcher in whole-
house AV applications allowing display of 4K HDR content from either the matrix or one of the
connected local sources.
The OPUS-RX41 includes a number of key features to help simplify residential deployments.
Extension of CEC as well as bidirectional IR and RS-232 signals over HDBaseT allows a control
system connected to the OPUS-RX41 to select inputs on the matrix or control its sources, and
allows the matrix to control the local room display. A handheld IR remote control is included for
power and input selection on the OPUS-RX41. Advanced HDMI Audio Return Channel (ARC)
routes audio from a smart TV to both the local TOSLINK connection as well as HDBaseT. EDID
management, selectable 4K to 1080p downscaling, and HDCP 2.2 support with selectable
down-conversion to HDCP 1.4 ensures compatibility with legacy displays. Remote power allows
the device to be powered by an Opus matrix switcher, for installation flexibility at a display or
projector.
Package Contents
1 x AT-OPUS-RX41
1 x IR remote control
2 x Mounting brackets
4 x Mounting screws
1 x 5-pin captive screw connector
1 x 4-pin captive screw connector
1 x 5 V DC power supply
1 x Installation Guide
IMPORTANT: Visit http://www.atlona.com/product/AT-OPUS-RX41 for the latest firm-
ware updates and documentation.
1
Installation Guide
AT-OPUS-RX41
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Panduit ATLONA Opus AT-OPUS-RX41
Summary of Contents for Panduit ATLONA Opus AT-OPUS-RX41
- Page 1 Installation Guide AT-OPUS-RX41 Opus 4K/UHD Three-Input HDMI Switcher with HDBaseT input Auto-Switching AT-OPUS-RX41 The Atlona AT-OPUS-RX41 is a 4×1 switcher and receiver for 4K high dynamic range (HDR) for- mats. It features three HDMI inputs, plus an HDBaseT input for receiving video, embedded audio, control signals, power, and Ethernet over distances of up to 330 feet (100 meters).
-
Page 2: Panel Descriptions
Installation Guide AT-OPUS-RX41 Panel Descriptions Front AT-OPUS-RX41 INPUT POWER INPUT OPUS HDBaseT RS-232 RS-232 IR IN IR window Receives IR signals from the included IR remote control unit. INPUT HDMI OUT OPTICAL DC 5V RX TX TX RX INPUT Displays the active input. The active input will be indicated with a solid green light. POWER This LED indicator glows solid green when the unit is powered. - Page 3 Installation Guide AT-OPUS-RX41 AT-OPUS-RX41 Panel Descriptions INPUT POWER INPUT OPUS Rear HDBaseT RS-232 RS-232 IR IN INPUT HDMI OUT OPTICAL DC 5V RX TX TX RX INPUT (HDBaseT) Connect a category cable (CAT-5e or better) from this port to a compatible HDBaseT transmitter.
-
Page 4: Ir Remote Control
Installation Guide AT-OPUS-RX41 IR Remote Control The AT-OPUS-RX41 includes an IR remote control Power Video that can be used to operate the unit from a remote All On location. Video 1 Video 2 On / Off Press the On button to power-on the unit. Input Audio Vol +... - Page 5 Installation Guide AT-OPUS-RX41 RS-232 Control The 5-pin HDBaseT RS-232/IR port provides bidirectional RS-232 control of a headend matrix (transmitter) over HDBaseT. The 4-pin RS-232/IR IN port allows RS-232 control of the AT-OPUS- RX41. Refer to the User Manual for more information. AT-OPUS-RX41 INPUT POWER...
- Page 6 Installation Guide AT-OPUS-RX41 IR Control The 5-pin HDBaseT RS-232/IR port can be used to either control a display device or a source device over HDBaseT. The 4-pin RS-232/IR IN port allows IR control of the AT-OPUS-RX41. Refer to the User Manual for more information. AT-OPUS-RX41 INPUT POWER...
-
Page 7: Installation
Installation Guide AT-OPUS-RX41 Installation Connect up a category cable (CAT-5e or better) from the HDBaseT INPUT port to a compatible HDBaseT transmitter. Connect an HDMI cable from each of the HDMI INPUT ports to a UHD/HD source. Connect an HDMI cable from the HDMI OUT port to a display device. OPTIONAL: Connect a S/PDIF optical audio cable from the OPTICAL port to the TOSLINK port of an audio output device. - Page 8 Installation Guide AT-OPUS-RX41 IP Configuration By default, the AT-OPUS-RX41 is set to DHCP mode, allowing a DHCP server (if present) to assign the unit an IP address. To switch between DHCP and static IP mode, following the steps below. Make sure the unit is powered. Press and hold the INPUT button for approximately 10 seconds.
-
Page 9: Mounting Instructions
Installation Guide AT-OPUS-RX41 Mounting Instructions The AT-OPUS-RX41 includes two mounting brackets, which can be used to attach the unit to any flat surface. Use the two enclosure screws, on the sides of the unit to attach the mounting brackets. Using a small Phillips screwdriver, remove the two screws from the left side of the enclosure. - Page 10 Installation Guide AT-OPUS-RX41 Notes...
- Page 11 Installation Guide AT-OPUS-RX41 Notes...
- Page 12 Installation Guide AT-OPUS-RX41 English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-opus-rx41/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. ® The terms HDMI, HDMI High-Definition Multimedia Interface, and the HDMI Logo are trademarks or registered trademarks of HDMI licensing Administrator, Inc.
