Panduit Atlona AT-PRO5-MX810 Installation Manual

4K HDR HDMI
Matrix Switcher with SDVoE Extension Outputs
AT-PRO5-MX810

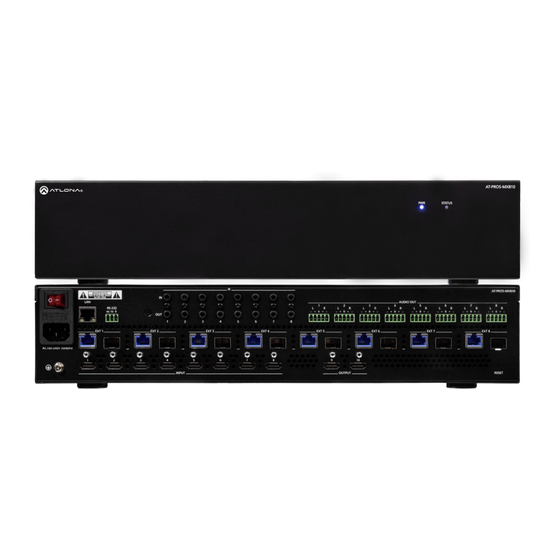

The Atlona AT-PRO5-MX810 is an 8x10 matrix switcher with eight HDMI
outputs, and eight AV extension outputs with SDVoE
video and audio delivery to an Atlona AT-PRO5-101-SC-RX or AT-PRO5-101-RX receiver. Part of
the PRO5 Series, this matrix switcher is HDCP 2.3 compliant, and supports 4K/60 4:4:4 and HDR
at HDMI data rates up to 18 Gbps. Each SDVoE extension output includes an RJ45 port, and
an SFP+ cage for copper or fiber-optic connectivity to transmit video, embedded audio, Gigabit
Ethernet, and RS-232 and IR control signals to the receiver. The RJ45 port allows extension up to
330 feet (100 meters) over CAT6a UTP cable, along with PoE for powering the receiver, while the
SFP+ cage can be used with a compatible fiber optic module to extend from 38 meters up to 10
kilometers over fiber optic cable. Video processing is available in the PRO5-101-SC-RX scaling
receivers, including 4K video upscaling and downscaling with frame rate conversion, and video
wall processing. This HDMI to SDVoE matrix switcher is equipped with a comprehensive host
of audio and control system integration features, making it ideal for a wide range of commercial
applications requiring multi-zone AV distribution with long-distance signal extension.
Package Contents
1 x AT-PRO5-MX810
1 x 3-pin captive screw connector
8 x 5-pin captive screw connectors
1 x AC power cord
1 x Insert w/ QR code
IMPORTANT: Visit https://www.atlona.com/product/at-pro5-mx810 for
the latest firmware updates and User Manual.
10GbE connectivity for ultra-high definition
®
1
Installation Guide
AT-PRO5-MX810
inputs, two HDMI
®
