- Page 1 4K/UHD 6x2 Matrix Switcher for HDMI, USB-C, and HDBaseT with USB Atlona Manuals AT-OME-PS62 Switchers...
- Page 2 Version Information Version Release Date Notes Nov 2023 Added notes for internal USB hubs in specification table. AT-OME-PS62...
- Page 3 Welcome to Atlona! Thank you for purchasing this Atlona product. We hope you enjoy it and will take a extra few moments to register your new purchase. Registration only takes a few minutes and protects this product against theft or loss. In addition, you will receive notifications of product updates and firmware.
- Page 4 Atlona, Inc. (“Atlona”) Limited Product Warranty Coverage Atlona warrants its products will substantially perform to their published specifications and will be free from defects in materials and workmanship under normal use, conditions and service. Under its Limited Product Warranty, Atlona, at its sole discretion, will either: •...
- Page 5 Atlona, Inc. (“Atlona”) Limited Product Warranty • Damage, deterioration or malfunction resulting from the installation or removal of this product from any installation, any unauthorized tampering with this product, any repairs attempted by anyone unauthorized by Atlona to make such repairs, or any other cause which does not relate directly to a defect in materials and/or workmanship of this product.
- Page 6 Important Safety Information 9. Do not defeat the safety purpose of a polarized CAUTION or grounding-type plug. A polarized plug has two RISK OF ELECTRIC SHOCK blades with one wider than the other. A grounding DO NOT OPEN type plug has two blades and a third grounding CAUTION: TO REDUCT THE RISK OF prong.
-
Page 7: Table Of Contents
Table of Contents Introduction Features Package Contents Panel Description Installation Captive Screw Connections Mounting Instructions Connection Instructions IP Modes Connection Diagram Control RS-232 TCP Proxy TCP/IP WebGUI Front Panel Operation Routing Basic Presets Save Presets Recall Audio Route Volume MIC Ducking EDID Copy Set EDID Mode... -
Page 8: Introduction

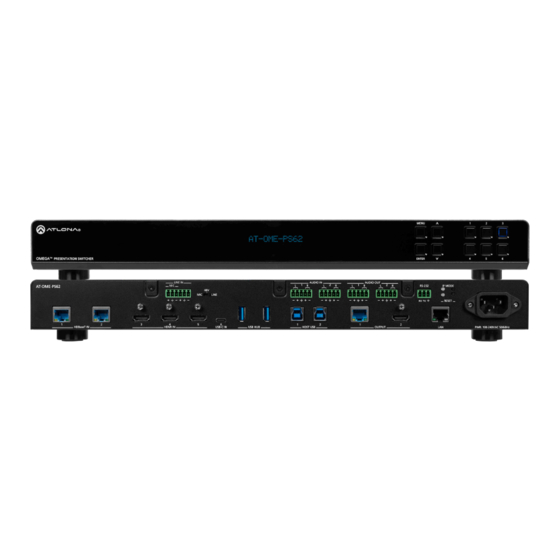

Introduction The Atlona AT-OME-PS62 is a 6x2 matrix switcher with HDMI, USB-C, and HDBaseT inputs, plus HDMI and HDBaseT outputs. Part of the Omega™ Series of integration products for modern AV communications and collaboration, the OME-PS62 features HDBaseT extension for video up to 4K/60 4:2:0, plus embedded audio, control, Ethernet, and USB over distances up to 330 feet (100 meters). -
Page 9: Panel Description
Panel Description MENU OMEGA PRESENTATION SWITCHER ENTER LINE IN AUDIO IN AUDIO OUT AT-OME-PS62 RS-232 IP MODE LINE RX TX RESET HDBaseT IN HDMI IN USB-C IN USB HUB HOST USB OUTPUT PWR: 100-240VAC 50/60Hz Function Buttons 10. HDBaseT IN MENU - Access the front panel menu or use as a Connect a compatible HDBaseT transmitter to this... -
Page 10: Installation
Installation Captive Screw Connections RS-232 A 3-pin captive screw connector has been included for RS-232. Pin out will be determined by the RS-232 cable and connect as RX (receive), TX (transmit) and (Ground). Ground will be shared between port 1 and port 2. -
Page 11: Mounting Instructions
Installation Mounting Instructions The AT-OME-PS62 can be mounted in a standard 19-inch rack or placed freestanding on top of a desk or table. Rack Installation 1. Remove the front two case screws from the sides of the case. 2. Attach the included rack ears to each side of the AT-OME-PS62 using the case screws. H -4 -H 2 A T -H... - Page 12 Installation Surface Mounting The AT-OME-PS62 can be placed freestanding on top of a desk, a table, or in a cabinet. To prevent damage to the surfaces or unnecessary movement of the matrix, four feet have been included. 1. Turn the unit upside down. 2.
-
Page 13: Connection Instructions
Installation Connection Instructions 1. Connect compatible HDBaseT transmitters (e.g. AT-OME-EX-TX) to the HDBaseT input ports. 2. Connect HDMI and USB-C sources to the HDMI and USB-C input ports. 3. *Optional* Connect 2CH sources to the analog AUDIO IN ports. 4. *Optional* Connect a MIC or line input to the MIC/LINE input port and use the dip switch to ensure the port is in the correct mode. -
Page 14: Connection Diagram
Installation Connection Diagram RX TX RS-232 HDMI DEVICE HOST AT-OME-PS62... -
Page 15: Control
Control CEC is available for trigger through RS-232, TCP/IP, and WebGUI (page 23). The trigger commands for RS-232 and TCP/IP can be found within the API at URL. RS-232 RS-232 control for connected devices and the unit are available through the RS-232 captive screw connection. The commands can be found within the API at https://atlona.com/pdf/AT-OME-PS62_API.pdf. -
Page 16: Front Panel Operation
Front Panel Operation The AT-OME-PS62 front panel provides a way to quickly view current settings, set up routing, load/save EDIDs, and save/recall current I/O routing. This will provide basic settings for use, view the webGUI section for more advanced set up and routing. When turned on, the front panel will display initializing until the unit is fully powered and functional. -
Page 17: Presets Save
Front Panel Operation Presets Save Use the Save Preset option to place the current route in memory for later recall. 1. Select the MENU button. 2. Use the ^ and buttons to go through the menu options until the screen reads Route Setting. 3. -
Page 18: Audio
Front Panel Operation Audio Route Use this option to select the audio source that will be routed to the analog audio output. 1. Select the MENU button. 2. Use the ^ and buttons to go through the menu options until the screen reads Audio Setting. 3. -
Page 19: Mic
Front Panel Operation Set the level of the EQ bands using these options. 1. Select the MENU button. 2. Use the ^ and buttons to go through the menu options until the screen reads Audio Setting. 3. Press Enter. 4. Use the ^ and buttons until the screen says EQ. -
Page 20: Mic Ducking
Front Panel Operation MIC Ducking Set the audio to adjust down when MIC input is detected. 1. Select the MENU button. 2. Use the ^ and buttons to go through the menu options until the screen reads Audio Setting. 3. Press Enter. 4. -
Page 21: Set Edid Mode
Front Panel Operation Set EDID Mode EDIDs mode for each unit can be set between Default (highest common resolution between the input and displays), the previously saved EDID, and Internal (6 choices of programmed EDIDs). All three options will use the same first 5 steps. -
Page 22: Info
Front Panel Operation Info The Info function will display basic information for the unit: unit firmware, Valens firmware, IP mode, IP address, IP port, SSH port, MAC address, and unit baud rate. 1. Select the MENU button. 2. Use the ^ and buttons to go through the menu options until the screen reads Info. -
Page 23: Webgui
WebGUI The AT-OME-PS62 includes a built-in webGUI, which allows easy remote management and control of all features. Follow the instructions below to access the webGUI. 1. Make sure that an Ethernet cable is connected between the LAN port on the AT-OME-PS62 and the network. 2. -
Page 24: I/O Settings
webGUI I/O Settings Select I/O Settings from the top navigation to adjust routing and video settings. Output Matrix Mode - When enabled, the outputs will switch independently. When disabled (default), the outputs will mirror each other. Auto Switch - When enabled, the input will switch to the most recently plugged in. This is only available when Matrix mode is disabled. - Page 25 webGUI HDMI Output Scaler Scaler - When enabled, will display extra options. This is for the HDMI output only. Resolution - Select the output resolution the source signal will be scaled to from the drop down menu. Scaling options: 1024x768, 1280x768, 1280x800, 1360x768, 1600x1200, 1920x1200, 2048x1080, 1280x720p50, 1280x720p60, 1920x1080p24, 1920x1080p25, 1920x1080p50, 1920x1080p60 (default), 3840x2160p24, 3840x2160p25, 3840x2160p30, 3840x2160p50, 3840x2160p60, 4096x2160p24, 4096x2160p25, 4096x2160p30, 4096x2160p50,...
-
Page 26: Audio
webGUI Audio Select Audio from the top navigation to adjust output levels and MIC options. Audio Output 1 & 2 configuration Source - Select between HDMI Output, HDBaseT Output, Aux 1 (AUDIO IN 1), Aux 2 (AUDIO IN 2), and Aux 3 (LINE IN) to. - Page 27 webGUI Master Volume Output 1 & 2 - Adjusts the output volume for the HDMI and HDBaseT outputs. Default is 0dB and can be adjusted from -90dB to 10dB. Mute - Use the slider to mute and unmute the output audio. Input Volume Level Adjustment - Adjusts the input volume for each individual audio source.
-
Page 28: Display
webGUI Display Select Display from the top navigation to adjust display control settings. NOTE: The Display page is only available when Matrix mode is disabled. CEC Command HDBaseT and HDMI Power - Using CEC protocol, the PS62 will send the on and off commands out the HDMI outputs of the PS62 and compatible HDBaseT receiver. - Page 29 webGUI TCP/IP Settings of Controlled Device (only available when IP is selected) IP Mode - Toggle telnet login mode between Non-Login and Login. If set to Login, a username and password will be required to control the controlled device via TCP/IP. IP Address - Sets to the IP of the controlled device/display.
- Page 30 webGUI RS-232 Select RS-232 from the top navigation to adjust the parameters of the RS-232 ports. RS-232 Parameter Setting Console - Select the baud rate, data bit, parity, and stop bit to match the control system’s parameters. Defaults are 115200, 8, None, and 1. HDBaseT In 1 - Select the baud rate, data bit, parity, and stop bit that will be sent from the HDBaseT IN port to the connected HDBaseT transmitter.
-
Page 31: Edid
webGUI EDID Select EDID from the top navigation to save/load EDIDs. EDID EDID Settings - Use the drop down menu to select from default (highest common resolution between source and display), 12 internal EDIDs, and previously saved EDIDs. EDID Saved - The ID field will display the memory # and currently saved EDID name, select the output from the drop down menu to be saved. -
Page 32: Time
webGUI Time Select Time from the top navigation to select the time server for the unit to sync to. SNTP Configuration Server info - Select the time zone the unit will run in. If the unit has internet access, it can be set to sync to a server as well. -
Page 33: Config
webGUI Config Select Config from the top navigation to change the user password. Web & Tel Password - Update the main password for the switcher. Only the main password may be changed, the username will remain what it was set to in the initial log in/registration. NOTE: The password must be 8 characters long and include 1 uppercase, 1 lowercase, and 1 number. -
Page 34: System
webGUI System Select System from the top navigation to adjust network, USB, and general system options. Network MAC Address - Displays the MAC address of the unit. IP Mode - Switch between static and DHCP IP modes. IP, Netmask, Gateway - This will display the unit’s current DHCP IP settings. When set to static, fill in the IP address, netmask, and gateway. - Page 35 webGUI System Front Panel Lock - Lock or unlock the front panel buttons. Reset to Default- Press the Factory Default button to set the unit back to all factory settings, including IP mode. Firmware update - Use the choose file button to search the local PC for the firmware file. Once selected, press the update button to start the firmware update.
-
Page 36: Appendix
Appendix Specifications Video HDMI 2.0 (1.4 when downscaled) HDCP 2.2 / 1.4 UHD/HD/SD 4096x2160@60 /50/30/25/24Hz, 3840×2160@60 /50/30/25/24Hz, 1080p@60/59.9/50/30/29.97/25/2 4/23.98Hz, 1080i@30/29.97/25Hz, 720p@60/59.94/50Hz, 576p@50Hz, 576i@25Hz, 480p@60/59.96Hz, 480i@30Hz VESA 2560×1600, 2048×1536, 1920×1200, 1680×1050, 1600×1200, 1440×900, 1400×1050, 1280×1024, 1280×800, 1366×768, 1360×768, 1152×864, 1024×768, 800×600, 640×480 USB-C Up to 4K/UHD @ 60Hz Color Space... - Page 37 Appendix Resolution / Distance 4K/UHD - Feet / Meters 1080p - Feet / Meters HDMI IN/OUT CAT5e CAT6/6a/7 Connectors, Controls, and Indicators HDMI IN 3 - Type A, 19-pin female HDBaseT IN 2 - RJ45, female USB-C IN 1 - USB Type-C v3.1, 24-pin female, AV input (Alternate Mode) HDMI OUT 1 - Type A, 19-pin female HDBaseT OUT...
