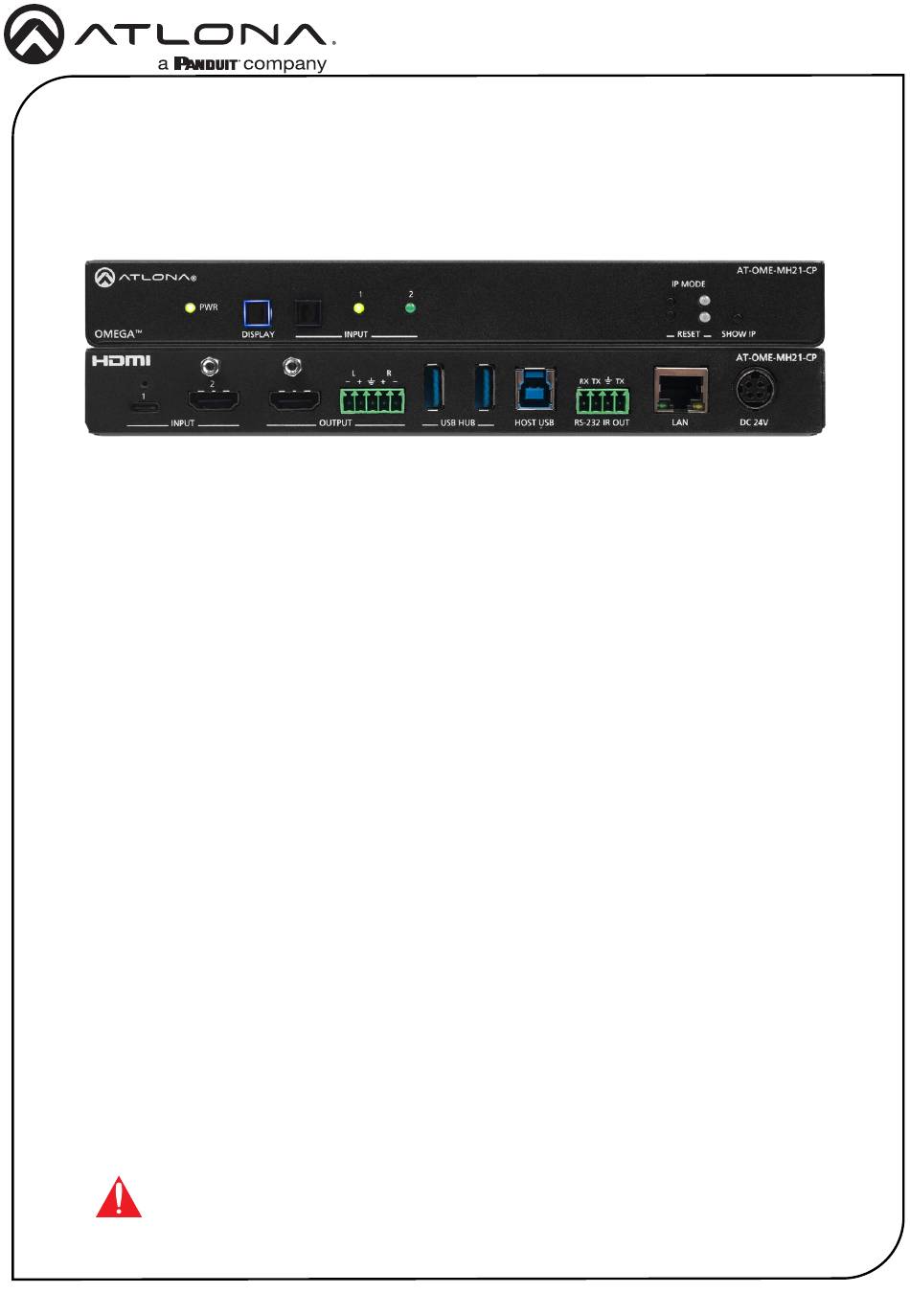

Omega 4K/UHD Two-Input Switcher
for HDMI and USB with USB Hub
AT-OME-MH21-CP

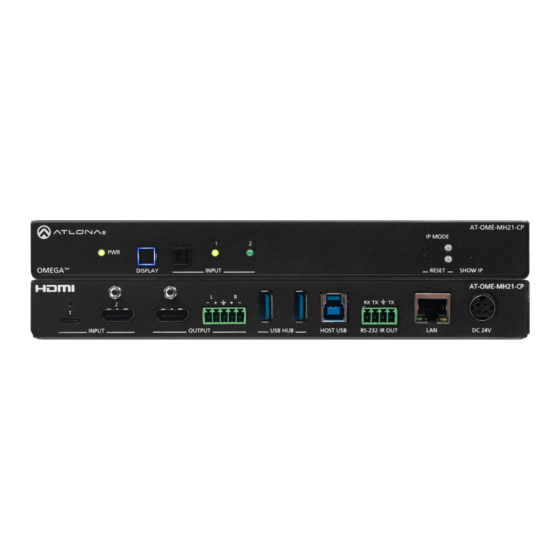

The Atlona AT-OME-MH21-CP is a compact, versatile switcher with HDMI and USB-C inputs. It
is equipped with features for complete AV integration in huddle rooms and small meeting spaces,
including automatic switching and display control, audio de-embedding, and a USB 3.0 hub
for video conferencing peripherals or touch displays. Part of the Omega
products for modern AV communications and collaboration, the OME-MH21-CP is HDCP 2.2
compliant and supports 4K HDR and 4K/60 4:4:4 at HDMI data rates up to 18 Gbps. Additionally,
4K downscaling to 1080p @ 60, 30, or 24 Hz is available when connected to an HD display. The
OME-MH21-CP includes USB 3.0 and USB-C interfaces for two host PCs, plus two peripheral
devices such as a camera, microphone, speakerphone, touch-enabled display, or keyboard and
mouse. The USB-C port provides up to 60 watts of device charging capability for laptops and
mobile devices.
Package Contents
1 x AT-OME-MH21-CP
1 x USB-C cable
1 x IR emitter cable
1 x 5-pin captive screw connector
1 x 4-pin captive screw connector
2 x Mounting brackets
4 x Mounting screws
4 x Rubber feet
1 x 24 V / 5 A power supply
1 x IEC power cord
IMPORTANT: Visit https://www.atlona.com/product/AT-OME-MH21-CP for the
latest firmware updates and documentation.
1
Installation Guide
AT-OME-MH21-CP
Series of integration
™
Advertisement
Table of Contents
Related Manuals for Panduit ATLONA Omega AT-OME-MH21-CP
Summary of Contents for Panduit ATLONA Omega AT-OME-MH21-CP
- Page 1 Installation Guide AT-OME-MH21-CP Omega 4K/UHD Two-Input Switcher for HDMI and USB with USB Hub AT-OME-MH21-CP The Atlona AT-OME-MH21-CP is a compact, versatile switcher with HDMI and USB-C inputs. It is equipped with features for complete AV integration in huddle rooms and small meeting spaces, including automatic switching and display control, audio de-embedding, and a USB 3.0 hub for video conferencing peripherals or touch displays.
- Page 2 Installation Guide AT-OME-MH21-CP Panel Descriptions Front AT-OME-MH21-CP IP MODE OMEGA DISPLAY INPUT RESET SHOW IP AT-OME-MH21-CP This LED indicator glows solid green when the unit is powered. INPUT OUTPUT USB HUB HOST USB RS-232 IR OUT DC 24V DISPLAY Press and release this button to toggle power on the connected display. INPUT Press and release this button to toggle between the HDMI and USB-C input.
-
Page 3: Panel Descriptions
Installation Guide AT-OME-MH21-CP AT-OME-MH21-CP Panel Descriptions IP MODE OMEGA DISPLAY INPUT RESET SHOW IP Rear AT-OME-MH21-CP INPUT OUTPUT USB HUB HOST USB RS-232 IR OUT DC 24V INPUT Connect a USB-C source to the USB-C port. Connect an HDMI cable from the HDMI port to a UHD/HD source. -
Page 4: Audio Output Connector
Installation Guide AT-OME-MH21-CP Audio Output Connector The AT-OME-MH21-CP provides two-channel LPCM audio de-embedding of the source device, using a dedicated audio output port. Unbalanced Side View Side View Balanced Rear View Rear View Use wire strippers to remove a portion of the cable jacket. Remove at least 3/16”... - Page 5 Installation Guide AT-OME-MH21-CP RS-232 and IR The AT-OME-MH21-CP provides control using RS-232 and/or IR. This step is optional. Use wire strippers to remove a portion of the cable jacket. Remove at least 3/16” (5 mm) from the insulation of the RX, TX, and GND wires for the RS- 232 connection.
-
Page 6: Installation
Installation Guide AT-OME-MH21-CP Installation Connect a USB-C device to the INPUT 1 port. Connect an HDMI cable from the INPUT 2 port to a UHD/HD source device. Connect an HDMI cable from the HDMI OUTPUT port to a display device. OPTIONAL: Connect an audio output device to this port using the included captive screw block. -
Page 7: Mounting Instructions
Installation Guide AT-OME-MH21-CP Mounting Instructions The AT-OME-MH21-CP includes two mounting brackets, which can be used to attach the unit to any flat surface. Use the two enclosure screws, on the sides of the unit to attach the mounting brackets. IMPORTANT: When mounting the AT-OME-MH21-CP, ensure the mounting height does not exceed 2 meters (6.56 feet). - Page 8 Installation Guide AT-OME-MH21-CP IP Configuration The AT-OME-MH21-CP is shipped with DHCP enabled. Once connected to a network, the DHCP server (if available), will automatically assign an IP address to the unit. If the AT-OME- MH21-CP is unable to detect a DHCP server within 15 seconds, then the unit will use a self- assigned IP address within the range of 169.254.xxx.xxx.
-
Page 9: Resetting To Factory Defaults
Installation Guide AT-OME-MH21-CP Resetting to Factory-Defaults To reset the AT-OME-MH21-CP to factory-default settings, press and hold the RESET button for approximately 5 seconds. Release the button when the RESET LED indicator begins to flash. The LED indicator will flash three times to indicate that the reset procedure has completed. RESET button AT-OME-MH21-CP IP MODE... -
Page 10: Front Panel Led Indicators
Installation Guide AT-OME-MH21-CP Front Panel LED Indicators The LED indicators on both the front and rear of the unit provide basic information on the current status of the unit. Description Solid green Unit is receiving power using the optional 24 V DC power supply. Unit is not powered. - Page 11 Installation Guide AT-OME-MH21-CP Notes...
-
Page 12: Warranty
Installation Guide AT-OME-MH21-CP Warranty To view the product warranty, use the following link or QR code: https://atlona.com/warranty/. English Declaration of Conformity The English version can be found under the resources tab at: https://atlona.com/product/at-ome-mh21-cp/. Chinese Declaration of Conformity 中国RoHS合格声明 由SKU列出於: https://atlona.com/about-us/china-rohs/. ®...
