Industio CP-132 Series User's Manual
Industrial 2 Port RS-422/RS-485 Serial Board for PCI Bus
The content of this manual is also available at Moxa Web Site.
Dec. 1999 (1st Edition)
Moxa Technologies Co., Ltd.
Tel:
Fax:
www.moxa.com
support@moxa.com.tw
+866-2-8665-6373
+886-2-8665-6372

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Industio CP-132 Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Moxa Technologies Industio CP-132 Series

Summary of Contents for Moxa Technologies Industio CP-132 Series

  • Page 1 Industio CP-132 Series User’s Manual Industrial 2 Port RS-422/RS-485 Serial Board for PCI Bus Dec. 1999 (1st Edition) The content of this manual is also available at Moxa Web Site. Moxa Technologies Co., Ltd. Tel: +866-2-8665-6373 Fax: +886-2-8665-6372 www.moxa.com support@moxa.com.tw...
  • Page 2 Information provided in this manual is intended to be accurate and reliable. However, Moxa Technologies assumes no responsibility for its use, or for any infringements of rights of the fourth parties which may result from its use.
  • Page 3 MOXA Internet Services Customer’s satisfaction is always our number one concern. To ensure that customers get the full benefit of our services, Moxa Internet Services have been built for technical support, product inquiry, new driver update, user’s manual update, etc. The followings are the services we provide.
  • Page 4 If you need cable wiring information, please see the chapter 5 “Connection Cable and Cable Wiring”. If you encounter any problem during the installation, please refer to the chapter 6 “Troubleshooting”. Chapter 1 Introduction Overview and features of the Industio CP-132 Series boards, list of items and overall installation guide. Chapter 2 Hardware Installation Hardware installation for the Industio CP-132 Series boards and connection cable.

  • Page 5: Table Of Contents

    Features ........................ 1-3 Check List ......................1-4 Installation Guide....................1-5 Hardware Installation..................2-1 First Thing to Do: Interface Settings ..............2-2 Installing the Industio CP-132 Series board............2-3 Software Installation..................3-1 Windows NT......................3-1 Installing Driver........................Configuring Board and Port....................Updating Driver .........................
  • Page 6 DOS API-232 Library......................Utilities..........................RS-485 Programming.................... 4-9 Automatic Data Direction Control Mode (Recommended)..........By RTS Mode (For back-compatibility) ................Connection Cable and Cable Wiring ............5-1 RS-422 Cable Wiring..................... 5-1 RS-485 Cable Wiring..................... 5-3 Impedance Matching and Termination Resistors........... 5-4 Troubleshooting.....................6-1 General Troubleshooting ..................

  • Page 7: Introduction

    Industio - The Industrial Multiport Async Solution The term Industio stands for smart multiport serial I/O solution for industrial applications. The Industio CP-132 Series boards, including CP-132, CP-132I, CP-132S and CP-132IS, are designed for 16-bit ISA/EISA bus. They offer 2 independent RS-422/RS-485 serial ports for connecting data acquisition equipment and many other serial devices to the PC and its compatible systems.
  • Page 8 PCI BIOS. Hence, the board MUST be plugged first before installing the software driver. For more PCI information, please refer to Appendix “Technical Reference”. Termination Resistor Port 1 Jumper Termination Resistor Port 2 Jumper Data Mode Switch Interface Switch Industio CP-132 Series Board Industio CP-132 Series User’s Manual...

  • Page 9: Features

    Factory automation Critical industrial control Remote serial device control Features The Industio CP-132 Series consists of members as follows, CP-132 2 RS-422/RS-485 ports, 16C550C UART CP-132S 2 RS-422/RS-485 ports, surge protection, 16C550C UART CP-132I 2 RS-422/RS-485 ports, isolation protection, 16C550C UART CP-132IS 2 RS-422/RS-485 ports, surge and isolation protection, 16C550C UART Industio CP-132 Series User’s Manual...

  • Page 10: Check List

    Driver supported by Moxa and shipped with product Note: Download the newest drivers from the MOXA FTP service Check List Upon unpacking the Industio CP-132 Series package, you should find the following items: Industio CP-132 Series 2 port serial board×1 MOXA Software CD-ROM×1, which includes:...

  • Page 11: Installation Guide

    Introduction Installation Guide This section gives a brief summary of how to install the Industio CP-132 Series under each supported operating system. The installation is simple and involves the following stages: Check the PCI BIOS settings Install the Industio CP-132 Series board...
  • Page 12 Industio CP-132 Series User’s Manual...

  • Page 13: Hardware Installation

    Hardware Installation Hardware Installation Hardware Installation The installation of the Industio CP-132 Series consists of hardware and software installation. The hardware installation is detailed in this chapter. The next chapter deals with the software installation for various operating systems. The no-switch-no-jumper Industio CP-132 Series board hardware configuration for IRQ number and I/O address is automatically assigned by the PCI BIOS.

  • Page 14: First Thing To Do: Interface Settings

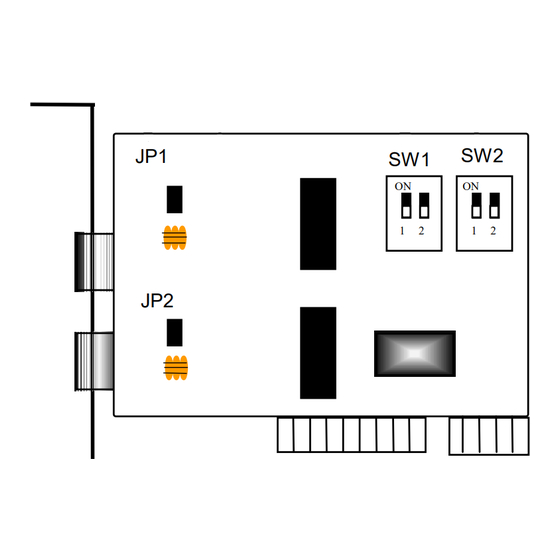

    The Industio CP-132 Series has the following default (factory) settings: Interface Switch SW2: Port 1: ON (RS-485) Port 2: ON (RS-485) Data Mode Switch SW1: Port 1: ON (Automatic Data Direction Control Mode) Port 2: ON (Automatic Data Direction Control...

  • Page 15: Installing The Industio Cp-132 Series Board

    Step 3: Remove the slot cover bracket if there is any. Step 4: Plug the Industio CP-132 Series control board firmly into a free 32-bit PCI slot. Step 5: Fasten the holding screw to fix the control board in place.
  • Page 16 Industio CP-132 Series User’s Manual...

  • Page 17: Software Installation

    If you already have installed the driver and want to re-configure the board and port, add more boards or delete boards, please refer to the section “Configuring Board and Port”. To update or remove the driver, please go to the section, “Updating Driver” or “Removing Driver”. Industio CP-132 Series User’s Manual...

  • Page 18: Installing Driver

    Installing Driver Following is the procedure for installing the Industio CP-132 Series driver for the first time under Windows NT 4.0. Make sure the board(s) has(have) already been plugged in the system PCI slot(s). 1. Please log in NT as Administrator.
  • Page 19 OEM Option” dialog box, and then click [OK] to enter the “MOXA Smartio/Industio Configuration Panel” dialog box to start the installation. 6. Click [Add] button to open Property dialog box to change port setting and advanced FIFO configuration done automatically by the system. Industio CP-132 Series User’s Manual...
  • Page 20 7. Select the newly plugged Industio CP-132 Series board from the Board Type pull down list. 8. In the “Property” dialog box, select the desired port in the port list and click [Port Setting] to enter the individual “Port #” setting dialog box to change the port COM number mappings or FIFO settings.
  • Page 21 If you need to install more than one board, click [Add] and repeat steps 6 to 8 to configure another board. Up to four Industio CP- 132 Series boards can be installed in a system. Click [OK] to finish the configuration. Industio CP-132 Series User’s Manual...
  • Page 22 132, with first serial port COM3, has been enabled” for each configured board. If an error message similar to “Cannot find any configured MOXA CP- 132 board!” appears, refer to the “Troubleshooting” chapter for solutions. Industio CP-132 Series User’s Manual...

  • Page 23: Configuring Board And Port

    If you already have installed the driver and want to re-configure the ports, please follow this procedure. 1. In the [Control Panel], click on the [Network] icon and select the [Adapters] tab. 2. Select “MOXA Smartio/Industio Family Adapter” in “Network Adapters”. Industio CP-132 Series User’s Manual...
  • Page 24 Therefore, there is no need to do remove action from Moxa Smartio/Industio Configuration Panel dialog box. Click [OK] to confirm the configuration changes you made. Click [Cancel] to leave the dialog with the configuration unchanged. Industio CP-132 Series User’s Manual...

  • Page 25: Updating Driver

    Software Installation Updating Driver To update the driver for the Industio CP-132 Series board, simply remove the driver, as described in the next section, and reinstall it as detailed in section, “Installing Driver”. Removing Driver To remove the driver for the Industio CP-132 Series board, 1.

  • Page 26: Windows 95/98

    In this case, you need the driver diskette. At most 4 Industio CP-132 Series boards can be installed in ONE system as long as the I/O addresses and IRQ number resources are sufficient and available in the system.
  • Page 27 See Section “First Time Driver Installation Stage” Configure the port See Section “Port Configuration Stage” The ports of the Industio CP-132 Series Board are ready to work. See Section “Board and Port Ready Stage” 3-11 Industio CP-132 Series User’s Manual...
  • Page 28 This stage presents the steps for installing the driver for the first time of the first Industio CP-132 Series board. The installation of the Industio CP-132 Series board for Windows 95 and Windows 98 are slightly different and will be described in two columns.
  • Page 29 The system will start reading the files from the diskette. 4. Click [Finish] button. 4. Click [Have Disk] button. 5. Type A:\Windows.95 and click [OK] button. The system will start reading the files from the diskette. 3-13 Industio CP-132 Series User’s Manual...
  • Page 30 6. Click [Next] button. 7. Click [Next] button. 3-14 Industio CP-132 Series User’s Manual...
  • Page 31 COM numbers. For example, if COM 3 is assigned to Port 1, then COM 4 will be automatically assigned to Port 2. Note! You may skip Step 5 to 8, if the system doesn’t require a special performance tuning. 3-15 Industio CP-132 Series User’s Manual...
  • Page 32 Click [OK] button in Property dialog box to complete the port setting. Board and Port Ready Stage Board and Port Ready Stage for Windows 95 and Windows 98 is a slight different. In this last stage, you will complete the driver installation. 3-16 Industio CP-132 Series User’s Manual...
  • Page 33 Industio CP-132 Series board and Windows 95/98 will automatically detect the newly plugged board and skip to Port Configuration stage to do port setting. Up to now, the driver installation of the Industio CP-132 Series is complete and successful, including the board and port configuration. However, if changes of the board and port configuration are needed, please refer to the next section, “Configuring Board and Port”, for more configuration details.

  • Page 34: Configuring Board And Port

    1. Open [Control Panel], click [System] icon, select [Device Manager] tab, and then select Moxa Smartio/Industio multiport board. 2. Click on desired CP-132 Series board entry, and click [Properties] button. 3-18 Industio CP-132 Series User’s Manual...
  • Page 35 3. Select [Ports Configuration] tab. 4. Click on the specific port and click [Port Setting] button to re-assign the desired COM number for the Industio CP-132 Series port mapping. Note! Step 5 is optional, if you want to assign COM numbers to Port manually.

  • Page 36: Updating Driver

    11. Restart the system to activate the latest configuration. Updating Driver This section will discuss how to update the Windows 95/98 driver to enhance the function of the board. 1. Open [Control Panel], click [System] icon, and select [Device Manager] tab. 3-20 Industio CP-132 Series User’s Manual...
  • Page 37 7. Click [OK] button in Install from Disk dialog box. 8. The system will automatically prompt you to restart the system, click [Yes] button to restart the system. Or [No] button if you want to reboot the system later. 3-21 Industio CP-132 Series User’s Manual...

  • Page 38: Removing Driver

    Removing Driver This section explains how to remove the Industio CP-132 Series board driver. 1. Open [Control Panel] icon, double click [Add/Remove Programs] icon, and then select [Install/Uninstall] tab. 2. Click on MOXA Smartio/Industio Driver option and then click [Add/Remove] button to start the driver removal.

  • Page 39: Dos

    “Serial Programming Tools”. Installing Driver Run the installation program, DOSINST.EXE, in the DOS driver diskette. Specify the target API-232 directory (e.g. C:\MOXA) where software driver will be copied. Press F2 to start the installation. 3-23 Industio CP-132 Series User’s Manual...

  • Page 40: Driver Setup

    It is strongly recommended to do so. Driver Setup The following are steps for setting up the Industio CP-132 Series driver. Note that it is not intended to illustrate all the convenient functions of the setup programs when configuring the boards.
  • Page 41 Software Installation Note ! Up to now you have completed the setup for Industio CP-132 Series board. You may skip this step and go directly to the next step 5 if you need not change any setting or configure any board.
  • Page 42 The receive (input) buffer allocated in the system for each port. F5: Group edit: This is a convenient function that helps you edit the configuration of several ports at one time as a group. 3-26 Industio CP-132 Series User’s Manual...
  • Page 43 Software Installation 4. To setup more boards, please follow the same instructions 2 to 3 described above. 5. Press F10 to save the latest configuration and exit the SETUP program. 3-27 Industio CP-132 Series User’s Manual...

  • Page 44: Loading Driver

    Setup driver…. CP-132 series (Bus=0, Dev=14): O.K.! Device driver setup O.K. It means the Industio CP-132 Series driver is installed properly. At this point, you are ready to execute application that supports API-232 functions, or start developing applications using API-232 library.

  • Page 45: Serial Programming Tools

    MOXA boards only. MOXA Windows NT or Windows 95/98 device drivers, as well as MOXA boards are required. The drivers are installed separately and detailed in the “Software Installation” chapter. Industio CP-132 Series User’s Manual...

  • Page 46: Pcomm Programming Library

    Visual Basic and Delphi, please check the help file and the sample programs in the PComm directory. Utilities Following are short descriptions of each utility. For details, please see the on-line help on the diskette. Industio CP-132 Series User’s Manual...
  • Page 47 A convenient diagnostic program that provides internal and external testing, such as IRQ, TxD/RxD, UART, CTS/RTS, DTR/DSR, DTR/DCD testing, etc., for the MOXA boards and ports to verify correct operations of both the software and hardware. Industio CP-132 Series User’s Manual...
  • Page 48 You can also click on one of the specific displayed port in order to visualize the current communication parameters and status of that port. Industio CP-132 Series User’s Manual...
  • Page 49 Serial Programming Tools Terminal Emulator The Terminal Emulator features multi-windows and supports terminal types of VT100 and ANSI. You can transfer data interactively, send pattern periodically or transfer file using ASCII, XMODEM, YMODEM, ZMODEM and KERMIT protocols. Industio CP-132 Series User’s Manual...

  • Page 50: Dos

    ASCII, KERMIT, XMODEM, YMODEM and ZMODEM file transfer protocol functions. For complete API-232 function description, please see file API-232.TXT in the API-232 directory for more details. Utilities There are two utilities available for DOS: Data Scope and Diagnose, which are detailed below. Industio CP-132 Series User’s Manual...
  • Page 51 ZMODEM and KERMIT protocols. 3. The Diagnostic test utility provides port connection test with two MOXA ports connected via a properly wired cable. Please see on-line help as running BIN\SCOPE.EXE for more usage and capability information. Industio CP-132 Series User’s Manual...
  • Page 52 Diagnose The Diagnose, BIN\DIAGNOSE.EXE, is a utility that can help users to diagnose the hardware condition of each port of the selected board. See on-line help for more details. Industio CP-132 Series User’s Manual...

  • Page 53: Automatic Data Direction Control Mode (Recommended)

    Serial Programming Tools RS-485 Programming If you intend to do RS-485 communication with Industio CP-132 Series, please follow the RS-485 programming guide below and also refer to the chapter, “Connection Cable and Cable Wiring”, for more RS-485 operation details. The Industio CP-132 Series supports only 2-wire half-duplex RS-485 communication.
  • Page 54 4. Turn off RTS and ready for receiving data. */ For more information on these functions, please refer to PComm library on-line Help file for Windows NT and Windows 95/98 or API-232.txt file for DOS, respectively. 4-10 Industio CP-132 Series User’s Manual...

  • Page 55: Connection Cable And Cable Wiring

    The RS-422 standard uses a balanced voltage digital interface to allow communications of 10M bps on cable length of 4000 feet. Ten receivers can be connected to any one driver for broadcasting systems. RS-422 pin outs for Industio CP-132 Series: CP-132 TxD-(A)
  • Page 56 TxD-(A) RxD-(A) RxD-(A) TxD-(A) RxD-(A) TxD-(A) RS-422 Device N RxD+(B) TxD+(B) RxD-(A) TxD-(A) CP-132 with Handshaking CP-132 RS-422 Device TxD+(B) RxD+(B) TxD-(A) RxD-(A) RxD+(B) TxD+(B) RxD-(A) TxD-(A) RTS+(B) CTS+(B) RTS-(A) CTS-(A) CTS+(B) RTS+(B) CTS-(A) RTS-(A) Industio CP-132 Series User’s Manual...

  • Page 57: Rs-485 Cable Wiring

    Multidrop RS-485 Half-duplex CP-132 RS-485 Device 1 Master Slave Data+ Data+ Data- Data- RS-485 Device N Slave Data+ Data- See the section “RS-485 Programming” of the chapter “Serial Programming Tools” for more RS-485 programming details. Industio CP-132 Series User’s Manual...

  • Page 58: Impedance Matching And Termination Resistors

    Resistors should be added near the receiving side. CP-132 RS-422/485 Device TxD+(B) RxD+(B) TxD-(A) RxD-(A) RxD+(B) TxD+(B) RxD-(A) TxD-(A) RTS+(B) CTS+(B) RTS-(A) CTS-(A) CTS+(B) RTS+(B) CTS-(A) RTS-(A) Note: Stands for termination resistor near the receiving side Industio CP-132 Series Board Industio CP-132 Series User’s Manual...

  • Page 59: Troubleshooting

    Troubleshooting Troubleshooting Common Industio CP-132 Series problems and possible solutions are listed below. If you still have problems, contact your dealer or Moxa for help. Or use the “Problem Report Form” at the end of this manual to report problems to your dealer at once for faster technical support.

  • Page 60: Windows Nt

    Please check the PCI BIOS IRQ settings first and then select an IRQ that is available. 2. After the system reboots, the error message “Cannot find any configured MOXA Smartio/Industio Series board!” appears in the Event Log. Industio CP-132 Series User’s Manual...

  • Page 61: Windows 95/98

    Please make sure the PCI board is seated firmly in the expansion slot. 3. The COM number of the Industio CP-132 Series conflicts with others. The COM numbers of different boards happen to be the same. Try to change the COM number mappings.
  • Page 62 Industio CP-132 Series User’s Manual...

  • Page 63: Technical Reference

    132IS) Termination resistor: 120 Ω 0 ~ 55 ℃ Operating temp.: Power requirement: CP-132－420mA max. (+5V) CP-132I－700mA max. (+5V) CP-132S－430mA max. (+5V) CP-132IS－710mA max. (+5V) Dimensions: 120mm×80mm Operating Systems: See the driver support list below. Industio CP-132 Series User’s Manual...

  • Page 64: Pci

    Due to the slot-dependency, it is necessary to re-configure the software driver once the board is plugged in different PCI slots. Up to 4 Industio CP-132 Series boards are allowed in one system. When installing more than one board, please remember the order of boards for distinguishing the installed boards.
  • Page 65 Problem Report Form Industio CP-132 Series Customer name: Company: Tel: Fax: Email: Date: 1. Moxa Product: CP-132 Series Model : CP-132 CP-132I CP-132S CP-132IS Serial Number: ____________ 2. Moxa Driver Version: ________________ PCI slot number ________________________ 3. Moxa hardware settings: 3.1 Serial Protocol:...
  • Page 66 Return Procedure For product repair, exchange or refund, you must: Provide evidence of original purchase. Fill out the Problem Report Form (PRF) as detailed as possible for shorter product repair time. Obtain a Return Merchandise Authorization (RMA) number from the sales representative or dealer. Carefully pack the product in an anti-static package, and send it, pre-paid, to the dealer.
