OPERATING MANUAL
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.
Maximum Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 270 ft-lbs
Breakaway Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 425 ft-lbs
Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9,000 RPM
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5/8"
Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3/8"
Anvil Tip To Back. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1/2"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.6 lbs
Maximum Air Pressure . . . . . . . . . . . . . . . . . . . . 90psig (6.2 bar)
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPT
Recommended Hose Size . . . . . . . . . . . . . . . . . . . . . . . . 3/8" I.D.
Average Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . 3.8 CFM
CAT5150
WARNING INFORMATION
•
WARNING
SPECIFICATIONS
-Save these instructions-

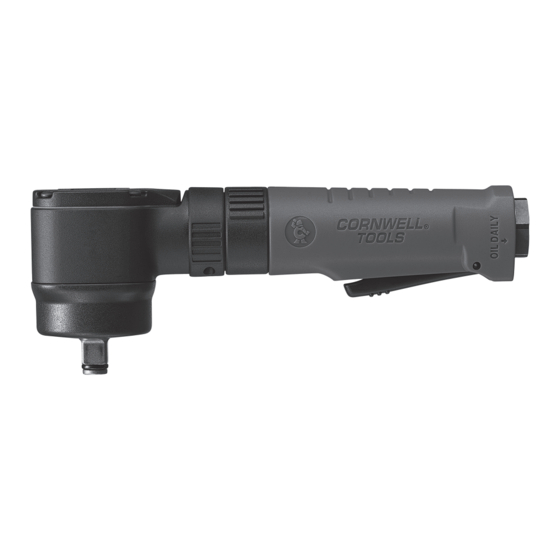

GEARLESS IMPACT WRENCH
•
Copyright © Professional Tool Products, 2018
1
CAT5150
1/2" RIGHT ANGLE
WARNING
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
All rights reserved
Rev. 11/20/18
Advertisement
Table of Contents
Related Manuals for Cornwell Tools CAT5150
Summary of Contents for Cornwell Tools CAT5150
- Page 1 CAT5150 1/2" RIGHT ANGLE GEARLESS IMPACT WRENCH OPERATING MANUAL WARNING INFORMATION PARTS LIST • • WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: •...
- Page 2 Use hear ing pro tec tion as rec om mend ed by your em ploy er or OSHA reg u la tion. • Use accessories recommended by Cornwell Tools. • Keep the tool in ef fi cient op er at ing con di tion.
- Page 3 CAT5150 1/2" RIGHT ANGLE GEARLESS IMPACT WRENCH OPERATION Air Supply Whip Hose Do Not Install Filter Quick Coupling Nipple Nipple This tool is an impacting tool and not a torque meter. When specific Here torque is required, it must be checked with a torque meter after fitting the fastener with the impact.
- Page 4 CAT5150 1/2" RIGHT ANGLE GEARLESS IMPACT WRENCH WARRANTY COVERAGE Cornwell Quality Tools Company (“Cornwell”) warrants this product against defects in material and workmanship for a period of TWO (2) YEARS from the date of original retail purchase. Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper workmanship or materials.
- Page 5 CAT5150 1/2" RIGHT ANGLE GEARLESS IMPACT WRENCH PARTS LIST Item Part No Parts Name Item Part No Parts Name RS1761104 SOCKET RETAINER RS1735413 O-RING RS4135104 O-RING RS14021 REVERSE RING RS14002 ANVIL RS14022 HANDLE GRIP 103A RS14003 ANVIL ASSEMBLY (Incl. #101, 102 and 103) 1...
