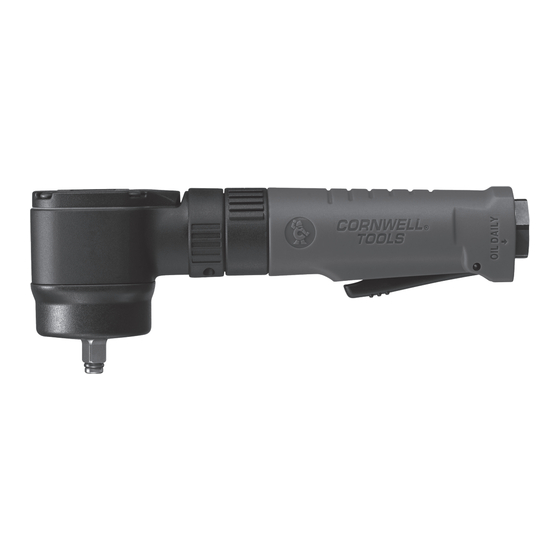

3/8" right angle gearless impact wrench

Advertisement

Quick Links

OPERATING MANUAL
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.
Maximum Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250 ft-lbs
Breakaway Torque. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 415 ft-lbs
Free Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8,500 RPM
Length . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9-5/8"
Width . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3/8"
Anvil Tip To Back. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-1/2"
Weight . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2.5 lbs
Maximum Air Pressure . . . . . . . . . . . . . . . . . . . . 90psig (6.2 bar)
Air Inlet . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1/4" NPT
Recommended Hose Size . . . . . . . . . . . . . . . . . . . . . . . . 3/8" I.D.
Average Air Consumption . . . . . . . . . . . . . . . . . . . . . . . . 3.8 CFM
CAT5138

WARNING INFORMATION

WARNING

SPECIFICATIONS

-Save these instructions-
GEARLESS IMPACT WRENCH
1
CAT5138
3/8" RIGHT ANGLE
WARNING
ALWAYS READ
INSTRUCTIONS
BEFORE USING
POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
Copyright © Professional Tool Products,
2019All rights reserved
07/26/19
