Cornwell Tools CAT3125 Operating Instructions

Operating Instructions • Warning Information
• Parts Breakdown
Warning
RATED RPM OF THE ACCESSORY USED
MUST EXCEED THE MAXIMUM TOOL
RPM SHOWN
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR HEARING
PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
WARNING
Some dust created by power sanding, sawing, grinding, drilling,
and other construction activities contains chemicals known to
cause cancer, birth defects or other reproductive harm. Some
examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you
do this type of work. To reduce your exposure to these chemicals:
work in a well-ventilated area, and work with approved safety
equipment, such as those dust masks that are specially designed
to filter out microscopic particles.
SPECIFICATIONS
Breakaway Torque ............................................. 1,800 Ft/Lbs.
Working Torque Range .............................100 - 1,000 Ft/Lbs.
Maximum Applied Torque: ............................... 1,200 Ft./Lbs.
Free Speed: ........................................................... 6,000 RPM
Average Air Consumption: ......................................... 6.9 cfm
Overall Length: ....................................................................8"
Weight: ........................................................................6.9 lbs.
Sound Level: ............................................................ 97.3 dBA
Air Inlet (NPT): ................................................................ 3/8"
Recommended Hose Size: .............................................. 1/2"
CAT3125 / CAT3125G
CAT3125
CAT3125G

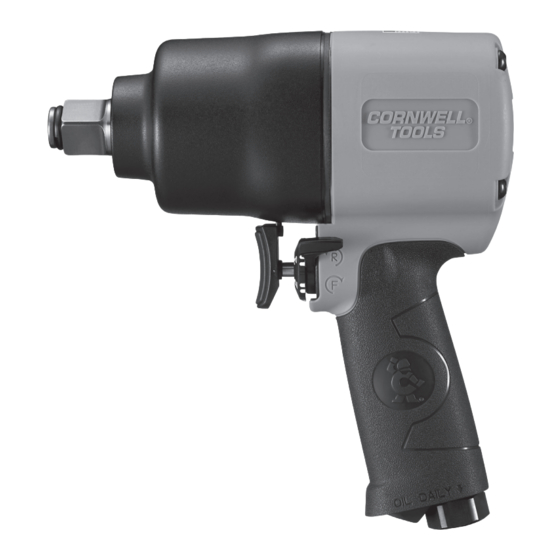

Super Duty 3/4" Dr.
Composite Impact Wrench
Copyright © Professional Tool Products, 2018
1
All rights reserved
06/12/18
