OPERATING MANUAL
WARNING
ALWAYS READ
INSTRUCTIONS BEFORE
USING POWER TOOLS
ALWAYS WEAR
SAFETY GOGGLES
ALWAYS WEAR
HEARING PROTECTION
AVOID PROLONGED
EXPOSURE TO
VIBRATION
Some dust created by power sanding, sawing, grinding, drilling, and other
construction activities contains chemicals known to cause cancer, birth
defects or other reproductive harm. Some examples of these chemicals are:
• lead from lead-based paints,
• crystalline silica from bricks and cement and other masonry
products, and
• arsenic and chromium from chemically-treated lumber.
Your risk from these exposures varies, depending on how often you do this type
of work. To reduce your exposure to these chemicals: work in a well ventilated
area, and work with approved safety equipment, such as those dust masks that
are specially designed to filter out microscopic particles.
Free Speed ............................................................. 7,500 RPM
Breakaway Torque ..............................................1,800 ft.-lbs.
Torque Range (Max)...............................................950 ft.-lbs.
Overall Length .................................................................7.25"
Weight ..........................................................................4.5 lbs.
Average Air Consumption .............................................. 5 cfm
Air Inlet......................................................................1/4" NPT
Recommended Hose Size .......................................... 3/8" I.D.
Sound Level ............................................................... 100 dBA
Vibration Level ....................................................... 8.8 m/sec²
CAT5380
WARNING INFORMATION
•
WARNING
SPECIFICATIONS
bluePOWER
PARTS LIST
•
CAT5380

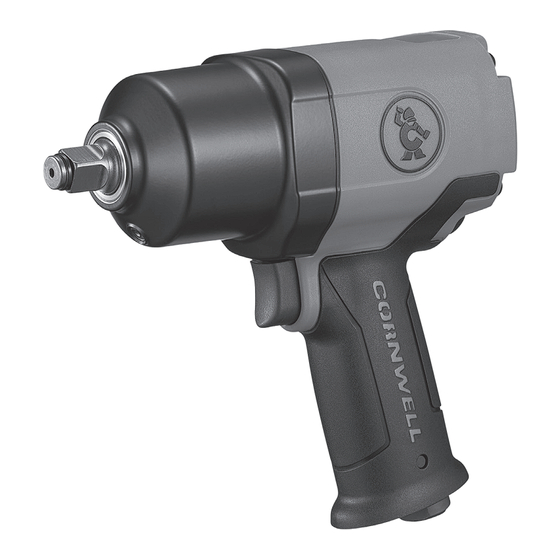

1/2" Impact Wrench
®
Copyright © 2024
All rights reserved
04/04/2024
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Cornwell Tools bluePOWER CAT5380
Summary of Contents for Cornwell Tools bluePOWER CAT5380
- Page 1 CAT5380 bluePOWER 1/2" Impact Wrench ® OPERATING MANUAL WARNING INFORMATION PARTS LIST • • WARNING ALWAYS READ INSTRUCTIONS BEFORE USING POWER TOOLS ALWAYS WEAR SAFETY GOGGLES ALWAYS WEAR HEARING PROTECTION AVOID PROLONGED EXPOSURE TO VIBRATION WARNING Some dust created by power sanding, sawing, grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm.
- Page 2 CAT5380 bluePOWER 1/2" Impact Wrench ® FAILURE TO OBSERVE THESE WARNINGS COULD RESULT IN INJURY • Place the tool on the work before starting the tool. Do not THIS INSTRUCTION MANUAL CONTAINS point or indulge in any horseplay with this tool. IMPORTANT SAFETY INFORMATION.
-
Page 3: Air Supply
CAT5380 bluePOWER 1/2" Impact Wrench ® OPERATION Air Supply Whip Hose Do Not Install Filter Quick Coupling Nipple Nipple This tool is an impacting tool and not a torque meter. When specific Here torque is required, it must be checked with a torque meter after fitting the fastener with the impact. -
Page 4: Warranty Coverage
CAT5380 bluePOWER 1/2" Impact Wrench ® WARRANTY COVERAGE Cornwell Quality Tools Company (“Cornwell”) warrants this product against defects in material and workmanship for a period of TWO (2) YEAR from the date of original retail purchase. Subject to the conditions and limitations set forth below, Cornwell will, at its option, either repair or replace any part of the product(s) that proves defective by reason of improper workmanship or materials. -
Page 5: Parts List
CAT5380 bluePOWER 1/2" Impact Wrench ® PARTS LIST Item Part No Parts Name Item Part No Parts Name RS12301 HAMMER CASE GREASE FITTING RS123410 REAR END PLATE RS1761101 HAMMER CASE RS123411 BEARING RS0260103 HAMMER CASE BUSHING RS0260309 SPRING PIN RS0260104 STEEL RING RS5380310 HEX.SOC.HD.BOLT (Each)
