ENGLISH

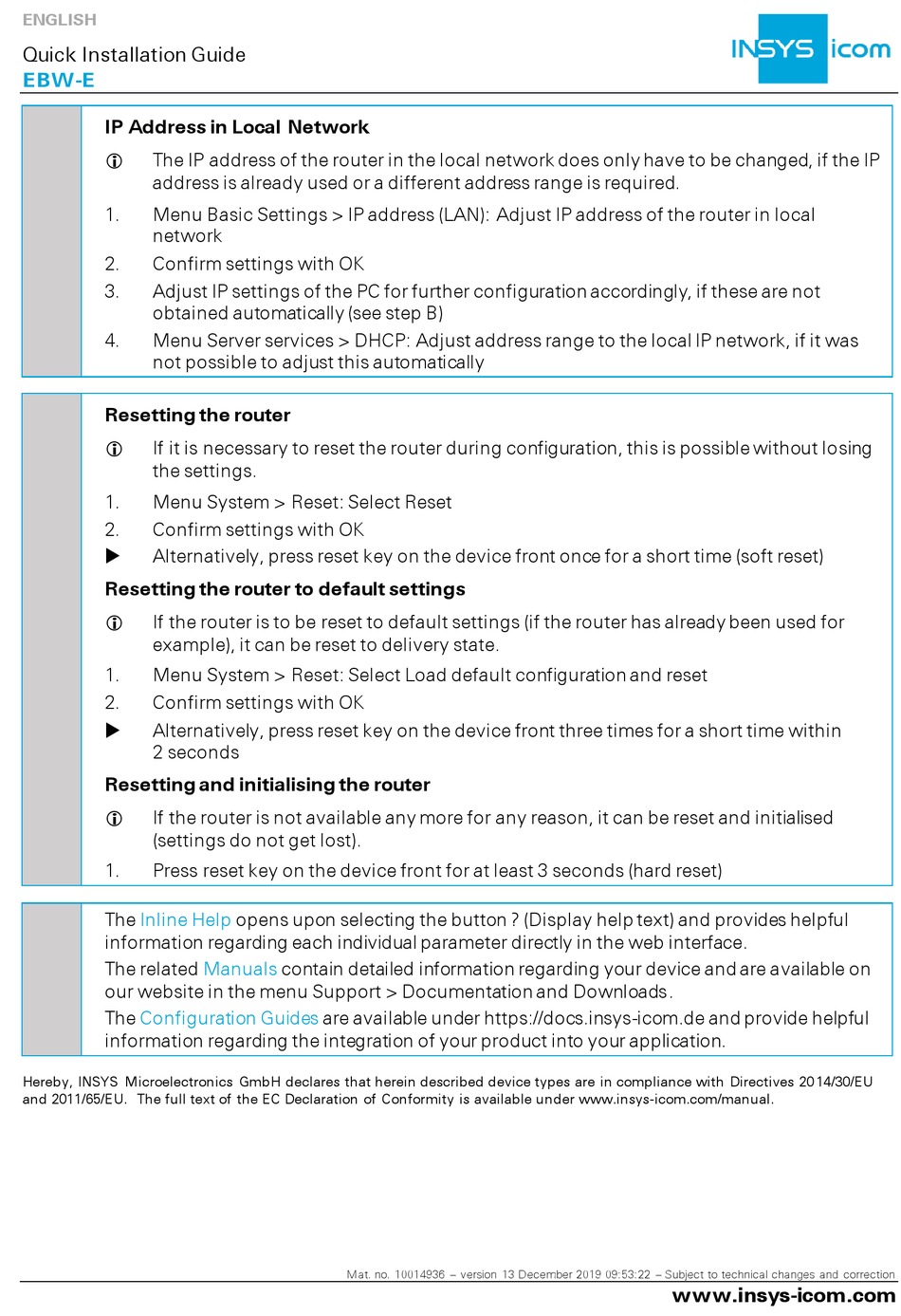

Quick Installation Guide
EBW-E
IP Address in Local Network
The IP address of the router in the local network does only have to be changed, if the IP
address is already used or a different address range is required.
1.
Menu Basic Settings > IP address (LAN): Adjust IP address of the router in local
network
2.
Confirm settings with OK
3.
Adjust IP settings of the PC for further configuration accordingly, if these are not
obtained automatically (see step B)
4.
Menu Server services > DHCP: Adjust address range to the local IP network, if it was
not possible to adjust this automatically
Resetting the router
If it is necessary to reset the router during configuration, this is possible without losing
the settings.
1.
Menu System > Reset: Select Reset
2.
Confirm settings with OK
Alternatively, press reset key on the device front once for a short time (soft reset)
Resetting the router to default settings
If the router is to be reset to default settings (if the router has already been used for
example), it can be reset to delivery state.
1.
Menu System > Reset: Select Load default configuration and reset
2.
Confirm settings with OK
Alternatively, press reset key on the device front three times for a short time within
2 seconds
Resetting and initialising the router
If the router is not available any more for any reason, it can be reset and initialised
(settings do not get lost).
1.
Press reset key on the device front for at least 3 seconds (hard reset)
The
Inline Help
information regarding each individual parameter directly in the web interface.
The related
our website in the menu Support > Documentation and Downloads.
The
Configuration Guides
information regarding the integration of your product into your application.
Hereby, INSYS Microelectronics GmbH declares that herein described device types are in compliance with Directives 20 14/30/EU
and 2011/65/EU. The full text of the EC Declaration of Conformity is available under www.insys-icom.com/manual.
opens upon selecting the button ? (Display help text) and provides helpful
Manuals
contain detailed information regarding your device and are available on
are available under https://docs.insys-icom.de and provide helpful
Mat. no. 10014936 – version 13 December 2019 09:53:22 – Subject to technical changes and correction
www.insys-icom.com
