Router Connection - insys icom EBW-E Quick Installation Manual

ENGLISH

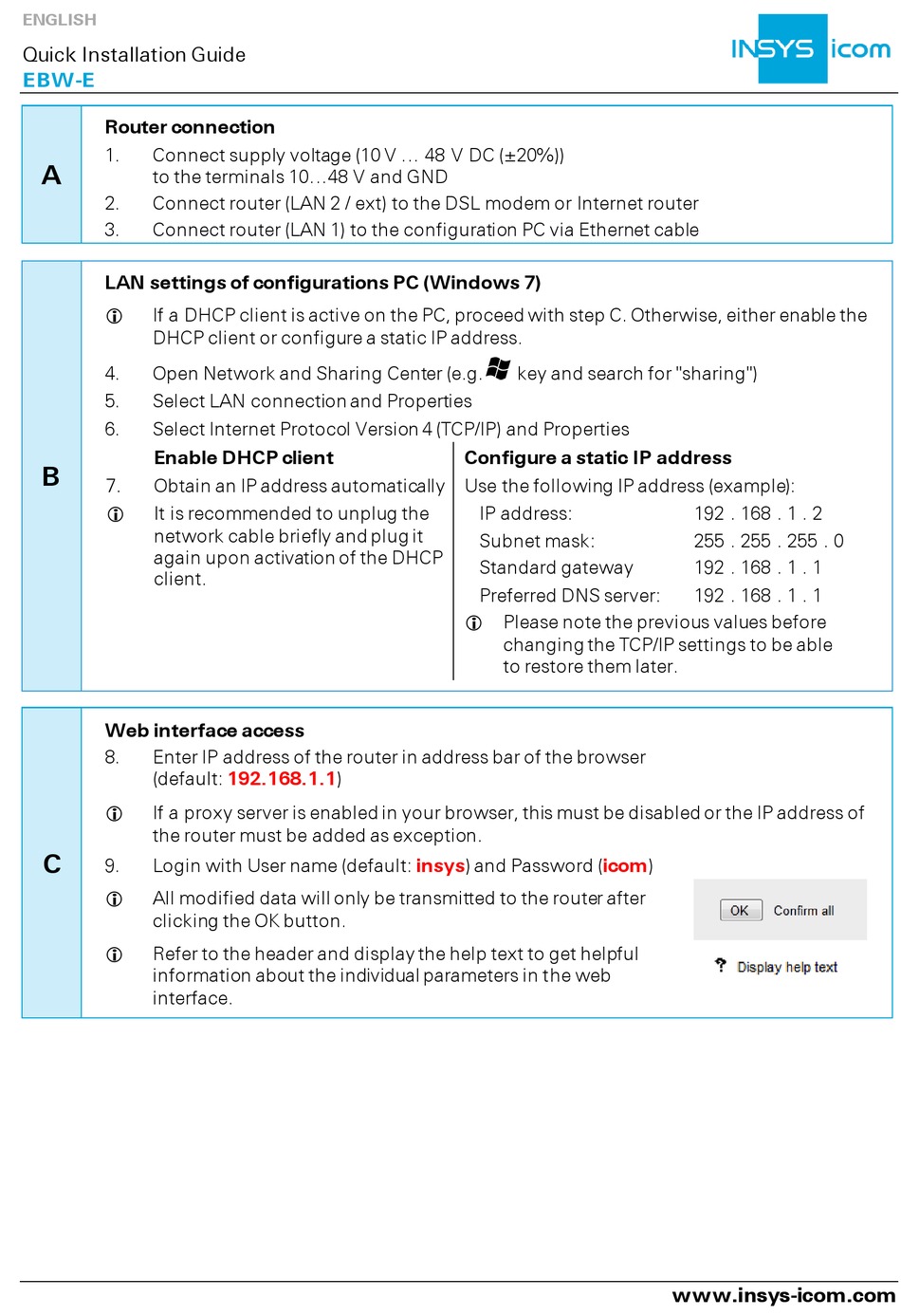

Quick Installation Guide
EBW-E

Router connection

1. Connect supply voltage (10 V ... 48 V DC (±20%))
A
to the terminals 10...48 V and GND
2. Connect router (LAN 2 / ext) to the DSL modem or Internet router
3. Connect router (LAN 1) to the configuration PC via Ethernet cable
LAN settings of configurations PC (Windows 7)

If a DHCP client is active on the PC, proceed with step C. Otherwise, either enable the
DHCP client or configure a static IP address.
4. Open Network and Sharing Center (e.g.
5. Select LAN connection and Properties
6. Select Internet Protocol Version 4 (TCP/IP) and Properties
Enable DHCP client
B
7. Obtain an IP address automatically

It is recommended to unplug the
network cable briefly and plug it
again upon activation of the DHCP
client.
Web interface access
8. Enter IP address of the router in address bar of the browser
(default: 192.168.1.1)

If a proxy server is enabled in your browser, this must be disabled or the IP address of
the router must be added as exception.
C
9. Login with User name (default: insys) and Password (icom)

All modified data will only be transmitted to the router after
clicking the OK button.

Refer to the header and display the help text to get helpful
information about the individual parameters in the web
interface.
key and search for "sharing")
Configure a static IP address
Use the following IP address (example):
IP address:
Subnet mask:
Standard gateway
Preferred DNS server:

Please note the previous values before
changing the TCP/IP settings to be able
to restore them later.
192 . 168 . 1 . 2
255 . 255 . 255 . 0
192 . 168 . 1 . 1
192 . 168 . 1 . 1
www.insys-icom.com
