HPPCI JTAG I/O Voltage Detection

HPUSB-ICE and USB-ICE emulators do not support auto voltage
detection mode.

HPPCI-ICE Legacy/Auto Detection Mode

The factory default for the pod shown in
more information about available modes, refer to
on page 1-14.
In order to modify the factory default setting, remove the four screws on
the bottom of the plastic enclosure. When opening the case, first remove
the top of the enclosure with the top facing up. This must be done to
ensure that the four light pipes used for the LEDs are not damaged. The
default pod setting is shown in
default setting of your HPPCI-ICE needs to be modified, refer to
Mode (Factory Default

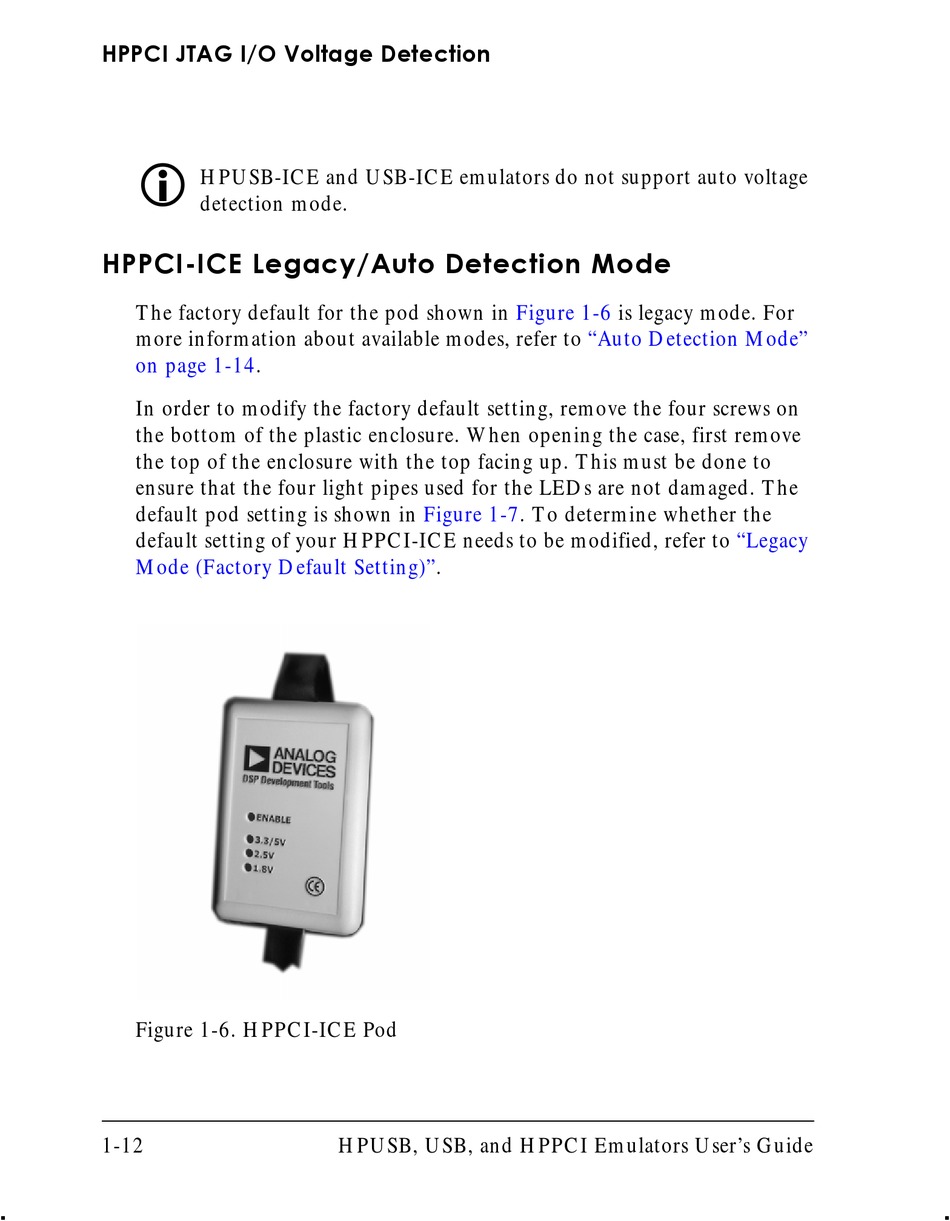

Figure 1-6. HPPCI-ICE Pod
1-12
Figure 1-6
Figure 1-7. To determine whether the
Setting)".
HPUSB, USB, and HPPCI Emulators User's Guide
is legacy mode. For
"Auto Detection Mode"
"Legacy
