Page 1: Table Of Contents

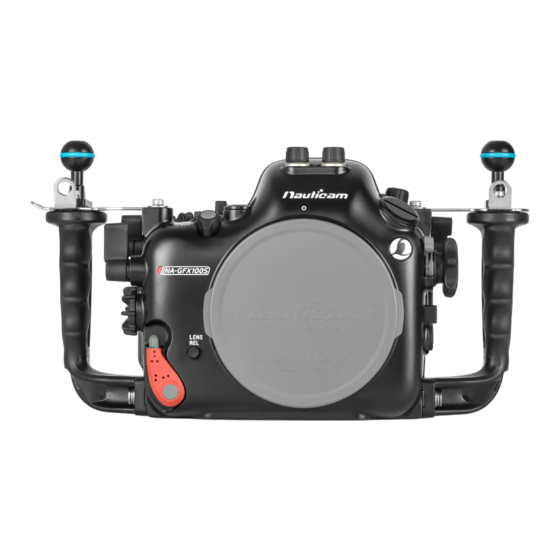

NA - GFX100S For Fuji lm GFX 100S Mirrorless Camera PN 17158 User Manual Housing MEDIUM FORMAT- MIL Introduction Package Contents Important Instructions Part Names and Functions Housing Mount Opening the housing Closing the housing Preparation for Use Optional Accessories Care/Storage Warranty Speci cations... -
Page 2: Introduction
PACKAGE CONTENTS Make sure that you have all the included items listed below before using this product. If some items are missing or damaged, contact your local Nauticam dealer. NA-GFX100S Padded Travel Case... -
Page 3: Important Instructions
O-ring renewal between the atmosphere and inside the and port change. housing. Only the accesories speci ed by Use only Nauticam lubricant on silicone Nauticam must be used. Third-party rubber O-ring. accessories may result in malfunctions or damage to the product. -
Page 4: Part Names And Functions
PART NAMES AND FUNCTIONS Rear View Drive button Delete button Housing unlock button Flash ON/Off lever Flash exposure compensation dial View mode lever Focus mode selector lever Rear commnad dial press button Multi-selector Exposure lock button Menu/OK button Moisture alarm window Multi selector - center... - Page 5 PART NAMES AND FUNCTIONS Top + Front Views M24 Accessory port Optical ber cable connection Dial lock release button Mode dial Flash test button window Flash setting window Main switch M14 Accessory port Fn1 button Fn2 button Still/Movie mode lever Fn3 button M16 Accessory port Rear command dial...
- Page 6 PART NAMES AND FUNCTIONS Back + Side Views 1/4” Threaded tripod holes Sacri cial zinc anodes Playback lever Zoom/Focus knob release Zoom/Focus knob Display/back lever Fn 4 lever AF-ON lever Shutter release lever Quick menu lever Front command dial...
-
Page 7: Housing Mount
HOUSING MOUNT Housing mount Compatible accessories 25625 M16 Vacuum valve II (pushbutton release) M16 Accessory port M14 Accessory port 25056 M14 Nikonos 5-pin bulkhead M5 Accessory port 25228 M5 Strobe mounting ball M24 Accessory port 25077 M24D1R205-M28A1R170 HDMI 2.0 Cable 1/4”... -
Page 8: Opening The Housing
OPENING THE HOUSING * drawings as illustrations only depress housing unlock button turn housing lock outward lift up the back housing... -
Page 9: Closing The Housing
CLOSING THE HOUSING * drawings as illustrations only Housing Lock - Lock before closing the housing, clean and lubricate the main O-ring make sure nothing is caught between front and back housing and that they are fully aligned before locking turn housing lock inward until you hear and feel it click into place housing locked in place securely... -
Page 10: Preparation For Use
PREPARATION FOR USE * drawings as illustrations only Installing the Camera - housing tray attachment unlock camera tray lever and remove the tray from the housing tilt the LCD monitor before attaching camera tray attach the camera tray by tightening the tray screw into the tripod socket of the camera * pull out the zoom/focus knob if... - Page 11 PREPARATION FOR USE * drawings as illustrations only Port Mounting once the camera and lens (with lens gear) is installed inside the housing, depress safety button and rotate anti-clockwise lubricant the port O-ring before mounting align index mark push port assembly straight in rotate locking lever clockwise to lock...
- Page 12 PREPARATION FOR USE * drawings as illustrations only Coating housing O-ring Main O-ring remove the main O-ring using an O-ring remover clean the O-ring groove with a cloth and ensure that it is free from salt or other foreign materials lightly coat it with provided lubricant return the main O-ring by slowly pressing from one corner to the whole perimeter...
- Page 13 PREPARATION FOR USE * drawings as illustrations only Setting up moisture alarm CR2032 Battery Alarm ON/OFF remove battery press the battery down until it insulation lm click into place switch on the alarm test the alarm - the moisture alarm - connect the wires with a window will ash in...
- Page 14 PREPARATION FOR USE * drawings as illustrations only Changing lens/port without opening the housing If using with vacuum valve : remove the cap from the vacuum valve and press the red button to release pressure before unlocking port lock If using without vacuum valve, please follow from step 2 unlock port lock and remove port assembly...
-
Page 15: Optional Accessories
OPTIONAL ACCESSORIES * drawings as illustrations only Vacuum valve system remove the plug of M16 accessory port from the housing remove the cap from the vacuum hand pump valve vacuum valve slightly lubricate the o-ring and make sure the o-ring is in place accesory port on housing then tighten the vacuum valve to... - Page 16 OPTIONAL ACCESSORIES * drawings as illustrations only Strobe Mounting Ball Installing M5 Strobe Mounting Ball - RECOMMENDED M5 screw remove M5 screw with the allen key provided in the screw #25228 M5 Strobe mounting ball directing onto housing package the M5 thread * the anti-corrosion screw may also be Anti-corrosion unscrewed while removing M5 screw, if this...
-
Page 17: Care/Storage
CARE/STORAGE Soak the housing system in fresh water Operate all controls and buttons at after salt water usage least 3 times while immersed in fresh water We recommand cleaning and inspecting Protect the housing with robust and the main O-ring each time after diving for shock-proof travel case during trans- any damage and every time the housing portation. -
Page 18: Warranty
NAUTICAM accepts no liability for any damage to and defects in the housing caused by improper use and/or poor maintenance; it is the responsibility of the own- er to carefully follow the instructions in our manuals. -
Page 19: Speci Cations
25076 HDMI (D-D) cable in 200mm length Monitor options * 25033 is included in monitor housing packaging 17922/S Nauticam Atomos Ninja V/V-S Housing for Atomos Ninja V 5” Monitor options ( 1.4 ) (excl. HDMI 2.0 cable) 17923 NA-Shinobi-H Housing for Atomos Shinobi 5.2” 4K HDMI Monitor... - Page 20 87501 Flip Holder for EMWL 87512 Shade for 130° Objective Lens 87518 Strobe Mounting Brackets for EMWL Relay Lens 87517 EMWL Bayonet Holder for Ø90 Float Arm *please refer to Nauticam port charts for more setup information. FLASH TRIGGERING Optical TTL Electronic Strobe Connection...
- Page 21 Nauticam Internationl Ltd. Rm 2203, CCT Telecom Bldg, 11 Wo Shing St, Fo Tan, Hong Kong Tel. +852 - 26902711 Fax. +852 - 26909778 URL. www.nauticam.com Gallery. www.nauticam.smugmug.com...
