DEMO MANUAL DC2881A-A
OUTPUT AND ONBOARD E-LOAD CONFIGURATION
V
OUT1
(20MHz BW)
20mV/DIV

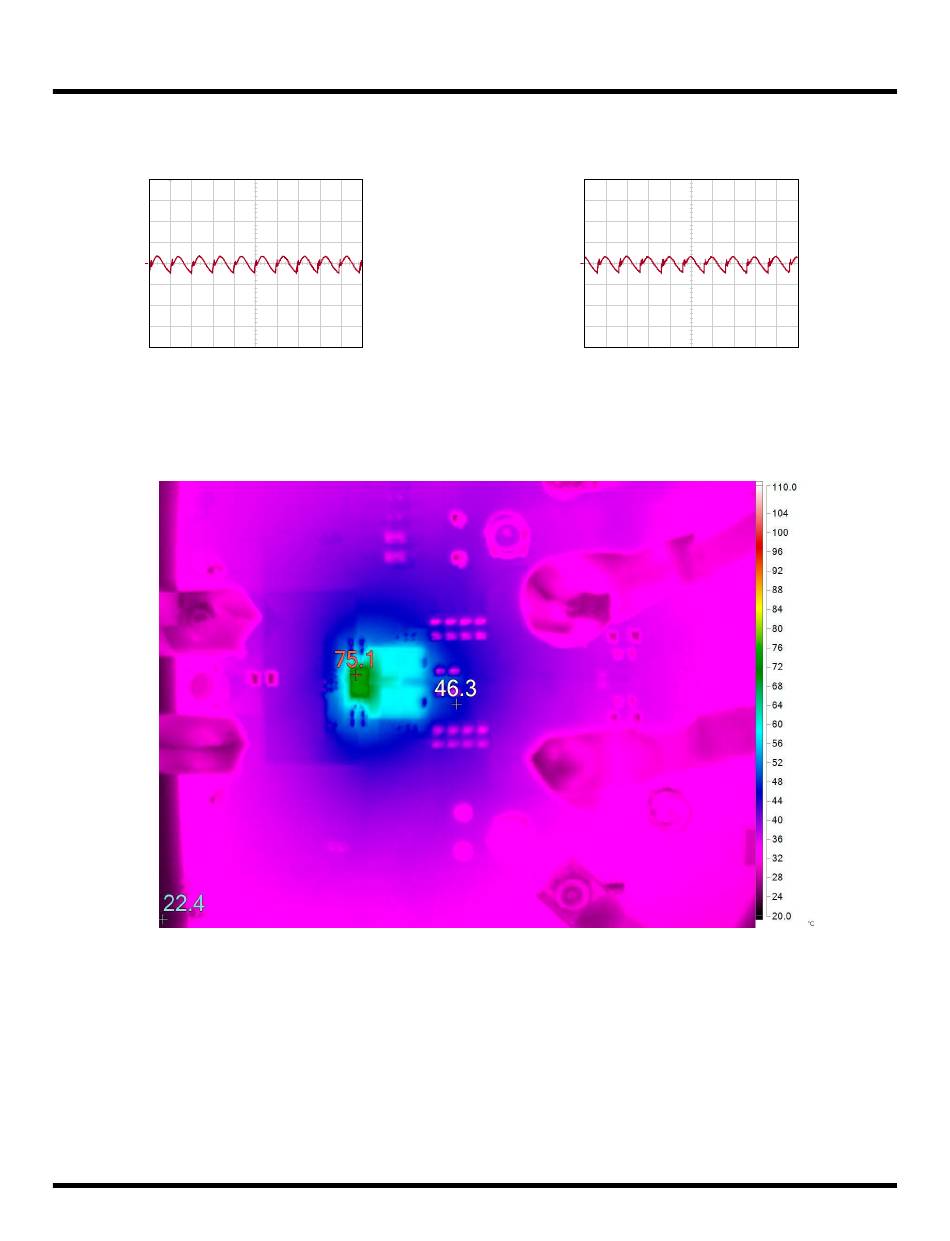

Figure 11. V Voltage Ripple = 17.4mV at
OUT1
V = 12V, V = 1V, I
IN OUT1
Figure 13. Thermal at V
8
dc2881a-a F11
2µs/DIV
= 30A
OUT1
= 12V, V = 1V, I
IN OUT1
V
OUT2
(20MHz BW)
20mV/DIV
Figure 12. V
V = 12V, V
IN
= 30A, V = 1V, I
OUT1 OUT2 OUT2
dc2881a-a F12
2µs/DIV
Voltage Ripple = 17.4mV at
OUT2
= 1V, I = 30A
OUT2 OUT2
= 30A, T = 22°C, No Airflow
A
Rev. 0
