Summary of Contents for Interface 9325-NU

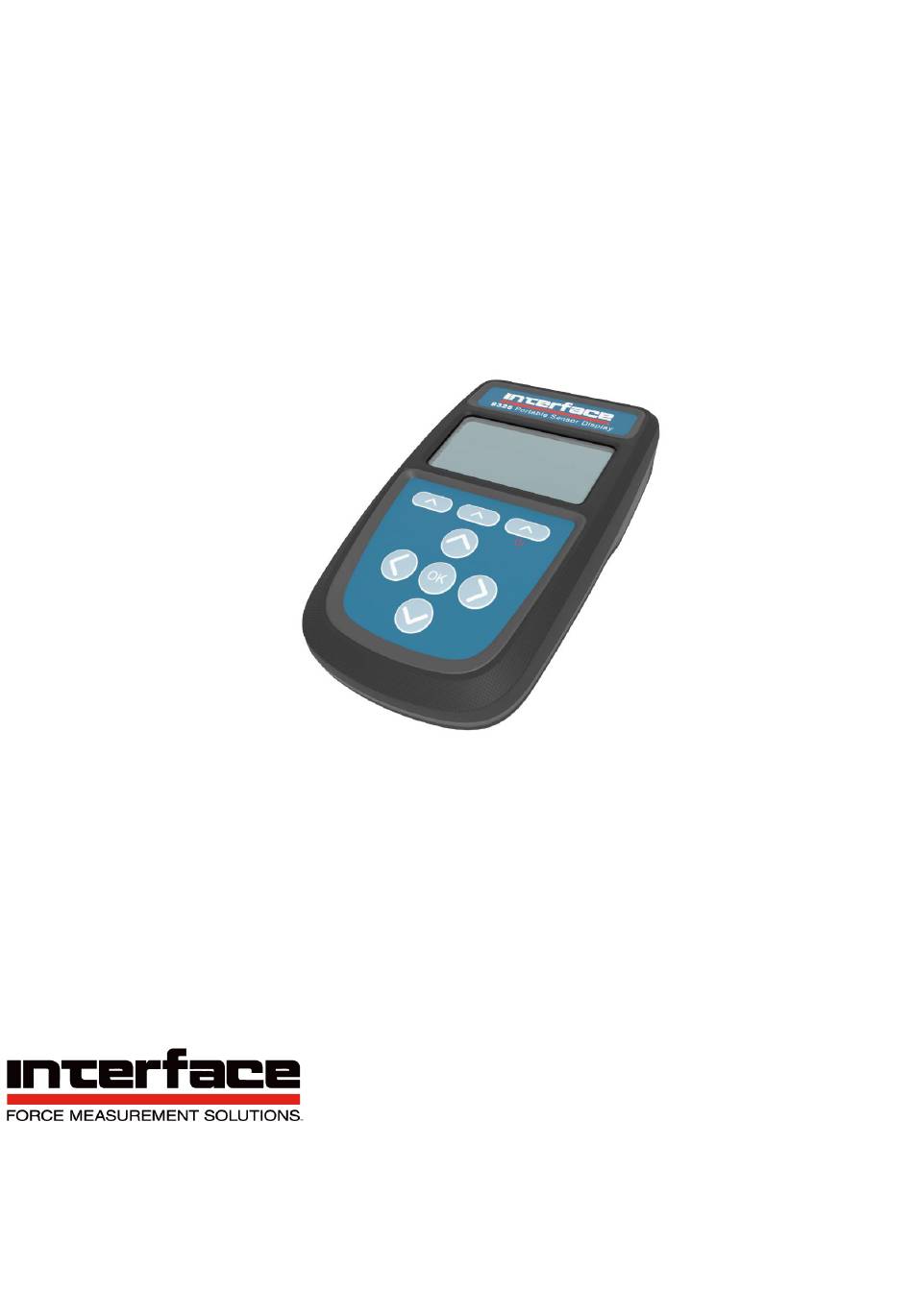

  • Page 1 9325-NU Quick Start Guide 9325-NU Portable Sensor Display...
  • Page 2 Introduction/overview The 9325-NU allows simple display of strain bridge-based measurements such as load cells and pressure gauges with sensitivity up to +/-480 mV/V. Up to six calibration ranges are available allowing for different loading modes (tension and compression) or different sensors. Each calibration range will remember settings that contribute to the user experience such as selected units and tare values.
  • Page 3: Getting Started

    Getting started This document is designed to give a very quick overview of the 9325-NU and its general, standard functionality. For more details, see the full manual. Hardware overview Front Interface Inc. 9325-NU Quick Start Guide...
  • Page 4 Back Interface Inc. 9325-NU Quick Start Guide...
  • Page 5 The Load Cell connector fitted to 9325-NU Standard Product is BINDER 770-8. The cable fitted mating connector is a BINDER 771 8-pin male connector. There are three versions available with different field cable diameters. View from solder connector side of the connector...
  • Page 6 (if set default is “9325”) Scrolls through available characters Moves between digits ’LIVE CALIBRATION’ ’SENSITIVITY’ Select required input sensitivity (Note, this MUST be selected before the following steps) Return to previous menu ’UNITS’ Select required calibration units Interface Inc. 9325-NU Quick Start Guide...
  • Page 7 Confirm or edit high mV/V input (You can manually edit the mV/V value to a value from a calibration certificate here) to save changes (long press cancels manual changes) If everything is as planned Return to previous menu Interface Inc. 9325-NU Quick Start Guide...
  • Page 8: Alarm Mode

    ’ALARM’ ’ALARM SOURCE’ Select ‘GROSS’ or ‘NET’ Return to previous menu ’ALARM MODE’ Select ‘NORMAL’ or ‘LATCHED’ (When the alarm is latched but no longer being triggered, cancel the alarm by: ’ALARM’ Interface Inc. 9325-NU Quick Start Guide...
  • Page 9: Alarm Thresholds

    (long press cancels changes and returns to display mode) Return to previous menu ’ALARM TRIGGER’ Select from: Disabled Outside limits (<low, >high) Inside limits (>low, <high) Above high (>high) Below high (<high) Above low (>low) Below low (<low) Interface Inc. 9325-NU Quick Start Guide...
  • Page 10: Alarm Action

    Plug in a TEDS enabled load cell. Message: ‘NEW TEDS DEVICE USE SESSION DEFAULTS’ TEDS table(s) will be automatically loaded. Change selected TEDS calibration Change displayed units To disable TEDS and use the 9325-NU internal calibration: ’CALIBRATION’ ’USER CALIBRATION’ ’ENTER PASSWORD’ (if set default is “9325”) Scrolls through available characters Interface Inc.
  • Page 11 Select from: ‘ENABLED (TEDS)’ ‘DISABLED (9325)’ Return to previous menu Return to previous selected display mode. The next time that you connect that TEDS device you will get the message: ‘KNOWN TEDS DEVICE SESSION RESTORED’ Interface Inc. 9325-NU Quick Start Guide...
