Interface 9860 User Manual

Digital indicator
Hide thumbs Also See for 9860:
Table of Contents

Advertisement

Quick Links

Download this manual
Interface Inc ● 7418 East Helm Drive, Scottsdale, Arizona 85260 USA
84928 - 9860 Manual 13-76B_8.5x5.5.indd 1
www.interfaceforce.com ● Email: contact@interfaceforce.com
84928 - 9860 Manual 13-76B_8.5x5.5.indd 1
84928 - 9860 Manual 13-76D_8.5x5.5.indd 1
Model 9860
Model 9860
Model 9860
Digital Indicator
Model 9860
Issue: 13-76 Revision D
User Manual
Digital Indicator
www.interfaceforce.com
Issue: 13-76 Revision C
User Manual
www.interfaceforce.com
Phone: 480.948.5555
ORDER TOLL-FREE 800.947.5598
6/12/18 4:10 PM
6/12/18 4:10 PM
10/19/20 11:10 AM

Advertisement

Table of Contents
loading

Related Manuals for Interface 9860

Summary of Contents for Interface 9860

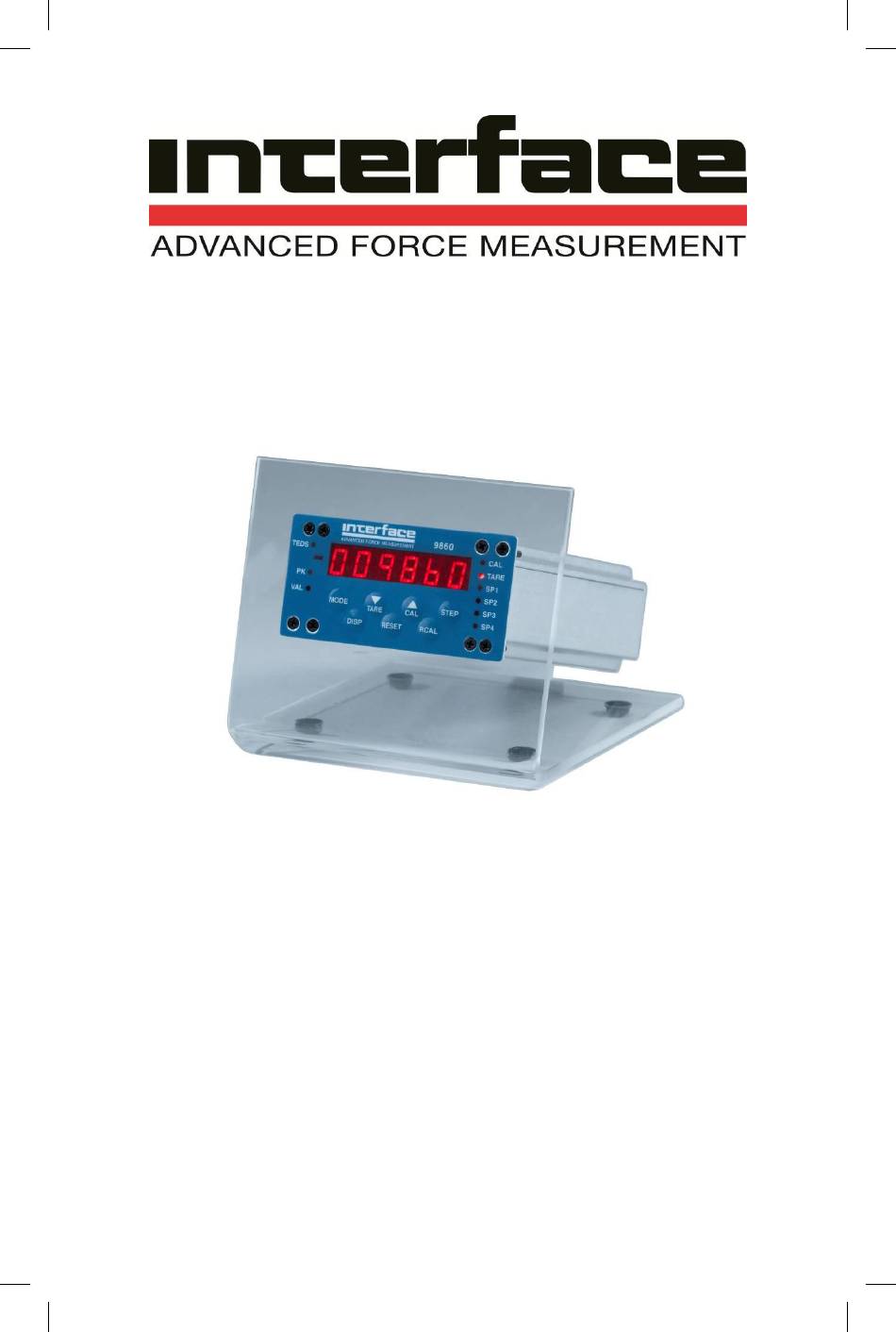

  • Page 1 User Manual Digital Indicator www.interfaceforce.com Issue: 13-76 Revision C User Manual www.interfaceforce.com Interface Inc ● 7418 East Helm Drive, Scottsdale, Arizona 85260 USA Phone: 480.948.5555 84928 - 9860 Manual 13-76B_8.5x5.5.indd 1 6/12/18 4:10 PM www.interfaceforce.com ● Email: contact@interfaceforce.com ORDER TOLL-FREE 800.947.5598 84928 - 9860 Manual 13-76B_8.5x5.5.indd 1...
  • Page 2 The Model 9860 is a TEDS IEEE 1451.4 compliant, enhanced performance, microprocessor-based indicator capable of interfacing directly to a low level strain gage load cell transducer. The 9860 provides (3) user selectable calibration modes and (1) factory calibration mode. Consult Interface before accessing the Description factory calibration mode.
  • Page 3 To panel mount the 9860, perform the following steps. 1. Rotate the four pawl screws (outside screws in each corner) several turns counter-clockwise to retract the pawls. Make sure the pawls retract enough to clear the back of the mounting panel.
  • Page 4 Figure3. Transducer Wiring – NOTE: for optimum performance cable shield should be connected to the instrument chassis. Figure 4. I/O Wiring 84928 - 9860 Manual 13-76B_8.5x5.5.indd 4 6/12/18 4:10 PM 84928 - 9860 Manual 13-76D_8.5x5.5.indd 4 10/19/20 11:10 AM...
  • Page 5 The beauty of open collector outputs is, since these outputs are floating, they can be used with any voltage source up to 50 VDC. In this way you can match the output voltage level of the 9860 to any external equipment input be it 2.5 VDC or 48 VDC.
  • Page 6 RCAL resistor can be changed if desired; a 10ppm tempco resistor is recommended. Figure 8 – Location of Rcal direction Jumpers and Rcal resistor. 84928 - 9860 Manual 13-76B_8.5x5.5.indd 6 6/12/18 4:10 PM 84928 - 9860 Manual 13-76D_8.5x5.5.indd 6 10/19/20 11:10 AM...

  • Page 7: Menu Function Definitions

    Menu Function Definitions Filter Value (FILtEr) (00 to 99) The 9860 uses a filter based on a digital averaging technique where N samples are arithmetically averaged. Subsequent averages subtract the oldest reading and add the newest reading. The number of readings is equal to the value of (FILtEr).

  • Page 8: Program Instructions

    Window (bAnd), Calibration Number (CAL), Scale, Full Scale Number (FS), Setpoint to Monitor (SP-), Setpoint to be (SP HI), Setpoint value (Set SP), Hysteresis Low (HL), Hysteresis High (HH) and Baud rate values. 84928 - 9860 Manual 13-76B_8.5x5.5.indd 8 6/12/18 4:10 PM 84928 - 9860 Manual 13-76B_8.5x5.5.indd 8 6/12/18 4:10 PM 84928 - 9860 Manual 13-76D_8.5x5.5.indd 8...
  • Page 9 To exit the MODE sequence without enabling a change, depress the RESET switch. All entries prior to RESET, not including the function active at RESET, will be updated. Calibration Instructions The Model 9860 provides three (3) calibration modes. In the OFF state, the CAL1 and CAL2 manual Calibration Instructions entry modes are disabled.

  • Page 10: Analog Outputs

    The actual load is 50000 lb. The voltage output is +(5000/20000)X10=+2.5 V and +(5000/20000)x16+4=8.0 mA. 3.A 9860 is in the ON2 mode. The CAL and FS values are 15000 lb. The actual load is 9000 lb. The voltage Output is +(9000/15000)X10=+6.0 V and +(9000/15000)x16+4=13.6 mA.
  • Page 11 2.A 9860 is in the ON1/OFF mode. The CAL and FS values are 10000 lb and 20000 lb, respectively. The actual load is 50000 lb. The voltage output is +(5000/20000)X10=+2.5 V and 3. A 9860 is in the ON2 mode. The CAL and FS values are 15000 lb. The actual load is 9000 lb. The +(5000/20000)x16+4=8.0 mA.

  • Page 12: Appendix A Understanding The 9860 Digital Filter Settings

    Understanding the 9860 Digital Filter Settings The 9860 digital filter is implemented as a cumulative moving average filter. It is used to filter the output of a 16-bit successive approximation analog-to-digital converter running at a rate of 250 conversions per second.

  • Page 13: Appendix B Calibrating The 9860 Using The Cal On1 Calibration Method

    50mV. To change the full scale range to 25mV, reference the instructions shown in Appendix E. Example: Calibrate the 9860 to read 00000 to 10.000 with an input of ZERO and XXmV/V full scale using a precision load cell simulator or known force (weight).

  • Page 14: Appendix C Calibrating The 9860 Using The Cal On2 Calibration Method

    In the CAL2 mode, the MAXIMUM FORCE or CAL value and the MAXIMUM OUTPUT in mV/V or SCALE values are entered. The 9860 uses these values to auto-calibrate the readout and analog outputs. ZERO or TARE may be initiated after the CAL2 calibration is completed.

  • Page 15: Appendix D Programming Set Points

    These values are entered the same as any other numerical value: step selected the digit and the up and down buttons selected the value of that digit. 84928 - 9860 Manual 13-76B_8.5x5.5.indd 15 6/12/18 4:10 PM 84928 - 9860 Manual 13-76D_8.5x5.5.indd 15...

  • Page 16: Appendix E Accessing Internal Switches And Potentiometers

    Then gently remove the top cover, to expose the DIP switch and analog output gain adjustment pots DIP SW2 position Excitation INPUT RANGE 50mV 25mV 20mA Adj (R51) 4mA Adj (R54) Zero Adj (R40) +10V Adj (R57) 84928 - 9860 Manual 13-76B_8.5x5.5.indd 16 6/12/18 4:10 PM 84928 - 9860 Manual 13-76D_8.5x5.5.indd 16 10/19/20 11:10 AM...

  • Page 17: Appendix F Serial Rs232 Queries And Commands

    Scaling analog input voltage IZ<CR> Instrument Zero Value Adc output with no TEDS at zero LD<CR> Least Display Digit On or Off 1=Off, 0=On LD<n><CR> 84928 - 9860 Manual 13-76B_8.5x5.5.indd 17 6/12/18 4:10 PM 84928 - 9860 Manual 13-76D_8.5x5.5.indd 17 10/19/20 11:10 AM...
  • Page 18 Changes setpoint LOW or HIGH SP4P<CR> Setpoint parameter 0=reading, 1=PK, 2=VAL. 3=PK-VAL SP4P<n><CR> Sets setpoint mode SP4V<CR> Setpoint value Returns nnnnnn SP4V<nnnnnn><CR> Sets setpoint value nnnnnn 84928 - 9860 Manual 13-76B_8.5x5.5.indd 18 6/12/18 4:10 PM 84928 - 9860 Manual 13-76D_8.5x5.5.indd 18 10/19/20 11:10 AM...

  • Page 19: Appendix G Factory Calibration

    (either 2.5 or 5 mV/V) and provides a correlation of the mV/V input to the actual ADC range. If necessary a mV/V calibration can be performed in the field. NOTE this may invalidate a system calibration that had been performed by Interface. NOTES: Always use a precision mV/V simulator for the transducer input when performing a factory calibration.

  • Page 20: Appendix H Open Collector Output Configuration

    .01 as the lowest value and SUPPLY VOLTAGE / .001 as the highest. The setpoint common (pin 9) is typically tied to the external supply common pin. 84928 - 9860 Manual 13-76B_8.5x5.5.indd 20 6/12/18 4:10 PM 84928 - 9860 Manual 13-76D_8.5x5.5.indd 20 10/19/20 11:10 AM...
  • Page 21 CAi = Xi/i + CAi-1(i-1/i). CAi = cumulative average, i=subset size, Xi is the unfiltered raw ADC data. The number of readings averaged is 4x the filter subset size. 84928 - 9860 Manual 13-76B_8.5x5.5.indd 21 6/12/18 4:10 PM 84928 - 9860 Manual 13-76D_8.5x5.5.indd 21 10/19/20 11:10 AM...
  • Page 22 Dimensions L x W x H (mm) 5.13 x 3.78 x 1.89 (130 x 96 x 48) Panel cutout 9860 Marking Fuse T315mA 250V Littlefuse P/N 0213.315MXP 84928 - 9860 Manual 13-76B_8.5x5.5.indd 22 6/12/18 4:10 PM 84928 - 9860 Manual 13-76D_8.5x5.5.indd 22 10/19/20 11:10 AM...

  • Page 23: Warranty And Repair Policy

    Advance Authorization is required before any product is returned to Interface. Prior to the return of any product, write or call the Repair Department at Interface advising the of: (1) a part number; (2) a serial number of the defective product; (3) a technical description of the defect including specific test data, written observations on the failure and specific correction required;...
  • Page 24 Interface Inc ● 7418 East Helm Drive, Scottsdale, Arizona 85260 USA Phone: 480.948.5555 www.interfaceforce.com ● Email: contact@interfaceforce.com ORDER TOLL-FREE 800.947.5598 84928 - 9860 Manual 13-76D_8.5x5.5.indd 10/19/20 11:10 AM...
