Interface 9325 Quick Start Manual

Hide thumbs Also See for 9325:
Table of Contents

Advertisement

Quick Links

Download this manual
Quick Start Guide
9325
9325 Quick Start Guide

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 9325 and is the answer not in the manual?

Questions and answers

Related Manuals for Interface 9325

Summary of Contents for Interface 9325

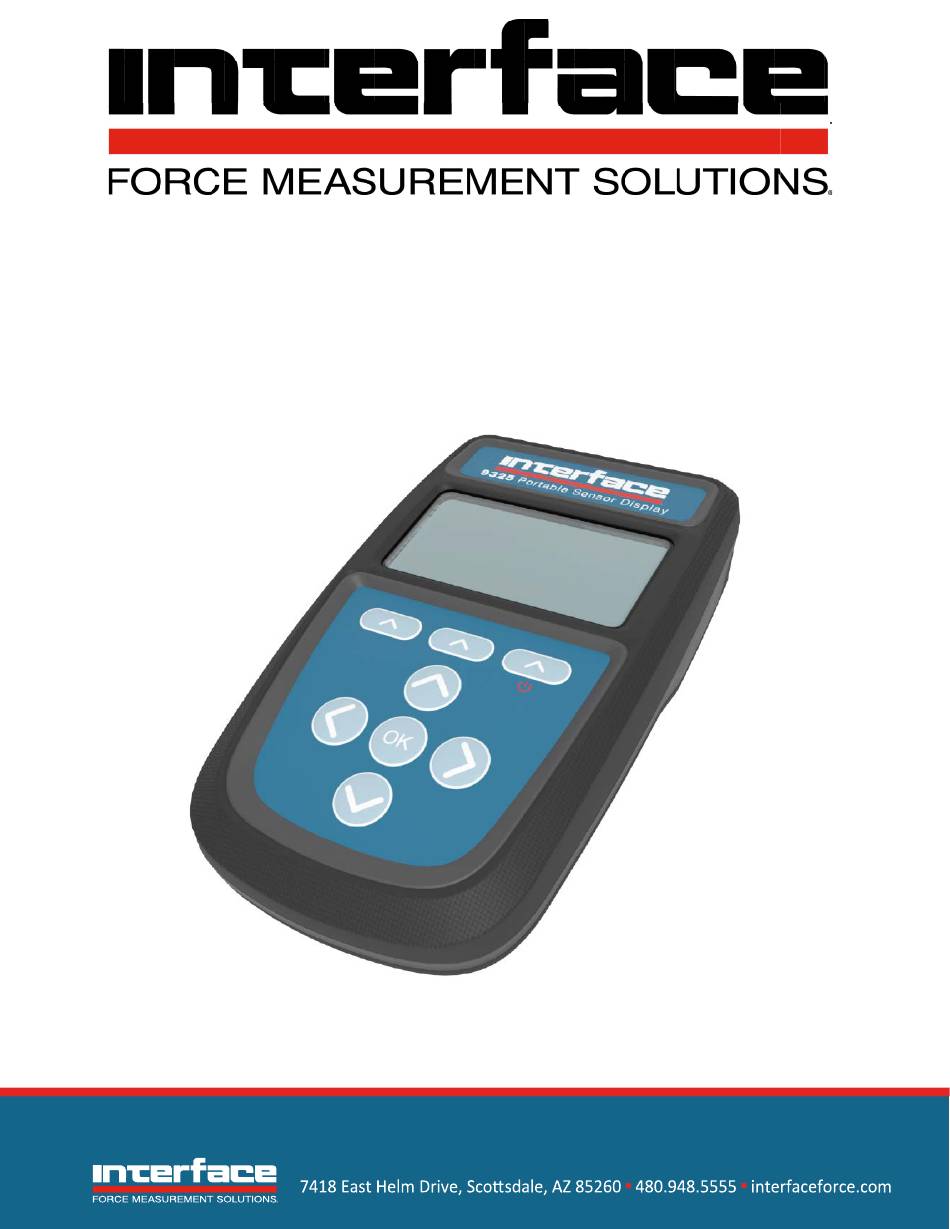

  • Page 1 Quick Start Guide 9325 9325 Quick Start Guide...

  • Page 2: Introduction / Overview

    Introduction / Overview The 9325 allows for simple display of strain bridge based measurements such as load cells and pressure gauges with sensitivity up to +/-480 mV/V. Up to six calibration ranges are available allowing for different loading modes (tension and compression) or different sensors.

  • Page 3: Getting Started

    Getting Started This document is designed to give a very quick overview of the 9325 and its general, standard functionality. For more details, see the full manual. Hardware Overview Icons Battery low and other Info warning icons. Range name etc.
  • Page 4 No. 2 self tapping. 1/4 UNC For mounting. Battery Cover Secured by single screw at bottom. Use 2xAA Batteries. USB Cover Micro USB connector for connection to PC for configuration and alternate power supply. Interface Inc. www.interfaceforce.com 9325 Quick Start Guide 15-403...
  • Page 5 The Load Cell connector fitted to the 9325 Standard Product is BINDER 770-8. The cable fitted mating connector is a BINDER 771 8-way male connector. There are three versions available with different field cable diameters. Field Cable Diameter Binder Order Code...
  • Page 6 Use the Up/Down Arrow to navigate to "Sensitivity". Press OK to confirm. Use the Up/Down Arrow to select the input sensitivity range. Press OK to confirm. Note: Input sensitivity MUST be selected before proceeding to the next step.. Interface Inc. www.interfaceforce.com 9325 Quick Start Guide 15-403...
  • Page 7 Use the Left Soft Key to change the sign of the entered number. Use the Center Soft Key to move the decimal place to the Left. Use the Right Soft Key to move the decimal place to the Right. Interface Inc. www.interfaceforce.com 9325 Quick Start Guide 15-403...
  • Page 8 Press OK to save the changes. (A long press will cancel the changes and return to previous view). Press the Left Soft Key to return to the previous menu. Use the Up/Down Arrow to navigate to "Apply". Press OK to confirm. Interface Inc. www.interfaceforce.com 9325 Quick Start Guide 15-403...

  • Page 9: Change Units

    Use the Up/Down Arrow to navigate to "Gross" or "Net". Press OK to confirm. Press the Left Soft Key to return to the previous menu. Use the Up/Down Arrow to navigate to "Alarm Mode". Press OK to confirm. Interface Inc. www.interfaceforce.com 9325 Quick Start Guide 15-403...
  • Page 10 Manually enter the High Threshold required (Using the keys as in the previous step): Press OK to save the changes once the High Threshold has been entered. (A long press will cancel the changes and return to previous view). Interface Inc. www.interfaceforce.com 9325 Quick Start Guide 15-403...
  • Page 11 None Beep Flash Both Press OK to confirm once a trigger option has been selected. Press the Left Soft Key to return to the previous menu. Return to previous selected display mode. Interface Inc. www.interfaceforce.com 9325 Quick Start Guide 15-403...
  • Page 12 Use the Up/Down Arrow to change selected TEDS calibration. Use the Up/Down Arrow to change displayed units. To disable TEDS and use the 9325’s internal calibration use the following steps: Press OK to enter the Menu Use the Up/Down Arrow to navigate to "Calibration".
  • Page 13 Press the Right Soft Key to return to the previous selected display mode. Note: The next time that you connect that TEDS device, following message will be displayed: "Known TEDS Device Session Restored" Press OK to confirm. Interface Inc. www.interfaceforce.com 9325 Quick Start Guide 15-403...

  • Page 14: Toolkit Overview

    Toolkit Overview More complex setup is possible using the supplied toolkit software. Install the toolkit onto your windows PC and connect the USB to the 9325, then open the toolkit: 1. Select the correct device 2. Click Connect Navigation is achieved using the icons along the top of the toolkit:...
