Interface BX8 Quick Start Manual

Hide thumbs Also See for BX8:

Advertisement

Quick Links

Download this manual See also: Operating Manual

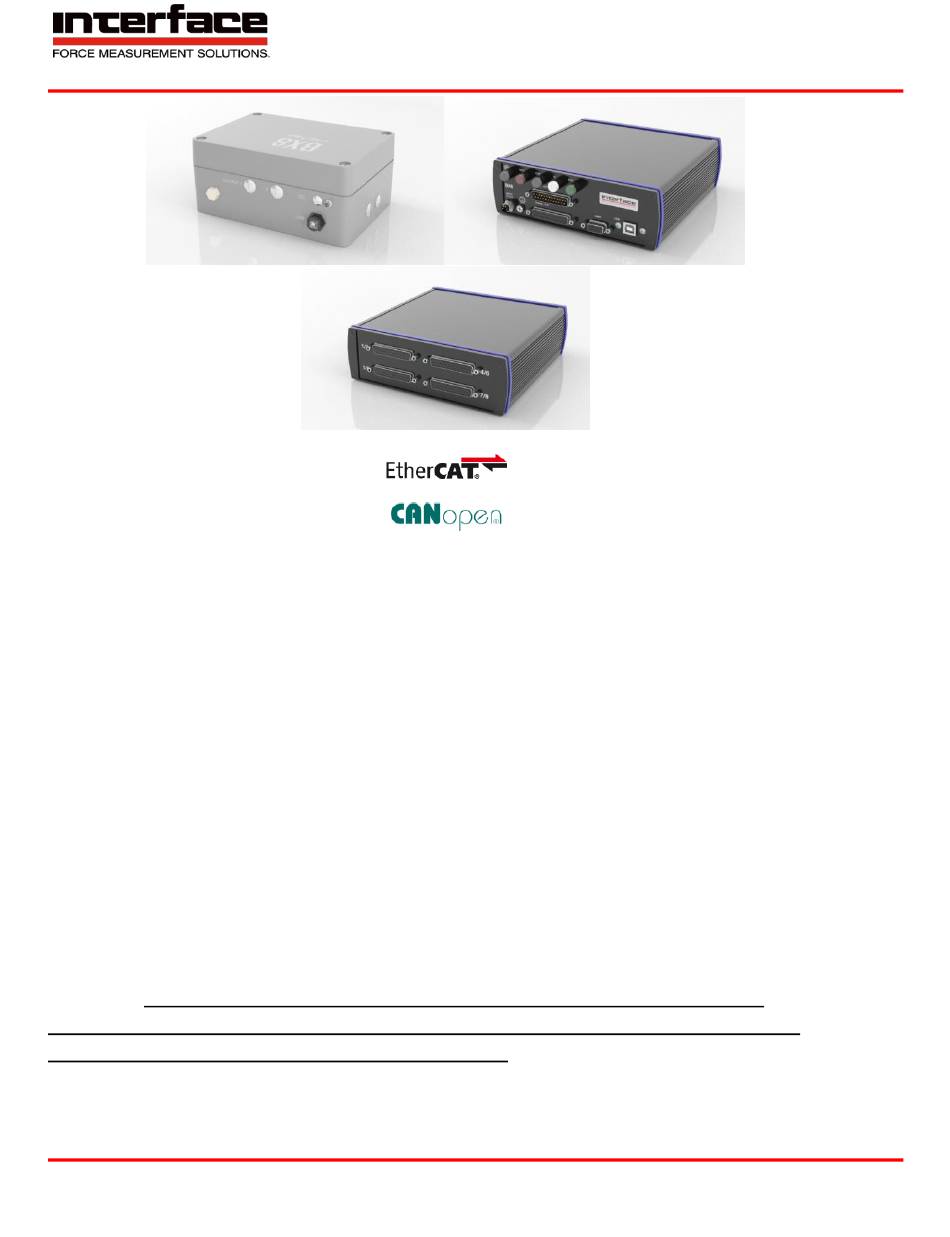

BX8 Quickstart Guide
BX8 Quickstart Guide
Introduction
Model BX8 is the newest addition to Interface's family of measurement systems. Easy enough for the
inexperienced user but powerful enough for the sophisticated test engineer, with the BX8 anyone can be up and
measuring in minutes. Designed specifically for use with mV/V output sensors such as force, torque and
pressure along with PT1000 thermocouples, and ±10V output sensors, the BX8 puts graphing, logging and
display capabilities at a user's fingertips. The BX8 also includes 1/4 and 1/2 bridge completion for seamless
integration of strain gage measurements. Eight independent, user configurable, 16-bit scalable analog outputs
can be connected to external devices.
Caution: Please read this entire guide before making any connections or
powering the BX8. Software and Drivers MUST be installed first. Refer to the
Installation Diagram for the correct BX8 model.
Interface Inc. ● 7401 East Butherus Drive, Scottsdale, Arizona 85260 USA ● Phone 480.948.5555 ● Fax 480.948.1924
Page 1 of 28
● Email:
● 800.947.5598
www.interfaceforce.com
contact@interfaceforce.com
Document Number 15-233 Rev F
