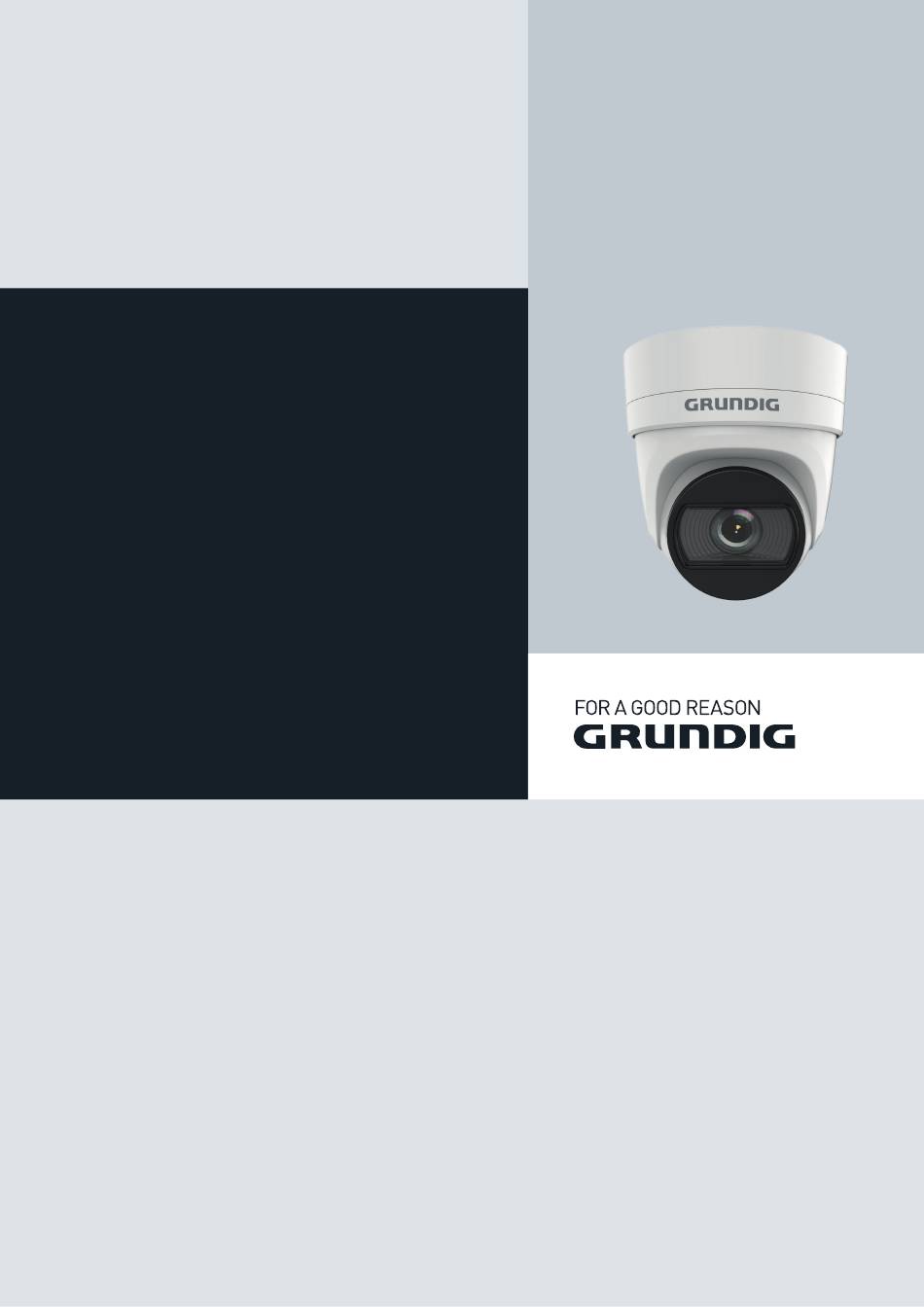

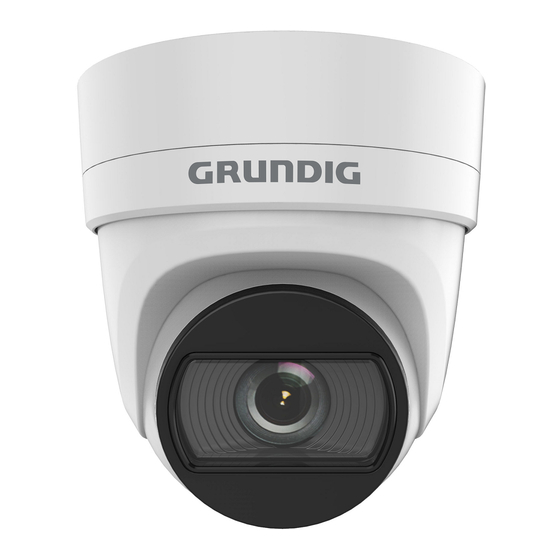

- Page 1 NETWORK EYEBALL CAMERA QUICK GUIDE GD-CI-BP4637E WWW.GRUNDIG-SECURITY.COM...
- Page 2 Please find the latest version at WWW.GRUNDIG-SECURITY.COM Limitation of Liability / Legal Disclaimer Abetechs GmbH (Grundig Security) undertakes all reasonable efforts to verify the integrity and correctness of the contents in this docu- ment, but no formal guarantee shall be provided. Use of this docu- ment and the subsequent results shall be entirely on the user’s own...
- Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may con- tain copyrighted software that is licensed under various open source software licenses. For detailed information about the contained open...
- Page 4 You may obtain the complete corresponding open source part of a specific product from us for a period of three years after our last ship- ment of this product by sending an email to: info@grundig-security. com. Safety Instruction Make sure that you only use the power adapter that is specified in the specifications sheet of the product.
- Page 5 Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, im- mediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
- Page 6 If the product supports IR, you need to take some precautions to prevent IR reflection. Do not install the product close to reflective surfaces of objects as this may cause reflection. If the product has a dome cover, please remove the protection film only after installation to prevent dust or grease on the camera which can cause reflection.
-
Page 7: Table Of Contents
5. Setting the Network Camera over the LAN .......33 5.1 Wiring ..................33 5.2 Activating the Camera ............34 5.2.1 Activation via Web Browser ........34 5.2.2 Activation via Grundig IP-Finder Tool ......35 5.3 Modifying the IP Address ............37 6. Accessing via Web Browser ............40 6.1 Initializing the Memory Card ..........42... -
Page 8: Package Content
Package Content... -
Page 9: Preparation
1 Preparation... -
Page 14: Installation
2 Installation... - Page 21 5.5±0.2mm (0.21±0.01") 0.7±0.1mm (0.028±0.003" ) 3.2±0.1mm (0.126±0.004") 0.7±0.1mm (0.028±0.003" )
-
Page 27: Camera Adjustment
3 Camera Adjustment... -
Page 32: Installation Finalization
4 Installation Finalization... -
Page 33: Setting The Network Camera Over The Lan
5 Setting the Network Camera over the LAN Note: You shall acknowledge that the use of the product with Internet ac- cess might be under network security risks. For avoidance of any net- work attacks and information leakage, please strengthen your own protection. -
Page 34: Activating The Camera
Activation via Web Browser and Activation via Grundig IP-Finder Tool are supported. We will take activation via Grundig IP-Finder Tool and Activation via Web Browser as examples to introduce the camera acti- vation. -
Page 35: Activation Via Grundig Ip-Finder Tool
5. Click OK to save the password and enter the live view interface. 5.2.2 Activation via Grundig IP-Finder Tool The Grundig IP-Finder Tool is used for detecting the online device and activating the camera. Get the Grundig Finder Tool from the supplied disk or the official... - Page 36 User manual for ot- her two activation methods. Steps: 1. Run the Grundig IP-Finder Tool to search the online devices. 2. Check the device status from the device list and select the inactive device.
-
Page 37: Modifying The Ip Address
To view and configure the camera via LAN (Local Area Network), you need to connect the network camera in the same subnet with your Use the Grundig IP-Finder Tool to search and change the IP address of the device. We take modifying the IP Address via Grundig IP-Finder as an example to introduce the IP address modification. - Page 38 3. Change the device IP address to the same subnet with your com- puter by either modifying the IP address manually or checking the checkbox of Enable DHCP. Figure 3-5 Modify the IP Adress 4. Input the admin password and click Modify to activate your IP ad- dress modification.
- Page 39 The batch IP address modification is supported by the Grundig IP-Finder. Please refer to the User Manual of Grundig IP-Finder for details.
-
Page 40: Accessing Via Web Browser
6 Accessing via Web Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.0 GHz or higher RAM: 1G or higher Display: 1024×768 resolution or higher Web Browser: Internet Explorer 8.0 and above version, Apple Safari 5.0.2 and above version, Mozilla Firefox 5.0 and above version and Google Chrome 18 and above version Steps:... - Page 41 Note: The device IP address gets locked if the admin user performs 7 failed password attempts (5 attempts for the user/operator). 4. Click Login. Figure 4-1 Login Interface 5. Install the plug-in before viewing the live video and managing the camera.
-
Page 42: Initializing The Memory Card
If the memory card status displays as Uninitialized, tap to initialize it. The status will then change to Normal. You can then start recor- ding any event triggered video in the camera such as motion de- tection. WWW.GRUNDIG-SECURITY.COM QG-GD-CI-BP4637E-2019-03-15-V1-EN ©ABETECHS GMBH, DÜSSELDORF, GERMANY...
