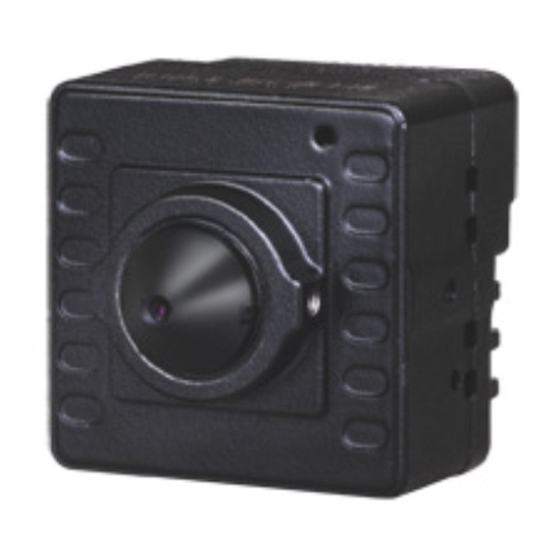

Grundig GD-CI-BC2615M Quick Start Manual
  1. Manuals
  2. Brands
  3. Grundig Manuals
  4. Security Camera
  5. GD-CI-BC2615M
  6. Quick start manual

Grundig GD-CI-BC2615M Quick Start Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
0

Advertisement

loading
Need help?

Need help?

Do you have a question about the GD-CI-BC2615M and is the answer not in the manual?

Questions and answers

Related Manuals for Grundig GD-CI-BC2615M

Summary of Contents for Grundig GD-CI-BC2615M

  • Page 2 Use of this document and the subsequent results shall be entirely on the user’s own responsibility. Abetechs GmbH (Grundig Security) reserves the right to change the contents of this document without prior notice. Design and specifications are subject to change without prior notice.
  • Page 3 OPEN SOURCE SOFTWARE LICENSE INFORMATION The software components provided with Grundig products may contain copyrighted software that is licensed under various open source software licenses. For detailed information about the...
  • Page 4 The appearance of the products, functions and firmware or software upgrade may differ from this manual. GRUNDIG reserves the right to perform needed changes without prior notice. Safety Instructions Make sure that you only use the power adapter that is specified in the specifications sheet of the product.
  • Page 5 Improper use or replacement of the battery may result in the hazard of explosion. Do not use any accessories that are not recommended by GRUNDIG. Do not modify the product in any way. If the product starts to smell or smoke comes out of the device, immediately stop using the product and disconnect it from the power supply to prevent fire or electric shocks.
  • Page 6 Installation Instructions It is necessary to fix the device firmly if the product is installed on a wall or ceiling. Do not install the product on surfaces or in places that are vibrating. Do not install the product near radiation sources. Do not install the product near heat sources, like radiators or other equipment that produces some heat.
  • Page 7 Special Installation Instructions for IP Cameras Make sure that the latest firmware is installed on the IP Device. You may get the latest firmware from techsupport@grundig-security.com.

  • Page 8: Table Of Contents

    Table of Contents 1 Appearance Description ..............8 1.1 Description of the connector........... 8 1.2 Installing SD-card ............9 2 Installation ................10 3 Setting the IP-Camera over the LAN ........... 12 3.1 Wiring ................12 3.2 Accessing via Browser ........... 13 3.3 Modifying the IP-address via IP-Finder Tool....

  • Page 9: Appearance Description

    1 Appearance Description 1.1 Description of the connector The overview of the connector is shown below. Figure 1-1 connections of camera Description Description Network Cable Power Cable (DC 12V)

  • Page 10: Installing Sd-Card

    Description Alarm Input 1 Alarm Input 2 Alarm Output CVBS Output Audio Input Audio Output 1.2 Installing SD-card Remover the camera from power. Insert the memory card into the card slot. Reconnect the camera to power again and format the SD-card in the settings menu.

  • Page 11: Installation

    2 Installation 1. Fix the U-bracket with the enclosed screw. Figure 2.1 Fix the U-bracket 2. Route and connect the cables. Fix the camera bracket with screws as shown below. Figure 2-2 Fix the camera bracket...
  • Page 12 3. Tighten the screws firmly to finish the installation. Figure 2-3 Tighten the screws...

  • Page 13: Setting The Ip-Camera Over The Lan

    3 Setting the IP-Camera over the LAN Note: You shall acknowledge that the use of the product with Internet access might be under network security risks. For avoidance of any network attacks and information leakage, please strengthen your own protection. If the product does not work properly, contact your dealer or the nearest service center for help.

  • Page 14: Accessing Via Browser

    3.2 Accessing via Browser System Requirement: Operating System: Microsoft Windows XP SP1 and above version CPU: 2.4 GHz or higher RAM: 512 MB or higher Display: 1024 × 768 resolution or higher Web Browser: Internet Explorer 6.0 and above version. Steps: 1.

  • Page 15: Modifying The Ip-Address Via Ip-Finder Tool

    5. Click OK to save the password and enter the live view interface. 3.3 Modifying the IP-address via IP-Finder Tool Steps: 1. Run the Grundig IP-Finder software. 2. Select the device from the list. 3. Change the device IP address to the same subnet with your computer by either modifying the IP address manually or checking the checkbox of Enable DHCP.
  • Page 16 Figure 3-4 Modify the IP Address 4. Input the admin password and click Update to activate your IP address modification. The batch IP address modification is supported by the Grundig IP- Finder. Please refer to the User Manual of Grundig IP-Finder for details.
