JL Audio Stealthbox SMS-B-X5E70 Installation Manual page 6

Page 6 • JL Audio, Inc 2012

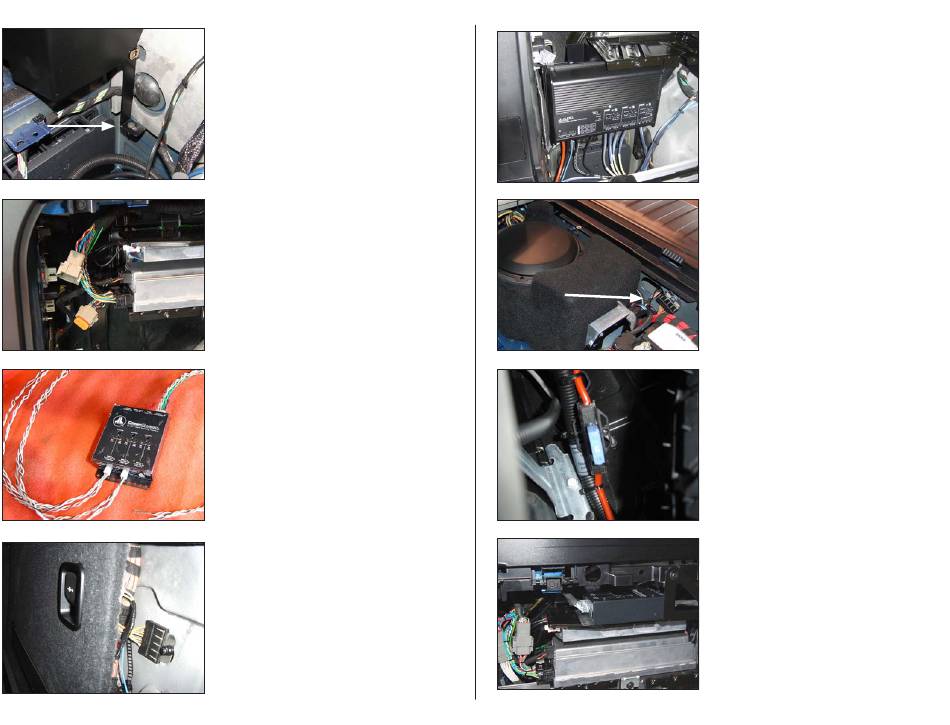

S T E P 3 6
Slide a Speed Clip over the factory hole as shown, and secure
the lower part of the bracket with a #8 x 3/4" Phillips Head
Screw.
S T E P 3 7
Cut the following factory wires approximately six inches
away from the factory amplifier plug:
LF Door (+) = Blue/Brown RF Door (+) = Blue/Brown
LF Door (-) = Blue/White RF Door (-) = Blue/Black
LF Sub (+) = Brown/Yellow RF Sub (+) = Brown/White
LF Sub (-) = Red/White RF Sub (-) = Red/Blue
Note: Pictured are plugs we added to easily return the
vehicle to its original condition. These are not necessary, nor
included with this StealthMod® kit.
S T E P 3 8
Using the wire colors indicated in Step 37 as a guide,
connect the door wires from the factory amplifier plug to
the Input A of the CL-SSI. Connect the sub wires to the Input
B of the CL-SSI. Using the Speaker to RCA adapters and RCA
cables, connect the front outputs of the CL-SSI to the Inputs
1-2 of the XD700/5, and the rear outputs of the CL-SSI to
Inputs 3-4 of the XD700/5.
Extend the opposite side of the factory wires with 16 AWG
Speaker Cable as necessary, and connect the door wires
to Outputs 1-2 on the XD700/5. Connect the sub wires to
Outputs 3-4 on the XD700/5.
S T E P 3 9
Extend the red ignition wire from the CL-SSI using the
supplied Remote Turn-on Wire, route it to the passenger side
of the cargo area, and connect it to the factory ignition wire
on the back of the accessory outlet. It's recommended to
fuse the wire within a few inches of the connection.
Connect the yellow 12 volt power wire, the black ground
wire, and the blue remote turn-on wire of the CL-SSI to the
XD700/5 along with the main Red Power Wire and Black
Ground Wire as indicated on the amplifier.
SLPK-B-X5E70 INSTR_SKU#11339
S T E P 4 0
Connect the 12 AWG Speaker Cable from the Stealthbox® to
output 5 on the XD700/5. Mount the amp to the Amplifier
Bracket using four #8 x 1" Phillips Head Screws. Plug in the
cable for the HD-RLC and route it to the desired level control
location. Follow the steps included with the HD-RLC for
mounting instructions.
S T E P 4 1
Route the Ground Wire to the factory ground location
indicated, and secure it using the factory bolt.
S T E P 4 2
Route the Power Wire toward the battery. Connect the Fuse
Holder within 12" of the battery, and secure the the Power
Wire to the positive battery post. Install the Fuse into the
Fuse Holder.
S T E P 4 3
Secure the CL-SSI with Velcro as shown. Be sure to leave it
accessible for adjusting the trim levels
Continued on Next Page
