JL Audio Stealthbox SMS-B-X5E70 Installation Manual page 2

Page 2 • JL Audio, Inc 2012

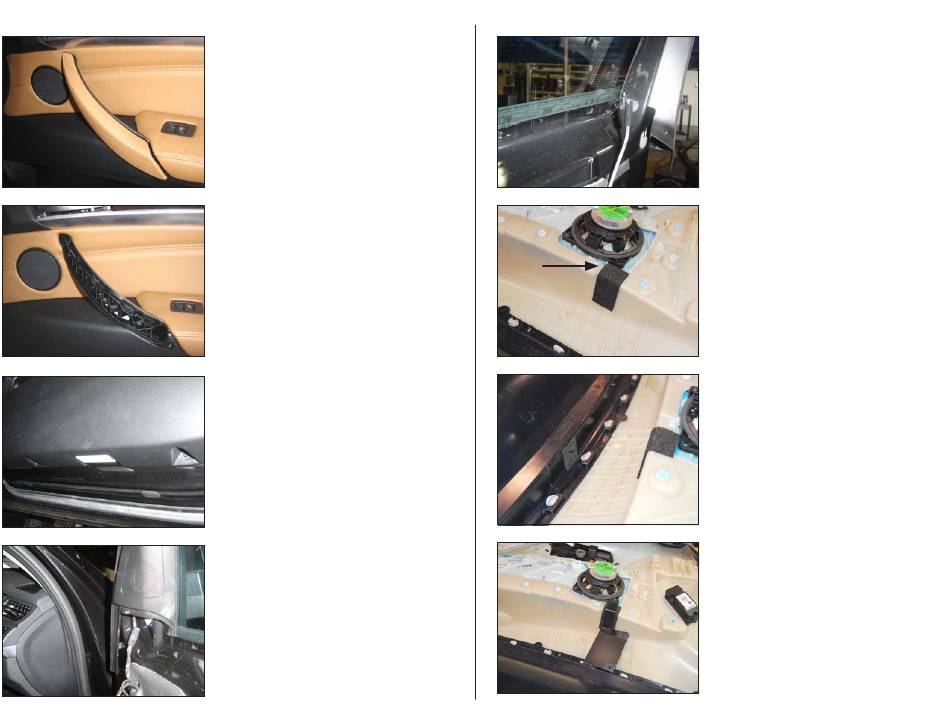

S T E P 4
Carefully pry off the trim on the pull handle and remove it
from the vehicle.
S T E P 5
Remove the two screws under the panel.
S T E P 6
Remove the two screws on the underside of the door panel.
Starting at the bottom, unclip the door panel from the door,
unplug the wiring harnesses, and remove the door panel
from the vehicle.
S T E P 7
With the door panel removed, unclip the front of the upper
door trim as shown.
SLPK-B-X5E70 INSTR_SKU#11339
S T E P 8
Unclip the rear of the upper door trim as shown, and remove
the panel from the vehicle.
S T E P 9
Pictured is the back side of the door panel. Cut a small
piece of the Foam Tape and apply it to the panel as shown.
Remove the screw indicated, and retain it for use in Step 11.
S T E P 1 0
Cut a second piece of the Foam Tape and apply it to the
panel, over the clip as shown.
S T E P 1 1
Slide a pair of Speed Clips over the holes in the Crossover
Bracket. Place the bracket over the two pieces of Foam
Tape, aligning the holes with the clip and speaker mounting
hole. Secure the bracket to the door panel with the screw
removed in Step 9.
Continued on Next Page
