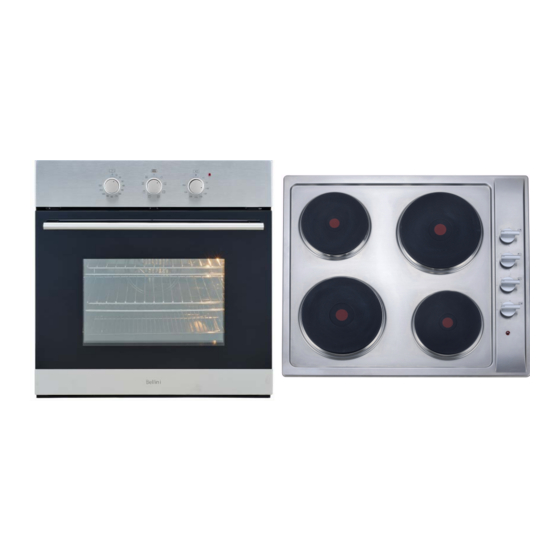

60cm electric cooktop & 60cm electric oven
Hide thumbs
Also See for BOT608X:
- Installation and user manual (15 pages) ,
- Installation & operation instructions (31 pages)
Subscribe to Our Youtube Channel
Related Manuals for Bellini BOT608X
Summary of Contents for Bellini BOT608X

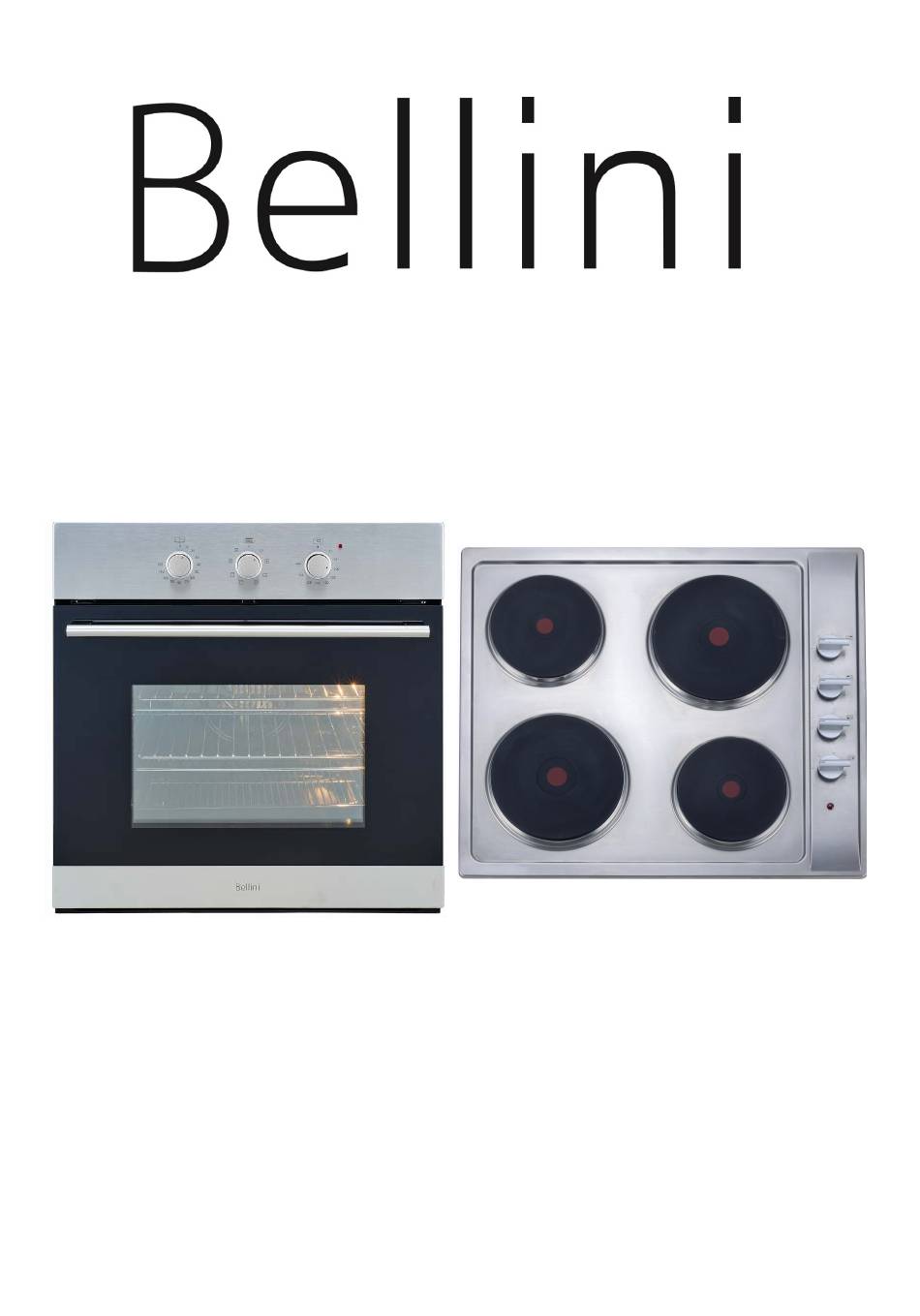

- Page 1 INSTALLATION & OPERATION INSTRUCTIONS 60cm Electric Cooktop & 60cm Electric Oven BP170EE GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust 0800 764 912 NZ V5 Aug22 www.belliniappliances.com.au...
- Page 2 INSTALLATION & OPERATION INSTRUCTIONS 60cm Built In Electric Oven Model No. BOT608X BOT608X-F ONLY IN BUILDERS PACKS: BP170EE FINELINE: 5103598 AUST & NZ BP270EG FINELINE: 5103595 AUST & NZ GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust 0800 764 912 NZ www.belliniappliances.com.au u...
- Page 3 Th ank you Thank you for choosing Bellini Appliances. All Bellini appliances carry a 3 year In Home warranty, be sure to retain your installation and user manual and receipt. For all warranty and technical queries please contact Australia 1300 373 199...
-
Page 4: Table Of Contents
Content Safety instructions----------------------------- 1 Product description---------------------------- 3 Installation----------------------------------------5 Oven Setting--------------------------------------7 Maintenance and cleaning -------------------10 Warranty------------------------------------------ 13... -
Page 5: Safety Instructions
The manual should be kept in a safe place for future reference. In case of failure, only the Authorised Technical Service may repair this oven. Otherwise the guarantee will be null and void. All Bellini Appliances are for domestic use only. - Page 6 flowing installing instructions. Grill The unit's power cord must be connected to a Do not cover the grill insert with foil, as fat built up properly grounded and protected, 220-240V may catch on fire. electrical outlet. Always ground fault Always keep the grill dish clean as any build up protection where required by the electrical code.
-
Page 7: Product Description
Product Description A. Minute Timer Knob D. Heating Indicator Light B. Function Select Knob E. Handle C. Temperature Select Knob F. 3 Layer Glass Door Accessories Accessory Name Picture Quantity Mounting Screws(ST4x20) 2 pcs Baking Pan & Rack 1 Pair Rack 2 pcs Tray handle... - Page 8 Technical data product dimensions electrical min. fuse max. power max. current model (L x W x D) mm connection rating rating rating All 2 models 595x596x575 220-240V/50Hz 2.7 – 3.22Kw 13.4A Heating elements Motor Oven lower heating el.: 1200Watt Oven inside heating el. 1900 Watt Oven upper heating el.: 1000Watt Total grill heating el.
-
Page 9: Installation
Installation The unit panels next to the appliance must be WARNING! Please follow the points below when heat resistant. In the case of veneered wood installing the appliance units, glue must be resistant to a temperature of 120°C. If the appliance is to be installed adjacent to vinyl Use an Authorised Person Installation should be carried out according to the wrapped surfaces, use an installation kit... - Page 10 The unit panels next to the appliance must be heat Cabinet Construction For Your Appliance The sizes of the unit for installing the appliance under resistant. In the case of veneered wood units, glues a worktop or in a column unit are shown in figure. must be resistant to a temperature of 120°C.
-
Page 11: Oven Setting
Oven Settings Preparing Your Oven 1. Please remove all stickers, leaflets and boxes from the door and from the floor of the oven before operation. 2. Please wipe out the oven interior prior to operation with warm soapy water and polish dry with a soft clean cloth. - Page 12 Function Selector function description When the selector knob is in any position other than the “0”position, the oven light Oven Light comes on. Select this function, the air at ambient temperature is distributed inside the oven for Defrost defrosting food more quickly and without proteins adulteration. Both the lower and upper heating elements operate together.
- Page 13 Select the Temperature To set the temperature, turn the temperature selector in a clockwise direction to the desired setting. An indicator light above the temperature selector will come on. A thermostat controls the temperature in your appliance. When the temperature is reached, the heating source switches itself off and the indicator light goes out.
-
Page 14: Maintenance And Cleaning
Maintenance & Cleaning WARNING! Before cleaning your oven, or performing maintenance, disconnect it from the power supply. Do not use steam cleaners. Do not line the oven bottom with aluminium foil, as the consequent accumulation of heat could compromise the cooking and damage the enamel. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid or sprinkle water to clean the appliance! Do not clean the appliance when it is still hot! The inside and external surface of the oven should preferably... - Page 15 Replacement of the Oven Light Bulb WARNING! In order to avoid the possibility of an electric shock ensure that the appliance is disconnected from the power supply before replacing the bulb. Set all control knobs to the position”●”/”0” and disconnect the mains plug Unscrew and wash the lamp cover and then wipe it dry Unscrew the light bulb from the socket, replace...
- Page 16 Step 1 Step 2 Step 3 Step 4 Troubleshooting Faults Causes Remedies The upper crust is dark and Not enough heat from the bottom Use the natural convection position. the lower part too pale Use deeper cake tins. Lower the temperature. Put the cake on a lower shelf.
-
Page 17: Warranty
Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. - Page 18 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
- Page 19 INSTALLATION & OPERATION INSTRUCTIONS 60cm Electric Cooktop Model No. BCS604X FINELINE: 5102272 Aus BCS604X-F FINELINE: 267897 NZ GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust 0800 764 912 NZ www.belliniappliances.com.au u...
- Page 20 Th ank you Thank you for choosing Bellini Appliances. All Bellini appliances carry a 3 year In Home warranty, be sure to retain your installation and user manual and receipt. For all warranty and technical queries please contact Australia 1300 373 199...
- Page 21 Content Safety instructions----------------------------- 2 Product description---------------------------- 5 Installation----------------------------------------6 Start using your appliance--------------------9 Maintenance ------------------------------------10 Warranty------------------------------------------ 12...
- Page 22 In case of failure, only the authorised Technical Service may repair this hob. Otherwise the guarantee will be null and void. All Bellini Appliances are for domestic use only. Important Safeguards NOTE: The adjacent furniture or the...
- Page 23 • Do not operate any appliance with a damaged • Ensure that small items of household cord or plug. equipment, including connection leads, do not touch the hot oven or the hob as the insulation • Do not allow electrical fittings or cables to be in material of this equipment is usually not contact with hot areas of the appliance.
- Page 24 By ensuring that this appliance is disposed of correctly, you • This appliance complies with all current will help prevent any possible damage to the environment safety legislation, however the manufacture and to human health, which might otherwise be caused if it wish’s to emphasise that compliance does not were disposed of in the wrong way.
- Page 25 Features of Your Electric Cooktop Knob to control the Hotplate respective hotplate A marking to the bottom right of each control knob, indicates which hotplate it controls.
- Page 26 Cooktop Positioning Congratulations on the purchase of your new This appliance must be correctly installed by a Bellini appliance. suitably qualified person. Before using your new cooktop, it is most To avoid damaging your appliance. important that you read and follow the instructions in this use and care booklet, even if you feel you •...
- Page 27 Installing the appliance • Place the clamp (B) over the holes that match the size of the screws. There are one set of • Cut a hole in the worktop that corresponds screw holes in each corner of the cooktop. with the drawings shown above.
- Page 28 Electrlcal connection Troubleshooting Guide This appliance must be Problems Possible Cause and installed by a qualified person. solve Before connecting the appliance, make sure that The hotplates Check that the mains the supply voltage marked on the rating plate electrical supply to the are not corresponds with your mains supply voltage.
- Page 29 How to Use Your Electric Before first use Cooktop IMPORTANT: You should clean the cooktop and hotplates. (See Cleaning and maintenance section). Product specification • You should switch on one hotplate at a time, Product dimensions: 580x500x85 for 5 minutes at the maximum setting. This will L: x W: x H( mm) help to eliminate any new smell that exists and evaporate any humidity that has formed on the...
- Page 30 Cleaning Your Cooktop Cooktop guidelines • The first few times the cooktop is used, it may Allow the cooktop to cool before cleaning. give off an acrid, burning smell. This smell will disappear completely with repeated use. • The hotplates should be cleaned after every use to avoid build up of food.
- Page 31 • Never leave the hot plates on without pans on them or with empty pans. Switch on the hot plates after having set the pan in place. • Switch off the heating element before removing the pan, Once switched off, the plates will remain warm for a while.
- Page 32 Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge.
- Page 33 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
