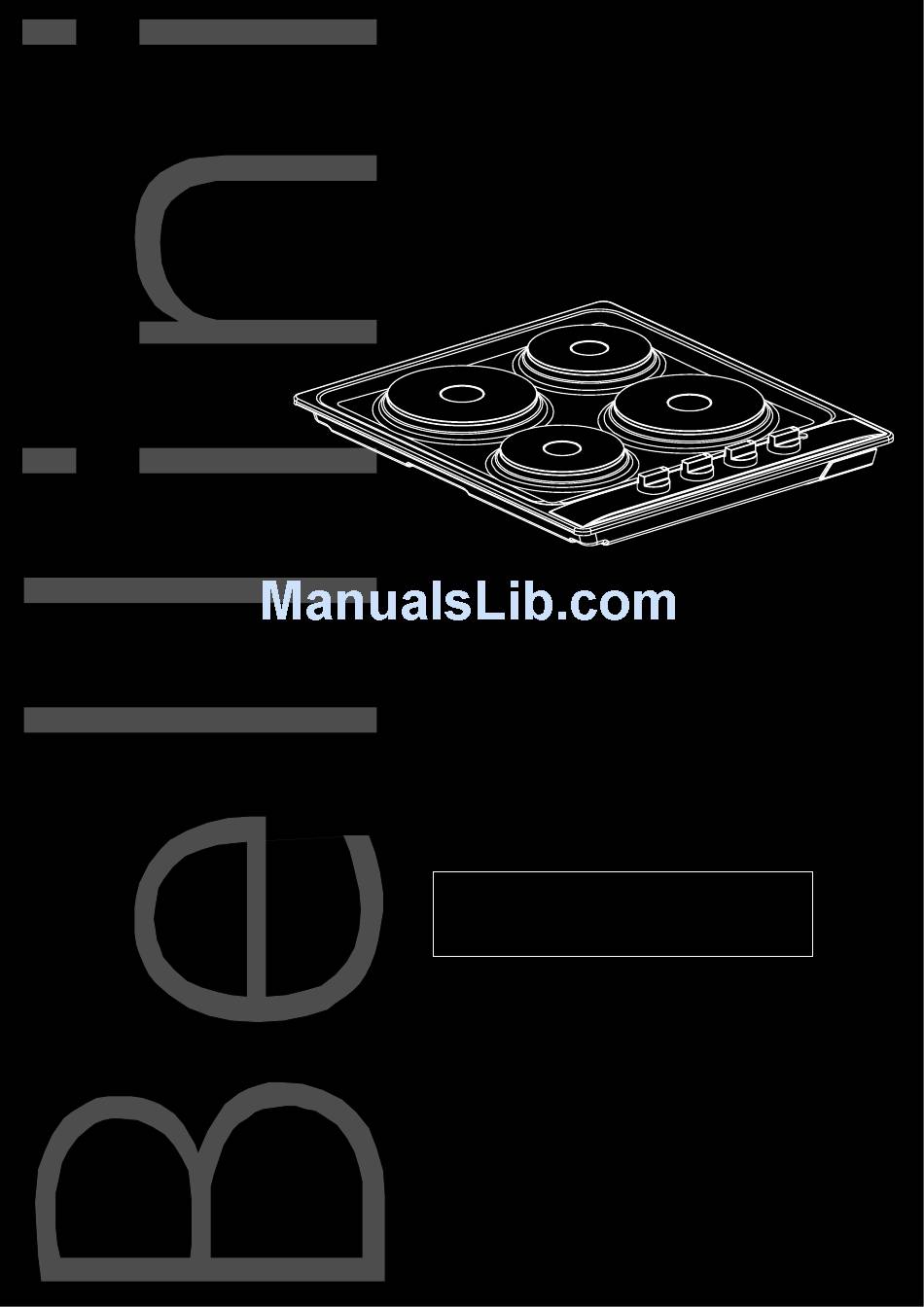

60cm Built-in Electrical
Cooktop
Installation and User manual
Content
Safety instructions----------------------------------- 2
Features of your product--------------------------- 4
Installing the appliance------------------------------ 5
Start using your appliance---------------------------7
Maintenance -------------------------------------------9
Warranty------------------------------------------------ 10
For warranty service call 1300 373 199(Australia)
or 0508 123108(New Zealand) to connect you to
the nearest authorised service centre
20121211 issue 4
1
BCS604X-1
BCS604X-1F
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Bellini BCS604X-1
Summary of Contents for Bellini BCS604X-1
-
Page 1: Table Of Contents
Safety instructions----------------------------------- 2 Features of your product--------------------------- 4 Installing the appliance------------------------------ 5 Start using your appliance---------------------------7 Maintenance -------------------------------------------9 Warranty------------------------------------------------ 10 For warranty service call 1300 373 199(Australia) or 0508 123108(New Zealand) to connect you to the nearest authorised service centre BCS604X-1 BCS604X-1F... -
Page 2: Safety Instructions
Safety instructions This manual explains the proper installation and use of your appliance, please read it carefully before using even if you are familiar with the product. The manual should be kept in a safe place for future reference. In case of failure, only the Authorized Technical Service may repair this hob. - Page 3 Safety instructions Do not use the cooking zones with empty Safety when cleaning For cleaning, the appliance must be switched off cookware or without cookware. and cooled down. To avoid damaging cookware, do not allow For safety reasons, the cleaning of the appliance saucepans or frying pans to boil dry.
-
Page 4: Features Of Your Product
Hotplate Control Knobs Technical Data Accessories Product Dimensions Electrical Max. Power Description Model (h x w x d) mm Connection Rating BCS604X-1 45x580x510 220-240V/50Hz 5500 W User Manual BCS604X-1F Ø 155mm Left-upper 1000 W ST4.2x22 Ø 155mm Right-lower 1000 W Ø... -
Page 5: Installing The Appliance
Installing The Appliance IMPORTANT: The benchtop and surrounding cabinet(s) must be able to withstand a minimum temperature rise of 100°C above the ambient temperature of the room it is located in, during period of use. This appliance is to be built into a kitchen unit (depending on size) or 600mm worktop, providing the following minimum distances are allowed: 600mm (minimum) between the hob surface and the underside of any horizontal surface above it. - Page 6 IMPORTANT: Do not use a silicon sealant to seal the appliance against the benchtop. This will make it difficult to remove the cooktop from the benchtop in future, particularly if it needs to be serviced. 1. Benchtop 2. Screw 3. Bracket 4.
-
Page 7: Start Using Your Appliance
Start Using Your Appliance BCS604X-1, BCS604X-1F Before first use, switch on one hotplate at a time for 5 minutes at the maximum setting. This will help to eliminate any new smell that exists and evaporate any humidity that has formed on the heating elements during transit. - Page 8 You should not use saucepans with rough bottoms, as this can scratch the solid plates. Before use, make sure that the bottoms of the saucepans are clean and dry. Cover pans with a lid to permit cooking at a lower heat. Food or liquid that has a high sugar content may damage the cooktop if it comes into contact with the hotplates.
-
Page 9: Maintenance
Maintenance Caution: Before maintenance or cleaning is carried out, the range hood should be disconnected from the main power supply. Ensure that the range hood is switched off at the wall socket and the plug removed. Cleaning Your Cooktop Allow the cooktop to cool before cleaning. The hotplates should be cleaned after every use to avoid build up of food. -
Page 10: Warranty
Consumer until the expiry of two (2) years (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. - Page 11 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
