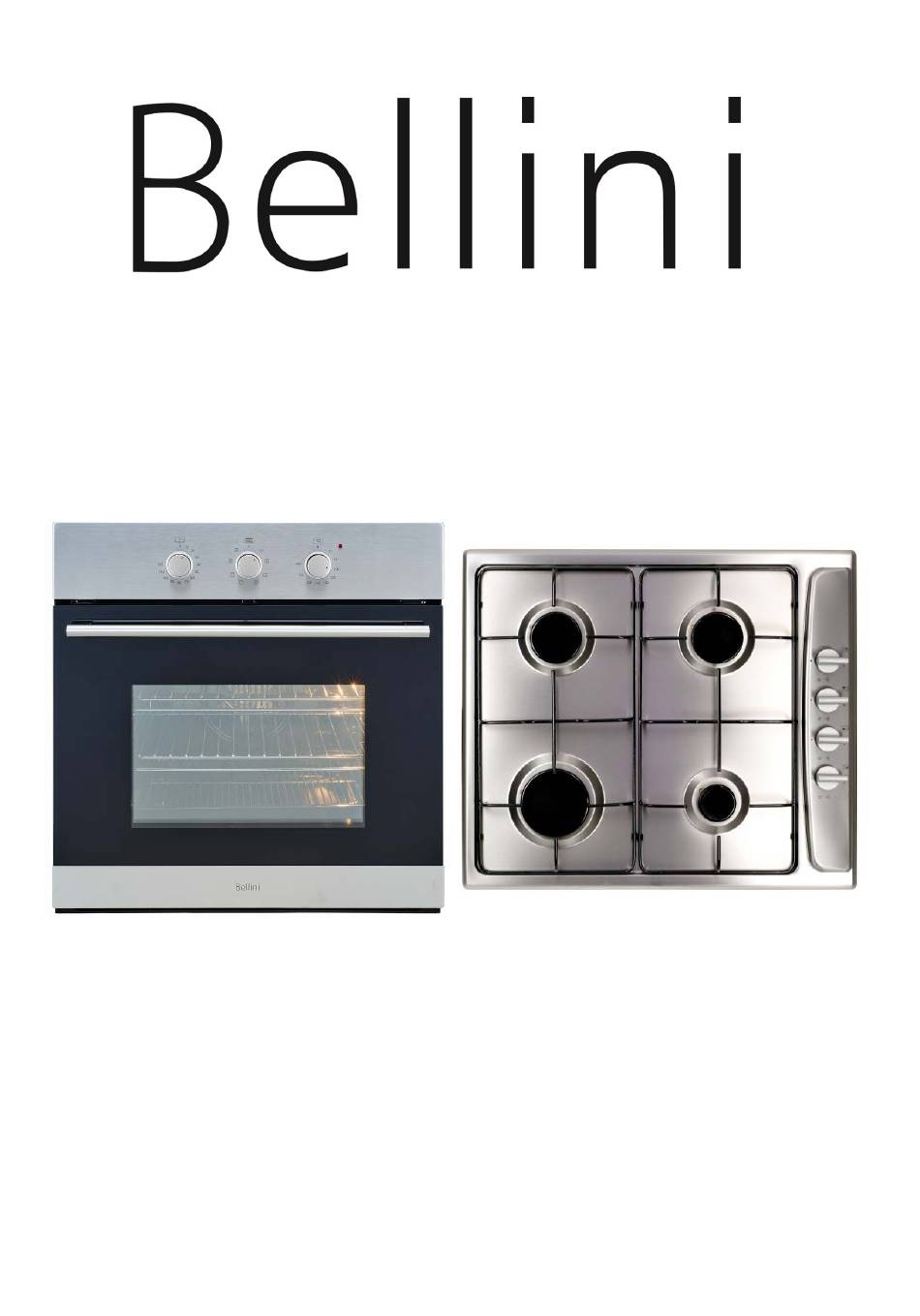

- Page 1 INSTALLATION & OPERATION INSTRUCTIONS 60cm Electric Oven & 60cm Gas Cooktop BP270EG GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust 0800 764 912 NZ V5 Aug22 www.belliniappliances.com.au...
- Page 2 60cm/90cm Built In Gas Cooktop Model No. CGH6401 Fineline: 5102031 Aust Only CGH6401-F Only In Builders Pack BP270EG FINELINE: 5103595 Aus/NZ BG905X Fineline: 5102304 Aust Only BG905X-F Fineline: 266948 NZ Only GSM Retail Australia Pty Ltd ABN: 53 007 582 475...
- Page 3 Th ank you Thank you for choosing Bellini Appliances. All Bellini appliances carry a 3 year In Home warranty, be sure to retain your installation and user manual and receipt. For all warranty and technical queries please contact Australia 1300 373 199...
- Page 4 For Warranty and technical queries: 1300 373 199 Aust OR 0508123108 NZ www.belliniappliances.com.au Model: CGH6401 Fineline: 5102031 Aust Only, CGH6401-F Only In Builders Pack BP270EG FINELINE: 5103595 Aus/NZ, BG905X Fineline: 5102304 Aust Only, BG905X-F Fineline: 266948 NZ Only 60\90cm Built In Gas Cooktop...
- Page 5 Please carefully read the following installation and operating instructions to ensure you get the safest operation from this appliance. All Bellini Appliances are for domestic use only. These instructions apply only to the model BG905X – 5 burner models and the CGH6401– 4 burner models, for use with Natural Gas or Universal LPG.
- Page 6 Bellini – 60/90cm gas hob 2. OPERATING INSTRUCTIONS LIGHTING THE BURNER The hotplates are fitted with mains powered electronic spark ignitors, so must be connected to mains power supply (i.e. nominal 230 V ac) to operate. If power is not available, the hotplate will still work but the burners will have to be lit with a match or similar.
- Page 7 Bellini – 60/90cm gas hob 3. CLEANING INSTRUCTIONS GENERAL Cleaning and maintenance should be carried out with the appliance cold especially when cleaning the enameled parts. Avoid leaving alkaline or acid substances(lemon juice, vinegar etc.) on the surfaces. STAINLESS STEEL The stainless steel hob of the hotplate must be cleaned regularly (e.g.
- Page 8 Bellini – 60/90cm gas hob 4. TROUBLESHOOTING Servicing of the hotplates must only be done by an authorised service representative (see back of this booklet) and the hotplate must not be modified. Power must be disconnected before any servicing or maintenance is conducted.
- Page 9 Bellini – 60/90cm gas hob 5. INSTALLATION IMPORTANT NOTE: Refer to the Warnings in Section 1 of these Instructions. This hotplate must be installed in accordance with: • AS 5601 - Gas Installations (for Australia) • NZS 5261 – Code of Practice for the Installation of Gas Burning Appliances and Equipment (for New Zealand) •...
- Page 10 Bellini – 60/90cm gas hob Model BG905X: Bench cutout size, 830 mm wide x 472 mm deep. Bench top thickness, 30 – 40 mm (3 – 4 cm). Once satisfied that minimum clearances to combustible can be achieved, cut out the bench top to the dimensions specified.
- Page 11 Bellini – 60/90cm gas hob Then a particle board or similar heat baffle must be installed under the hob to prevent accidental touching of the underside surface. Leave sufficient rear clearance access gas and electrical connections. ELECTRICAL CONNECTION: Install a 10 amp general purpose...
- Page 12 Bellini – 60/90cm gas hob For the Model BG905X, light the Triple Ring and Auxiliary burner and adjust test point pressure to 1.00 kPa. Turn the two burners off and on again and recheck the pressure is same as set previously or adjust as required.
- Page 13 Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge.
- Page 14 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
- Page 15 BOT608X-F ONLY IN BUILDERS PACKS: BP170EE FINELINE: 5103598 AUST & NZ BP270EG FINELINE: 5103595 AUST & NZ GSM Retail Australia Pty Ltd ABN: 53 007 582 475 For Warranty and technical queries: 1300 373 199 Aust 0800 764 912 NZ...
- Page 16 Th ank you Thank you for choosing Bellini Appliances. All Bellini appliances carry a 3 year In Home warranty, be sure to retain your installation and user manual and receipt. For all warranty and technical queries please contact Australia 1300 373 199...
-
Page 17: Table Of Contents
Content Safety instructions----------------------------- 1 Product description---------------------------- 3 Installation----------------------------------------5 Oven Setting--------------------------------------7 Maintenance and cleaning -------------------10 Warranty------------------------------------------ 13... -
Page 18: Safety Instructions
The manual should be kept in a safe place for future reference. In case of failure, only the Authorised Technical Service may repair this oven. Otherwise the guarantee will be null and void. All Bellini Appliances are for domestic use only. - Page 19 flowing installing instructions. Grill The unit's power cord must be connected to a Do not cover the grill insert with foil, as fat built up properly grounded and protected, 220-240V may catch on fire. electrical outlet. Always ground fault Always keep the grill dish clean as any build up protection where required by the electrical code.
-
Page 20: Product Description
Product Description A. Minute Timer Knob D. Heating Indicator Light B. Function Select Knob E. Handle C. Temperature Select Knob F. 3 Layer Glass Door Accessories Accessory Name Picture Quantity Mounting Screws(ST4x20) 2 pcs Baking Pan & Rack 1 Pair Rack 2 pcs Tray handle... - Page 21 Technical data product dimensions electrical min. fuse max. power max. current model (L x W x D) mm connection rating rating rating All 2 models 595x596x575 220-240V/50Hz 2.7 – 3.22Kw 13.4A Heating elements Motor Oven lower heating el.: 1200Watt Oven inside heating el. 1900 Watt Oven upper heating el.: 1000Watt Total grill heating el.
-
Page 22: Installation
Installation The unit panels next to the appliance must be WARNING! Please follow the points below when heat resistant. In the case of veneered wood installing the appliance units, glue must be resistant to a temperature of 120°C. If the appliance is to be installed adjacent to vinyl Use an Authorised Person Installation should be carried out according to the wrapped surfaces, use an installation kit... - Page 23 The unit panels next to the appliance must be heat Cabinet Construction For Your Appliance The sizes of the unit for installing the appliance under resistant. In the case of veneered wood units, glues a worktop or in a column unit are shown in figure. must be resistant to a temperature of 120°C.
-
Page 24: Oven Setting
Oven Settings Preparing Your Oven 1. Please remove all stickers, leaflets and boxes from the door and from the floor of the oven before operation. 2. Please wipe out the oven interior prior to operation with warm soapy water and polish dry with a soft clean cloth. - Page 25 Function Selector function description When the selector knob is in any position other than the “0”position, the oven light Oven Light comes on. Select this function, the air at ambient temperature is distributed inside the oven for Defrost defrosting food more quickly and without proteins adulteration. Both the lower and upper heating elements operate together.
- Page 26 Select the Temperature To set the temperature, turn the temperature selector in a clockwise direction to the desired setting. An indicator light above the temperature selector will come on. A thermostat controls the temperature in your appliance. When the temperature is reached, the heating source switches itself off and the indicator light goes out.
-
Page 27: Maintenance And Cleaning
Maintenance & Cleaning WARNING! Before cleaning your oven, or performing maintenance, disconnect it from the power supply. Do not use steam cleaners. Do not line the oven bottom with aluminium foil, as the consequent accumulation of heat could compromise the cooking and damage the enamel. To protect against the risk of electrical shock, do not immerse the unit, cord or plug in water or other liquid or sprinkle water to clean the appliance! Do not clean the appliance when it is still hot! The inside and external surface of the oven should preferably... - Page 28 Replacement of the Oven Light Bulb WARNING! In order to avoid the possibility of an electric shock ensure that the appliance is disconnected from the power supply before replacing the bulb. Set all control knobs to the position”●”/”0” and disconnect the mains plug Unscrew and wash the lamp cover and then wipe it dry Unscrew the light bulb from the socket, replace...
- Page 29 Step 1 Step 2 Step 3 Step 4 Troubleshooting Faults Causes Remedies The upper crust is dark and Not enough heat from the bottom Use the natural convection position. the lower part too pale Use deeper cake tins. Lower the temperature. Put the cake on a lower shelf.
-
Page 30: Warranty
Consumer until the expiry of three (3) year (Warranty Period). If within the Warranty Period a manufacturing defect is discovered in the Bellini product or it fails to perform to the Company’s specifications as a result of some defect in materials, components or workmanship (Defect) then the Company will, at its option, repair the Bellini product or supply a replacement Bellini product free of charge. - Page 31 1.10 If you are required to transport the Bellini product to the Company or its service agent, you must ensure it is safely disconnected by a qualified tradesman and securely packed and insured. The Company does not accept any responsibility for loss or damage of the Bellini product prior to it being received by the Company or its service agent.
