GigE Vision

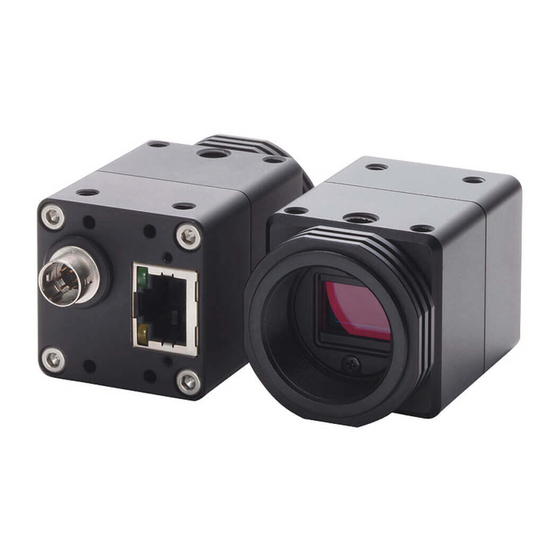

Monochrome / Color CMOS PoE Camera
STC-MBE132POE
STC-MCE132POE
Product Specifications and User's Guide
STC-MBE132POE / STC-MCE132POE
Product Specifications and User's Guide
Monochrome
(1.3M /
Color
(1.3M /
)
)
No.19S185-01
1/68

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the STC-MBE132POE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Omron STC-MBE132POE

  • Page 1 No.19S185-01 GigE Vision Monochrome / Color CMOS PoE Camera STC-MBE132POE Monochrome (1.3M / STC-MCE132POE Color (1.3M / Product Specifications and User’s Guide STC-MBE132POE / STC-MCE132POE 1/68 Product Specifications and User’s Guide...
  • Page 2: Table Of Contents

    Features ..........................10 Naming Method ........................10 Specifications ...................... 11 Electronic Specifications ....................... 11 Spectral Sensitivity Characteristics ..................13 STC-MBE132POE / STC-MCE132POE .................... 13 IR Cut Filter (STC-MCE132POE) ..................... 13 Mechanical Specifications ..................... 14 Environmental Specifications ....................14 Connector Specifications .................. 15 RJ45 Connector ........................
  • Page 3 No.19S185-01 STC-MBE132POE ........................25 STC-MCE132POE ........................26 Sensor Information .................... 27 Pixel Transferring Image ......................27 Camera Operational Modes ................28 Normal Mode ........................... 28 Edge Preset Trigger Mode ..................... 29 Timing .............................. 29 Exposure Timing with Positive Polarity Trigger Signal ..............30 Exposure Timing with the Negative Polarity Trigger signal ............
  • Page 4 ImageFormatControl ......................57 11.3 AcquisitionControl ......................58 11.4 AnalogControl ........................59 11.5 LUTControl ........................... 60 11.6 DigitalIOControl ........................60 11.7 LogicBlockControl ......................61 11.8 SoftwareSignalControl ......................61 11.9 CounterAndTimerControl ....................61 STC-MBE132POE / STC-MCE132POE 4/68 Product Specifications and User’s Guide...
  • Page 5 11.10 EventControl ........................62 11.11 UserSetControl ........................62 11.12 ChunkDataControl ....................... 63 11.13 ActionControl ........................63 11.14 FileAccessControl ....................... 64 11.15 TestControl .......................... 64 11.16 TransportLayerControl ....................... 65 12 Revision History ....................67 STC-MBE132POE / STC-MCE132POE 5/68 Product Specifications and User’s Guide...
  • Page 6 Do not use with out of power voltage range Do not wrong wiring. that is specified in the specifications for this This will cause of fire or malfunction. camera. This will cause of fire, electrification or malfunction. STC-MBE132POE / STC-MCE132POE 6/68 Product Specifications and User’s Guide...
  • Page 7 It is turn off the camera when maintaining or This will cause of fire, electrification or inspecting the camera. malfunction. This will cause of electrification. [Disposal] Caution It is necessary to dispose as industrial waste. STC-MBE132POE / STC-MCE132POE 7/68 Product Specifications and User’s Guide...
  • Page 8: Product Precautions

    Exchange or repair the malfunction camera if the malfunction is occurred by our responsibility. “Warranty” mean is warranty for the delivered camera itself. Please accept the induction damage by the camera malfunction is not included. STC-MBE132POE / STC-MCE132POE 8/68 Product Specifications and User’s Guide...
  • Page 9: Software Licensing

    BUSINESS INTERRUPTION) HOWEVER CAUSED AND ON ANY THEORY OF LIABILITY, WHETHER IN CONTRACT, STRICT LIABILITY, OR TORT (INCLUDING NEGLIGENCE OR OTHERWISE) ARISING IN ANY WAY OUT OF THE USE OF THIS SOFTWARE, EVEN IF ADVISED OF THE POSSIBILITY OF SUCH DAMAGE. STC-MBE132POE / STC-MCE132POE 9/68 Product Specifications and User’s Guide...
  • Page 10: Introduction

    No.19S185-01 Introduction This document describes the specification of the following cameras: STC-MBE132POE / STC-MCE132POE Features  GigE Interface  Support PoE (Power over Ethernet)  Small robust camera housing  Maximum frame rate (Full resolution): 61 fps @ 13M 8bits ...
  • Page 11: Specifications

    Input Voltage (*3) +10.8 to +26.4 Vdc External power (via 6 pin connector) / Power Over Ethernet (IEEE802.3af) Consumption +12 V / +24 V: 3.0 W, PoE: 3.1 W Default: Bold STC-MBE132POE / STC-MCE132POE 11/68 Product Specifications and User’s Guide...
  • Page 12 Black Level Optimum Target Luminance IM-600 (Topcon) Gamma Factory Setting (*3) The camera operates with external power when power suppling by external power supply and PoE to camera at same time. STC-MBE132POE / STC-MCE132POE 12/68 Product Specifications and User’s Guide...
  • Page 13: Spectral Sensitivity Characteristics

    No.19S185-01 Spectral Sensitivity Characteristics STC-MBE132POE / STC-MCE132POE IR Cut Filter (STC-MCE132POE) STC-MBE132POE / STC-MCE132POE 13/68 Product Specifications and User’s Guide...
  • Page 14: Mechanical Specifications

    65 deg. C, the camera housing temperature (top plate) will be less than 57 deg. C. Taking these steps will maintain the heat rating of the electronic components of the camera. Upper side of camera Measuring point STC-MBE132POE / STC-MCE132POE 14/68 Product Specifications and User’s Guide...
  • Page 15: Connector Specifications

    Yellow light: Blinking 1 GB Transferring 100 MB Transferring Please use a 1GB supported NIC, Network Switcher and Ethernet cable. Check the setting of NIC and Network Switcher being used is “1GB transferring”. STC-MBE132POE / STC-MCE132POE 15/68 Product Specifications and User’s Guide...
  • Page 16: Power And Control Signal Connector

    8) Debounced Line 2 9) User Output 1 10) User Output 2 11) Timer 0 Active 12) Software Signal 0 13) Software Signal 1 14) Logic Block 0 15) Pulse Per Second STC-MBE132POE / STC-MCE132POE 16/68 Product Specifications and User’s Guide...
  • Page 17 Selected signal for “Software Signal 1” at “Software Signal Control” is out. 14) Logic Block 0 “Logic Block 0” signal is out. 15) Pulse Per Second “Pulse / second” signal (50% Duty, 1 Hz interval) is out. STC-MBE132POE / STC-MCE132POE 17/68 Product Specifications and User’s Guide...
  • Page 18: Opto-Isolated Input

    The camera has current limiting circuit on camera. The current limiting resistor does not necessary. Opto-isolated output It is necessary to have current limiting resistor at outside of camera, to keep less than 50 mA. STC-MBE132POE / STC-MCE132POE 18/68 Product Specifications and User’s Guide...
  • Page 19: Open Collector Gpio

    The camera inside circuit may get damage if accidentally uses as output without current limiting resistor. For safety, please add current limiting resistor even use as input. a) Open Collector GPIO uses as output b) Open Collector GIPO uses as input STC-MBE132POE / STC-MCE132POE 19/68 Product Specifications and User’s Guide...
  • Page 20: Input And Output Signal Timing (Hardware Trigger)

    SensorReadOut Timer0 Parameter “ TimerDelay ” on GenICam Parameter “ TimerDuration ” on GenICam (*1) Please refers “5.2.6 External Hardware Trigger Input Delay” for more details about “External hardware trigger delay” STC-MBE132POE / STC-MCE132POE 20/68 Product Specifications and User’s Guide...
  • Page 21: Input And Output Signal Timing (Software Trigger)

    Parameter “ TriggerDelay ” on GenICam Trigger delay Exposure Parameter “ ExposureTime ” on GenICam Image out Output signals FrameTriggerWait ExposureActive FramTriggerInternal SensorReadOut Timer0 Parameter “ TimerDuration ” on GenICam Parameter “ TimerDelay ” on GenICam STC-MBE132POE / STC-MCE132POE 21/68 Product Specifications and User’s Guide...
  • Page 22: External Hardware Trigger Input Delay

    External Trigger Signal External Trigger Signal with cam era internal delay Tdelay 6.2.6.2 External Trigger Signal Delay (Negative polarity trigger signal) External Trigger Signal External Trigger Signal with cam era internal delay Tdelay STC-MBE132POE / STC-MCE132POE 22/68 Product Specifications and User’s Guide...
  • Page 23: Measured External Trigger Signal Delay Through Opt-Isolated Port (Line 0)

    2 μseconds +24 V 53.2 μseconds 2 μseconds Note. Please use this measured delay as reference. The delay time may fluctuate depending on photo coupler variation, pull-up voltage and pull-up resister. STC-MBE132POE / STC-MCE132POE 23/68 Product Specifications and User’s Guide...
  • Page 24: Measured External Trigger Signal Delay Through Open Collector Gpio Port (Line 2)

    2.2 μseconds 2 μseconds +24 V 0.8 μseconds 2 μseconds Note. Please use this measured delay as reference. The delay time may fluctuate depending on transistor variation, pull-up voltage and pull-up resister. STC-MBE132POE / STC-MCE132POE 24/68 Product Specifications and User’s Guide...
  • Page 25: Dimensions

    No.19S185-01 Dimensions STC-MBE132POE 2-M3 Depth3.5 2-M2 Depth4 1”-32UNF (C mount) 4-M3 Depth3.5 Unit: mm STC-MBE132POE / STC-MCE132POE 25/68 Product Specifications and User’s Guide...
  • Page 26: Stc-Mce132Poe

    No.19S185-01 STC-MCE132POE 2-M3 Depth3.5 2-M2 Depth4 1”-32UNF (C mount) 4-M3 Depth3.5 Unit: mm STC-MBE132POE / STC-MCE132POE 26/68 Product Specifications and User’s Guide...
  • Page 27: Sensor Information

    Pixel (n) of Data: nth pixel being transferred STC-MCE132POE (Color) Pixel 11 Pixel 21 of Data of Data Pixel 12 Pixel 22 of Data of Data Pixel (m, n) of Data: mth pixel of nth line being transferred STC-MBE132POE / STC-MCE132POE 27/68 Product Specifications and User’s Guide...
  • Page 28: Camera Operational Modes

    No.19S185-01 Camera Operational Modes Normal Mode Exposure Time Expose Image out * The exposure time for each line is same. STC-MBE132POE / STC-MCE132POE 28/68 Product Specifications and User’s Guide...
  • Page 29: Edge Preset Trigger Mode

    The input trigger signal is disregard when trigger signal applying to camera while camera is exposing or sending out image data. Timing Trigger signal (Positive polarity) Expose Image out Note: The exposure time is “Exposure Time” on GenICam setting. STC-MBE132POE / STC-MCE132POE 29/68 Product Specifications and User’s Guide...
  • Page 30: Exposure Timing With Positive Polarity Trigger Signal

    “Line Debounce Time” setting time. Please input trigger signal has more than “Line Debounce Time” time active pulse width trigger signal. Note 2: Please refers “5.2.6 External Hardware Trigger Input Delay” for more details about “External hardware trigger delay”. STC-MBE132POE / STC-MCE132POE 30/68 Product Specifications and User’s Guide...
  • Page 31: Exposure Timing With The Negative Polarity Trigger Signal

    “Line Debounce Time” setting time. Please input trigger signal has more than “Line Debounce Time” time active pulse width trigger signal. Note 2: Please refers “5.2.6 External Hardware Trigger Input Delay” for more details about “External hardware trigger delay”. STC-MBE132POE / STC-MCE132POE 31/68 Product Specifications and User’s Guide...
  • Page 32: Cmos Rest Type

    Global Shutter (for EdgePreset) Note: This function works on Trigger-mode Trigger Input Exposure Time Exposure in Global Shutter (in Camera) 1st ROW Exposure Start Delay 2nd ROW ・ ・ ・ Last ROW Data Tx (Camera to PC) STC-MBE132POE / STC-MCE132POE 32/68 Product Specifications and User’s Guide...
  • Page 33: 10 Camera Functions

    “User Set Save” CANNOT execute when “Default” was selected at “User Set Selector” User Set Selector Setting Procedure 1. Selects “User Set X” at “User Set Selector” 2. Execute “User Set Save” STC-MBE132POE / STC-MCE132POE 33/68 Product Specifications and User’s Guide...
  • Page 34: Loading Camera Settings

    Please follow the procedure in below for camera settings put back to factory default settings. Setting Procedure Selects “Default” at “User Set Selector”. Executes “User Set Load”. Select “User Set X” at “User Set Selector”. Executes “User Set Save”. STC-MBE132POE / STC-MCE132POE 34/68 Product Specifications and User’s Guide...
  • Page 35: Frame Rate

    Selects control gain Digital All: Digital Gain DigitalGain IFloat Type Digital Gain Range: 0 to 255 Default: 0 Digital Gain Formula Gain (x times) = 1 + (“Digital Gain” / 128) STC-MBE132POE / STC-MCE132POE 35/68 Product Specifications and User’s Guide...
  • Page 36: Exposure Time

    The lower limit of signal is clamped at this setting level. The signal does not lower than this. GenICam Parameters BlackLevel IFloat Type Black Level Range: 10bits output: 0 to 60 8bits output: 0 to 15 Default: 0 STC-MBE132POE / STC-MCE132POE 36/68 Product Specifications and User’s Guide...
  • Page 37: Alc (Auto Light Control)

    Default: 1 * Sets 10 on Region 4 only Sets the weight for each weight area. AutoLuminancePeak IInteger Type Importance ratio for the brightness peak at ALC control. Range: 0 to 255 Default: 0 STC-MBE132POE / STC-MCE132POE 37/68 Product Specifications and User’s Guide...
  • Page 38: Alc Control Method

    If AGC and auto shutter are ON for ALC control, auto shutter function maintains brightness first. The AGC function maintains brightness if brightness cannot maintain to “Auto Luminance Target” with auto shutter. STC-MBE132POE / STC-MCE132POE 38/68 Product Specifications and User’s Guide...
  • Page 39: Agc (Auto Gain Contorl)

    This cannot be set greater than “Gain Auto Limit Max” GainAutoLimitMax IFloat Type Maximum gain for AGC [GainSelector] Range: 0 to 208 Default: 208 This cannot be set smaller than “Gain Auto Limit Min” STC-MBE132POE / STC-MCE132POE 39/68 Product Specifications and User’s Guide...
  • Page 40: Auto Shutter

    4. Sets “Continuous” for “Exposure Auto” when using auto shutter function. 5. Sets “Exposure Auto Limit Min” and “Exposure Auto Limit Max” when using auto shutter function. 6. Sets “Auto Luminance Target”. STC-MBE132POE / STC-MCE132POE 40/68 Product Specifications and User’s Guide...
  • Page 41: White Balance (Only Available For Color Camera)

    Sets “OFF” at “Balance White Auto” automatically after sets “Balance Ratio” for all colors. Push to set white balance setting procedure 1. Sets the flat white target then acquires image. 2. Sets “Once” at “Balance White Auto”. STC-MBE132POE / STC-MCE132POE 41/68 Product Specifications and User’s Guide...
  • Page 42 2. Selects adjusting color from Red, Green or Blue at “Balance Ratio Selector”. 3. Sets gain for selected adjusting color at “Balance Ratio”. The settings can be save into camera with “User Set Control” function. STC-MBE132POE / STC-MCE132POE 42/68 Product Specifications and User’s Guide...
  • Page 43: White Balance Calculate Region Setting

    Vertical offset (in line) for region 0 YOffset Range: 0 to 1,023 Default: 0 The white balance calculation region settings are like below: BalanceWhite AutoOffsetY White balance gain BalanceWhite calculation region 0 AutoHeight BalanceWhite BalanceWhite AutoOffsetX AutoWidth STC-MBE132POE / STC-MCE132POE 43/68 Product Specifications and User’s Guide...
  • Page 44: Gamma Correction

    OffsetY IInteger Type Vertical offset for output image (in line) Range: 0 to 1,022 Default: 0 Adjustable steps: 2 The ROI region settings are below: OffsetY Height ROI region OffsetX Width STC-MBE132POE / STC-MCE132POE 44/68 Product Specifications and User’s Guide...
  • Page 45: Pixel Format

    1: Disable Binning (Default) 2: Binning 2 Pixel BinningVertical IInteger Type Sets Binning on Vertical direction 1: Disable Binning (Default) 2: Binning 2 Pixel *Note Horizontal Binning and vertical Binning settings need to change together. STC-MBE132POE / STC-MCE132POE 45/68 Product Specifications and User’s Guide...
  • Page 46: Decimation

    Sets decimation on vertical direction 1: Disable Decimation (Default), 2: Decimate one of two pixels 4: Decimate three of four pixels *Note: Please check and change exposure time to increase frame rate by decimation function. STC-MBE132POE / STC-MCE132POE 46/68 Product Specifications and User’s Guide...
  • Page 47: Trigger

    Software Signal 0 Software Signal 1 Sensor Logic Block 0 “ AND ” “ OR ” Trigger Source The trigger signal is selectable by GenICam commands. Trigger Source: select trigger type STC-MBE132POE / STC-MCE132POE 47/68 Product Specifications and User’s Guide...
  • Page 48: Image Flip

    Range: 0 to 4,095 LUT Value IInteger Type The output value for input value that specifies by index Range: 0 to 4,095 4095 4095 LUT Index e.g. LUT usage (low brightness level enhancement) STC-MBE132POE / STC-MCE132POE 48/68 Product Specifications and User’s Guide...
  • Page 49: Defective Pixel Correction

    Horizontal position for selected index for process defective pixel correction Range: 0 to 1,279 Default: 0 PixelCorrectionY IInteger Type Vertical position for selected index for process defective pixel correction Range: 0 to 1,023 Default: 0 STC-MBE132POE / STC-MCE132POE 49/68 Product Specifications and User’s Guide...
  • Page 50: Counter And Timer Control

    IEnumeration Type Polarity of reference signal to reset counter Activation CounterReset ICommand Type Rest switch “Activate as switch when selecting “Software” at “Counter Reset Source” CounterValue IInteger Type Returns number of counter STC-MBE132POE / STC-MCE132POE 50/68 Product Specifications and User’s Guide...
  • Page 51: E.g. Event Control

    “Line 0 Input Rising Edge”, “Line 0 Input Falling Edge”, “Line 2 Input Rising Edge” and “Line 2 Input Falling Edge” Event Notification IEnumeration Type Event notification ON / OFF selection On: Enable event notification Off: Disable event notification STC-MBE132POE / STC-MCE132POE 51/68 Product Specifications and User’s Guide...
  • Page 52: Chunk Control

    IInteger Type Select camera to apply action command Logical AND of Group Mask of camera and Group Mask of action command is 1 for any bit of 32bits, camera executes action command. STC-MBE132POE / STC-MCE132POE 52/68 Product Specifications and User’s Guide...
  • Page 53: Ieee1588

    Defined delay between master device and slave device by comparing these messages. If time difference between master device and slave device is occurred, adjust internal clock of slave device to synchronize to master device. Synchronize clock regularly to correcting time drift. STC-MBE132POE / STC-MCE132POE 53/68 Product Specifications and User’s Guide...
  • Page 54 Timestamp, action command will be scheduled automatically and each camera start exposing at same time. Action Control setting is required when action command generating. IEEE1588 PTP supported Switching HUB M: Master S: Slave e.g. PTP configuration STC-MBE132POE / STC-MCE132POE 54/68 Product Specifications and User’s Guide...
  • Page 55: 11 Genicam Command

    Sub minor version of the Transport Layer of the device. Devic MaxThroughput Maximum bandwidth of the data that can be streamed out of the device. DeviceLinkSelector Selects which Link of the device to control. STC-MBE132POE / STC-MCE132POE 55/68 Product Specifications and User’s Guide...
  • Page 56 Latches the current timestamp counter into Timestamp Latch Value. TimestampLatchValue Returns the latched value of the timestamp counter. DeviceUserMemory Read / Write the user data from / to the non-volatile memory. STC-MBE132POE / STC-MCE132POE 56/68 Product Specifications and User’s Guide...
  • Page 57: Imageformatcontrol

    Selects which test pattern generator is controlled by the Test Pattern feature. TestPattern Selects the type of test pattern that is generated by the device as [TestPatternGeneratorSelector] image source. TestPatternInputValue Test Pattern Input Value [TestPatternGeneratorSelector] STC-MBE132POE / STC-MCE132POE 57/68 Product Specifications and User’s Guide...
  • Page 58: Acquisitioncontrol

    Sets the automatic exposure mode when Exposure Mode is Timed. ExposureAutoLimitMin Determine the lower limit of exposure time when Exposure Auto is set to Continuous. ExposureAutoLimitMax Determine the upper limit of exposure time when Exposure Auto is set to Continuous. STC-MBE132POE / STC-MCE132POE 58/68 Product Specifications and User’s Guide...
  • Page 59: Analogcontrol

    Determine X offset of targeted region for auto white balance. [BalanceWhiteAutoRegionSelector] (STC-MCE132POE) BalanceWhiteAutoOffsetY Determine Y offset of targeted region for auto white balance. [BalanceWhiteAutoRegionSelector] (STC-MCE132POE) Gamma Controls the gamma correction of pixel intensity. STC-MBE132POE / STC-MCE132POE 59/68 Product Specifications and User’s Guide...
  • Page 60: Lutcontrol

    UseOutputSelector Selects which bit of the User Output register will be set by User Output Value. UseOutputValue [UseOutputSelector] Sets the value of the bit selected by User Output Selector. STC-MBE132POE / STC-MCE132POE 60/68 Product Specifications and User’s Guide...
  • Page 61: Logicblockcontrol

    Selects the source of the trigger to start the Timer. TimerTriggerActivation [TimerSelector] Selects the activation mode of the trigger to start the Timer. TimerValue [TimerSelector] Reads or writes the current value (in microseconds) of the selected Timer. STC-MBE132POE / STC-MCE132POE 61/68 Product Specifications and User’s Guide...
  • Page 62: Eventcontrol

    Save the User Set specified by User Set Selector to the non-volatile memory of the device. UserSetDefault Selects the feature User Set to load and make active by default when the device is reset. STC-MBE132POE / STC-MCE132POE 62/68 Product Specifications and User’s Guide...
  • Page 63: Chunkdatacontrol

    Provides the mask that the device will use to validate the action on reception of the action protocol message. ActionGroupKey [ActionSelector] Provides the key that the device will use to validate the action on reception of the action protocol message. STC-MBE132POE / STC-MCE132POE 63/68 Product Specifications and User’s Guide...
  • Page 64: Fileaccesscontrol

    Represents the file operation result. [FileSelector] [FileOperationSelector] FileSize [FileSelector] Represents the size of the selected file in bytes. 11.15 TestControl Name Description TestPendingAck Tests the device's pending acknowledge feature. TestEventGenerate Generates a Test Event. STC-MBE132POE / STC-MCE132POE 64/68 Product Specifications and User’s Guide...
  • Page 65: Transportlayercontrol

    Controls the Persistent subnet mask associated with the Persistent IP [GevInterfaceSelector] address on this logical link. GevPersistentDefaultGateway Controls the persistent default gateway for this logical link. [GevInterfaceSelector] GevGVCPExtendedStatusCodesSelector Selects the GigE Vision version to control extended status codes for. STC-MBE132POE / STC-MCE132POE 65/68 Product Specifications and User’s Guide...
  • Page 66 GVSP transmitter must send data stream or the destination IP address from which a GVSP receiver may receive data stream. GevSCSP [GevStreamChannelSelector] Indicates the source port of the stream channel. STC-MBE132POE / STC-MCE132POE 66/68 Product Specifications and User’s Guide...
  • Page 67: 12 Revision History

    Added “LWIP TCP/IP Licensing” information GigE Vision is trademark of AIA. GenICam is trademark of EMVA. Other company names and product names in this document are trademarks of their respective owners. STC-MBE132POE / STC-MCE132POE 67/68 Product Specifications and User’s Guide...
  • Page 68 No.19S185-01 19F, Ebina Prime Tower 9-50, Chuo 2 chome Ebina-city, Kanagawa 243-0432 Japan TEL 81-46-236-6660 FAX 81-46-236-6661 URL http://www.sentech.co.jp/ STC-MBE132POE / STC-MCE132POE 68/68 Product Specifications and User’s Guide...
