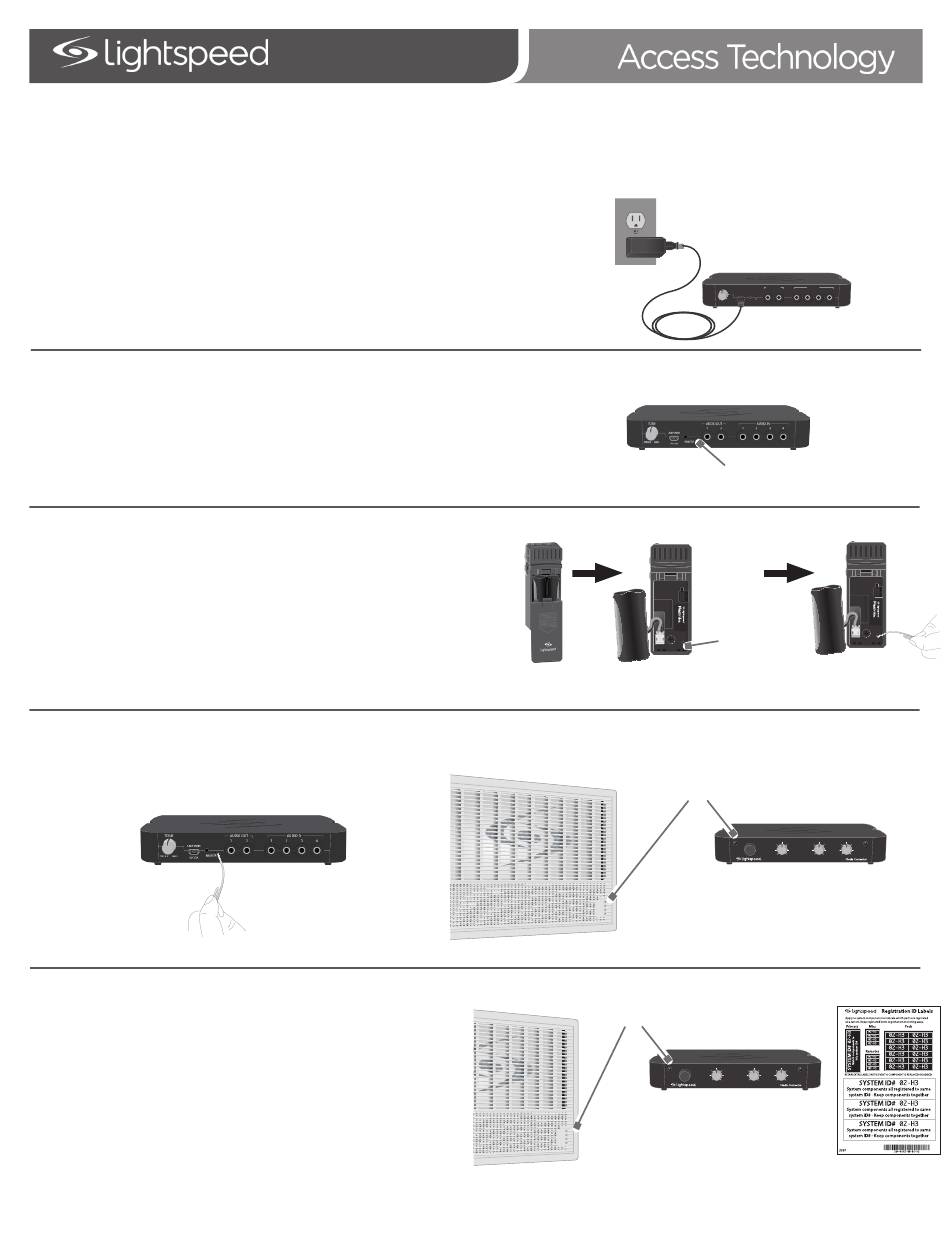

Lightspeed Topcat Registration Manual page 5

STANDARD REGISTRATION
MEDIA CONNECTOR REGISTRATION (OTHER REGISTERED COMPONENTS IN PLACE)
(particularly valuable when Topcat is mounted in the ceiling or on the wall)
For users adding a Media Connector or replacing a lost or malfunctioning Media Connector.
1. If replacing a Media Connector, make sure the malfunctioning unit is
unplugged.
2. Plug in the new Media Connector. The blue power light will turn on.
3. Locate the registration button on the back panel marked "REGISTER"
4. Use another registered functional component (existing Flexmike or
Sharemike) to trigger the registration function in Topcat.
5. Using a paperclip, press and hold the registration button for 3 seconds
inside the registered Flexmike.
6. Briefly press the registration button on the Media Connector. The REGISTER light will begin blinking.
7. After several seconds, the #1 light on the Topcat will turn solid.
The LINK light on front of the Media Connector will begin blinking,
then turn solid.
8. The registration is complete. You can now plug any audio source
into the Media Connector to verify there is audio.
9. Place system ID number (located in back of Topcat User Manual)
on the new Media Connector.
NOTE: if at any point, the Topcat or Media Connector lights begin
blinking rapidly. that indicates registration error. Unplug the new
Media Connector, then repeat steps 4-8.
