PLACE END COVER & BRACKET ON FRAME BAR
1

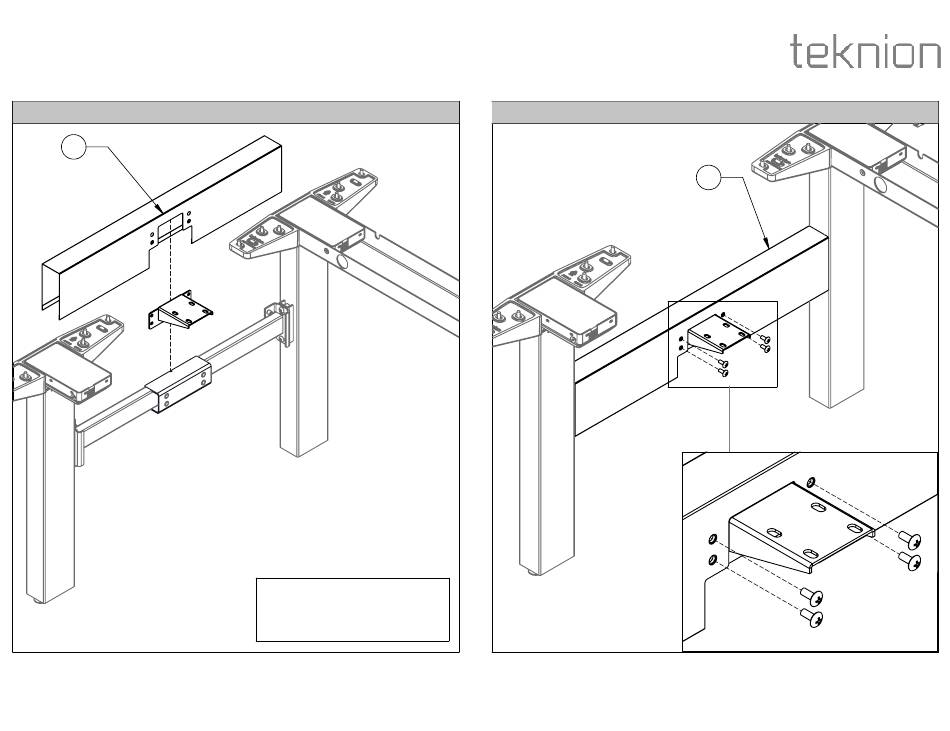

STEP 1: Slide Cable Channel Support Bracket into End Cover, making sure holes align. Bring
End Cover and Support Bracket together, and place them on Frame Stretcher Bar
Installation Guides
Note: Support Bracket ships with Cable
Channel. For Cable Channel installation
procedures, please refer to guide
HABN_223a/223b

SECURE END COVER IN PLACE

STEP 2: Secure End Cover in place with Support Bracket Screws
Date: May 2019
HABN_223c
1
Page: 3 of 4
