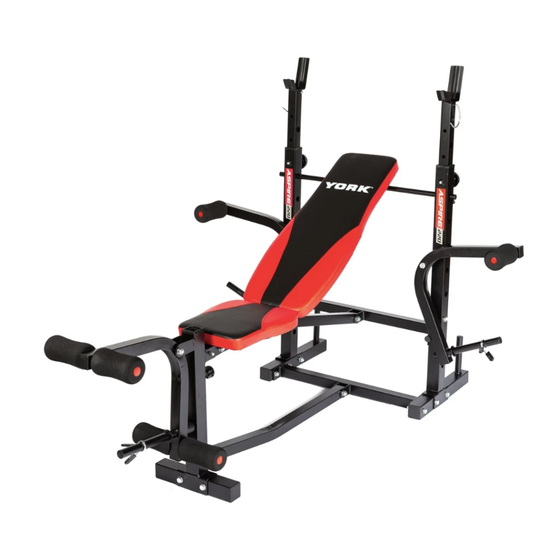

- Page 1 YORK ASPIRE 220 MULTI-FUNCTIONAL BENCH ITEM #43220 OWNER’S MANUAL vAPR22-01...
-
Page 2: Before You Start
BEFORE YOU START PLEASE READ THIS INSTRUCTION MANUAL BEFORE YOU BEGIN ASSEMBLY. Great care has been taken to design these instructions and following them will help you with quicker assembly and minimize the risk of injury. It is important that you keep these instructions for future reference. This list is not exhaustive - You are responsible for your own safety! • Assemble the product on a level surface • You will need at least one person to help you assemble this unit. -
Page 3: Customer Support
IMPORTANT!! - Please retain your sales receipt, York Fitness Customer Care may request proof of purchase to validate eligibility for warranty service. Warranty cover starts from the date shown on the proof of purchase. -
Page 4: Exploded Drawing / Part List
EXPLODED DRAWING / PART LIST REF. DESCRIPTION REF. DESCRIPTION BASE TUBE LOCK PIN RIGHT (D6*60*70) UPRIGHT CROSS TUBE LOCK PIN LEFT (D6*60*70) UPRIGHT RIGHT PINCHCOCK (D25) UPRIGHT LEFT CROSS FRAME HEX BOLT (M10*1.5*120L) CONNECT TUBE HEX BOLT (M10*1.5*70L) MAIN FRAME SUPPORT HEX BOLT (M10*1.5*65L) FRONT FOOT HEX BOLT (M10*1.5*60L) - Page 5 EXPLODED DRAWING / PART LIST...
- Page 6 ASSEMBLY INSTRUCTIONS Hex Head Bolt M10*70 x 10PCS Flat Washer M10 x 20PCS Lock Nut M10 x 10PCS Lock Nut M6 x 2PCS...
- Page 7 ASSEMBLY INSTRUCTIONS Hex Head Bolt M10*70 x 2PCS Hex Head Bolt M10*60 x 4PCS Flat Washer M10 x 12PCS Lock Nut M10 x 6PCS Hex Head Bolt M10*65 x 1PC Flat Washer M10 x 2PCS Lock Nut M10 x 1PC...
- Page 8 ASSEMBLY INSTRUCTIONS Hex Head Bolt M8*40 x 4PCS Hex Head Bolt M8*20 x 4PCS Flat Washer M8 x 8PCS Hex Head Bolt M10*120 x 2PCS Hex Head Bolt M10*20 x 2PCS Flat Washer M10 x 6PCS Lock Nut M10 x 2PCS...
- Page 9 ASSEMBLY INSTRUCTIONS Hex Head Bolt M8*20 x 2PCS Flat Washer M8 x 2PCS...
- Page 10 STORAGE/FOLDING INSTRUCTIONS...
- Page 11 STORAGE/FOLDING INSTRUCTIONS...
