Andamiro AVENGERS Service Manual
  1. Manuals
  2. Brands
  3. Andamiro Manuals
  4. Arcade Game Machines
  5. AVENGERS
  6. Service manual

Andamiro AVENGERS Service Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

［ IMPORTANT ］
▶ Please read the manual carefully and keep it in mind before using this machine
▶ Put this manual within touch of your reference in anytime.
PRODUCT INFO
※ QR(SUPPROT) - Leaflets, manuals, solution(error code,trouble shooting decument, watch&solve)
PART INFO
Ver 1.0_
Ver 1.0_
SUPPORT INFO
INT
INT
ISSUE DATE:Mar. 23, 2022
NEW PRODUCT INFO

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AVENGERS and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Andamiro AVENGERS

Summary of Contents for Andamiro AVENGERS

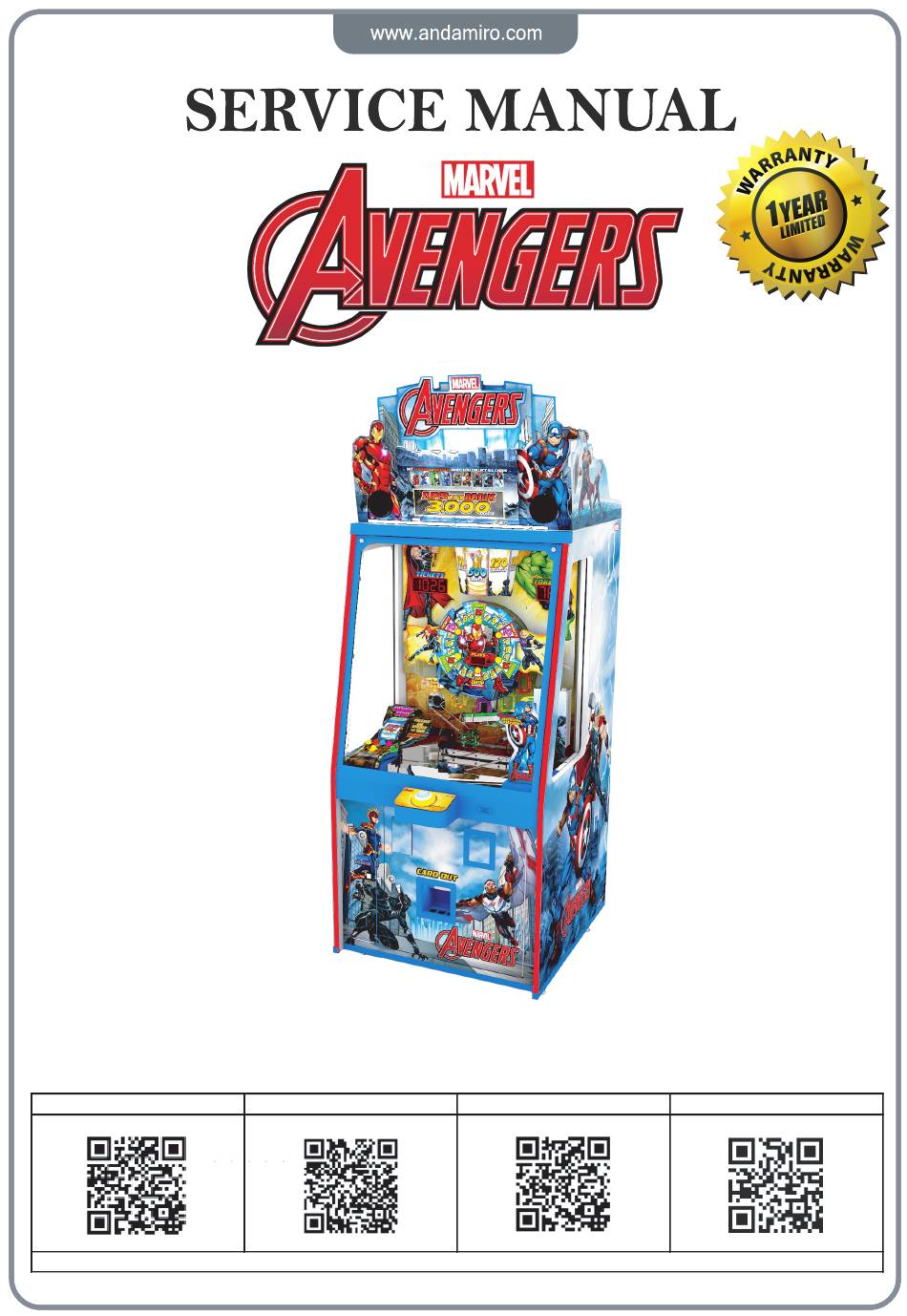

  • Page 1 Ver 1.0_ Ver 1.0_ ［ IMPORTANT ］ ▶ Please read the manual carefully and keep it in mind before using this machine ▶ Put this manual within touch of your reference in anytime. ISSUE DATE:Mar. 23, 2022 PRODUCT INFO PART INFO SUPPORT INFO NEW PRODUCT INFO ※...
  • Page 2 The following safety precautions are given throughout this manual. They must be strictly followed to protect those who install, use or maintain this product as well as to protect players, visitors and property. For safety reasons. For safety reasons. For safty reasons. The following suggestions should be adhered to: WA R N I N G Disregarding could result in serious injury.
  • Page 3 y r t l a i t s i i t t i r i i h t i f i a r t i t r . t c a t l e r i . s t , d r e i f i t a .
  • Page 4 t f I y t i r t s l a i l l e t t i d i s l a i t d i s l a i t e f f i t p v e l i s i , s t and e...
  • Page 5 i t i o i t . t c i t c n i t p i t . r e , s t s t r c i f i t a s t r i f i l l a l a i t s i c i r...
  • Page 6 PRÉCAUTION D’EMPLOI Les consignes de sécurité suivantes sont données dans ce manuel. Elles doivent être strictement suivies pour protéger ceux qui les installent. Utiliser ou entretenir ce produit pour la sécurité des utilisateurs, des visiteurs et des biens. Pour des raisons de sécurité. Les suggestions suivantes doivent être respectées: A T T E N T I O N Le non-respect peut entraîner des blessures graves.
  • Page 7 PRÉCAUTION D’EMPLOI PRUDENCE ATTENTION Si il y a une anomalie comme fumée, mauvaise Ne pas utiliser ce produit ailleurs que dans les zones industrielles. odeur ou bruit anormal émis par la machine, L’utiliser dans une zone résidentielle ou d'une zone couper immédiatement l'interrupteur principal et à...
  • Page 8 PRÉCAUTION D’EMPLOI ATTENTION PRUDENCE Assurez-vous de consulter un spécialiste de Veillez à utiliser le câblage intérieur selon les l'industrie lors de la mise en place, du déplacement exigences de tension spécifiées. Pour une ou le transport de ce produit. rallonge, utilisez la notation spécifiée ou plus. Ce produit ne doit pas être mis en place, déplacé...
  • Page 9 PRÉCAUTION D’EMPLOI ATTENTION PRUDENCE Les composants de la machine de jeu sont Veillez à éteindre l'interrupteur d'alimentation sensibles aux vibrations et aux chocs. Il faut principale et débranchez le cordon faire attention lors du déplacement et le transport de d'alimentation de la prise avant d'inspecter ou de la machine de jeu.

  • Page 10: Table Of Contents

    CONTENTS SPECIFICATION AND DIMENSION DIMENSION ……………………………………………………………………………… p SPECIFICATION ……………………………………………………………………………… p STICKER LOCATION ……………………………………………………………………………… p INSTALL INFORMATION INSTALLATION SPACE, MAINTAIN PRODUCT FLATNESS, IMPORTANCE ……………………… p UNPACKING PACKING LOCATION, NOTES ON UNPACKING, COMPONENTS ……………………………… p INSTALL HOW TO INSTALL(BILLBOARD)………………………………………………………………………… p HOW TO INSTALL(TOCKEN & CARD SETTING) … …………………………………………………… p SETUP SETTINGS 8~10 PROGRAM SETTING...

  • Page 11: Specification And Dimension

    SPECIFICATION AND DIMENSION DIMENSION SPECIFICATION ITEM DETAILS VOLTAGE AC 120V AC 230V FREQUENCY RANGE 60 Hz 50/60 Hz CONSUMPTION 210 W INSTALL DIMENSION( W*D*H) 868 * 1026 * 2155 (mm) , 34 * 40 * 85 (inch) PACKING DIMENSION(W*D*H) 1150 *980 * 2260 (mm) , 45 * 39 * 89 (inch) WEIGHT(kg), packing weight(kg) 250 kg, 270kg CERTIFICATION...

  • Page 12: Sticker Location

    STICKER LOCATION ▼ 1 ▼ 2 ▼ 3 ▼ 4 ▼ 5 ▼ 6 ▼ 7 ▼ 8 ▼ 9 Certification Label - 3 -...

  • Page 13: Install Information

    INSTALL INFORMATION INSTALLATION SPACE Maintenance zone & Play zone should have at least 1500 mm(59 inch) * 2000mm(78inch) ※ each MAINTAIN PRODUCT FLATNESS ※ After installation is complete ※ 2-1 After securing space, adjust the 4 adjuster so that the product is stably leveled. IMPORTANCE This product should be indoor use and out of ※...
  • Page 14 COMPONENTS PART NAME Q'TY SPARE PART NAME Q'TY SPARE AC POWER CORD CARD * 1 box KEY 7001 MEDAL 1,100 SCREW TH_NI M4x8L BALL SCREW TH_M4x14L CARD SETTING JIG * SCREW TH_NI M4x16L CARD HEAVY PUSH BKT * SCREW M4x20L COIN SELECTOR COVER BKT SCREW SEMS 5x16L MANUAL...

  • Page 15: Install

    INSTALL HOW TO INSTALL(BILLBOARD) BILLBOARD SUPT BAR-A PROCESS ITEM Q'ty BOLT SPEC Q'ty ASSEMBLE SPEAKER BOX DECO COVER-L TH_NI 4 * 16 ASSEMBLE SPEAKER BOX DECO COVER-R TH_NI 4 * 16 ASSEMBLE B_MAIN FRONT COVER TH_NI 4 * 8 ASSEMBLE B_DECO MAIN COVER-A TH_NI 4 * 8...

  • Page 16: 2) How To Install(Tocken & Card Setting)

    HOW TO INSTALL(TOCKEN & CARD SETTING) ▼ 1 ▼ 2 ▼ 3 PUSHER FRONT HOPPER REAR HOPPER ▼ 4 ▼ 5 ▼ 6 ▼ 7 PROCESS ITEM Q'ty SETTING TOKEN : PUSHER PANEL - ABOUT 500 PCS SETTING TOKEN : FRONT HOPPER - ABOUT 300 PCS SETTING TOKEN : REAR HOPPER - ABOUT 300 PCS SETTING...

  • Page 17: Program Setting

    SETUP SETTINGS ▶ SETUP BUTTON LAYOUT BUTTON NOTE UP/DOWN MENU UP/DOWN MOVE LEFT/RIGHT CHANGE SETTING VALUE MENU/SELECT SETUP MENU MODE, SELECT AND PERFORM CANCEL EXIT ※CANCEL : PERFORM SETTINGS ONLY WHEN OPERATION OF BALL SUPPLY, REEL, BIG WHEEL, CARD, BRIDGE IS STOOPPED SERVICE/RESET : NORMALLY SERVICE IN, ABNORMAL(ERROR) - ERROR CLEAR ▶OPERATION MENU...
  • Page 18 PROGRAM SETTING 1-1) PLAYS / CREDIT DEFAULT V_CARD V_NO CARD LCD DISPLAY DESCRIPTION RANGE FREE, 1 ~ 10 MINIMUM COIN (Increases by1) 1st.COIN ->_PLAYS Setting number of plays per coin 2nd.COIN ->_PLAYS (SWIPE CARD) in 1 ~ 400 3rd.COIN ->_PLAYS (Increases by 1) 4th.COIN ->_PLAYS ※...
  • Page 19 1-4) REEL SET DEFAULT V_CARD V_NO CARD LCD DISPLAY DESCRIPTION RANGE Setting function and score for REEL#1 TI50 TI15 TI50 TI15 each reel zone REEL#2 TN20 TN10 TN20 TN10 REEL#3 TI30 TI20 TI30 TI20 ㅡ> REEL#4 TN30 TN15 TN30 TN15 TOKEN=TN, TICKET=TI REEL#5...
  • Page 20 Number of card dispensing Number of BIG WHEEL wins REEL#8 : TOTAL : --- REEL WIN --- --- VER INFO --- REEL#1 : AVENGERS ONE Display version information and Number of Reel wins REEL#2 : Ver._.__ program compilation data REEL#3 : MM.
  • Page 21 TEST MODE LCD DISPLAY COMPOSITION DESCRIPTION Input signal test TICKET FND & TOKEN FND : Display of input signal status INPUT TEST 1.BALL SUPPLY SENSOR 2.BALL SUPPLY SW 3.REAR HOPPER 00000000 SENSOR 4.FRONT HOPPER SENSOR 5.CONVEYER ENCODER 6.SHOT BUTTON 7.BILL SENSOR 8.COIN SENSOR INPUT TEST 1.BRIDGE FRONT SENSOR 2.BRIDGE REAR SENSOR 3.
  • Page 22 Reel test REEL TEST OFF/ON When performed, it works TEST PLAYS FND : Display of sensor status Big wheel test BIG WHEEL TEST OFF/ON When performed, it works TEST PLAYS FND : Display of sensor status Automatic sequential sound playback with select button SOUND TEST OFF/2~93 Play sound using the left and right button...

  • Page 23: Maintenance

    MAINTENANCE 1) Precautions for turning on the power. : When it is newly turned on after power is turned off, the power must be turned on after 10 seconds. 2) When installing the device : Connect the device with a ground outlet to which fg is connected. 3) Main board management.

  • Page 24: Solution

    SOLUTION ERROR CODES PAGE : Solution Page N/O of Manual AVENGERS 1P CODE ERROR NOTE PAGE E.01 BACKUP MEMORY Save data problem. Power off on E.05 SETUP LCD ERROR Setup lcd connection problem E.11 COIN ERROR Coin jam problem E.31...

  • Page 25: Troubleshooting

    TROUBLESHOOTING REEL MOTOR ERROR [E.31], REEL SENSOR ERROR [E.31] ERROR OR LOCATION ▶SOLUTION REEL MOTOR ERROR [E.31] 1 HOW TO TEST : TEST MODE → REEL TEST 2 Check connection of motor connector ( P1 ) 3 Check assembly status of motor ( P1 ) 4 Check connection of join connector and main pcb connector ( P2 ) 5 Replace MOTOR 6 Replace MAIN PCB...
  • Page 26 PUSHER MOTOR ERROR [E.41], PUSHER SENSOR ERROR [E.41] ERROR OR LOCATION ▶SOLUTION : PUSHER MOTOR ERROR [E.41] 1 HOW TO TEST TEST MODE → PUSHER MOTOR TEST→ SELECT BUTTON →SHOOTING button 2 Check if tokens, cards, balls, side token are jamming the pusher plate ( P1 ) 3 Check connection of motor connector , Check assembly status of motor ( P2,P3 ) 4 Check the dc voltage ( MAIN PCB / CN19 ) : PIN 1 : Over 11V , PIN 3 : Below 0.5V , PIN 6 : GND ,...
  • Page 27 TARGET WHEEL MOTOR & SENSOR ERROR [E.51] ERROR OR LOCATION ▶SOLUTION ※ 1 HOW TO TEST TEST MODE → WHEEL MOTOR TEST SELECT button - SHOOTING button -Sensor operation status : First digit of the PLAY FND Detected Sensor : " _ " / Non-Detected sensor : " 0 " 2 Check connection of motor connector ( P1 ) 3 Check assembly status of belt and motor ( P2 ) 4 Check the dc voltage ( MAIN PCB / CN20 )
  • Page 28 BIG WHEEL MOTOR ERROR [E.52],BIG WHEEL SENSOR ERROR [E.52] ERROR OR LOCATION ▶SOLUTION : BIG WHEEL MOTOR ERROR [E.52] 1 HOW TO TEST : TEST MODE → BIG WHEEL TEST→ SELECT Button → SHOOTING button 2 Check connection of motor connector ( p1 ) 3 Check assembly status of motor ( P2 ) 4 Check connection of join connector and motor connector ( CN17 ) ( P2,P3 ) 5 Check DIP SWITCH setting status...
  • Page 29 FRONT HOPPER MOTOR ERROR [E.61], FRONT HOPPER SENSOR ERROR [E.61] ERROR OR LOCATION ▶SOLUTION : FRONT HOPPER MOTOR ERROR [E.61] ※ 1 HOW TO TEST : TEST MODE → FRONT HOPPER TEST→ SELECT button →SHOOTING button 2 Check the jamming location Token Bridge, Pusher Plate and Conveyor ( P1 ) 3 Foreign objects inside the HOPPER,Check jamming hopper disk,Check jamming hopper rail (P2 ) 4 Check the disk rotation direction, Check connection of motor connector (P3 ) 5 Check the operation of HOPPER PCB internal LED1 (lights up during operation),...
  • Page 30 REAR HOPPER MOTOR ERROR [E.62] ERROR OR LOCATION ▶SOLUTION : REAR HOPPER MOTOR ERROR [E.62] 1 HOW TO TEST TEST MODE → REAR HOPPER TEST→ SELECT button→SHOOTING button 2 Check the jamming location Token Bridge, Pusher Plate and Conveyor ( P1 ) 3 Foreign objects inside the HOPPER,Check jamming hopper disk,Check jamming hopper rail ( P 2 ) 4 Check the disk rotation direction, Check connection of motor connector ( P ) 5 Check the operation of HOPPER PCB internal LED1 (lights up during operation),...
  • Page 31 BALL SUPPLY MOTOR ERROR [E.71],BALL SUPPLY SENSOR ERROR [E.71] ERROR OR LOCATION ▶SOLUTION :BALL SUPPLY MOTOR ERROR [E.71] 1 HOW TO TEST :TEST MODE → BALL SUPPLY TEST → SELECT button → SHOOTING button 2 Check the jamming ball supply rail ,Check for BKT jams during belt drive ( P1 ) 3 Check connection of motor connector ( P2 ) 4 Check assembly status of motor ( P3 ) 5 Check the dc voltage ( MAIN PCB / CN16 )
  • Page 32 BALL SUPPLY SWITCH ERROR [E.72] ERROR OR LOCATION ▶SOLUTION 1 HOW TO TEST :TEST MODE → BALL SUPPLY TEST →SELECT button→ SHOOTING button :Sensor operation status : Detected Sensor : " 0 " / Non-Detected sensor : " _ " 2 Check connection of switch connector and pin connector ( P1 ), SWITCH external status check ( P1 ) 3 When SWITCH is recognized, it checks whether it was pressed normally, and returns to its original state if not recognized.
  • Page 33 BALL IN SENSOR ERROR [E.73] ERROR OR LOCATION ▶SOLUTION 1 HOW TO TEST :TEST MODE → BALL IN TEST Insert the ball into the inlet and check the sensor operation status at the 4th digit of TICKET FND ( Increases sequentially according to the number of inputs ) Detected sensor : increase in number , non-detected sensor : No change in number 2 Check connection of sensor connector ( CHECK 1 ) 3 Check assembly status of sensor ( CHECK 2 )
  • Page 34 TOKEN BRIDGE MOTOR ERROR [E.81 & 82] ERROR OR LOCATION ▶SOLUTION : TOKEN BRIDGE MOTOR ERROR [E.81 & 82] 1 HOW TO TEST TEST MODE → TOKEN BRIDGE TEST→ SELECT button → SHOOTING button 2 Check internal JAM by foreign material, card, token ( P1 ) 3 Check MOTOR connector connection status ( P2 ) 4 Check assembly status ( P3 ) 5 voltage check ( MAIN PCB / CN16 ) : PIN 1 : 11V , PIN 2 : GND...
  • Page 35 ▶SOLUTION : TOKEN BRIDGE REAR SENSOR ERROR [E.82] 1 HOW TO TEST : TEST MODE → TOKEN BRIDGE TEST PLAY FND First digit sensor operation status check-Detected Sensor : " _ " / Non-Detected sensor : " 0 " 2 Check internal JAM by foreign material, card, token ( P1 ) 3 SENSOR PCB wiring connection and connector connection status check ( P2 ) 4 Check the sensor assembly status (P3 ) 5 voltage check ( SENSOR PCB )
  • Page 36 CONVEYER MOTOR ERROR [E.91],CONVEYER SENSOR ERROR [E.91] ERROR OR LOCATION ▶SOLUTION : CONVEYER MOTOR ERROR [E.91] 1 HOW TO TEST TEST MODE → CONVEYER TEST→ SELECT button→ SHOOTING button 2 Check internal JAM by TOKEN , CARD , BALL ( P 1 ) 3 TIMING BELT , MAIN BELT Check for abnormalities ( P2 ) 4 Check MOTOR connector connection status ( P3 ) 5 Check the assembly status of the equipment and check whether the parts are deformed ( P 4 )
  • Page 37 CARD DISPENSER MOTOR ERROR [E.c1],CARD DISPENSER SENSOR ERROR [E.c1] ERROR OR LOCATION ▶SOLUTION : CARD DISPENSER MOTOR ERROR [E.c1] 1 HOW TO TEST TEST MODE → CARD DISPEN TEST → SELECT button →SHOOTING button 2 Check MOTOR connector connection status ( P1 ) 3 Check assembly status ( P2 ) 4 Check operation status ( P 2 ) 5 voltage check ( CARD DISPENSER PCB / CN7 )
  • Page 38 TOKEN SUCCESS SENSOR ERROR ERROR OR LOCATION CHECK 1 CHECK 2 ▶SOLUTION ※ 1 HOW TO TEST TEST MODE → INPUT TEST Check the sensor operation status - detected: " _ " / When not detected: " 0 " 2 Check if sunlight penetrates into the sensor area ( CHECK 1 ) 3 SENSOR PCB wiring connection and connector connection status check ( CHECK 2 ) 4 Check the sensor assembly status, check the presence of foreign substances inside ( CHECK 1 ) 5 voltage check ( SENSOR PCB )

  • Page 39: Exploded View

    EXPLODED VIEW ▶ FULL DESCRIPTION - 30 -...
  • Page 40 PART NAME SPEC Q'TY PAGE BILLBOARD PART BILLBOARD CABINET SIDE DECO ACRYL - L, R PART SMPS PART MAIN BOARD PART AC INPUT PART MAIN BOARD PART BIG BALL OUTLET SENSOR PART TICKET FND PCB PART CREDIT FND PCB PART SIDE PAYOUT GUIDE L, R PART MOVING PUSHER PART BIG BALL INLET GUIDE RAIL PART...

  • Page 41: Detailed Explanation

    ▶ DETAILED EXPLANATION BILLBOARD PART PART NAME SPEC Q'TY CODE NO BILLBOARD DECO MAIN COVER-B PET 2T AAV10ACP002 BILLBOARD MAIN FRONT COVER PET 2T AAV10ACP015 BILLBOARD DECO MAIN COVER-A FORMAX 3T AAV10ACP001 LED BAR PCB ASS'Y 460 MM AZZZ0PCB124 BILLBOARD SUPT BAR-A MAV20PRO008 BILLBOARD CABINET SIDE DECO ACRYL - L, R PART PART NAME...
  • Page 42 SMPS PART PART NAME SPEC Q'TY CODE NO POWER SMPS RSP-320-12 MELE0SMP109 POWER SMPS RSP-320-24 MELE0SMP100 POWER SMPS LRS 75-12 MELE0SMP093 POWER SMPS LRS75-5 MELE0SMP094 TERMINAL BLOCK 250V 10P UL_CE MELE0TEB003 NOISE FILTER RNS-2010 MELE0NOI009 MAIN BOARD PART AC INPUT PART PART NAME SPEC Q'TY...
  • Page 43 MAIN BOARD PART PART NAME SPEC Q'TY CODE NO VOLUME PCB ASS'Y AHM20PCB016 SETUP LCD PCB ASS'Y AZZZ0PCB113 VOLUME KNOB MELE0VOL007 ROCKER SWITCH R595KDF MELE0SWI021 COUNTER AMMC-712(OA127CL) MZZZ0COU002 PUSH BUTTON SWITCH DS-412R MELE0PUS006 SETUP PANEL BKT PET COVER MSBP0ACR040 BIG BALL OUTLET SENSOR PART TICKET FND PCB PART CREDIT FND PCB PART PART NAME...
  • Page 44 SIDE PAYOUT GUIDE L, R PART PART NAME SPEC Q'TY CODE NO SIDE PAYOUT GUIDE MOLD MDCC0PLA010 MOVING PUSHER PART PART NAME SPEC Q'TY CODE NO MOVING PUSHER ROTATE GUIDE ACRYL-5T MAV20ACR010 BEARING 626ZZ MZZZ0BEA087 PHOTO-INT1(ANGLE) PCB ASS'Y ANGLE TYPE AZZZ0PCB103 MOTOR KGV-2-0350-KB3640S1...
  • Page 45 BIG BALL INLET GUIDE RAIL PART PART NAME SPEC Q'TY CODE NO BIG BALL INLET GUIDE RAIL ACRYL-C PC 3T MAV20ACR043 BIG BALL INLET GUIDE RAIL ACRYL-B PC 3T MAV20ACR042 BIG BALL INLET GUIDE RAIL ACRYL-A PC 3T MAV20ACR043 WHEEL COIN INLET RAIL PART TARGET WHEEL LIGHTING PCB PART PART NAME SPEC...
  • Page 46 BIG BALL ELEVATOR PART PART NAME SPEC Q'TY CODE NO BEARING F689ZZ MZZZ0BEA068 BIG BALL ELEVATOR BELT PVC1.4Tx50Wx954.2L MZZZ0BEL047 COUPLING CR050 AZZZ0COP002 MOTOR KGV2-0200-3657U1 MZZZ0MOT161 MICRO SWITCH CNR-05H-03 ZIPPY MELE0MIC002 PHOTO-INT1 PCB ANGLE TYPE AZZZ0PCB103 - 37 -...
  • Page 47 BIG BALL INLET GUIDE RAIL PART PART NAME SPEC Q'TY CODE NO BEARING SAPP204 MZZZ0BEA089 MOTOR KGV2-0500-3657U1_F TYPE MZZZ0MOT160 TARGET WHEEL MOTOR TIMMING BELT 148XL MSAW0ZZZ004 TARGET WHEEL PART PART NAME SPEC Q'TY CODE NO TARGET WHEEL BASE ACRYL ACRYL 5T MAV20ACR008 TARGET COVER ACRYL PC 1T...
  • Page 48 SLOT WHEEL PART PART NAME SPEC Q'TY CODE NO STEPPING MOTOR 4S56Q-08576S MZZZ0MOT167 SLOT WHEEL MOLD MAV20PLA002 NEW BONUS SPIN LED PCB ASS'Y AAV20PCB003 PHOTO INT01 PCB ASS'Y ACIR0PCB011 TARGET WHEEL DECO COVER PART PART NAME SPEC Q'TY CODE NO TARGET WHEEL LED PCB ASS'Y AAV20PCB004 TARGET WHEEL DECO COVER-A...
  • Page 49 TOKEN BRIDGE PART PART NAME SPEC Q'TY CODE NO PHOTO INT-1 PCB ASS'Y ACIR0PCB011 MOTOR KGC-0240-3448S2_24V MZZZ0MOT173 COIN SHOOTING RAIL PART TOP LED LAMP PART PART NAME SPEC Q'TY CODE NO COIN SHOOTER RAIL OUTER COVER PET 1T MAV20ACR051 LED BAR PCB ASS'Y 460 MM AZZZ0PCB124 - 40 -...
  • Page 50 MEDAL ROLLER PART * CARD VERSION ONLY PART NAME SPEC Q'TY CODE NO PHOTO INT-1 PCB ASS'Y ANGLE TYPE AZZZ0PCB103 COUPLING CR050 AZZZ0COP002 MOTOR KGV-0060-ND3657 U2 MZZZ0MOT168 BEARING F688ZZ MZZZ0BEA076 BEARING F689ZZ MZZZ0BEA068 BEARING F606ZZ MZZZ0BEA073 TIMMING BELT 194XL(Wl9.5) MZZZ0BEL054 MEDAL ROLLER CONVEYER L:538.5 x W:100 MAV20RUB001...
  • Page 51 BIG WHEEL PART PART NAME SPEC Q'TY CODE NO COUPLING JOC30 MZZZ0COP002 PHOTO INT1 PCB ASS'Y ACIR0PCB011 STEPPING MOTOR 4S56Q-P02554SG MZZZ0MOT166 GEAR HEAD K6G3C MWIC0PAR028 BIG WHEEL OUTER DECO COVER PET 1T AAV20ACP026~35 SPOT LED PCB ASS'Y ABAP90PCB008 - 42 -...
  • Page 52 BIG WHEEL WIN LED PART BONUS WIN OUTLET COVER ACRYL PART PART NAME SPEC Q'TY CODE NO LED PCB ASS'Y AMUM0PCB005 BIG WHEEL WIN LED ACRYL ACRYL 5T AAV10ACP011 AAV20ACP023, BOUNS WIN OUTLET COVER ACRYL ACRYL 5T AAV20ACP024 * 023: STONE, 024:TOKEN GAUNTLET DECO PART PART NAME SPEC...
  • Page 53 CARD DISPENSER PART * CARD VERSION ONLY PART NAME SPEC Q'TY CODE NO CARD DISPENSER DECO COVER PET 1T AAV10ACP017 CARD DISPENSER IO PCB COVER PET 1T AAV20ACP041 CARD OUTLET GUIDE BLOCK MZZZ0PLA042 CARD DISPENSER FRONT MASK MOLD MDCC0PLA009 PHOTO INT-1 PCB ASS'Y ANGLE TYPE AZZZ0PCB103 LED PCB ASS'Y...
  • Page 54 FRONT DOOR PART TICKET DOOR PART PART NAME SPEC Q'TY CODE NO LED PCB ASS'Y AMUM0PCB005 COIN SELECTOR(OPTION) TICKET BUTTON AM1PB-26SH R12D MMUM0BUT002 SPEAKER BOX - L, R PART PART NAME SPEC Q'TY CODE NO SPEAKER MID4.5+TW1/2 8OHM MZZZ0SPE021 SP BOX DECO COVER-L PET 2T AAV10ACP005 SP BOX DECO COVER-R...
  • Page 55 BUTTON PANEL PART FRONT DOOR GLASS PART PART NAME SPEC Q'TY CODE NO BUTTON ACRYL ACRYL 3T AAV20ACP007 TABLE TILT BLOCK-A ACRYL 8T MAV20ACR054 TABLE TILT BLOCK-B ACRYL 8T MAV20ACR055 BUTTON ASS'Y CL-2020 65 WITH LED AZZZ0BUT009 FRONT GLASS GLASS 5T MAV10GLA001 KEY ASS'Y 7001...

  • Page 56: Pcb Connetcor Location

    PCB CONNETCOR LOCATION pin description 1. The arrow point means the contact pin number 1. 2. direction of hirose connector MAIN PCB ASS'Y LOCATI FUNCTION CONVEYER(MEDAL ROLLER) BIG BALL & BALL IN SENSOR CN16 TOKEN BRIDGE CN15 ADDITION POWER 12V CN25 WHITE LED(MAIN CONTROL) CN12...
  • Page 57 POWER SUPPLY POWER SUPPLY POWER SUPPLY POWER SUPPLY A C A C A C A C A C A C A C A C F G F G F G F G F G F G F G F G A C A C A C A C A C A C A C A C A C A C A C A C...
  • Page 58 MAIN PCB MAIN PCB MAIN PCB MAIN PCB [CN_4] SETUP LCD & COUNTER [CN_24] MAIN POWER [CN_28] AUDIO POWER [CN_25] DC MOT POWER [CN_22] TICKET [CN_26] HOPPER POWER [CN_27] STEP POWER ( 복 제 , 배 포 및 사 용 은 물 론 , 명 시 적 허 가 없 이 는 타 인 에 게 내 용 을 전 달 할 수 없 으 며 위 반 자 는 손 해 배 상 책 임 을 집 니 다 . ) ( 복...
  • Page 59 MAIN PCB MAIN PCB MAIN PCB MAIN PCB [CN_15] [CN_19] BRIDGE BLDC 1 [CN_20] BLDC 2 [CN_18] STEP MOTOR 2 [CN_23] [CN_17] RESERVED PORT STEP MOTOR 1 ( 복 제 , 배 포 및 사 용 은 물 론 , 명 시 적 허 가 없 이 는 타 인 에 게 내 용 을 전 달 할 수 없 으 며 위 반 자 는 손 해 배 상 책 임 을 집 니 다 . ) ( 복...
  • Page 60 MAIN PCB MAIN PCB MAIN PCB MAIN PCB [CN_6] DISPLAY 1 [CN_7] DISPLAY 2 ( 복 제 , 배 포 및 사 용 은 물 론 , 명 시 적 허 가 없 이 는 타 인 에 게 내 용 을 전 달 할 수 없 으 며 위 반 자 는 손 해 배 상 책 임 을 집 니 다 . ) ( 복...
  • Page 61 MAIN PCB MAIN PCB MAIN PCB MAIN PCB [CN_21] CARD [CN_5] CONVEYER [CN_13] TILT [CN_31] SPEAKER ( 복 제 , 배 포 및 사 용 은 물 론 , 명 시 적 허 가 없 이 는 타 인 에 게 내 용 을 전 달 할 수 없 으 며 위 반 자 는 손 해 배 상 책 임 을 집 니 다 . ) ( 복...
  • Page 62 Andamiro warrants the parts from date of shipment as follows. Andamiro warrants the parts from date of shipment as follows. - One Year Limited Warranty : Electronic Boards - One Year Limited Warranty : Electronic Boards - 6 Months Limited Warranty : Moving Parts...
  • Page 63 ANDAMIRO CO., LTD. ANDAMIRO CO., LTD. TEL : 82-31-909-2123~5 [ADDRESS OFFICE] [ADDRESS OFFICE] 704-1 Techno Town, 138, Ilsan-ro, Ilsandong-gu, Goyang-si, Gyeonggi-do, Republic of Korea 10442 [FACTORY] [FACTORY] 72 Nochemgil, Ilsan-donggu Goyang-si, Gyonggi-do, 410-834 korea USA BRANCH USA BRANCH ANDAMIRO USA CORP.
