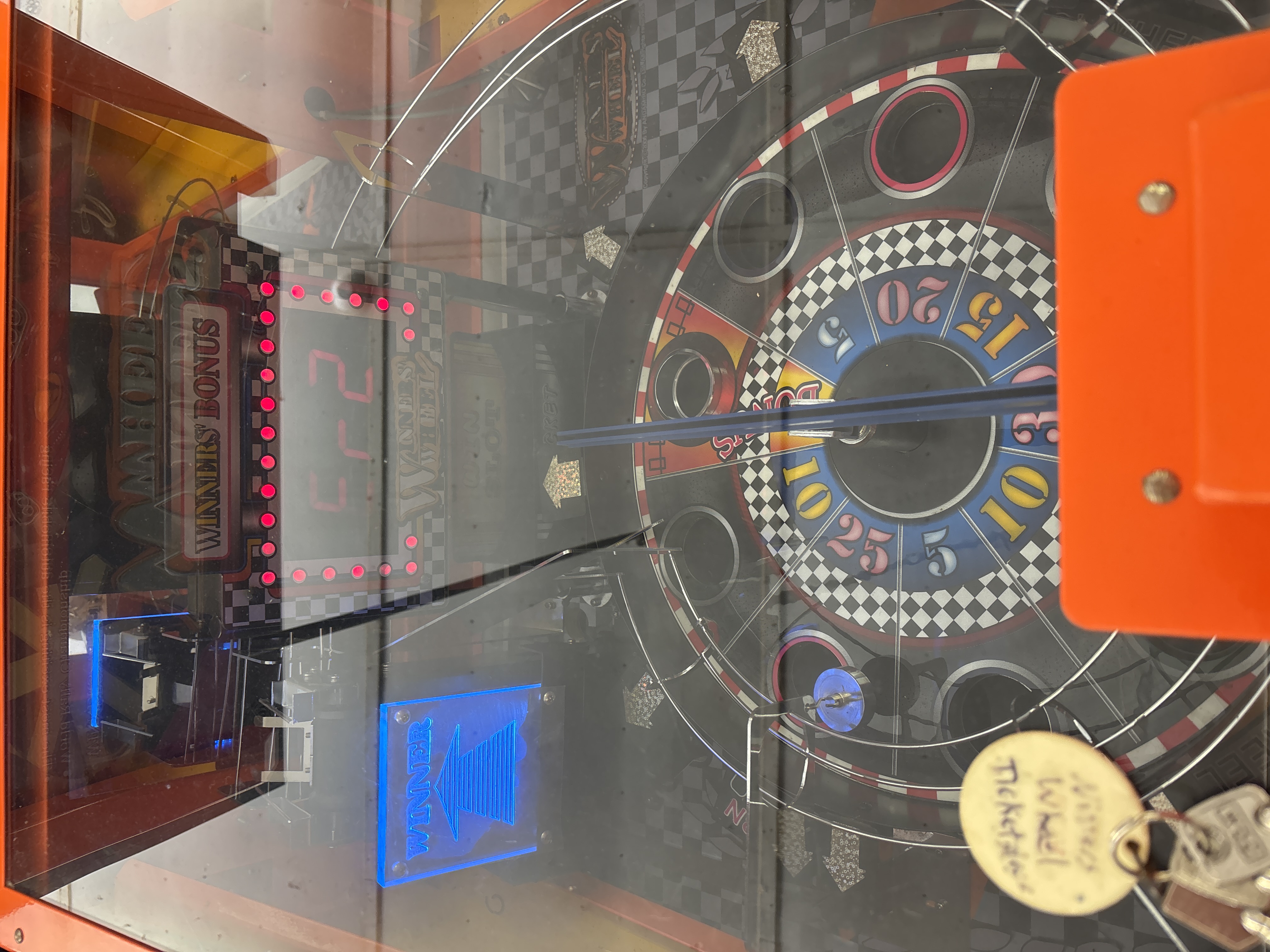

Andamiro Winners' Wheel Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

www.andamirousa.com
www.andamiro.com
www.andamirousa.com
Please read the manual carefully and keep it in mind before using
STOP
this machine.
Put this manual within touch of your reference in anytime.
ONLY
ISSUE DATE : May. 10, 2006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Winners' Wheel and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Andamiro Winners' Wheel

Summary of Contents for Andamiro Winners' Wheel

  • Page 1 Please read the manual carefully and keep it in mind before using STOP this machine. Put this manual within touch of your reference in anytime. ONLY ISSUE DATE : May. 10, 2006...

  • Page 2: Table Of Contents

    Contents 1. SPECIFICATION AND DIMENSION 1-1. DIMENSION 1-2. SPECIFICATION 2. NAME OF PARTS & STICKER LOCATION 2-1. NAME OF PARTS 2-2. STICKER LOCATION 3. COMPONENTS 4. HOW TO ASSEMBLE 5. SETUP MODE AND ERROR NO 5-1. FLOW CHART 5-2. GAME MODE 5-3.
  • Page 3 PRECAUTIONS FOR USE PRECAUTIONS FOR USE PRECAUTIONS FOR USE PRECAUTIONS FOR USE The following safety precautions are given throughout this manual. They must be strictly followed to protect those who install, use or maintain this product as well as to protect players, visitors and property.
  • Page 4 PRECAUTIONS FOR USE PRECAUTIONS FOR USE W A R N I N G C A U T I O N W A R N I N G C A U T I O N If there is any abnormality such as smoke,...

  • Page 5: Specification And Dimension

    SPECIFICATION AND DIMENSION NAME OF PARTS & STICKER LOCATION 1-1. DIMENSION 2-1. NAME OF PARTS 1-2. SPECIFICATION 2-2. STICKER LOCATION POWER RATED VOLTAGE RANGE SEE THE FRONT PAGE POWER RATED FREQUENCY RANGE 50Hz ~60Hz CONSUMPTION 200W WEIGHT 168kg...

  • Page 6: Components

    COMPONENTS HOW TO ASSEMBLE PART NAME SPEC. QUANTITY CODE NO. WRENCH AC POWER CORD FRONT DOOR KEY 7001 TOP DOOR KEY BALL BOLT BOLT M4 10L MANUAL MANUAL TRY AGAIN SHEET NUMBER 3 SHEET NUMBER 5 SHEET NUMBER 10 SHEET...

  • Page 7: Setup Mode And Error No

    SETUP MODE AND ERROR NO SETUP MODE AND ERROR NO 5-1. FLOW CHART 5-2. GAME MODE Push SW1 button to get into Setting Mode Push SW2 button to move to next mode Push SW3 button to select a mode To change the value of the right FND after selecting a mode take following steps.

  • Page 8: Error

    SETUP MODE AND ERROR NO TEST MODE - The machine moves to the TEST MODE when the machine turns on while pushing SW3 button Turn On during pushing SW1 button to get into Clear Mode - " --0" is shown on Bonus FND when the machine moves to TEST MODE...

  • Page 9: Sensor & Switch Test

    TEST MODE TROUBLESHOOTING 6-2. Sensor & Switch test 7-1. Error #01 - When a sensor or switch is checked, following numbers are shown on FND. - Test "Elevator Motor On" in Test Mode 6-1 and see if the motor does not work.

  • Page 10: Error #1

    TROUBLESHOOTING TROUBLESHOOTING 7-2. Error # 02 7-3. Error #03 - Test "Main Motor ON" in the Test Mode 6-1 and see if the motor works. - Check if the tickets are empty.

  • Page 11: Error #4

    TROUBLESHOOTING TROUBLESHOOTING 7-4. Error #4 7-5. When tickets are not dispensed after coin correctly falls into the WIN hole - Check micro switch to check coin according to #7 & 8 of Test Mode 6-2. - Check if the number of Error is "03" on Bonus FND.

  • Page 12: Assembling

    ASSEMBLING ASSEMBLING 8-1. ASSEMBLING BILLBOARD 8-2. ASSEMBLING FND PART NAME SPEC. QUANTITY CODE NO. PART NAME SPEC. QUANTITY CODE NO. BILLBOARD FIXING FRAME ASS'Y MWIW0MEP019 FND BRACKET ASS'Y MWIW0MEP018 BILLBIARD ACRYL MWIW0ACR011 FND BRACKET COVER MWIW0MEP045 BILLBOARD MWIW0ACR015 FND BRACKET PIPE HOUSING...

  • Page 13: Assembling Top Door

    ASSEMBLING ASSEMBLING 8-3. ASSEMBLING TOP DOOR 8-4. ASSEMBLING ELEVATOR PART NAME SPEC. QUANTITY CODE NO. ELEVATOR BRACKET-A ASS'Y-L MWIW0MEP016 ELEVATOR BRACKET-A ASS'Y-R MWIW0MEP016 ELEVATOR MOTOR BRACKET MWIW0MEP036 BALL LIFT BRACKET MWIW0MEP002 PART NAME SPEC. QUANTITY CODE NO. ELEVATOR BRACKET SPACE...

  • Page 14: Assembling Game Panel

    ASSEMBLING ASSEMBLING 8-5. ASSEMBLING GAME PANEL 8-5-2. ASSEMBLING GAME PANEL 8-5-1. ASSEMBLING GAME PANEL PART NAME SPEC. QUANTITY CODE NO. WHEEL MWIW0WOO003 WHEEL FLANGE BASE ASS'Y MWIW0MEP014 BASE PANEL SHOOTER ADJUSTER MWIW0MEP013 SHOOTER SUPPORT BUSHING MWIW0PRO037 WIN COIN ENTRY ASS'Y...

  • Page 15: Assembling Game Panel

    ASSEMBLING ASSEMBLING 8-5-3. ASSEMBLING GAME PANEL 8-5-4. ASSEMBLING GAME PANEL PART NAME SPEC. QUANTITY CODE NO. PART NAME SPEC. QUANTITY CODE NO. BALL OUT RAIL ASS'Y MWIW0MEP008 GAME PANEL ASS'Y GAME PANEL ASS'Y LOWER CABINET ASS'Y MWIW0WOO001...

  • Page 16: Assembling Lower Cabinet

    ASSEMBLING ASSEMBLING 8-6. ASSEMBLING LOWER CABINET 8-6-2. ASSEMBLING LOWER CABINET 8-6-1. ASSEMBLING LOWER CABINET PART NAME SPEC. QUANTITY CODE NO. PART NAME SPEC. QUANTITY CODE NO. 100-250V, POWER SMPS MELE0SMP017 AC INPUT BRACKET MWIW0MEP023 12V7V,5V8V AC JOIN PCB ASS'Y BRACKET...

  • Page 17: Assembling Upper Cabinet

    ASSEMBLING ASSEMBLING 8-7. ASSEMBLING UPPER CABINET 8-7-2. ASSEMBLING UPPER CABINET 8-7-1. ASSEMBLING UPPER CABINET PART NAME SPEC. QUANTITY CODE NO. TOP DOOR FRAME ASS'Y MWIW0MEP021 UPPER CABINET ASS'Y MWIW0MEP020 LAMP COVER BRACKET MWIW0MEP047 FRONT WINDOWS BRACKET MWIW0MEP044 UPPER REAR DOOR...

  • Page 18: Assembling Front & Side Molding

    ASSEMBLING WIRING DIAGRAM 8-8. ASSEMBLING FRONT & SIDE MOLDING PART NAME SPEC. QUANTITY CODE NO. FRONT MOLDING MWIW0ACR016 FRONT MOLDING BRACKET MWIW0MEP026 CABINET ASS'Y SIDE MOLDING MWIW0ACR017 SIDE MOLDING BRACKET MWIW0MEP027...

  • Page 19: Memo

    MEMO MEMO...
  • Page 20 MEMO...
