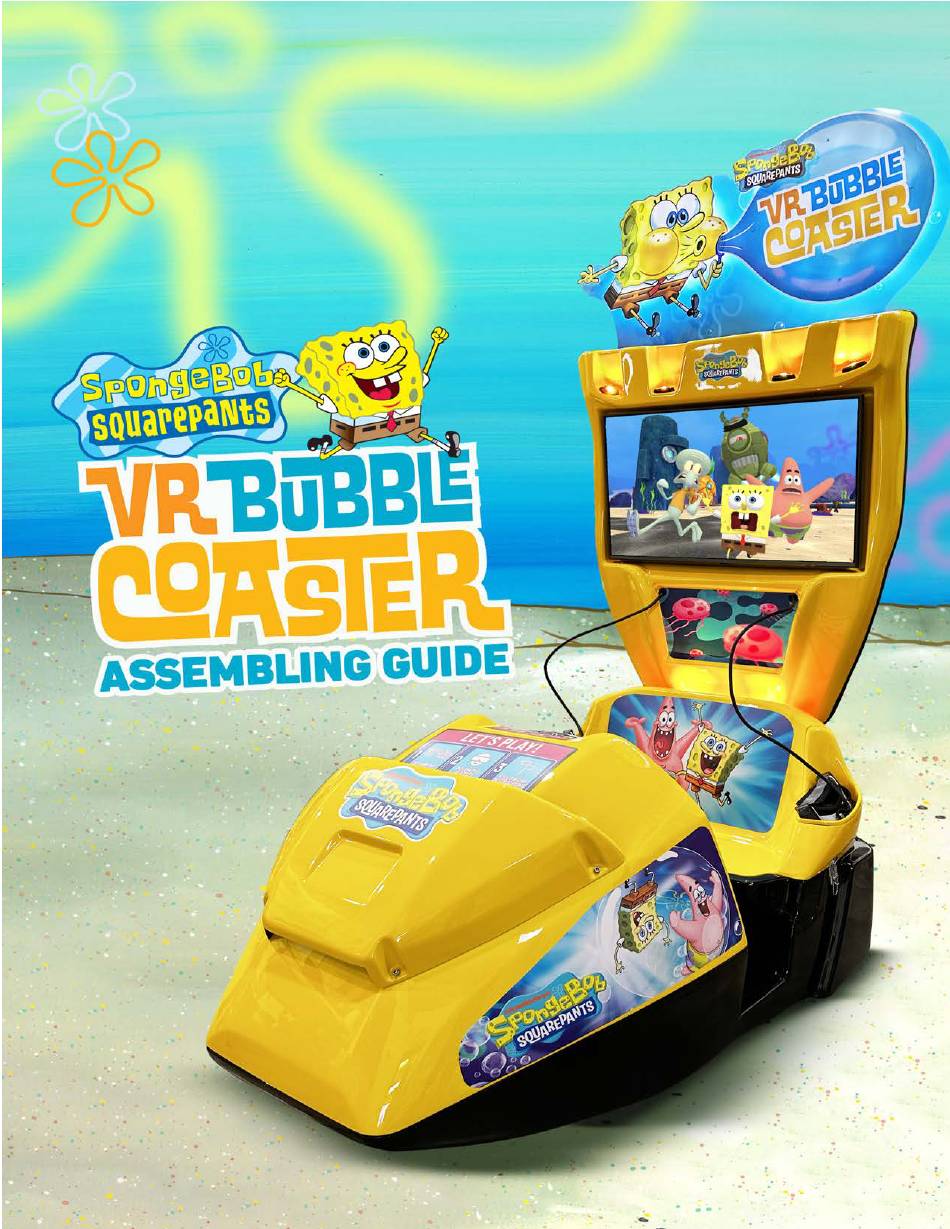

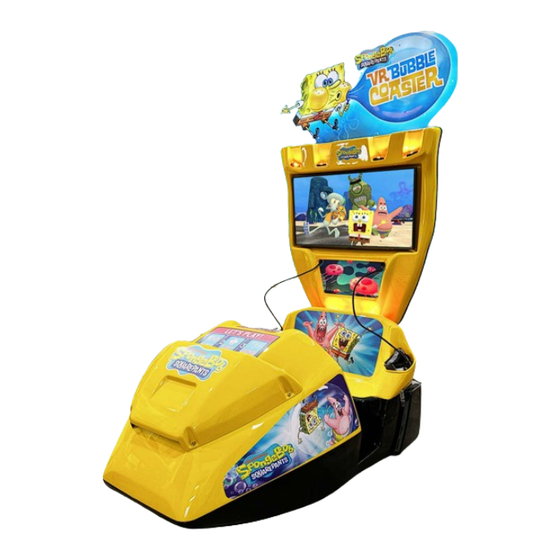

Andamiro SpongeBob Squarepants VR Bubble Coaster Assembling Manual
  1. Manuals
  2. Brands
  3. Andamiro Manuals
  4. Arcade Game Machines
  5. SpongeBob Squarepants VR Bubble Coaster
  6. Assembling manual

Andamiro SpongeBob Squarepants VR Bubble Coaster Assembling Manual

Hide thumbs
Table of Contents

Advertisement

Quick Links

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SpongeBob Squarepants VR Bubble Coaster and is the answer not in the manual?

Questions and answers

Related Manuals for Andamiro SpongeBob Squarepants VR Bubble Coaster

Summary of Contents for Andamiro SpongeBob Squarepants VR Bubble Coaster

  • Page 2: Table Of Contents

    FIRST STEPS Step 1 – Unpacking your Coaster Step 2 – Removing the support pipes Step 3 – Removing the BLACK-DISPLAY Step 4 - Installing the support pipes Step 5 – Installing the back-display on the simulator base Step 5.1 – Adjusting the Pipes Position Step 6 –...

  • Page 3: Step

    Step 20 – Closing the latches Step 21 – Locking the latches VR HEADSET INSTALLATION Step 1 – Installing the headsets Step 2 – Inserting the headset cable through the Back-display Step 3 – Grabbing the headset cable from inside the Back-display Step 4 –...

  • Page 4: First Steps

    FIRST STEPS STEP 1 – UNPACKING YOUR COASTER Remove the straps and unwrap the Rilix Coaster. Be careful when using sharp tools so as not to damage the surface of the product.

  • Page 5: Step 2 - Removing The Support Pipes

    STEP 2 – REMOVING THE SUPPORT PIPES The Back-display of the simulator is shipped disassembled, between the seat and the simulator hood. To remove the Back-display without damaging it, remove the support pipes (pictures 1 and 2) that are fitted to the rear of the simulator before removing the Back-display.

  • Page 6: Step 3 - Removing The Black-Display

    STEP 3 – REMOVING THE BLACK-DISPLAY FIGURE 1 - Two people are required to remove the Back-display. FIGURE 2 - Holding on both sides, lift the Back-display and place it on the simulator's seat. FIGURE 3 - Lift the Back-display and place it on a flat surface.

  • Page 7: Step 4 - Installing The Support Pipes

    STEP 4 - INSTALLING THE SUPPORT PIPES FIGURE 1 - With the Back-display positioned on a flat surface (such as a table, for example), insert the support pipes into the two holes at the bottom of the Back-display. Then, push each pipe firmly until it reaches the internal limiter. FIGURE 2 - Make sure the opening at the bottom of each pipe is facing forward.

  • Page 8: Step 5 - Installing The Back-Display On The Simulator Base

    STEP 5 – INSTALLING THE BACK DISPLAY ON THE SIMULATOR BASE FIGURE 1 - After installing the support pipes, two people are needed to lift the back display to a vertical position. FIGURE 2 - In a vertical position, place the back display in front of the rear of the simulator FIGURE 3 - The back of the simulator has two holes where the pipes need to be placed.

  • Page 9: Step 5.1 - Adjusting The Pipes Position

    STEP 5.1 – ADJUSTING THE PIPES POSITION After installing the support pipes, turn the pipe until the pipe’s opening is facing forward, increasing the hole where all the wires will pass through.

  • Page 10: Step 6 - Opening The Back-Display Door And Seat

    STEP 6 – OPENING THE BACK DISPLAY DOOR AND SEAT FIGURE 1 – The back display has two rear access doors for electronic components. Use the key that comes with the product and open the top door. FIGURE 2 and 3 – The simulator seat has four locking tabs.

  • Page 11: Step 7 - Inserting The Cable Through The Internal Back-Display Pipe

    STEP 7 – INSERTING THE CABLE THROUGH THE INTERNAL BACK DISPLAY PIPE FIGURE 1 – The inner part of the back display has two holes. And four cables will make the communication between the back display and the base of the simulator. FIGURE 2 - Insert the wind cable through the pipe hole on the left side, inside the back display.

  • Page 12: Step 8 - Tools Required To Attach The Wind System Cable To The Led Cables

    STEP 8 – TOOLS REQUIRED TO ATTACH THE WIND SYSTEM CABLE TO THE LED CABLES The LED cables are located under the seat. They need to be pulled up through the back display pipe to reach the connectors situated with the central computer parts. Therefore, it would help if you used the sound system cable to “hook”...

  • Page 13: Step 9 - Tying Up The Led Cables To The Sound System Cable

    STEP 9 – TYING UP THE LED CABLES TO THE SOUND SYSTEM CABLE FIGURE 1 – With the zip tie, tie both wires together. FIGURE 2 - Ensure both cables are securely tied down before pulling the wind system cable. FIGURE 3 - On the back of the back display, pull the wind cable through the pipe so that the LED cables come together.

  • Page 14: Step 10 - Cutting The Zip Tie

    STEP 10 – CUTTING THE ZIP TIE To connect the LED cables to the power, cut the zip tie to release both wires.

  • Page 15: Step 11 - Connecting The Led Cables To The Power

    STEP 11 – CONNECTING THE LED CABLES TO THE POWER FIGURE 1 – The connectors for the LED cables are located on the right side of the back display, usually inside a black cable organizer. Connect both LED cables and screw the lockers to secure the connection.

  • Page 16: Step 12 - Inserting The Cable Through The Internal Back-Display Pipe

    STEP 12 – INSERTING THE CABLE THROUGH THE INTERNAL BACK DISPLAY PIPE FIGURE 1 - Now that the LED cables are connected and ready, it's time to re-insert the sound system cable into the pipe inside the back display. FIGURE 2 - Push the wind system cable through the left inner pipe until the cable reaches the base.

  • Page 17: Step 13 - Pulling The Wind System Cable To The Base Connector

    STEP 13 – PULLING THE WIND SYSTEM CABLE TO THE BASE CONNECTOR Once the cable comes out of the pipe at the bottom, pull until all the cable length is available.

  • Page 18: Step 14 - Connecting The Wind System Cable

    STEP 14 – CONNECTING THE WIND SYSTEM CABLE There are four connectors available, each with a specific number of pins. Each cable will connect to only one connector; the wind system cable has a two-pin connector. Check the pin number of each connector before connecting each cable. Once you have identified the correct connector, connect the cable, and screw the lock by turning it clockwise.

  • Page 19: Step 15 - Connecting The Payment System Cable

    STEP 15 – CONNECTING THE PAYMENT SYSTEM CABLE Repeat steps 12, 13, and with the payment system cable. The payment system cable (for both swipers) has a connector with five pins.

  • Page 20: Step 16 - Inserting The Power Cable Through The Internal Back-Display Pipe

    STEP 16 – INSERTING THE POWER CABLE THROUGH THE INTERNAL BACK DISPLAY PIPE Insert the power cable through the pipe hole located on the left side, inside the back display.

  • Page 21: Step 17 - Connecting The Power Cable To The Power Outlet

    STEP 17 – CONNECTING THE POWER CABLE TO THE POWER OUTLET As soon as the power cable reaches the bottom of the base, pull it until all the cable length is available. Next, please choose one of the holes available on the bottom of the floor and push it through so the power cable can reach outside of the machine.

  • Page 22: Step 18 - Connecting The Sound Cable To The Base

    STEP 18 – CONNECTING THE SOUND CABLE TO THE BASE Follow the same method used to connect the wind system cable and payment system cable to connect the sound cable. The sound cable has two connectors, one with three pins and one with four pins.

  • Page 23: Step 19 - Closing The Seat

    STEP 19 – CLOSING THE SEAT After having all four cables connected, and the power cable set up, the bottom of the seat is ready. Next, close the seat by moving the seat from the front to the back, ensuring that the seat is well-aligned with the base.

  • Page 24: Step 20 - Closing The Latches

    STEP 20 – CLOSING THE LATCHES To secure the seat to the base, close all four latches.

  • Page 25: Step 21 - Locking The Latches

    STEP 21 – LOCKING THE LATCHES The seat latches can be locked to avoid customers opening the seat. The keys from the latches are available with the main keychain that goes with the Rilix Coaster.

  • Page 26: Vr Headset Installation

    VR HEADSET INSTALLATION STEP 1 – INSTALLING THE HEADSETS To install each headset, first secure the device by placing it on the goggle holder located at each side of the seat.

  • Page 27: Step 2 - Inserting The Headset Cable Through The Back-Display

    STEP 2 – INSERTING THE HEADSET CABLE THROUGH THE BACK DISPLAY FIGURE 1 – Insert the USB cable into the grommet. FIGURE 2 – Continue pushing the USB cable until you reach the hook. FIGURE 3 and 4 – Insert the hook into the grommet.

  • Page 28: Step 3 - Grabbing The Headset Cable From Inside The Back-Display

    STEP 3 – GRABBING THE HEADSET CABLE FROM INSIDE THE BACK DISPLAY As soon as both the USB cable and hook are inside the back display, grab the cable to connect it to the computer and secure the headset to the machine.

  • Page 29: Step 4 - Attaching The Headset To The Back-Display

    STEP 4 – ATTACHING THE HEADSET TO THE BACK DISPLAY FIGURE 1, 2, and 3 – Attach the hook to the back display by snapping it to the attached hanger. FIGURE 4 – The picture shows the hook well attached to the hanger.

  • Page 30: Step 5 - Connecting The Usb Cable To The Computer

    STEP 5 – CONNECTING THE USB CABLE TO THE COMPUTER FIGURE 1 and 2 - Connect the first headset’s USB cable to the USB HUB. FIGURE 3 and 4 - Connect the second headset’s USB cable to the computer USB port (preferably to the orange USB port).

  • Page 31: Step 6 - Turning The Headset On

    STEP 6 – TURNING THE HEADSET ON Using a small tool (like a key or a small screwdriver), press the power button for three seconds. The button is located on top of the headset, under the metal frame.

  • Page 32: Step 7 - Turning The Simulator On (Internal Button)

    STEP 7 – TURNING THE SIMULATOR ON (INTERNAL BUTTON) Switch the power button located on the power strip inside the back display compartment.

  • Page 33: Step 8 - Closing The Back-Display Door

    STEP 8 – CLOSING THE BACK DISPLAY DOOR After having the system on, close the door using the set of keys that comes with the Rilix Coaster.

  • Page 34: Connecting The Rilix Coaster To The Internet

    CONNECTING THE RILIX COASTER TO THE INTERNET STEP 1 Grab the Rilix Coaster keyboard (included) and turn it on by switching to the left...
  • Page 35 STEP 2 To reach the Coaster’s desktop and close the game, press the keys Fn + Alt +...
  • Page 36 STEP 3 On the desktop, look for two up/down arrows on top right corner of your screen; it’s the WIFI icon:...
  • Page 37 STEP 4 Double click to open the WIFI icon, and look for the WIFI of your preference: After finding your WIFI network, double click to open, like the example:...
  • Page 38 STEP 5 Type your password (if required): After typing your password, click on connect:...
  • Page 39 STEP 6 After successfully connecting the Rilix Coaster to the WIFI, the two arrows Icon will turn to a regular WIFI icon, as follows the example below:...

  • Page 40: Adjusting The Volume

    ADJUSTING THE VOLUME You can adjust the Rilix Coaster volume using the keyboard. Turn on the keyboard and then use the buttons displayed below to increase, decrease the volume: VOLUME DOWN VOLUME UP MUTE...

  • Page 41: Contact Info

    If you need help with any of the steps in this manual, you can contact Rilix at the following numbers: (407) 227 2435 (772) 874-3311 To contact Andamiro USA, please email sales@andamirousa.com service@andamirousa.com. SpongeBob VR Bubble Coaster is manufactured by Rilix and marketed and sold by...
