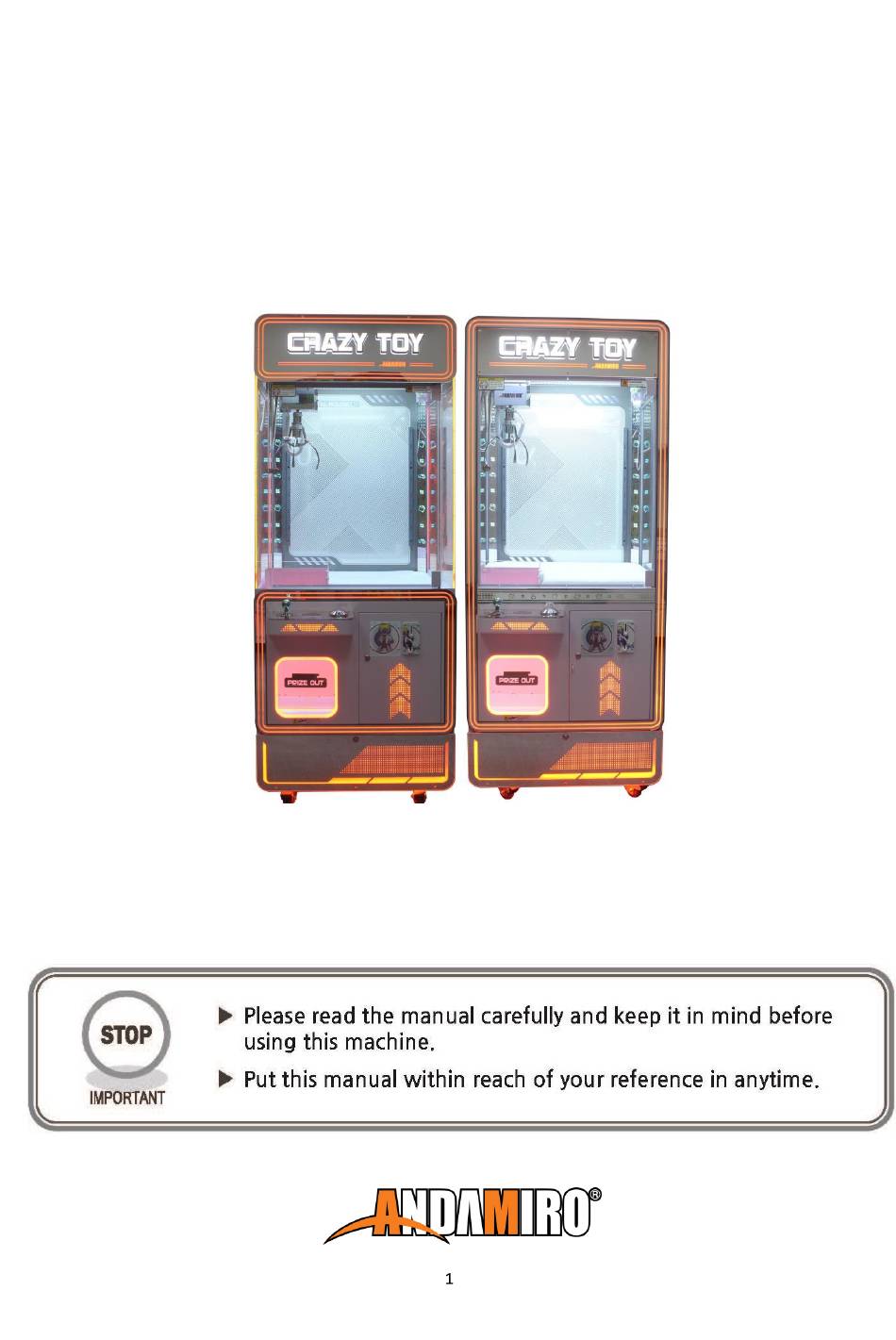

  • Page 1 CRAZY TOY...
  • Page 10 When you go to the installation location 1. Turn off the power switch. 2. Unplug the power cord. 3. Release the caster stoppers at the front two locations of the cabinet. 4. Slowly move this product to the location where you want to install it. 5.
  • Page 11 The following is a detailed introduction to the functions and Base setting of each Options 1. Basic Setting :Move the joystick &press the button to Enter the next Menu. 1) Demo Music Demo music setting parameter range : OFF, 0-30 minutes default setting: 1 Min.
  • Page 12 3) Crane Middle Optional [ON] or [OFF] Default setting: OFF Option function: When the machine is in a playable state, the claws will automatically move to the middle position. 4) Coin Keep Optional [ON] or [OFF] Default setting : ON Option function : Even if the product is reset or the power is turned on or off, the number of coins entered is remained.
  • Page 13 6) Free Play Mode Optional [YES] or [NO] Default setting: NO Option function: You can continue to play games without entering credit. 7) FR Prize Exit Optional [Front] or [Rear] Default setting : Front Option function : Sets whether the gift outlet is in front or behind. ※...
  • Page 14 9) Music Select : Background music can be specified Optional Range 1 ~ 3 Default setting : 1 Option function : There are three types of background music settings available. 2. Func Setting(Function Setting) :Move the joystick &Press the button to confirm and enter the next level menu.
  • Page 15 2) Bill & Play Parameter range: 1-99 Bills per game/1-9 plays per Bill default setting: 1Bill per 1 Play Option function : You can set the number of plays per bill. 3) Game Time Parameter range: 1-60 seconds default setting : 30 seconds Option function : You can set the game play time.
  • Page 16 4-3) Vending Mode : You have to put in the set number of coins at once to continue the game and you can play until the prize is released. (You can set the number of challenge.) 5) Payout Setting Option function : You can set the payout. 5-1) Payout.
  • Page 17 YES : Keep pushing until chance control. (SKILL game is possible until success) NO : Even if you fail after playing the SKILL game, you will proceed with chance control. (You can take the Payout low) ※ Only applied in Fixed Mode and Random Mode. 5-3) Vending Set (Vending Challenge) Option function :you can set the number of challenges of Vending Mode.
  • Page 18 5-4-2)Random Prize Parameter range : OFF/ 1st to 200th play (1 ~ 200 play) default setting : OFF Option function : Regardless of the chance, you can play SKILL games without controlling the chance at Regular intervals. Available on Under Pay. Example: If the parameter range is 25, you can play Skill Game without chance control every 25 times.
  • Page 19 6-2-1) Strong Grab (Strong claw force setting) Parameter range: 0-48V default setting: 40V Option function :Sets the force (voltage) of the claw to grab the prize. 6-2-2) Middle Grab(Middle claw force setting) Parameter range: 0-48V default setting: 13V Option function : Sets the force (voltage) for the claw to grab and raise the prize. Sets the voltage when the prize falls naturally.
  • Page 20 6-2-4) Winning Grab(Winning claw force setting) Parameter range : 0-48V default setting : 46V Option function : Sets the force (voltage) on success. 6-2-5) Weak Time(Weak Claw Force Time) Parameter range: 0-1.5 Seconds default setting: 0.3 seconds Option function :Time for claw to grab and raise prizes and maintain the Weak voltage on the move. Match the time the prize falls.
  • Page 21 Doll Item Note Strength Voltage specifications Strong 5~7 inch gif The voltage of grasping with claws Strong Grab The voltage at which the claw reaches Middle 5~7 inch gif its highest point after grabbing an obj Middle Grab Weak The voltage to return to the origin aft 5~7 inch gif Weak Grab...
  • Page 22 8-1) FR Motor (Front and rear motors) Speed range for claw movement: 1-10 default setting: 4 Option function :Adjust the front and back movement speed of the claw. 8-2)LR Motor(Left and right motors) Speed range for claw left and right movement: 1-10 default setting: 4 Option function: Adjust the left and right movement speed of the claw.
  • Page 23 ※ All motor speeds can be selected from 1-10, and the larger the number, the faster the crane moves 9) Fixed Drop ※ Set where the prize falls in case of failure ※ The coordinates are set based on the motor's movement time, so if the motor speed is changed, the Limited Drop must also be modified.
  • Page 24 1) Aging test( Factory aging test mode) : press the button to confirm, Immediately test automatically and display the number of test cycles. Move the claw to the front left => front right => center and raise it to the rear and repeat it indefinitely until the button is pressed.
  • Page 25 4) Coin & Bill test : used to test whether the coin& Bill dispenser is working properly. After the test is completed, you can press the button to exit this item. 5) Button test: used to test whether the keys are normal. After the test is completed, you can press the button for a long time to exit this item.
  • Page 26 8) Sensor test: test whether the gift sensor is normal. After the test is completed, you can press the button to exit this item. The number goes up one by one when the outlet sensor is recognized. 4. Bookkeeping : Press the button to confirm entering the next menu level 1) Data 1-1) Total Data : total number of coins inserted and total number of awards.
  • Page 27 1-2) Current Data : The current number of coins inserted and the current number of awards dispensed 1-3) Overview(Probability settlement): The probability settlement of the current award. Indicates the number of prize out compared to the number of input coins. 2) Clear Data Optional [YES] or [NO] Default : NO...
  • Page 28 ※ After using this function, all parameters will be restored to their default values. Please reset them to the required values according to actual needs. ※ The manually entered portion of the data must be reset, otherwise it may be over payout. ※...
  • Page 29 Maintenance and repair Even products that work normally can cause abnormalities if used for a long time. Please conduct daily maintenance checks on the following items so that the product can be used for a long time. Check that the screws holding the unit or part are not loosened or pulled out. ◇...
  • Page 30 Error code and how to solve it Error code Description Problem) DOWN_LIMIT_SW is ON and does not change. Failure of one of the following Error 01 Up/Down Motor Power Harness Problem) There is no change with the prize sensor on. Make sure the prize isn't blocked.
  • Page 31 Error code Description Problem) There is no change with BACK_LIMIT_SW on. Failure of one of the following ① BACK LIMIT SWITCH Error 09 ② Front/Back Motor ③ MAIN PCB ④ Power Problem) Error saving parameter backup Error 10 MAIN PCB defect if the problem is repeated Problem) Error reading parameters Error 11...
  • Page 32 Replacement of key parts 1) CLAW Step 1] Power off the product. Step 2]Remove the screws 〇 (3 places) on the ARM Ass’y. Step 3]Remove the CLAW. Step 4]After replacing with a new CLAW, tighten and secure the +screw (3 positions) in the reverse order of [Step1].
  • Page 33 4) String Step 1]Power off the cabinet. Step 2] Loosen the fixing screws (4 places) on the metal cover of the arm Ass’y and remove the metal cover. Step 3] Loosen the screws (3 EA ) securing the arm cap, and remove the CLAW. Step 4] Cut the knot of the old string and separate the arm cap.
  • Page 34 5) How to connect button panel 1 hand bolt and 3 normal bolts are used. 6) How to adjust sensor If the sensor error continues, reduce the amount of sensor light by turning the volume counterclockwise as shown in Picture 1. If the prize is not recognized, turn the volume clockwise to increase the amount of sensor light.
  • Page 35 [The position of Sensor volume] [Step 2] [Step 4]...
  • Page 36 Wiring diagram...
  • Page 38 Crazy Toy AS Part List & Code Number Code Name Part Name Specification MCRA0PAR001 CRANE WIRE MODEL 700 MCRA0PAR002 CRANE GEAR MODEL 700 MCRA0PAR003 MICRO SWITCH MODEL 700 MCRA0PAR004 FUSE 125V /10A 6 * 30 MCRA0PAR005 KEY MODEL 006 For Door...
