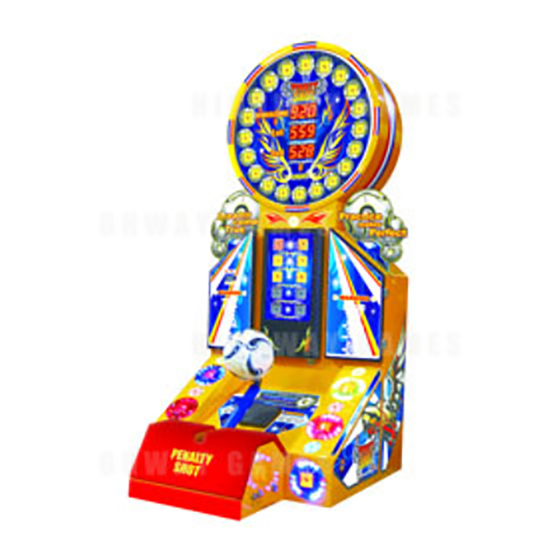

SHOOTING CHANCE
FOOTBALL GAME MENUAL
PLEASE READ THE MANUAL CAREFULLY AND KEEP IT IN MIND BEFORE USING
STOP
THIS MACHINE
PUT THIS MANUAL WITHIN TOUCH OF YOUR REFERENCE IN ANYTIME.
IMPORTANT
ENTERTAINMENT

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the SHOOTING CHANCE and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Andamiro SHOOTING CHANCE

Summary of Contents for Andamiro SHOOTING CHANCE

  • Page 1 SHOOTING CHANCE FOOTBALL GAME MENUAL PLEASE READ THE MANUAL CAREFULLY AND KEEP IT IN MIND BEFORE USING STOP THIS MACHINE PUT THIS MANUAL WITHIN TOUCH OF YOUR REFERENCE IN ANYTIME. IMPORTANT ENTERTAINMENT...

  • Page 2: Table Of Contents

    TABLE OF CONTENTS 1. PRECAUTIONS a . Precautions before Installation. b. Product Assembly Precautions. c. Moving & Handling Precautions. d. Management after installation. e. Precautions during operation. 2. PRODUCT SPECIFICATION 3. TYPES OF PCBS & CIRCUIT DIAGRAMS a Main PCB. b.

  • Page 3: Precautions

    1. PRECAUTIONS A. PRECAUTIONS BEFORE INSTALLATION ■ Please make sure the power voltage & frequency requirements are compatible with the product installation location. (A fire or electric shock can be caused if the proper voltage & frequency are not used.) B.

  • Page 4: Management After Installation

    1. PRECAUTIONS D. MANAGEMENT AFTER INSTALLATION ■ Please note that using balls other than Genuine Andamiro Soccer ball may cause damage to Shooting Chance. E. PRECAUTIONS DURING OPERATION ■ Excessive actions may cause injury. ■ Do not drink and play.

  • Page 5: Product Specification

    2. PRODUCT SPECIFICATION ■ Power Voltage(AC) : 110V/220V compatible ■ Power consumption : 800W ■ Product Size(mm) & Weight(kg) Size: 900(width) x 1,100(depth) x 1,980(height), Weight: 160kg...

  • Page 6: Types Of Pcbs & Circuit Diagrams

    3. TYPES OF PCBS & CIRCUIT DIAGRAMS A. MAIN PCB B. POWER PCB C. FND PCB D. LED LAMPS...

  • Page 7: Pcb Circuit Diagrams

    3. TYPES OF PCBS & CIRCUIT DIAGRAMS E. PCB Circuit Diagrams...

  • Page 8: Game Mode Setting

    4. GAME MODE SETTING SHOOTING CHANCE...DIP SWITCH #1 1 COIN / 1 CREDIT 1 COIN / 2 CREDIT 2 COIN / 1CREDIT 2 COIN / 2 CREDIT 2 COIN / 3 CREDIT 3 COIN / 1 CREDIT 3 COIN / 2 CREDIT...

  • Page 9: Parts List

    5. PART LIST PART QUANTITY SHOOTING CHANCE... MAIN PCB POWER PCB FND PCB Soccer Ball Soccer Ball Poll Bearing 206 1EA/1EA Location Sensor / Speed Indication Sensor Rectangular LED 36EA Urethane Safety Cover (3 types) Spring (Large / Small) 1EA/1EA...

  • Page 10: Product Assembly Instruction

    6. PRODUCT ASSEMBLY INSTRUCTION A. CONNECTING THE FRONT CABINET & MAIN CABINET 1. Connect the cable sockets (Solenoid, Location Sensor, and LED) between the Kick Console & Main Console. 2. Connect and fix the Kick Console & Main Console by using 8mm bolts (14 in total).
  • Page 11 6. PRODUCT ASSEMBLY INSTRUCTION B. CONNECTING THE TOP CIRCLE BOARD & MAIN CONSOLE 1. Connect the cables (total 4) from the main cabinet to the FND PCB of the Top Circle Board. 2. Connect the cables (total 2) from the main cabinet to the LED Lamp Sockets as picture shown.
  • Page 12 6. PRODUCT ASSEMBLY INSTRUCTION C. COMPLETE ASSEMBLY LOOK -11-...

  • Page 13: How To Change The Ball

    7. A/S A. HOW TO CHANGE THE BALL 1. Remove the 8mm bolts (total 5) from the ball connector by using 13mm wrench. 2. Remove the Ball. 3. Replace a new ball to the origin. 4. Tie the bolts. Tip▶to use the ball for a longer period of time, re-locate the ball clock-wise constantly depends on the ball condition.

  • Page 14: How To Change The Ball Poll

    7. A/S B. HOW TO CHANGE THE BALL POLL 1. Remove the bolt (10mm) from the ball connecting assembly by using 17mm wrench. 2. Remove the ball poll carefully from the ball connecting assembly. ** Please follow the Reverse-order to replace the new ball poll. -13-...

  • Page 15: In Case When The Ball Tension Is Too Loose Or Too Tight

    7. A/S C. IN CASE WHEN THE BALL TENSION IS TOO LOOSE OR TOO TIGHT… BACKWORD FORWORD 1. If the ball tension is too loose, move the tension control one level BACKWORD to make the tension TIGHT. 2. If the ball tension is too tight, move the tension control one level FORWORD to make the tension LOOSE.

  • Page 16: In Case When The Machine Does Not Recognize The Score

    7. A/S D. IN CASE WHEN THE MACHINE DOES NOT RECOGNIZE THE SCORE… SENSOR ▶Change the sensor bracket by removing 2 bolts shown in the picture above. -15-...

  • Page 17: How To Install The Safety Hitting Cover

    7. A/S E. HOW TO INSTALL THE SAFETY HITTING COVER 1. Place the bottom of the cover first then fit the upper part of the cover. 2. Use the 4mm round head bolts (total 14) for the both sides, use 6mm hex washer (total 4) for the top side. -16-...
  • Page 18 COOPERATED PARTNER : PURSE ONE ENTERTAINMENT ANDAMIRO CO.LTD (ANDAMIRO KOREA) 615-5 Changhang-Dong, llsan-Gu, Koyang-Si, 410-380 Kyonggl, Korea Tel. 82-31-909-2100 / Fax. 82-31-908-7548 / email. info@andamiro.com...
